Digital Modulation Constellation Diagram — Makie.jl

An I/Q (In-phase/Quadrature) scatter plot showing symbol positions of a digitally modulated signal. Ideal constellation points are displayed as reference markers with received symbols scattered around them, revealing modulation quality and signal impairments such as noise, phase offset, and amplitude distortion. This plot is the standard diagnostic tool for evaluating digital modulation schemes like 16-QAM.

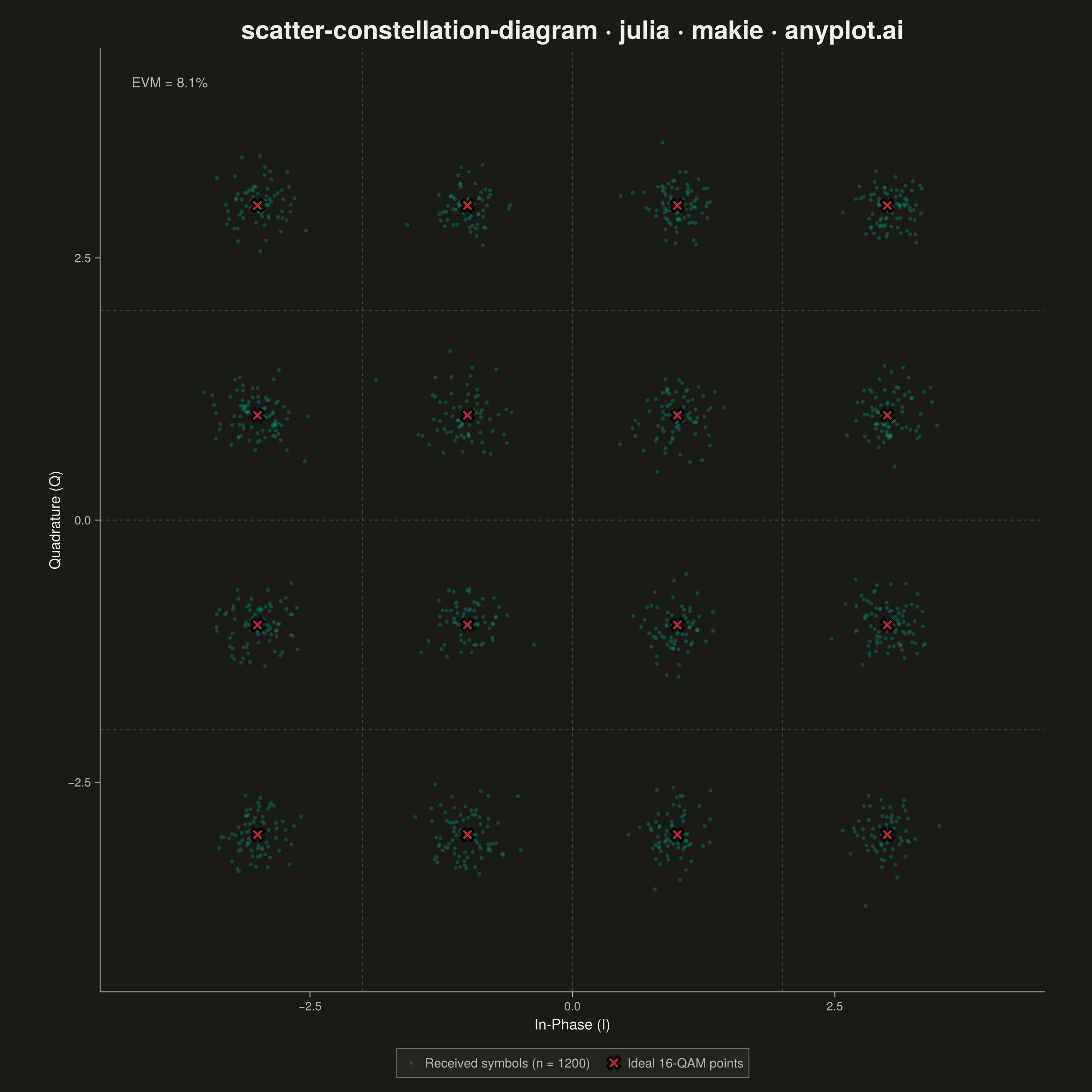

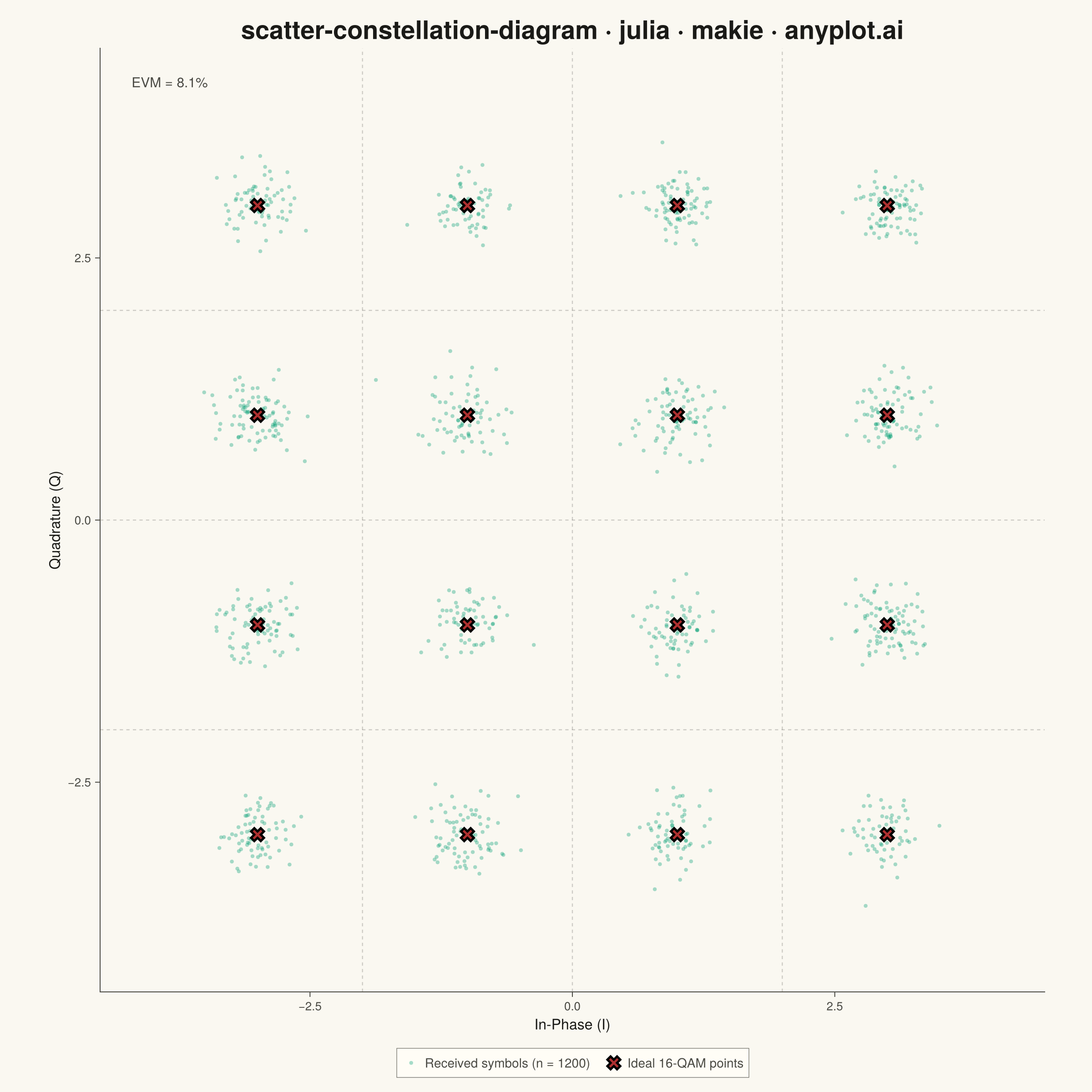

Digital Modulation Constellation Diagram rendered with Makie.jl

Julia source (Makie.jl)

# anyplot.ai
# scatter-constellation-diagram: Digital Modulation Constellation Diagram
# Library: makie 0.22.10 | Julia 1.11.9
# Quality: 88/100 | Created: 2026-06-18

using CairoMakie
using Colors
using Printf
using Random
using Statistics

Random.seed!(42)

# Theme tokens
const THEME       = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG     = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK         = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT    = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
    colorant"#009E73",  # 1 — brand green (first series)
    colorant"#C475FD",  # 2 — lavender
    colorant"#4467A3",  # 3 — blue
    colorant"#BD8233",  # 4 — ochre
    colorant"#AE3030",  # 5 — matte red (semantic: reference target)
    colorant"#2ABCCD",  # 6 — cyan
    colorant"#954477",  # 7 — rose
    colorant"#99B314",  # 8 — lime
]

# 16-QAM ideal constellation: ±1, ±3 grid (4×4 = 16 symbols)
levels = [-3.0, -1.0, 1.0, 3.0]
ideal_i = [ii for qi in levels for ii in levels]
ideal_q = [qi for qi in levels for ii in levels]

# Received symbols with additive Gaussian noise (~20 dB SNR)
n_symbols = 1200
noise_std = 0.18
symbol_idx = rand(1:16, n_symbols)
recv_i = ideal_i[symbol_idx] .+ noise_std .* randn(n_symbols)
recv_q = ideal_q[symbol_idx] .+ noise_std .* randn(n_symbols)

# EVM: sqrt(mean squared error) / RMS ideal amplitude × 100%
err_sq = (recv_i .- ideal_i[symbol_idx]).^2 .+ (recv_q .- ideal_q[symbol_idx]).^2
rms_signal = sqrt(mean(ideal_i.^2 .+ ideal_q.^2))
evm_pct = sqrt(mean(err_sq)) / rms_signal * 100.0

# Figure — square canvas (equal aspect ratio required for constellation geometry)
fig = Figure(
    size            = (1200, 1200),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

title_str = "scatter-constellation-diagram · julia · makie · anyplot.ai"
ax = Axis(
    fig[1, 1];
    title              = title_str,
    titlesize          = 28,
    titlecolor         = INK,
    xlabel             = "In-Phase (I)",
    ylabel             = "Quadrature (Q)",
    xlabelsize         = 16,
    ylabelsize         = 16,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xticklabelsize     = 13,
    yticklabelsize     = 13,
    xtickcolor         = INK_SOFT,
    ytickcolor         = INK_SOFT,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridvisible       = false,
    ygridvisible       = false,
    xminorgridvisible  = false,
    yminorgridvisible  = false,
    aspect             = DataAspect(),
    limits             = (-4.5, 4.5, -4.5, 4.5),
)

# Dashed decision boundary lines separating the 16 symbol regions
boundary_color = RGBAf(INK.r, INK.g, INK.b, 0.2f0)
for boundary in [-2.0, 0.0, 2.0]
    hlines!(ax, boundary; color = boundary_color, linewidth = 1.2, linestyle = :dash)
    vlines!(ax, boundary; color = boundary_color, linewidth = 1.2, linestyle = :dash)
end

# Received symbols — Imprint brand green (first series), semi-transparent
recv_plt = scatter!(ax, recv_i, recv_q;
    color       = RGBAf(IMPRINT_PALETTE[1].r, IMPRINT_PALETTE[1].g, IMPRINT_PALETTE[1].b, 0.35f0),
    markersize  = 6,
    strokewidth = 0,
)

# Ideal 16-QAM reference points — matte red cross markers
ideal_plt = scatter!(ax, ideal_i, ideal_q;
    color       = IMPRINT_PALETTE[5],
    marker      = :xcross,
    markersize  = 20,
    strokewidth = 2.5,
)

# EVM annotation (top-left, clear of constellation data)
text!(ax, -4.2, 4.1;
    text     = @sprintf("EVM = %.1f%%", evm_pct),
    fontsize = 15,
    color    = INK_SOFT,
)

# Legend
Legend(
    fig[2, 1],
    [recv_plt, ideal_plt],
    ["Received symbols (n = $n_symbols)", "Ideal 16-QAM points"],
    orientation     = :horizontal,
    framecolor      = INK_SOFT,
    framewidth      = 0.5,
    labelcolor      = INK_SOFT,
    fontsize        = 14,
    backgroundcolor = ELEVATED_BG,
    tellheight      = true,
)

save("plot-$(THEME).png", fig; px_per_unit = 2)

Part of Digital Modulation Constellation Diagram on anyplot.ai.
