Scatter Plot with Text Labels Instead of Points — Apache ECharts

A scatter plot where data points are represented by text labels instead of markers. Each label is positioned at its corresponding coordinates, making the text itself the visual element. This visualization is particularly useful for displaying named entities in 2D space, such as word embeddings, dimensionality reduction outputs, or any scenario where identifying individual items by name is more important than seeing their relative density.

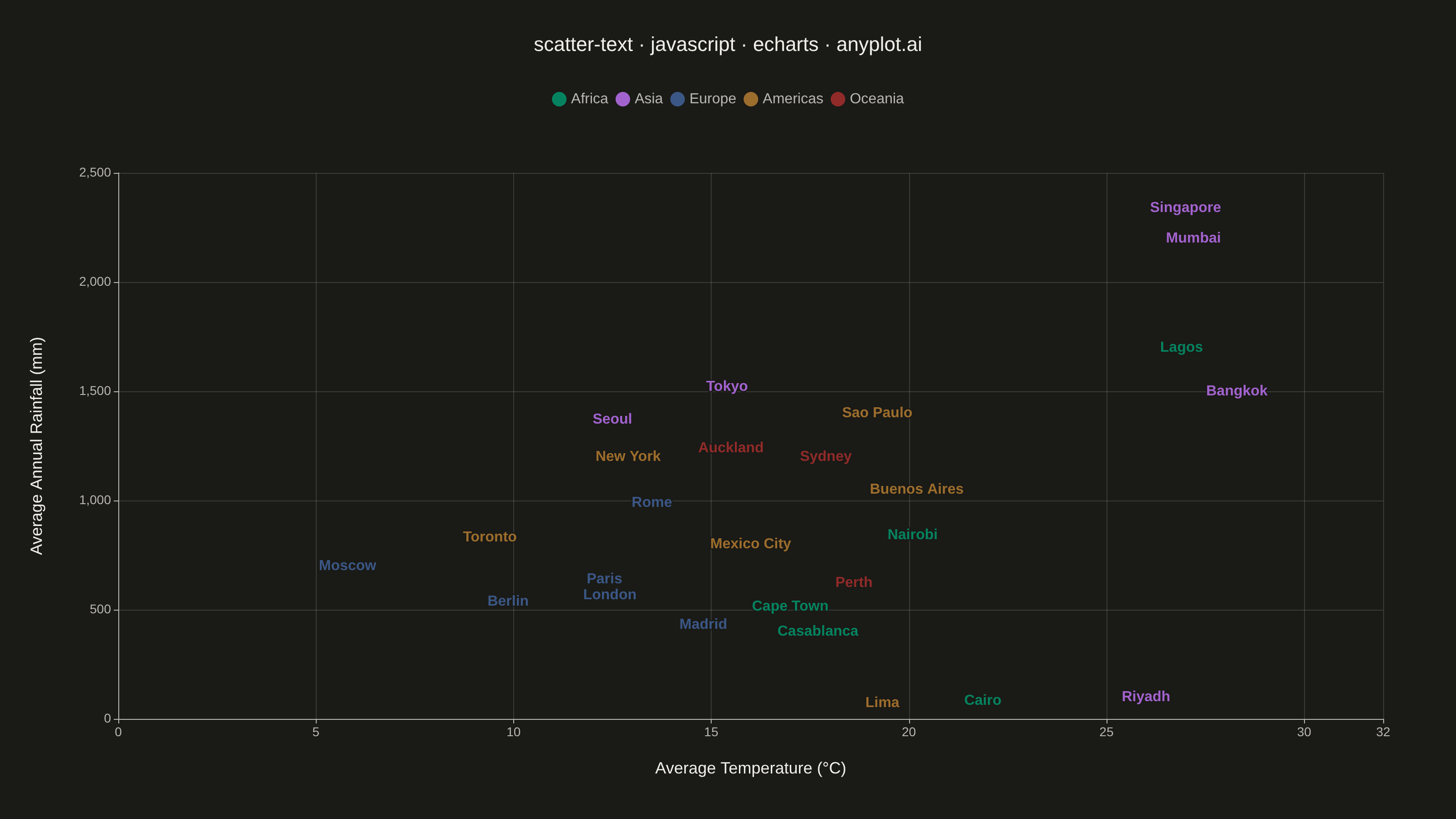

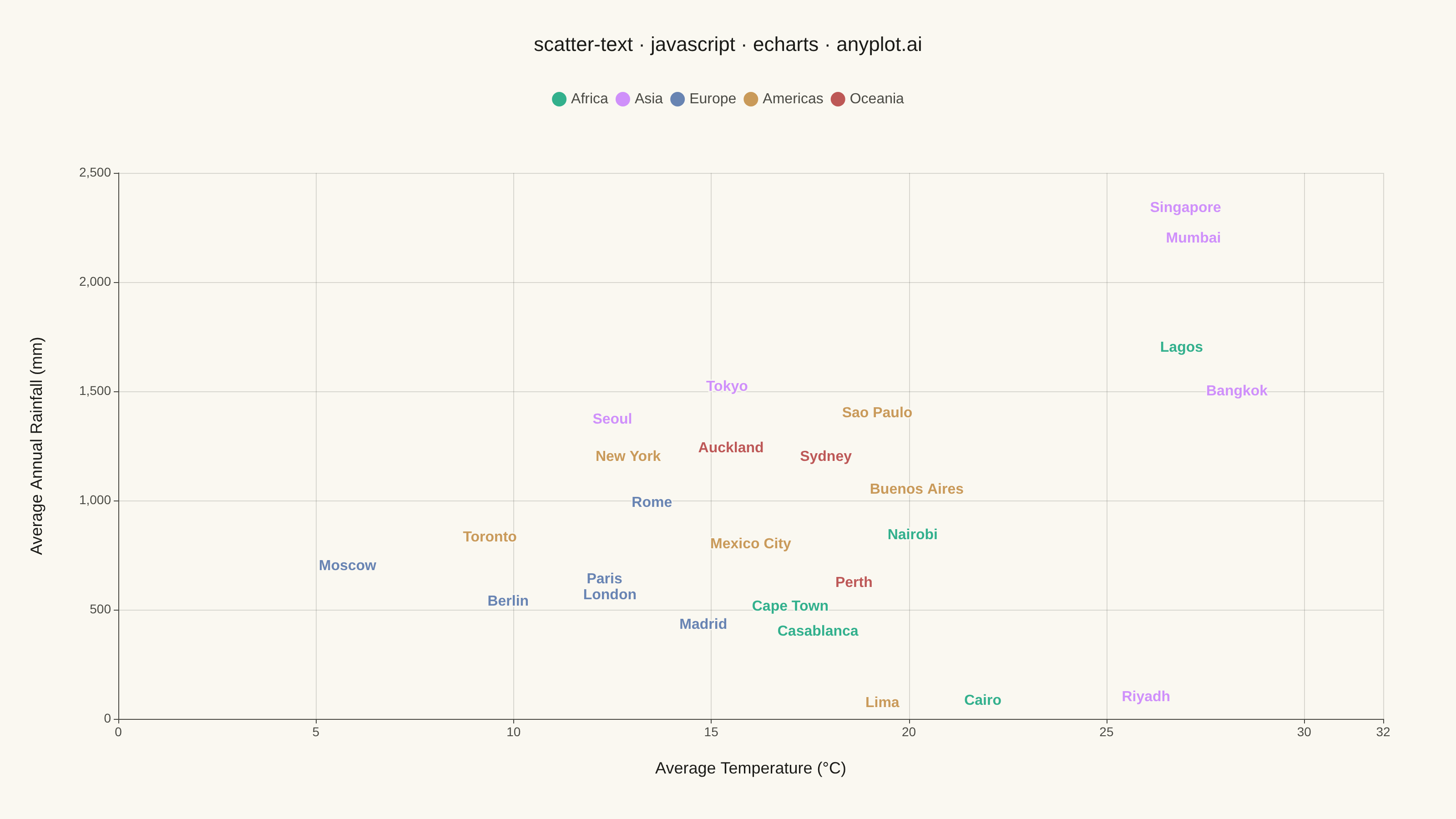

Scatter Plot with Text Labels Instead of Points rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// scatter-text: Scatter Plot with Text Labels Instead of Points
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-02
//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ---------------------------------------
// World cities: average annual temperature vs. average annual rainfall,
// grouped by continent. Each point is rendered as its city name only.
const REGIONS = [
  {
    name: "Africa",
    cities: [
      ["Cairo", 21.4, 25],
      ["Lagos", 26.9, 1700],
      ["Nairobi", 19.0, 800],
      ["Cape Town", 17.0, 515],
      ["Casablanca", 17.7, 400],
    ],
  },
  {
    name: "Asia",
    cities: [
      ["Tokyo", 15.4, 1520],
      ["Singapore", 27.0, 2340],
      ["Mumbai", 27.2, 2200],
      ["Bangkok", 28.3, 1500],
      ["Seoul", 12.5, 1370],
      ["Riyadh", 26.0, 100],
    ],
  },
  {
    name: "Europe",
    cities: [
      ["London", 11.3, 600],
      ["Paris", 12.3, 640],
      ["Berlin", 9.8, 570],
      ["Madrid", 14.8, 430],
      ["Moscow", 5.8, 700],
      ["Rome", 13.5, 990],
    ],
  },
  {
    name: "Americas",
    cities: [
      ["New York", 12.9, 1200],
      ["Mexico City", 16.0, 800],
      ["Sao Paulo", 19.2, 1400],
      ["Toronto", 9.4, 830],
      ["Lima", 18.9, 15],
      ["Buenos Aires", 20.2, 1050],
    ],
  },
  {
    name: "Oceania",
    cities: [
      ["Sydney", 17.9, 1200],
      ["Auckland", 15.5, 1240],
      ["Perth", 18.6, 730],
    ],
  },
];

// Pixel offsets [dx, dy] for labels that would otherwise collide with a
// neighbor or sit on the y=0 gridline (screen y grows downward).
const LABEL_OFFSETS = {
  Nairobi: [20, -18],
  Perth: [-20, 18],
  Berlin: [-20, 0],
  London: [20, 0],
  Lima: [0, -22],
  Cairo: [0, -22],
};

// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Title (fontsize scales down for long titles, see plot-generator.md) ---
const TITLE = "scatter-text · javascript · echarts · anyplot.ai";
const titleFontSize = Math.round(22 * Math.min(1, 67 / TITLE.length));

// --- Option -----------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: TITLE,
    left: "center",
    top: 34,
    textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
  },
  legend: {
    top: 96,
    left: "center",
    itemWidth: 16,
    itemHeight: 16,
    textStyle: { color: t.inkSoft, fontSize: 16 },
  },
  tooltip: {
    trigger: "item",
    formatter: (p) =>
      `${p.marker}${p.data.name}<br/>Temperature: ${p.data.value[0]}°C<br/>Rainfall: ${p.data.value[1]} mm`,
  },
  grid: { left: 130, right: 80, top: 190, bottom: 110 },
  xAxis: {
    type: "value",
    name: "Average Temperature (°C)",
    nameLocation: "middle",
    nameGap: 46,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    min: 0,
    max: 32,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { lineStyle: { color: t.grid } },
  },
  yAxis: {
    type: "value",
    name: "Average Annual Rainfall (mm)",
    nameLocation: "middle",
    nameGap: 80,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    min: 0,
    max: 2500,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: REGIONS.map((region, i) => ({
    name: region.name,
    type: "scatter",
    symbol: "circle",
    symbolSize: 0,
    data: region.cities.map(([city, temp, rain]) => {
      const offset = LABEL_OFFSETS[city];
      return {
        name: city,
        value: [temp, rain],
        ...(offset ? { label: { position: offset } } : {}),
      };
    }),
    label: {
      show: true,
      formatter: "{b}",
      position: "inside",
      color: t.palette[i],
      fontSize: 16,
      fontWeight: 600,
      textBorderColor: t.pageBg,
      textBorderWidth: 3,
    },
    emphasis: {
      label: { fontSize: 19 },
    },
  })),
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/scatter-text/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "scatter-text",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/scatter-text/javascript/echarts",
  "hub": "https://anyplot.ai/scatter-text",
  "code_json": "https://api.anyplot.ai/specs/scatter-text/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/scatter-text",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/scatter-text/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/scatter-text/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/scatter-text/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/scatter-text/javascript/echarts/plot-dark.html",
  "quality_score": 91.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Scatter Plot with Text Labels Instead of Points on anyplot.ai.
