Scatter Plot with Text Labels Instead of Points — plotnine

A scatter plot where data points are represented by text labels instead of markers. Each label is positioned at its corresponding coordinates, making the text itself the visual element. This visualization is particularly useful for displaying named entities in 2D space, such as word embeddings, dimensionality reduction outputs, or any scenario where identifying individual items by name is more important than seeing their relative density.

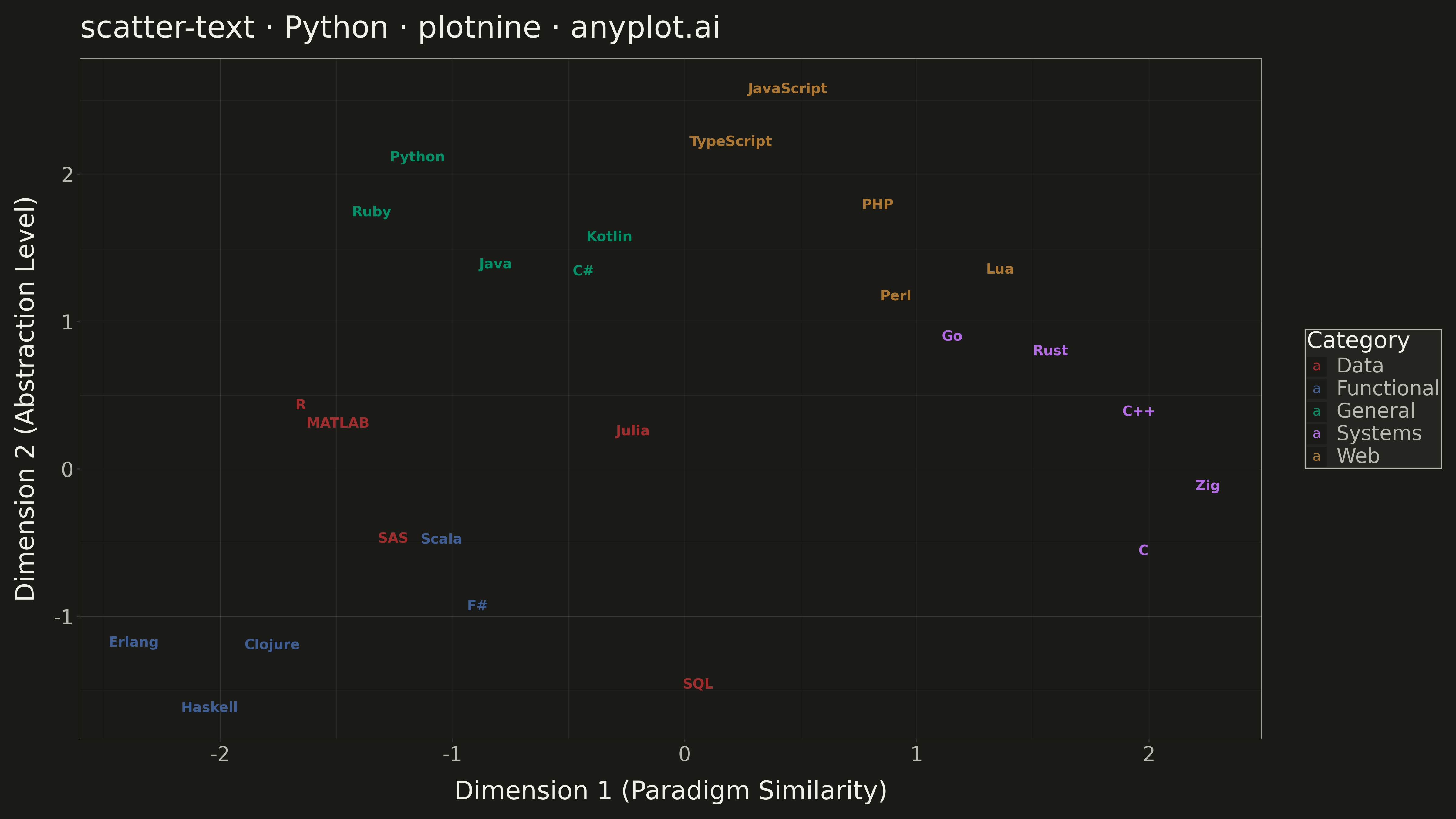

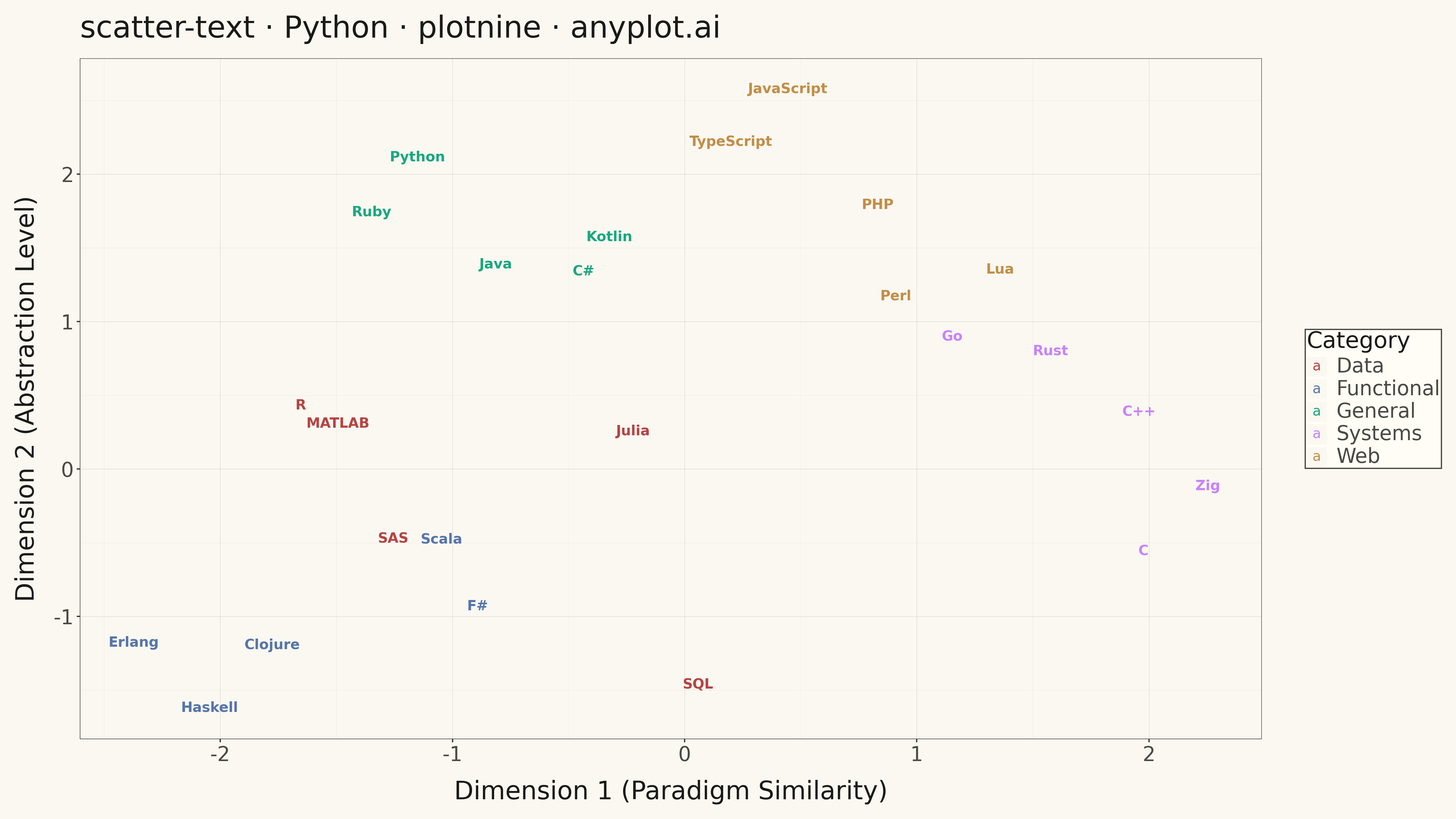

Scatter Plot with Text Labels Instead of Points rendered with plotnine

Python source (plotnine)

""" anyplot.ai
scatter-text: Scatter Plot with Text Labels Instead of Points
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-17
"""

import os

import numpy as np
import pandas as pd
from plotnine import aes, element_line, element_rect, element_text, geom_text, ggplot, labs, scale_color_manual, theme


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (categorical data only)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data: Simulated 2D projection of programming language embeddings
np.random.seed(42)

languages = [
    # Object-oriented / General purpose
    ("Python", -1.2, 2.1, "General"),
    ("Java", -0.8, 1.5, "General"),
    ("C#", -0.5, 1.3, "General"),
    ("Ruby", -1.5, 1.8, "General"),
    ("Kotlin", -0.3, 1.6, "General"),
    # Systems / Low-level
    ("C", 2.0, -0.5, "Systems"),
    ("C++", 1.8, 0.2, "Systems"),
    ("Rust", 1.5, 0.8, "Systems"),
    ("Go", 1.2, 1.0, "Systems"),
    ("Zig", 2.2, -0.2, "Systems"),
    # Functional
    ("Haskell", -2.0, -1.5, "Functional"),
    ("Scala", -1.0, -0.5, "Functional"),
    ("Clojure", -1.8, -1.0, "Functional"),
    ("F#", -0.7, -0.8, "Functional"),
    ("Erlang", -2.2, -1.2, "Functional"),
    # Web / Scripting
    ("JavaScript", 0.5, 2.5, "Web"),
    ("TypeScript", 0.3, 2.2, "Web"),
    ("PHP", 0.8, 1.8, "Web"),
    ("Perl", 1.0, 1.2, "Web"),
    ("Lua", 1.5, 1.5, "Web"),
    # Data / Scientific
    ("R", -1.8, 0.5, "Data"),
    ("Julia", -0.2, 0.3, "Data"),
    ("MATLAB", -1.5, 0.2, "Data"),
    ("SQL", 0.2, -1.5, "Data"),
    ("SAS", -1.2, -0.3, "Data"),
]

df = pd.DataFrame(languages, columns=["label", "x", "y", "category"])
df["x"] = df["x"] + np.random.normal(0, 0.1, len(df))
df["y"] = df["y"] + np.random.normal(0, 0.1, len(df))

# Map categories to Okabe-Ito colors
category_colors = {
    "General": IMPRINT[0],
    "Systems": IMPRINT[1],
    "Functional": IMPRINT[2],
    "Web": IMPRINT[3],
    "Data": IMPRINT[4],
}

# Plot
plot = (
    ggplot(df, aes(x="x", y="y", label="label", color="category"))
    + geom_text(size=11, alpha=0.9, fontweight="bold")
    + labs(
        x="Dimension 1 (Paradigm Similarity)",
        y="Dimension 2 (Abstraction Level)",
        title="scatter-text · Python · plotnine · anyplot.ai",
        color="Category",
    )
    + scale_color_manual(values=category_colors)
    + theme(
        figure_size=(16, 9),
        dpi=300,
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK, size=0.3, alpha=0.15),
        panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.08),
        panel_border=element_rect(color=INK_SOFT, fill=None, size=0.4),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT, size=0.4),
        plot_title=element_text(size=24, color=INK, ha="left"),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
        legend_position="right",
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of Scatter Plot with Text Labels Instead of Points on anyplot.ai.
