Scatter Plot with Text Labels Instead of Points — lets-plot

A scatter plot where data points are represented by text labels instead of markers. Each label is positioned at its corresponding coordinates, making the text itself the visual element. This visualization is particularly useful for displaying named entities in 2D space, such as word embeddings, dimensionality reduction outputs, or any scenario where identifying individual items by name is more important than seeing their relative density.

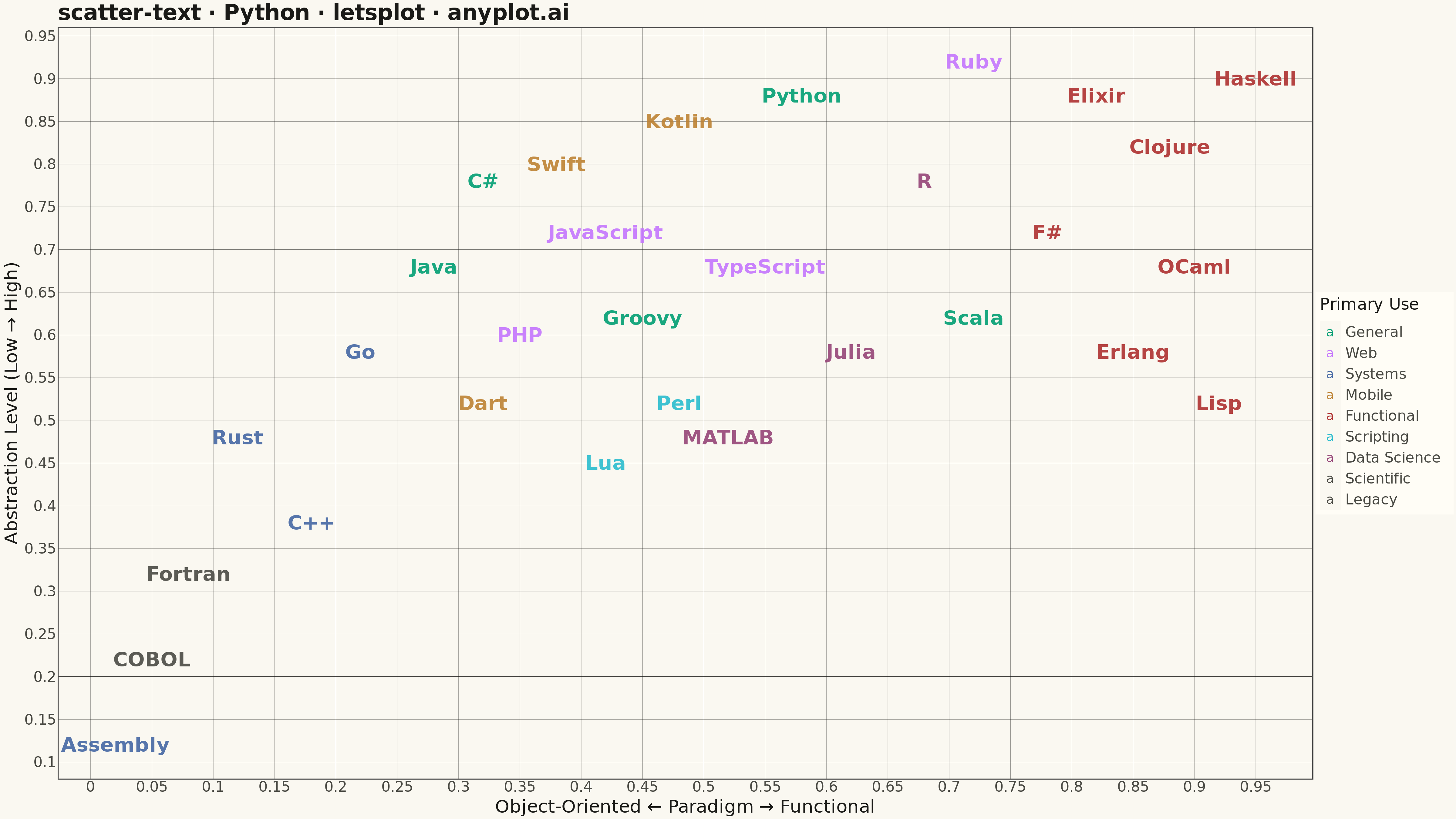

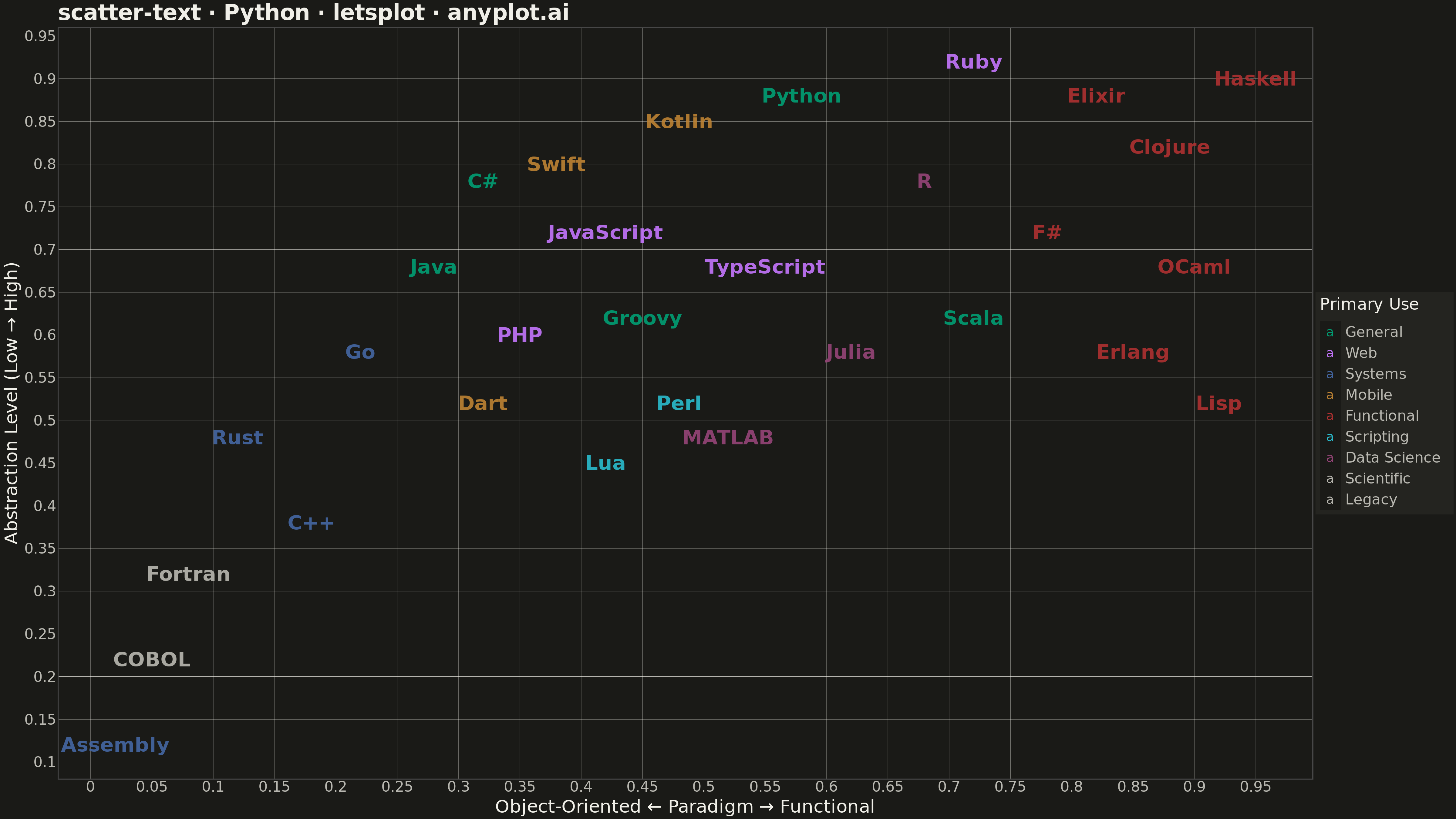

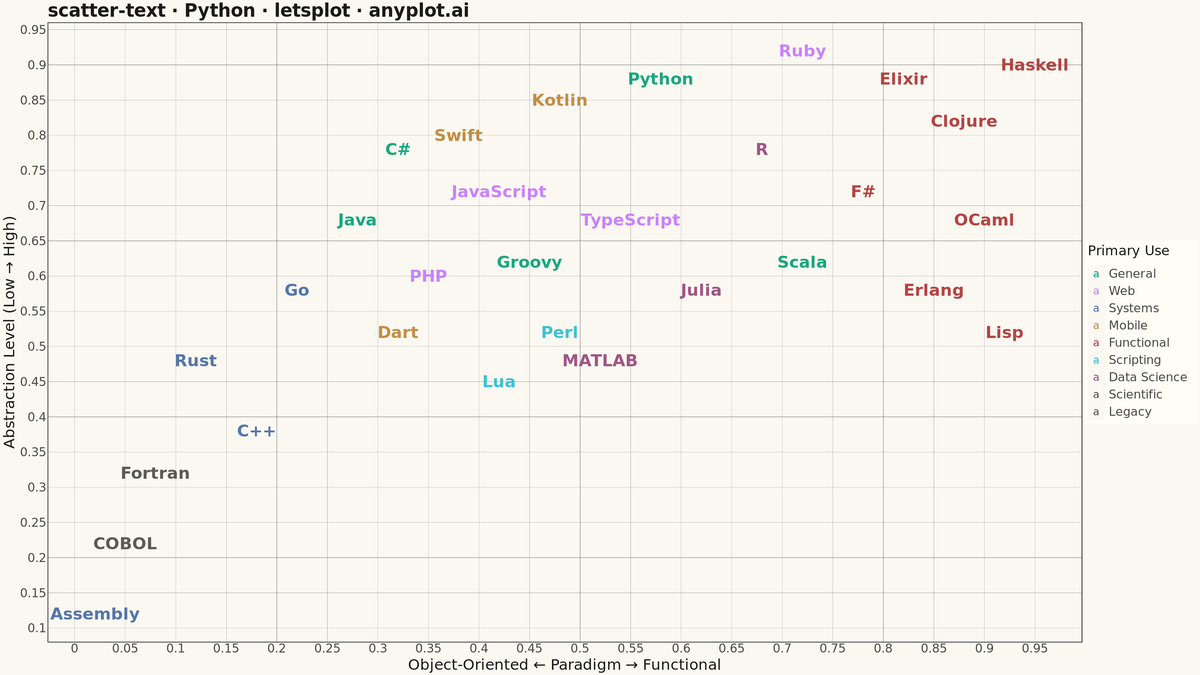

Scatter Plot with Text Labels Instead of Points rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
scatter-text: Scatter Plot with Text Labels Instead of Points
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-17
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_text,
    ggplot,
    ggsave,
    ggsize,
    labs,
    layer_tooltips,
    scale_color_manual,
    theme,
    theme_minimal,
)


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first series always #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data - Programming languages positioned by paradigm (functional vs object-oriented)
# and level of abstraction (low vs high)
np.random.seed(42)

languages = [
    "Python",
    "JavaScript",
    "Java",
    "C++",
    "Ruby",
    "Go",
    "Rust",
    "Swift",
    "Kotlin",
    "TypeScript",
    "Scala",
    "Haskell",
    "Clojure",
    "Elixir",
    "F#",
    "C#",
    "PHP",
    "Perl",
    "R",
    "Julia",
    "MATLAB",
    "Lua",
    "Dart",
    "Groovy",
    "OCaml",
    "Erlang",
    "Fortran",
    "COBOL",
    "Assembly",
    "Lisp",
]

# Position languages with good spacing to minimize overlap
paradigm_scores = {
    "Python": (0.58, 0.88),
    "JavaScript": (0.42, 0.72),
    "Java": (0.28, 0.68),
    "C++": (0.18, 0.38),
    "Ruby": (0.72, 0.92),
    "Go": (0.22, 0.58),
    "Rust": (0.12, 0.48),
    "Swift": (0.38, 0.80),
    "Kotlin": (0.48, 0.85),
    "TypeScript": (0.55, 0.68),
    "Scala": (0.72, 0.62),
    "Haskell": (0.95, 0.90),
    "Clojure": (0.88, 0.82),
    "Elixir": (0.82, 0.88),
    "F#": (0.78, 0.72),
    "C#": (0.32, 0.78),
    "PHP": (0.35, 0.60),
    "Perl": (0.48, 0.52),
    "R": (0.68, 0.78),
    "Julia": (0.62, 0.58),
    "MATLAB": (0.52, 0.48),
    "Lua": (0.42, 0.45),
    "Dart": (0.32, 0.52),
    "Groovy": (0.45, 0.62),
    "OCaml": (0.90, 0.68),
    "Erlang": (0.85, 0.58),
    "Fortran": (0.08, 0.32),
    "COBOL": (0.05, 0.22),
    "Assembly": (0.02, 0.12),
    "Lisp": (0.92, 0.52),
}

x_coords = [paradigm_scores[lang][0] for lang in languages]
y_coords = [paradigm_scores[lang][1] for lang in languages]

# Categorize by primary use
categories = [
    "General",
    "Web",
    "General",
    "Systems",
    "Web",
    "Systems",
    "Systems",
    "Mobile",
    "Mobile",
    "Web",
    "General",
    "Functional",
    "Functional",
    "Functional",
    "Functional",
    "General",
    "Web",
    "Scripting",
    "Data Science",
    "Data Science",
    "Data Science",
    "Scripting",
    "Mobile",
    "General",
    "Functional",
    "Functional",
    "Scientific",
    "Legacy",
    "Systems",
    "Functional",
]

df = pd.DataFrame({"x": x_coords, "y": y_coords, "label": languages, "category": categories})

# Map categories to Okabe-Ito colors
category_order = [
    "General",
    "Web",
    "Systems",
    "Mobile",
    "Functional",
    "Scripting",
    "Data Science",
    "Scientific",
    "Legacy",
]

color_palette = {
    "General": IMPRINT[0],  # #009E73 (brand green)
    "Web": IMPRINT[1],  # #C475FD (vermillion)
    "Systems": IMPRINT[2],  # #4467A3 (blue)
    "Mobile": IMPRINT[3],  # #BD8233 (reddish purple)
    "Functional": IMPRINT[4],  # #AE3030 (orange)
    "Scripting": IMPRINT[5],  # #2ABCCD (sky blue)
    "Data Science": IMPRINT[6],  # #954477 (yellow)
    "Scientific": INK_SOFT,  # Neutral for scientific
    "Legacy": INK_SOFT,  # Neutral for legacy
}

# Create plot with interactive tooltips (lets-plot distinctive feature)
plot = (
    ggplot(df, aes(x="x", y="y", color="category"))
    + geom_text(
        aes(label="label"),
        size=11,
        alpha=0.9,
        fontface="bold",
        tooltips=layer_tooltips()
        .title("@label")
        .line("Category|@category")
        .line("Paradigm|@x")
        .line("Abstraction|@y")
        .format("x", ".2f")
        .format("y", ".2f"),
    )
    + scale_color_manual(values=color_palette, limits=category_order, name="Primary Use")
    + labs(
        x="Object-Oriented ← Paradigm → Functional",
        y="Abstraction Level (Low → High)",
        title="scatter-text · Python · letsplot · anyplot.ai",
    )
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK, size=0.1),
        panel_grid_minor=element_blank(),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT, size=0.5),
        plot_title=element_text(size=24, color=INK, face="bold"),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
    )
    + ggsize(1600, 900)
)

# Save as PNG (scale 3x for 4800 × 2700 px)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)

# Save interactive HTML version with tooltips
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Scatter Plot with Text Labels Instead of Points on anyplot.ai.
