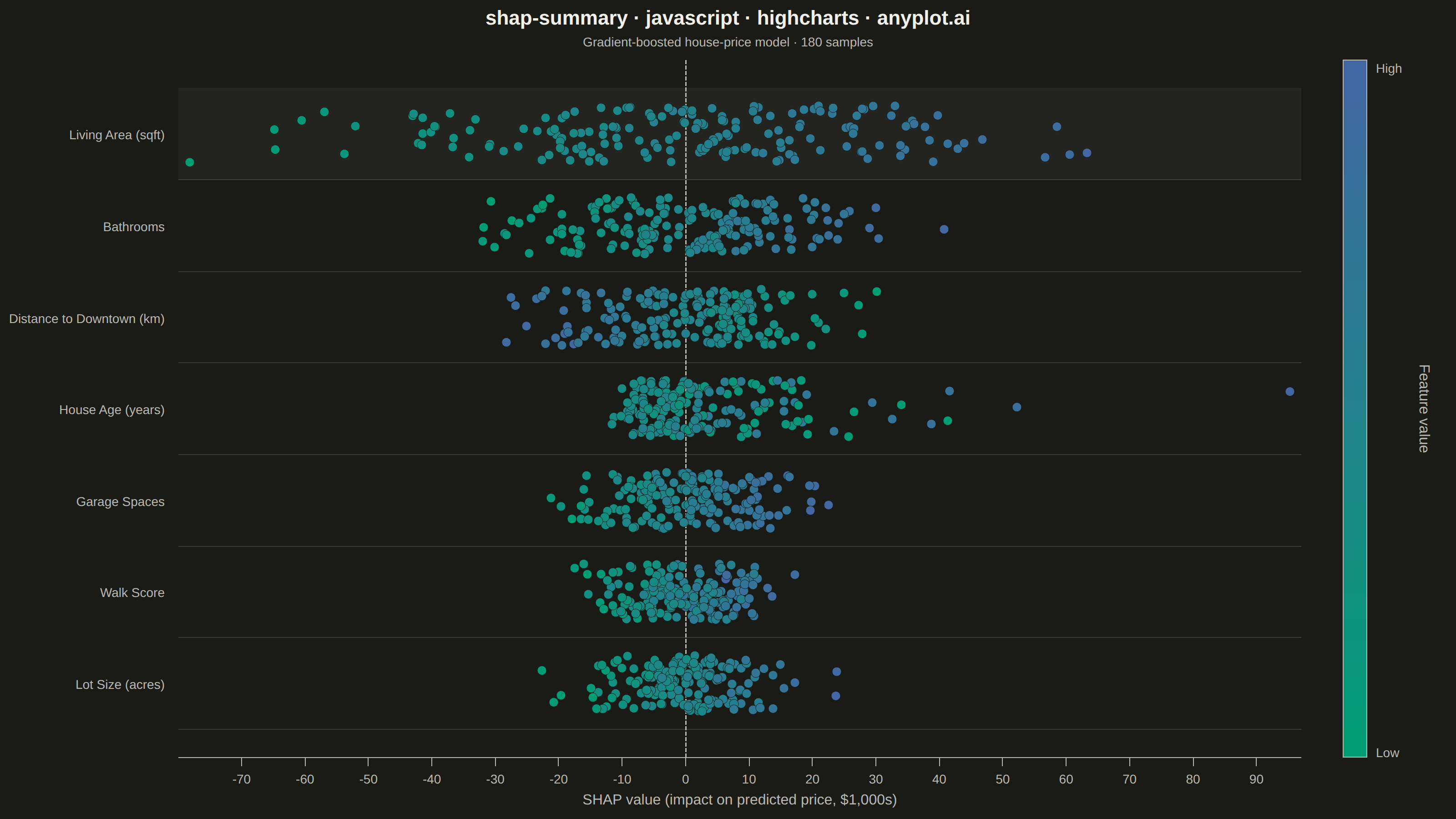

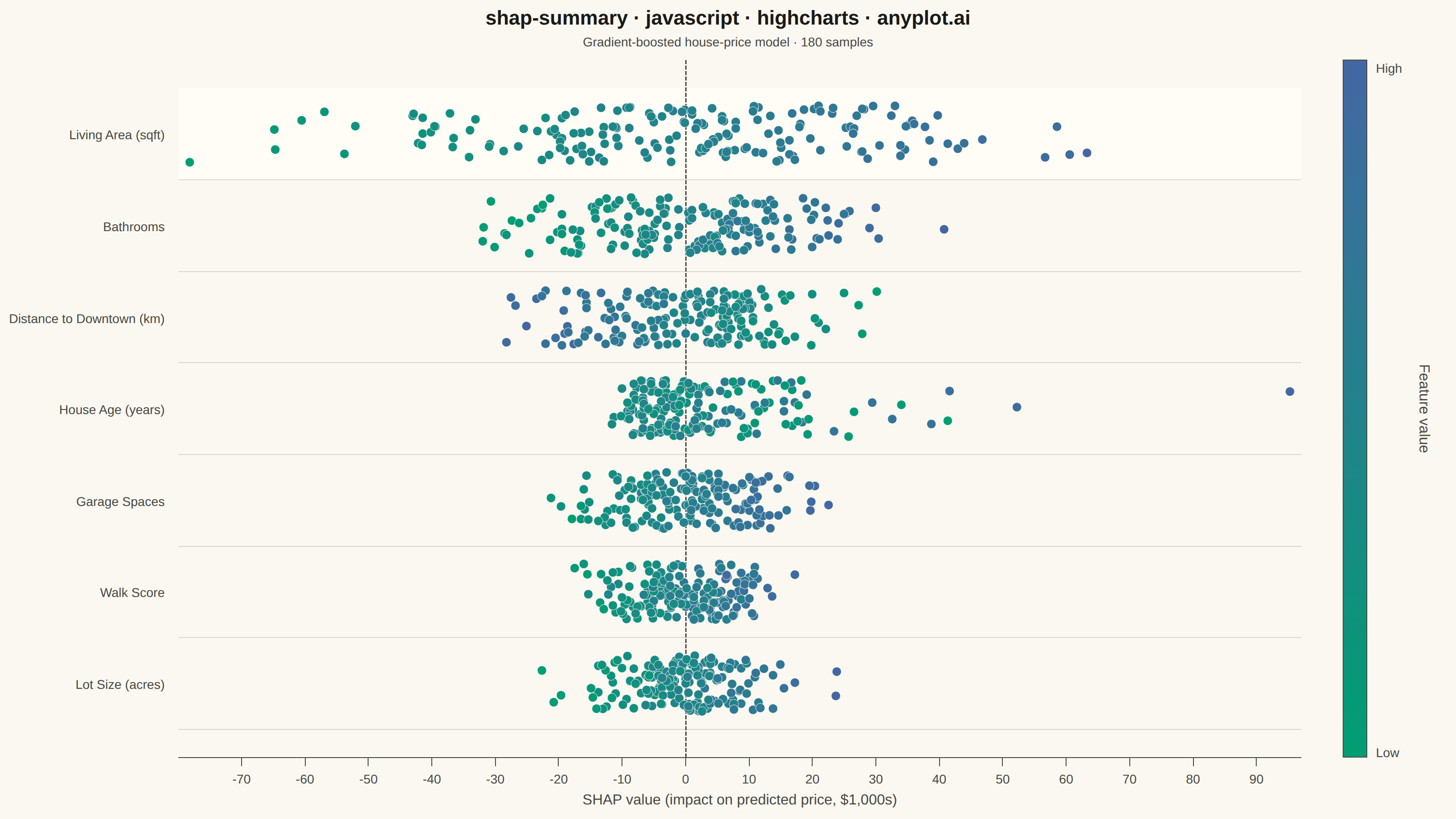

A SHAP (SHapley Additive exPlanations) summary plot displaying the distribution of SHAP values for each feature, ordered by mean absolute SHAP value (importance). Each dot represents a sample, positioned horizontally by its SHAP value and colored by the feature's value (typically low=blue to high=red). This visualization is essential for machine learning interpretability, showing both feature importance and the direction and magnitude of feature effects on model predictions.
// anyplot.ai
// shap-summary: SHAP Summary Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic fixed-seed LCG) -------------------------
let seed = 42;
function rand() {
seed = (1664525 * seed + 1013904223) % 4294967296;
return seed / 4294967296;
}
function randNormal() {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const N_SAMPLES = 180;
function zscore(values) {
const mean = values.reduce((a, b) => a + b, 0) / values.length;
const variance = values.reduce((a, b) => a + (b - mean) ** 2, 0) / values.length;
const std = Math.sqrt(variance);
return values.map((v) => (v - mean) / std);
}
function minMaxNorm(values) {
const min = Math.min(...values);
const max = Math.max(...values);
return values.map((v) => (v - min) / (max - min));
}
// Raw feature values for a synthetic gradient-boosted house-price model
const rawFeatures = {
"Living Area (sqft)": Array.from({ length: N_SAMPLES }, () => 1450 + randNormal() * 480),
Bathrooms: Array.from({ length: N_SAMPLES }, () => 2 + randNormal() * 0.9),
"House Age (years)": Array.from({ length: N_SAMPLES }, () => 28 + randNormal() * 16),
"Garage Spaces": Array.from({ length: N_SAMPLES }, () => 1.6 + randNormal() * 0.8),
"Lot Size (acres)": Array.from({ length: N_SAMPLES }, () => 0.35 + randNormal() * 0.18),
"Distance to Downtown (km)": Array.from({ length: N_SAMPLES }, () => 12 + randNormal() * 7),
"Walk Score": Array.from({ length: N_SAMPLES }, () => 55 + randNormal() * 22),
};
const featureNames = Object.keys(rawFeatures);
const zFeatures = {};
featureNames.forEach((name) => {
zFeatures[name] = zscore(rawFeatures[name]);
});
// SHAP-like contribution per feature, in $1,000s of predicted price.
// "House Age" is modeled as non-linear: both historic and brand-new homes
// command a premium over mid-age housing stock.
const shapValues = {};
featureNames.forEach((name) => {
shapValues[name] = zFeatures[name].map((zi) => {
const noise = randNormal() * 4;
switch (name) {
case "Living Area (sqft)":
return 26 * zi + noise;
case "Bathrooms":
return 14 * zi + noise;
case "House Age (years)":
return 9 * zi ** 2 - 6 + noise * 0.8;
case "Garage Spaces":
return 8 * zi + noise * 0.7;
case "Lot Size (acres)":
return 7 * zi + noise * 0.7;
case "Distance to Downtown (km)":
return -11 * zi + noise;
case "Walk Score":
return 6 * zi + noise * 0.8;
default:
return noise;
}
});
});
// Rank features by mean absolute SHAP value — most important at the top.
const meanAbsShap = {};
featureNames.forEach((name) => {
const vals = shapValues[name];
meanAbsShap[name] = vals.reduce((a, b) => a + Math.abs(b), 0) / vals.length;
});
const orderedFeatures = [...featureNames].sort((a, b) => meanAbsShap[b] - meanAbsShap[a]);
const categories = orderedFeatures;
const normFeatures = {};
featureNames.forEach((name) => {
normFeatures[name] = minMaxNorm(rawFeatures[name]);
});
// --- Color mapping ------------------------------------------------------------
// The `coloraxis` module (colorAxis + automatic legend gradient) lives in
// modules/coloraxis.js, which isn't loaded — only the core bundle is. Interpolate
// each point's fill from the Imprint imprint_seq gradient by hand instead, and
// draw a matching colorbar with the core SVG renderer.
function hexToRgb(hex) {
const v = parseInt(hex.slice(1), 16);
return [(v >> 16) & 255, (v >> 8) & 255, v & 255];
}
const seqLow = hexToRgb(t.seq[0]);
const seqHigh = hexToRgb(t.seq[1]);
function valueColor(ratio) {
const [r, g, b] = seqLow.map((c, i) => Math.round(c + (seqHigh[i] - c) * ratio));
return `rgb(${r}, ${g}, ${b})`;
}
// Beeswarm points: one dot per sample per feature, jittered around its row.
const points = [];
orderedFeatures.forEach((name, rowIndex) => {
const shap = shapValues[name];
const norm = normFeatures[name];
shap.forEach((value, j) => {
const jitter = (rand() - 0.5) * 0.62;
points.push({
x: value,
y: rowIndex + jitter,
color: valueColor(norm[j]),
custom: { feature: name, featureValue: rawFeatures[name][j] },
});
});
});
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "scatter",
backgroundColor: "transparent",
animation: false,
marginRight: 170,
style: { fontFamily: "inherit" },
events: {
load: function () {
// Manual colorbar (see "Color mapping" note above) mirroring the
// imprint_seq gradient used for the point fills.
const chart = this;
const barWidth = 26;
const barX = chart.plotLeft + chart.plotWidth + 46;
const barY = chart.plotTop;
const barHeight = chart.plotHeight;
// Fragment-url paint servers (linearGradient defs) don't resolve on the
// harness's about:blank document, so the bar is built from many thin
// interpolated bands instead of a single gradient fill.
const bandCount = 60;
const bandHeight = barHeight / bandCount;
for (let i = 0; i < bandCount; i++) {
const frac = (i + 0.5) / bandCount; // 0 = bottom (low), 1 = top (high)
chart.renderer
.rect(barX, barY + barHeight - (i + 1) * bandHeight, barWidth, bandHeight + 0.5)
.attr({ fill: valueColor(frac) })
.add();
}
chart.renderer
.rect(barX, barY, barWidth, barHeight)
.attr({ fill: "none", stroke: t.inkSoft, "stroke-width": 1 })
.add();
chart.renderer
.text("High", barX + barWidth + 10, barY + 14)
.css({ color: t.inkSoft, fontSize: "14px" })
.add();
chart.renderer
.text("Low", barX + barWidth + 10, barY + barHeight)
.css({ color: t.inkSoft, fontSize: "14px" })
.add();
chart.renderer
.text("Feature value", barX + barWidth + 58, barY + barHeight / 2)
.attr({ rotation: 90, align: "center" })
.css({ color: t.inkSoft, fontSize: "16px" })
.add();
},
},
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "shap-summary · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Gradient-boosted house-price model · 180 samples",
style: { color: t.inkSoft, fontSize: "14px" },
},
legend: { enabled: false },
tooltip: {
headerFormat: "",
pointFormat:
"<b>{point.custom.feature}</b><br/>Feature value: {point.custom.featureValue:.2f}<br/>SHAP value: {point.x:.2f}",
},
xAxis: {
title: {
text: "SHAP value (impact on predicted price, $1,000s)",
style: { color: t.inkSoft, fontSize: "16px" },
},
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
plotLines: [{ value: 0, color: t.inkSoft, width: 1.5, dashStyle: "ShortDash", zIndex: 3 }],
},
yAxis: {
categories,
reversed: true,
tickPositions: categories.map((_, i) => i),
minPadding: 0.09,
maxPadding: 0.09,
startOnTick: false,
endOnTick: false,
title: { text: null },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
// Faint focal-point band on the most important feature (row 0) so the
// ranking hierarchy reads at a glance, not just via row order.
plotBands: [{ from: -0.5, to: 0.5, color: t.elevatedBg, zIndex: 0 }],
},
plotOptions: {
series: { animation: false },
scatter: {
marker: { radius: 5, lineWidth: 0.5, lineColor: t.pageBg, fillOpacity: 0.75 },
},
},
series: [{ name: "SHAP values", showInLegend: false, data: points }],
});
