Basic Step Plot — Apache ECharts

A step plot (also known as a stair plot or stepped line chart) displays data using horizontal lines connected by vertical lines, creating a stair-step pattern. Unlike line charts that interpolate between points, step plots show values as constant until the next change occurs. This makes them ideal for visualizing data that changes at discrete intervals, emphasizing the exact moments when values change.

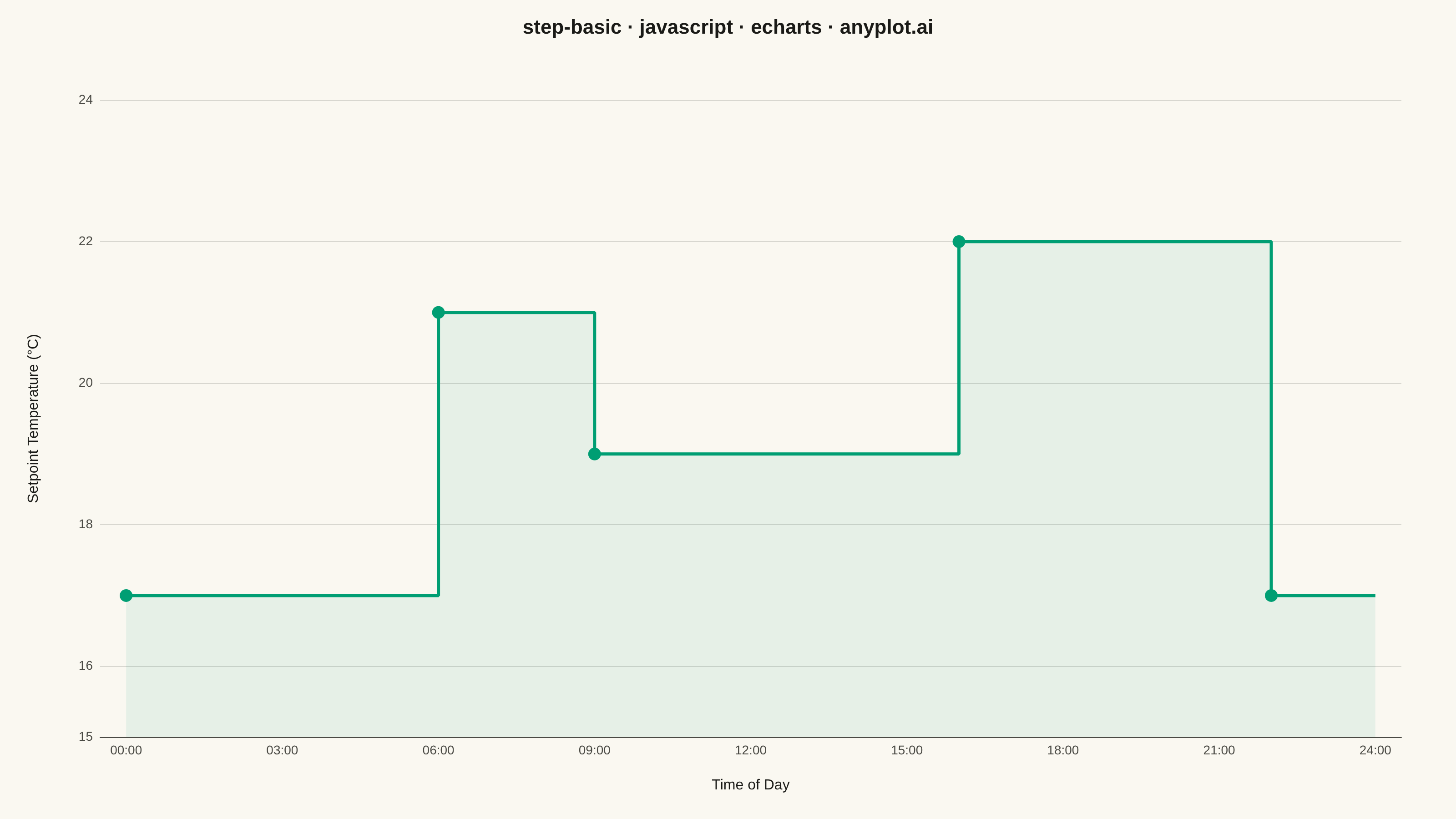

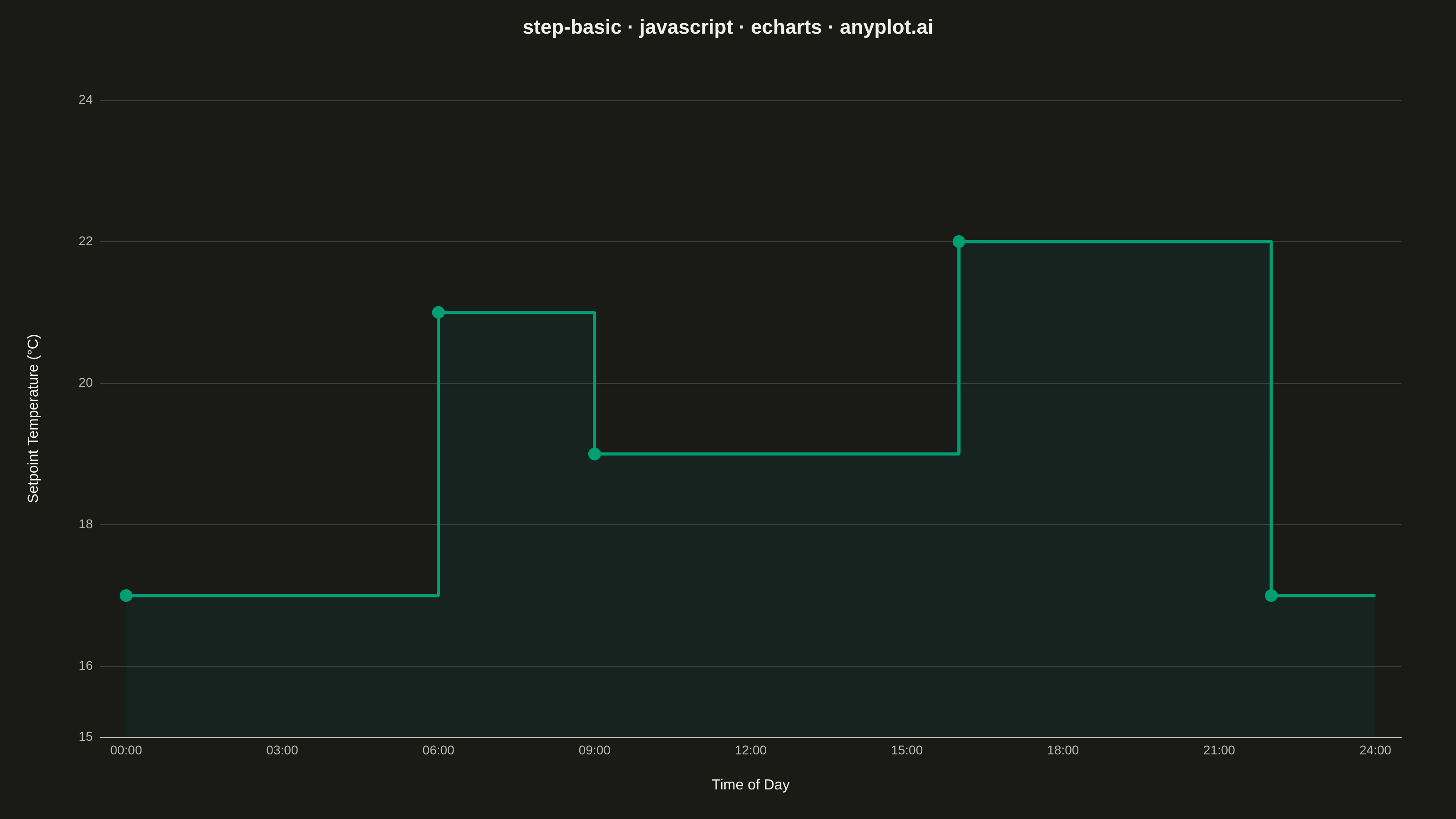

Basic Step Plot rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// step-basic: Basic Step Plot
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 90/100 | Created: 2026-07-25

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Thermostat setpoint schedule: the setpoint is set at each hour and holds
// constant until the next scheduled change — a textbook step function.
const hours = Array.from({ length: 25 }, (_, i) => i); // 00:00 .. 24:00

const scheduledSetpoint = (hour) => {
  if (hour < 6) return 17; // night setback
  if (hour < 9) return 21; // morning occupied
  if (hour < 16) return 19; // daytime away (energy saving)
  if (hour < 22) return 22; // evening occupied
  return 17; // night setback
};

const categories = hours.map((h) => `${String(h).padStart(2, "0")}:00`);
const setpoints = hours.map(scheduledSetpoint);

// Markers only at the hours where the setpoint actually changes.
const seriesData = setpoints.map((value, i) => {
  const isChange = i === 0 || value !== setpoints[i - 1];
  return { value, symbol: "circle", symbolSize: isChange ? 14 : 0 };
});

// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ---------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "step-basic · javascript · echarts · anyplot.ai",
    left: "center",
    textStyle: { color: t.ink, fontSize: 22 },
  },
  tooltip: { trigger: "axis" },
  grid: { left: 110, right: 60, top: 110, bottom: 90 },
  xAxis: {
    type: "category",
    data: categories,
    name: "Time of Day",
    nameLocation: "middle",
    nameGap: 45,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: {
      color: t.inkSoft,
      fontSize: 14,
      interval: (index) => index % 3 === 0,
    },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Setpoint Temperature (°C)",
    nameLocation: "middle",
    nameGap: 65,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    min: 15,
    max: 24,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { show: false },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      type: "line",
      step: "end",
      data: seriesData,
      lineStyle: { width: 3.5, color: t.palette[0] },
      itemStyle: { color: t.palette[0] },
      areaStyle: { color: t.palette[0], opacity: 0.08 },
    },
  ],
});
