Basic Step Plot — plotnine

A step plot (also known as a stair plot or stepped line chart) displays data using horizontal lines connected by vertical lines, creating a stair-step pattern. Unlike line charts that interpolate between points, step plots show values as constant until the next change occurs. This makes them ideal for visualizing data that changes at discrete intervals, emphasizing the exact moments when values change.

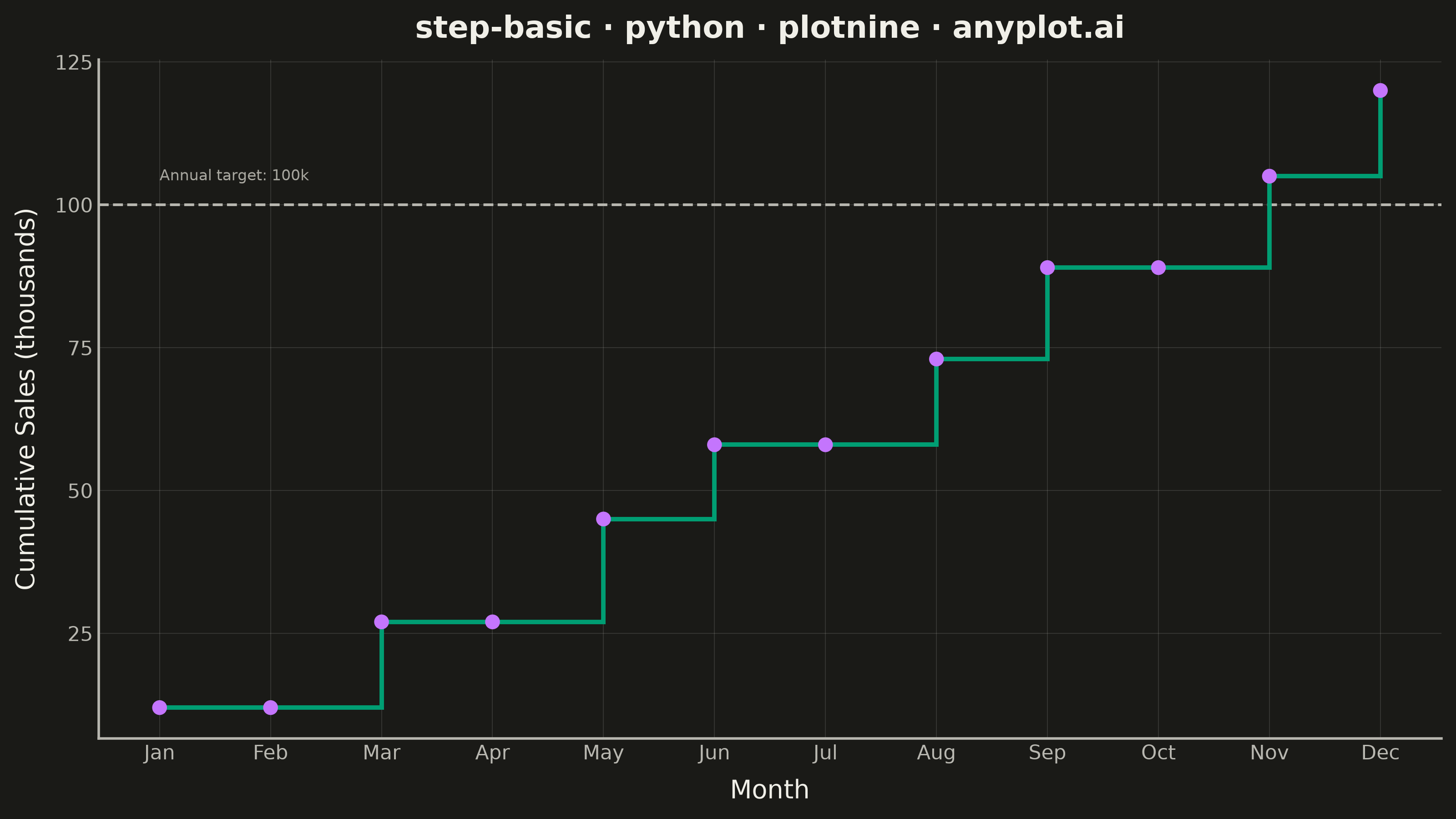

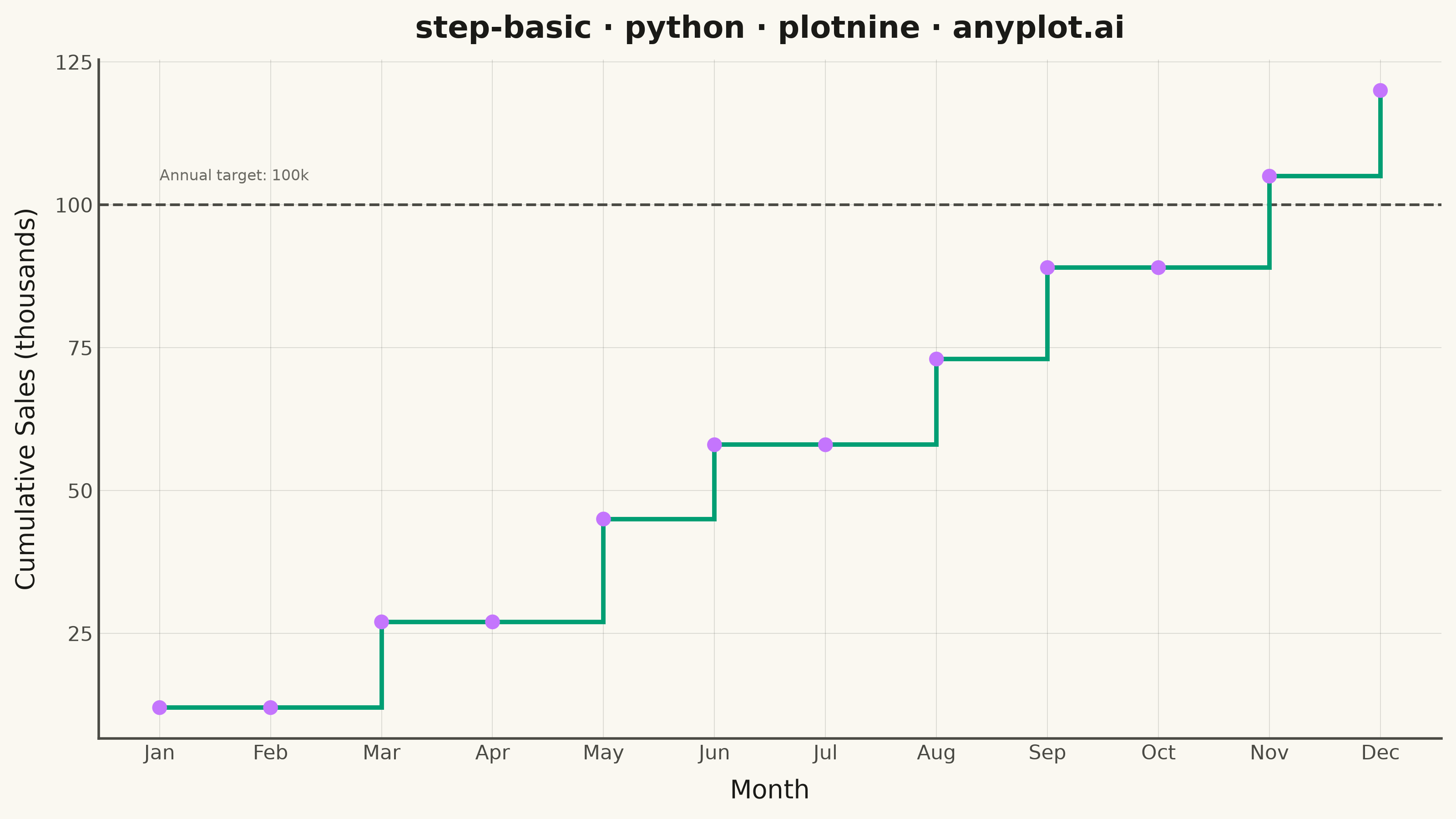

Basic Step Plot rendered with plotnine

Python source (plotnine)

""" anyplot.ai
step-basic: Basic Step Plot
Library: plotnine 0.15.7 | Python 3.13.14
Quality: 90/100 | Updated: 2026-07-25
"""

import os

import pandas as pd
from plotnine import (
    aes,
    annotate,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_hline,
    geom_point,
    geom_step,
    ggplot,
    labs,
    scale_x_continuous,
    theme,
    theme_minimal,
)


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_TERTIARY = "#6B6A63" if THEME == "light" else "#A8A79F"

BRAND = "#009E73"
ACCENT = "#C475FD"

# Data - Monthly cumulative sales figures showing discrete jumps, vs. an annual target
months = list(range(1, 13))
month_labels = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]
cumulative_sales = [12, 12, 27, 27, 45, 58, 58, 73, 89, 89, 105, 120]
target = 100

df = pd.DataFrame({"month": months, "sales": cumulative_sales})

# Plot
plot = (
    ggplot(df, aes(x="month", y="sales"))
    + geom_hline(yintercept=target, color=INK_SOFT, size=0.6, linetype="dashed")
    + annotate("text", x=1, y=target + 5, label=f"Annual target: {target}k", color=INK_TERTIARY, size=6, ha="left")
    + geom_step(color=BRAND, size=1.0, direction="hv")
    + geom_point(color=ACCENT, size=2.5, stroke=0.4)
    + scale_x_continuous(breaks=months, labels=month_labels)
    + labs(x="Month", y="Cumulative Sales (thousands)", title="step-basic · python · plotnine · anyplot.ai")
    + theme_minimal()
    + theme(
        figure_size=(8, 4.5),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        text=element_text(size=7, color=INK),
        axis_title=element_text(size=10, color=INK),
        axis_text=element_text(size=8, color=INK_SOFT),
        plot_title=element_text(size=12, color=INK, weight="bold"),
        panel_grid_major=element_line(color=INK, size=0.3, alpha=0.15),
        panel_grid_minor=element_blank(),
        axis_line=element_line(color=INK_SOFT),
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in", verbose=False)

Part of Basic Step Plot on anyplot.ai.
