A complex subplot layout where different subplots can have varying sizes and arrangements using intuitive ASCII-art style string definitions. Unlike GridSpec approaches that require explicit row/column spanning, mosaic layouts allow defining layouts through visual string patterns (e.g., "AB;CC" creates A and B on top, C spanning below), making complex configurations more readable and maintainable.
// anyplot.ai
// subplot-mosaic: Mosaic Subplot Layout with Varying Sizes
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-09
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Deterministic PRNG (LCG) -----------------------------------------------
function makeLcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = makeLcg(42);
// --- Data --------------------------------------------------------------
// Panel A: dominant overview — weekly website traffic across a full year.
const weeks = Array.from({ length: 52 }, (_, i) => `W${i + 1}`);
const weeklyVisits = weeks.map((_, i) => {
const trend = 8200 + i * 42;
const seasonal = 900 * Math.sin((i / 52) * 4 * Math.PI) + (i > 40 ? 2400 * ((i - 40) / 12) : 0);
const noise = (rand() - 0.5) * 800;
return Math.round(trend + seasonal + noise);
});
// Panel B: medium detail — traffic share by device.
const devices = ["Desktop", "Mobile", "Tablet"];
const deviceVisits = [186000, 142000, 31000];
// Panel C: medium detail — session duration vs. pages viewed.
const sessionPoints = Array.from({ length: 45 }, () => {
const pages = Number((1 + rand() * 9).toFixed(1));
const duration = Number((pages * 1.7 + rand() * 3.5).toFixed(1));
return [pages, duration];
});
// Panels D/E/F: small quarterly metric tiles.
const quarters = ["Q1", "Q2", "Q3", "Q4"];
const bounceRate = [52, 47, 44, 41];
const avgSessionMin = [3.1, 3.4, 3.8, 4.2];
const conversionRate = [2.1, 2.4, 2.9, 3.3];
// --- Mosaic layout geometry (percent of container) --------------------------
// Pattern: AAAA
// BBCC
// DEF
// A wide overview on top, two medium detail panels in the middle row,
// three small metric tiles on the bottom row.
const GRID_A = { left: "5%", right: "5%", top: "13%", height: "26%", containLabel: true };
const GRID_B = { left: "5%", width: "42%", top: "46%", height: "22%", containLabel: true };
const GRID_C = { left: "53%", width: "42%", top: "46%", height: "22%", containLabel: true };
const GRID_D = { left: "5%", width: "27%", top: "76%", height: "18%", containLabel: true };
const GRID_E = { left: "36.5%", width: "27%", top: "76%", height: "18%", containLabel: true };
const GRID_F = { left: "68%", width: "27%", top: "76%", height: "18%", containLabel: true };
const tileAxis = {
axisLabel: { color: t.inkSoft, fontSize: 11 },
axisLine: { show: false },
axisTick: { show: false },
};
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ---------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
textStyle: { color: t.inkSoft },
title: [
{
text: "subplot-mosaic · javascript · echarts · anyplot.ai",
left: "center",
top: "2%",
textStyle: { color: t.ink, fontSize: 22 },
},
{ text: "Weekly Website Traffic — Full Year", left: "5%", top: "9%",
textStyle: { color: t.ink, fontSize: 16, fontWeight: 500 } },
{ text: "Traffic Share by Device", left: "5%", top: "42%",
textStyle: { color: t.ink, fontSize: 15, fontWeight: 500 } },
{ text: "Session Duration vs. Pages Viewed", left: "53%", top: "42%",
textStyle: { color: t.ink, fontSize: 15, fontWeight: 500 } },
{ text: "Bounce Rate (%)", left: "5%", top: "72%",
textStyle: { color: t.inkSoft, fontSize: 13, fontWeight: 500 } },
{ text: "Avg. Session (min)", left: "36.5%", top: "72%",
textStyle: { color: t.inkSoft, fontSize: 13, fontWeight: 500 } },
{ text: "Conversion Rate (%)", left: "68%", top: "72%",
textStyle: { color: t.inkSoft, fontSize: 13, fontWeight: 500 } },
],
grid: [GRID_A, GRID_B, GRID_C, GRID_D, GRID_E, GRID_F],
xAxis: [
{ gridIndex: 0, type: "category", data: weeks, boundaryGap: false,
axisLabel: { color: t.inkSoft, fontSize: 12, interval: 7 },
axisLine: { lineStyle: { color: t.inkSoft } }, axisTick: { show: false } },
{ gridIndex: 1, type: "category", data: devices,
axisLabel: { color: t.inkSoft, fontSize: 13 },
axisLine: { lineStyle: { color: t.inkSoft } }, axisTick: { show: false } },
{ gridIndex: 2, type: "value", name: "Pages / Session", nameLocation: "middle", nameGap: 28,
nameTextStyle: { color: t.inkSoft, fontSize: 12 },
axisLabel: { color: t.inkSoft, fontSize: 12 },
axisLine: { lineStyle: { color: t.inkSoft } }, axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } } },
{ gridIndex: 3, type: "category", data: quarters, ...tileAxis },
{ gridIndex: 4, type: "category", data: quarters, ...tileAxis },
{ gridIndex: 5, type: "category", data: quarters, ...tileAxis },
],
yAxis: [
{ gridIndex: 0, type: "value",
axisLabel: { color: t.inkSoft, fontSize: 12 },
axisLine: { lineStyle: { color: t.inkSoft } }, axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } } },
{ gridIndex: 1, type: "value",
axisLabel: { color: t.inkSoft, fontSize: 12 },
axisLine: { lineStyle: { color: t.inkSoft } }, axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } } },
{ gridIndex: 2, type: "value", name: "Duration (min)", nameLocation: "middle", nameGap: 40,
nameTextStyle: { color: t.inkSoft, fontSize: 12 },
axisLabel: { color: t.inkSoft, fontSize: 12 },
axisLine: { lineStyle: { color: t.inkSoft } }, axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } } },
{ gridIndex: 3, type: "value", ...tileAxis, splitLine: { show: false } },
{ gridIndex: 4, type: "value", ...tileAxis, splitLine: { show: false } },
{ gridIndex: 5, type: "value", ...tileAxis, splitLine: { show: false } },
],
series: [
{ name: "Weekly Visits", type: "line", xAxisIndex: 0, yAxisIndex: 0,
data: weeklyVisits, smooth: true, symbol: "none",
lineStyle: { width: 3 }, areaStyle: { opacity: 0.15 },
markLine: {
symbol: "none",
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
label: { color: t.inkSoft, fontSize: 12, formatter: (p) => `avg ${Math.round(p.value).toLocaleString()}` },
data: [{ type: "average", name: "Average" }],
},
markPoint: {
symbol: "circle",
symbolSize: 11,
itemStyle: { color: t.palette[0], borderColor: t.pageBg, borderWidth: 2 },
label: { position: "top", color: t.ink, fontSize: 13, fontWeight: 600,
formatter: (p) => Math.round(p.value).toLocaleString() },
data: [{ type: "max", name: "Peak" }],
} },
{ name: "Visits by Device", type: "bar", xAxisIndex: 1, yAxisIndex: 1,
data: deviceVisits, barWidth: "50%", itemStyle: { opacity: 0.85 } },
{ name: "Sessions", type: "scatter", xAxisIndex: 2, yAxisIndex: 2,
data: sessionPoints, symbolSize: 12, itemStyle: { opacity: 0.85 } },
{ name: "Bounce Rate", type: "bar", xAxisIndex: 3, yAxisIndex: 3,
data: bounceRate, barWidth: "55%", itemStyle: { opacity: 0.6 } },
{ name: "Avg Session", type: "line", xAxisIndex: 4, yAxisIndex: 4,
data: avgSessionMin, smooth: true, symbol: "circle", symbolSize: 8,
lineStyle: { width: 3, opacity: 0.6 }, itemStyle: { opacity: 0.6 } },
{ name: "Conversion", type: "bar", xAxisIndex: 5, yAxisIndex: 5,
data: conversionRate, barWidth: "55%", itemStyle: { opacity: 0.6 } },
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/subplot-mosaic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "subplot-mosaic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/subplot-mosaic/javascript/echarts",
"hub": "https://anyplot.ai/subplot-mosaic",
"code_json": "https://api.anyplot.ai/specs/subplot-mosaic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/subplot-mosaic",

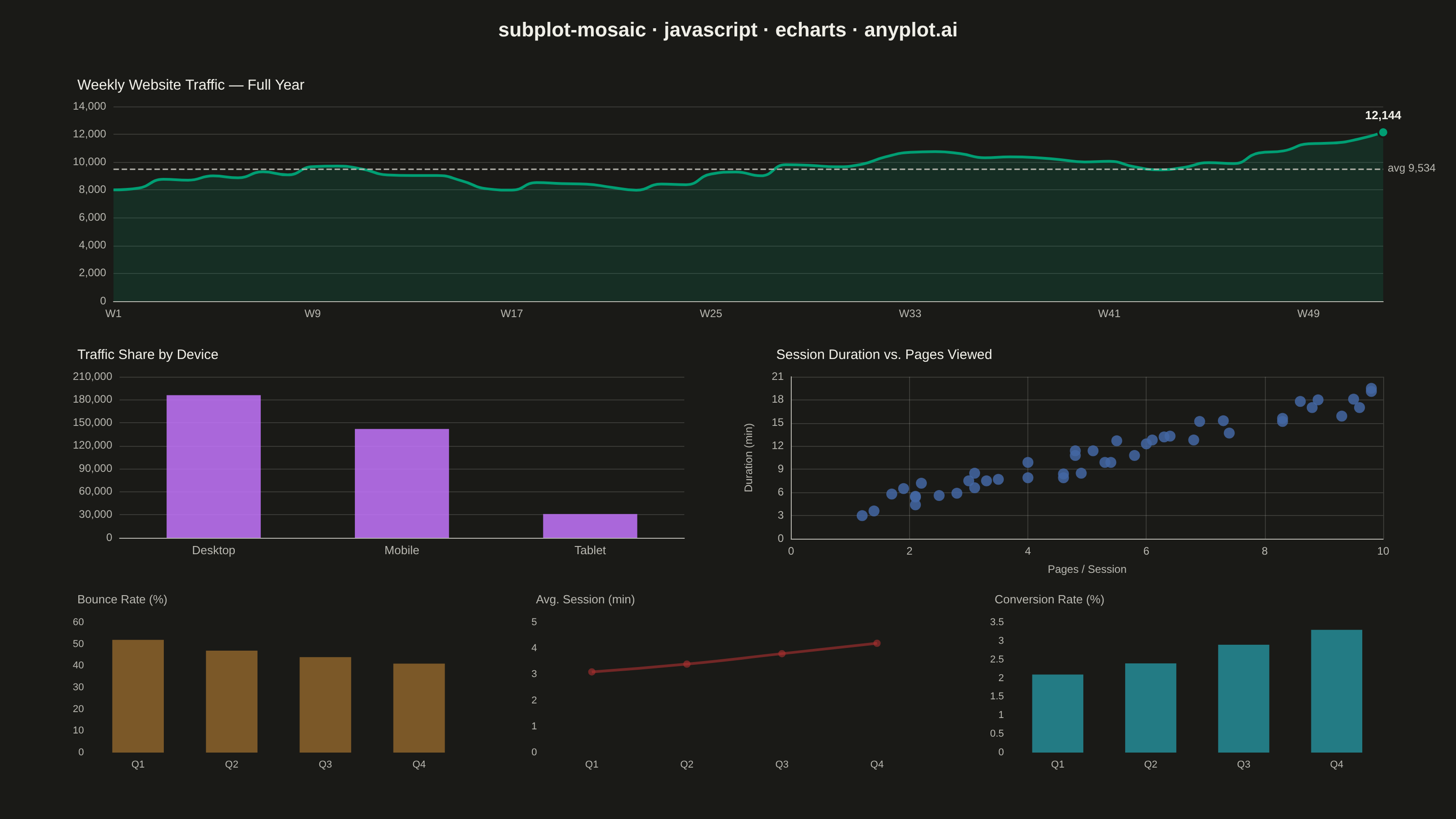

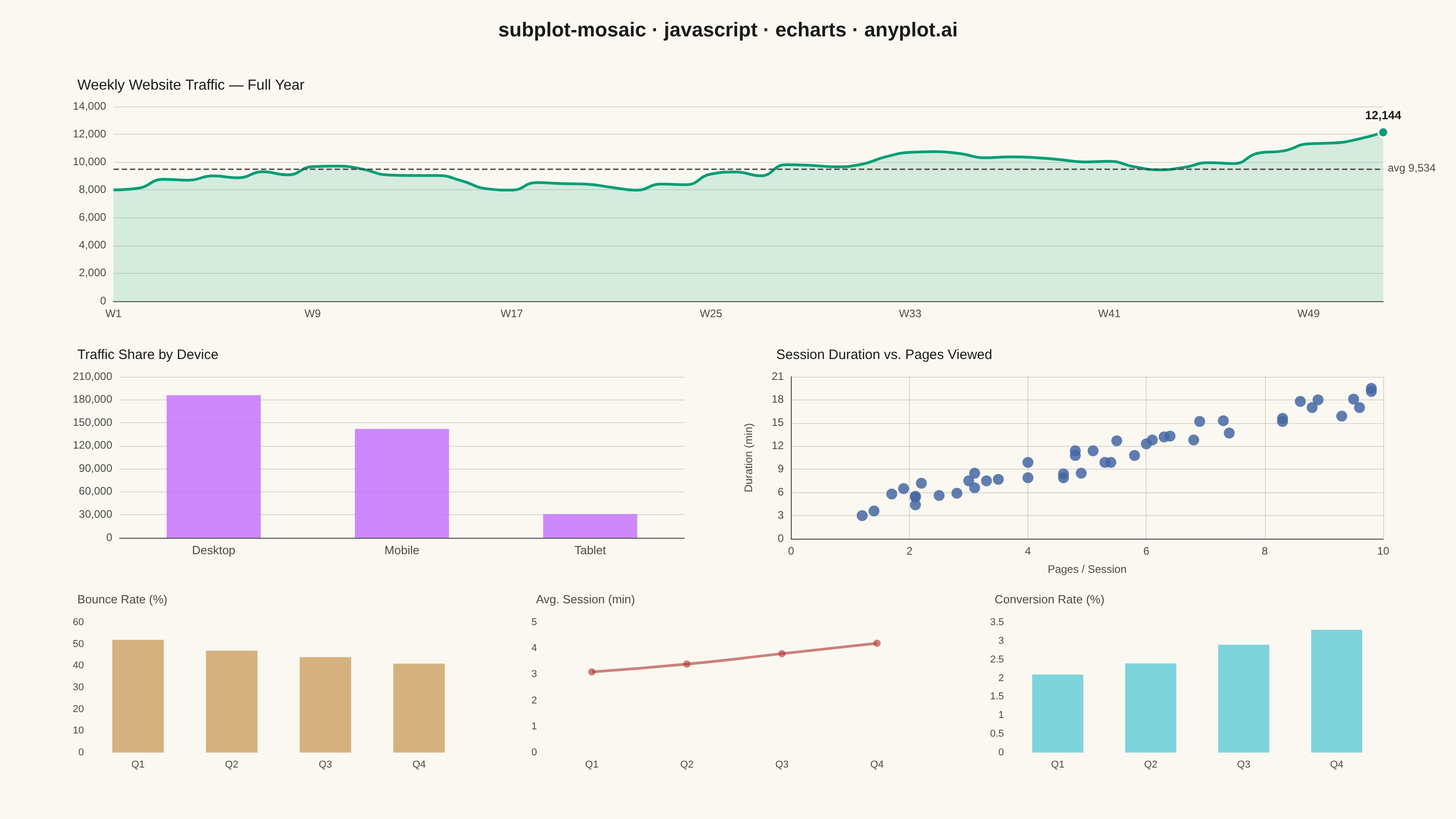

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/subplot-mosaic/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/subplot-mosaic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/subplot-mosaic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/subplot-mosaic/javascript/echarts/plot-dark.html",
"quality_score": 94.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Mosaic Subplot Layout with Varying Sizes on anyplot.ai.
