A sunburst chart displays hierarchical data as concentric rings, where each ring represents a level in the hierarchy. Inner rings show parent categories while outer rings show their children, with segment angles proportional to values. This radial visualization excels at revealing hierarchical structures and part-to-whole relationships across multiple levels simultaneously.
""" anyplot.ai

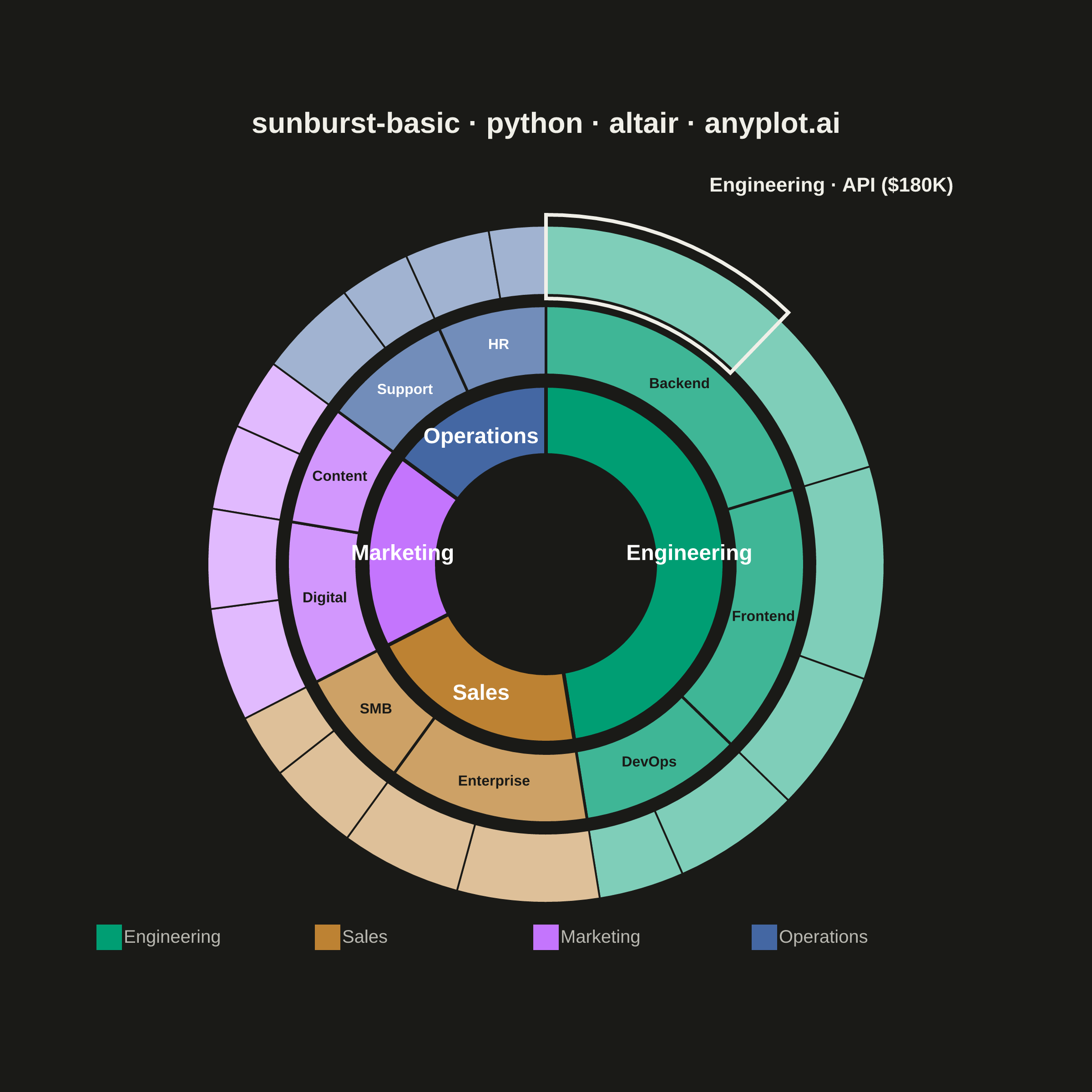

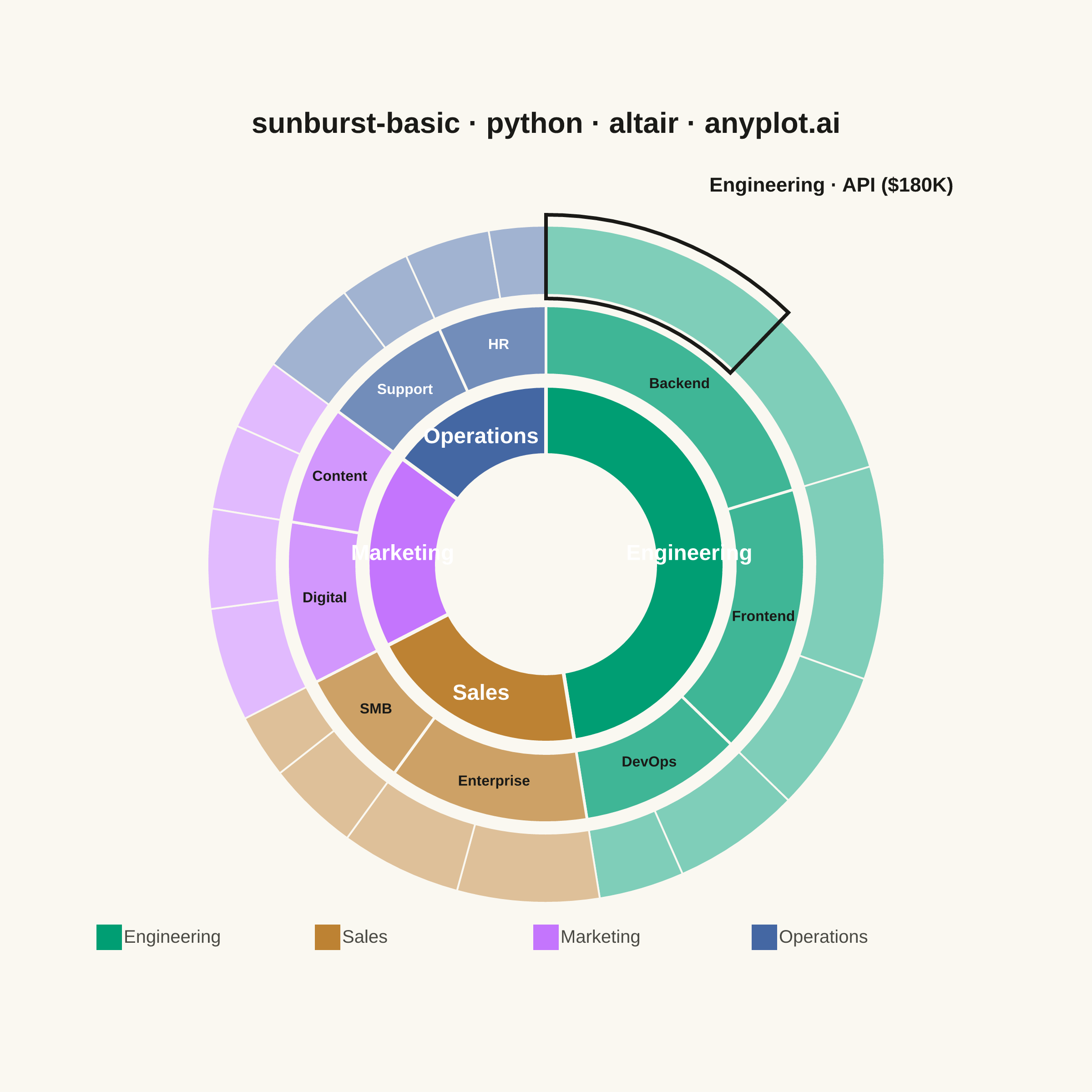

sunburst-basic: Basic Sunburst Chart
Library: altair 6.2.2 | Python 3.13.14
Quality: 90/100 | Updated: 2026-07-26
"""
import os
import sys
# Remove script directory from sys.path to avoid importing local altair.py
_script_dir = os.path.dirname(os.path.abspath(__file__))
sys.path[:] = [p for p in sys.path if os.path.abspath(p or ".") != _script_dir]
import altair as alt
import numpy as np
import pandas as pd
from PIL import Image
# Theme-adaptive chrome tokens (Imprint)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Data - Company budget breakdown by department, team, and project
# Hierarchical structure: Department > Team > Project
data = [
# Engineering Department
{"level_1": "Engineering", "level_2": "Backend", "level_3": "API", "value": 180},
{"level_1": "Engineering", "level_2": "Backend", "level_3": "Database", "value": 120},
{"level_1": "Engineering", "level_2": "Frontend", "level_3": "Web App", "value": 150},
{"level_1": "Engineering", "level_2": "Frontend", "level_3": "Mobile", "value": 100},
{"level_1": "Engineering", "level_2": "DevOps", "level_3": "Cloud", "value": 90},
{"level_1": "Engineering", "level_2": "DevOps", "level_3": "CI/CD", "value": 60},
# Marketing Department
{"level_1": "Marketing", "level_2": "Digital", "level_3": "SEO", "value": 80},
{"level_1": "Marketing", "level_2": "Digital", "level_3": "Social", "value": 70},
{"level_1": "Marketing", "level_2": "Content", "level_3": "Blog", "value": 50},
{"level_1": "Marketing", "level_2": "Content", "level_3": "Video", "value": 60},
# Operations Department
{"level_1": "Operations", "level_2": "Support", "level_3": "Tier 1", "value": 70},
{"level_1": "Operations", "level_2": "Support", "level_3": "Tier 2", "value": 50},
{"level_1": "Operations", "level_2": "HR", "level_3": "Recruiting", "value": 60},
{"level_1": "Operations", "level_2": "HR", "level_3": "Training", "value": 40},
# Sales Department
{"level_1": "Sales", "level_2": "Enterprise", "level_3": "APAC", "value": 100},
{"level_1": "Sales", "level_2": "Enterprise", "level_3": "EMEA", "value": 85},
{"level_1": "Sales", "level_2": "SMB", "level_3": "Direct", "value": 65},
{"level_1": "Sales", "level_2": "SMB", "level_3": "Partners", "value": 45},
]
df = pd.DataFrame(data)
# Imprint palette - first series is always #009E73 (brand green)
level1_colors = {
"Engineering": "#009E73", # brand green
"Marketing": "#C475FD", # lavender
"Operations": "#4467A3", # blue
"Sales": "#BD8233", # ochre
}
# Helper to lighten colors for child levels
hex_to_lighter = {}
for name, hex_color in level1_colors.items():
r, g, b = int(hex_color[1:3], 16), int(hex_color[3:5], 16), int(hex_color[5:7], 16)
# Level 2: 25% lighter
r2, g2, b2 = int(r + (255 - r) * 0.25), int(g + (255 - g) * 0.25), int(b + (255 - b) * 0.25)
# Level 3: 50% lighter
r3, g3, b3 = int(r + (255 - r) * 0.5), int(g + (255 - g) * 0.5), int(b + (255 - b) * 0.5)
hex_to_lighter[name] = {"l1": hex_color, "l2": f"#{r2:02x}{g2:02x}{b2:02x}", "l3": f"#{r3:02x}{g3:02x}{b3:02x}"}
def text_color_for_bg(hex_color):
"""Pick black/white ink for readable contrast against a lightened wedge color."""
r, g, b = int(hex_color[1:3], 16) / 255, int(hex_color[3:5], 16) / 255, int(hex_color[5:7], 16) / 255
luminance = 0.2126 * r + 0.7152 * g + 0.0722 * b
return "#1A1A17" if luminance > 0.55 else "#ffffff"
# Level 1: Department totals
level1_df = df.groupby("level_1")["value"].sum().reset_index()
level1_df.columns = ["name", "value"]
level1_df = level1_df.sort_values("value", ascending=False).reset_index(drop=True)
total_value = level1_df["value"].sum()
# Calculate level 1 angles (full circle distribution)
level1_df["theta"] = 0.0
level1_df["theta2"] = 0.0
current_angle = 0
for idx in level1_df.index:
fraction = level1_df.loc[idx, "value"] / total_value
level1_df.loc[idx, "theta"] = current_angle
level1_df.loc[idx, "theta2"] = current_angle + fraction * 2 * np.pi
current_angle = level1_df.loc[idx, "theta2"]
level1_df["color"] = level1_df["name"].map(level1_colors)
# Level 2: Team totals
level2_df = df.groupby(["level_1", "level_2"])["value"].sum().reset_index()
level2_df.columns = ["parent", "name", "value"]
level2_df = level2_df.sort_values(["parent", "value"], ascending=[True, False]).reset_index(drop=True)
# Calculate level 2 angles (within parent's arc)
level2_df["theta"] = 0.0
level2_df["theta2"] = 0.0
parent_cumulative = {row["name"]: row["theta"] for _, row in level1_df.iterrows()}
for idx in level2_df.index:
parent = level2_df.loc[idx, "parent"]
parent_row = level1_df[level1_df["name"] == parent].iloc[0]
parent_start, parent_end = parent_row["theta"], parent_row["theta2"]
parent_total = parent_row["value"]
fraction = level2_df.loc[idx, "value"] / parent_total
segment_angle = (parent_end - parent_start) * fraction
level2_df.loc[idx, "theta"] = parent_cumulative[parent]
level2_df.loc[idx, "theta2"] = parent_cumulative[parent] + segment_angle
parent_cumulative[parent] = level2_df.loc[idx, "theta2"]
# Assign lighter colors for level 2
level2_df["color"] = level2_df["parent"].apply(lambda p: hex_to_lighter[p]["l2"])
level2_df["label_color"] = level2_df["color"].apply(text_color_for_bg)
# Level 3: Project values
level3_df = df.copy()
level3_df["parent_l1"] = level3_df["level_1"]
level3_df["parent_l2"] = level3_df["level_2"]
level3_df["name"] = level3_df["level_3"]
level3_df = level3_df.sort_values(["level_1", "level_2", "value"], ascending=[True, True, False]).reset_index(drop=True)
# Calculate level 3 angles (within parent's arc in level 2)
level3_df["theta"] = 0.0
level3_df["theta2"] = 0.0
l2_cumulative = {}
for _, row in level2_df.iterrows():
key = f"{row['parent']}|{row['name']}"
l2_cumulative[key] = {"start": row["theta"], "current": row["theta"], "end": row["theta2"], "total": row["value"]}
for idx in level3_df.index:
key = f"{level3_df.loc[idx, 'level_1']}|{level3_df.loc[idx, 'level_2']}"
l2_data = l2_cumulative[key]
fraction = level3_df.loc[idx, "value"] / l2_data["total"]
segment_angle = (l2_data["end"] - l2_data["start"]) * fraction
level3_df.loc[idx, "theta"] = l2_data["current"]
level3_df.loc[idx, "theta2"] = l2_data["current"] + segment_angle
l2_data["current"] = level3_df.loc[idx, "theta2"]
# Assign lightest colors for level 3
level3_df["color"] = level3_df["level_1"].apply(lambda p: hex_to_lighter[p]["l3"])
# Ring radii (absolute pixels, centered in the 500x460 view)
inner_r1, outer_r1 = 60, 98 # Level 1 (innermost)
inner_r2, outer_r2 = 104, 142 # Level 2 (middle)
inner_r3, outer_r3 = 148, 186 # Level 3 (outermost)
# Overlay coordinate system (label/legend layer only, 1:1 with view pixels so
# radii computed above line up exactly with the arc marks' own pixel radii).
# range is explicit (not the Vega-Lite default flipped-Y range) so that
# label_y = -radius*cos(angle) (standard y-down screen convention) lines up
# with the arc marks' own top-origin, clockwise angle convention.
X_DOMAIN = [-250, 250] # matches half of properties(width=500)
Y_DOMAIN = [-230, 230] # matches half of properties(height=460)
X_SCALE = alt.Scale(domain=X_DOMAIN, range=[0, 500])
Y_SCALE = alt.Scale(domain=Y_DOMAIN, range=[0, 460])
# Level 1 - innermost ring (Departments)
chart_l1 = (
alt.Chart(level1_df)
.mark_arc(innerRadius=inner_r1, outerRadius=outer_r1, stroke=PAGE_BG, strokeWidth=2)
.encode(
theta=alt.Theta("theta:Q", scale=alt.Scale(domain=[0, 2 * np.pi])),
theta2="theta2:Q",
color=alt.Color("color:N", scale=None, legend=None),
tooltip=[alt.Tooltip("name:N", title="Department"), alt.Tooltip("value:Q", title="Budget ($K)")],
)
)
# Level 2 - middle ring (Teams)
chart_l2 = (
alt.Chart(level2_df)
.mark_arc(innerRadius=inner_r2, outerRadius=outer_r2, stroke=PAGE_BG, strokeWidth=1.5)
.encode(
theta=alt.Theta("theta:Q", scale=alt.Scale(domain=[0, 2 * np.pi])),
theta2="theta2:Q",
color=alt.Color("color:N", scale=None, legend=None),
tooltip=[
alt.Tooltip("parent:N", title="Department"),
alt.Tooltip("name:N", title="Team"),
alt.Tooltip("value:Q", title="Budget ($K)"),
],
)
)
# Level 3 - outer ring (Projects)
chart_l3 = (
alt.Chart(level3_df)
.mark_arc(innerRadius=inner_r3, outerRadius=outer_r3, stroke=PAGE_BG, strokeWidth=1)
.encode(
theta=alt.Theta("theta:Q", scale=alt.Scale(domain=[0, 2 * np.pi])),
theta2="theta2:Q",
color=alt.Color("color:N", scale=None, legend=None),
tooltip=[
alt.Tooltip("level_1:N", title="Department"),
alt.Tooltip("level_2:N", title="Team"),
alt.Tooltip("name:N", title="Project"),
alt.Tooltip("value:Q", title="Budget ($K)"),
],
)
)
# Add labels for level 1 segments (department names at arc center)
level1_df["label_angle"] = (level1_df["theta"] + level1_df["theta2"]) / 2
level1_df["label_radius"] = (inner_r1 + outer_r1) / 2
level1_df["label_x"] = level1_df["label_radius"] * np.sin(level1_df["label_angle"])
level1_df["label_y"] = -level1_df["label_radius"] * np.cos(level1_df["label_angle"])
text_l1 = (
alt.Chart(level1_df)
.mark_text(fontSize=12, fontWeight="bold", color="#ffffff")
.encode(
x=alt.X("label_x:Q", scale=X_SCALE, axis=None), y=alt.Y("label_y:Q", scale=Y_SCALE, axis=None), text="name:N"
)
)
# Add labels for level 2 segments (team names at arc center) — every team wedge
# spans >=24 degrees here, wide enough for short text, so all are labeled.
level2_df["label_angle"] = (level2_df["theta"] + level2_df["theta2"]) / 2
level2_df["label_radius"] = (inner_r2 + outer_r2) / 2
level2_df["label_x"] = level2_df["label_radius"] * np.sin(level2_df["label_angle"])
level2_df["label_y"] = -level2_df["label_radius"] * np.cos(level2_df["label_angle"])
text_l2 = (
alt.Chart(level2_df)
.mark_text(fontSize=8, fontWeight="bold")
.encode(
x=alt.X("label_x:Q", scale=X_SCALE, axis=None),
y=alt.Y("label_y:Q", scale=Y_SCALE, axis=None),
text="name:N",
color=alt.Color("label_color:N", scale=None, legend=None),
)
)
# Focal-point emphasis (DE-03): outline + callout label on the single largest
# leaf segment so the chart has one clear "headline" data point beyond the
# radial nesting itself.
top_leaf = level3_df.loc[[level3_df["value"].idxmax()]].copy()
top_leaf["label_angle"] = (top_leaf["theta"] + top_leaf["theta2"]) / 2
top_leaf["label_radius"] = outer_r3 + 38
top_leaf["label_x"] = top_leaf["label_radius"] * np.sin(top_leaf["label_angle"])
top_leaf["label_y"] = -top_leaf["label_radius"] * np.cos(top_leaf["label_angle"])
top_leaf["label_text"] = top_leaf["parent_l1"] + " · " + top_leaf["name"] + " ($" + top_leaf["value"].astype(str) + "K)"
chart_highlight = (
alt.Chart(top_leaf)
.mark_arc(innerRadius=inner_r3 - 2, outerRadius=outer_r3 + 6, stroke=INK, strokeWidth=2, fillOpacity=0)
.encode(theta=alt.Theta("theta:Q", scale=alt.Scale(domain=[0, 2 * np.pi])), theta2="theta2:Q")
)
# Anchor the callout away from the ring instead of centering it over the
# wedge's radial edge (which sits near the top of the chart, close to x=0).
_label_align = "left" if float(top_leaf["label_x"].iloc[0]) >= 0 else "right"
_label_dx = 6 if _label_align == "left" else -6
text_highlight = (
alt.Chart(top_leaf)
.mark_text(fontSize=11, fontWeight="bold", color=INK, align=_label_align, dx=_label_dx)
.encode(
x=alt.X("label_x:Q", scale=X_SCALE, axis=None),
y=alt.Y("label_y:Q", scale=Y_SCALE, axis=None),
text="label_text:N",
)
)
# Add legend as a horizontal row below the rings (kept left/right-balanced
# around x=0 so the donut itself stays centered on the padded canvas)
LEGEND_SLOT_W = 120
legend_items = []
for i, (_, row) in enumerate(level1_df.iterrows()):
slot_x = -LEGEND_SLOT_W * len(level1_df) / 2 + i * LEGEND_SLOT_W
legend_items.append({"dept": row["name"], "color": level1_colors[row["name"]], "x": slot_x, "y": 205})
legend_df = pd.DataFrame(legend_items)
legend_rects = (
alt.Chart(legend_df)
.mark_rect(width=14, height=14)
.encode(
x=alt.X("x:Q", scale=X_SCALE, axis=None),
y=alt.Y("y:Q", scale=Y_SCALE, axis=None),
color=alt.Color("color:N", scale=None),
)
)
legend_text = (
alt.Chart(legend_df)
.mark_text(fontSize=10, align="left", dx=8, color=INK_SOFT)
.encode(x=alt.X("x:Q", scale=X_SCALE, axis=None), y=alt.Y("y:Q", scale=Y_SCALE, axis=None), text="dept:N")
)
# Combine all layers
chart = (
alt.layer(
chart_l1, chart_l2, chart_l3, chart_highlight, text_l1, text_l2, text_highlight, legend_rects, legend_text
)
.properties(
width=500,
height=460,
background=PAGE_BG,
title=alt.Title(text="sunburst-basic · python · altair · anyplot.ai", fontSize=16, anchor="middle", color=INK),
)
.configure_view(fill=PAGE_BG, strokeWidth=0)
)
# Save outputs — canonical square target 2400x2400 (see prompts/library/altair.md "Canvas")
chart.save(f"plot-{THEME}.png", scale_factor=4.0)
TW, TH = 2400, 2400
_img = Image.open(f"plot-{THEME}.png").convert("RGB")
_w, _h = _img.size
if _w > TW or _h > TH:
raise SystemExit(
f"altair vl-convert produced {_w}x{_h}, exceeds target {TW}x{TH}. "
f"Shrink chart .properties(width=, height=) values and re-render."
)
if _w < TW or _h < TH:
_canvas = Image.new("RGB", (TW, TH), PAGE_BG)
_canvas.paste(_img, ((TW - _w) // 2, (TH - _h) // 2))
_canvas.save(f"plot-{THEME}.png")
chart.save(f"plot-{THEME}.html")
Part of Basic Sunburst Chart on anyplot.ai.
