A sunburst chart displays hierarchical data as concentric rings, where each ring represents a level in the hierarchy. Inner rings show parent categories while outer rings show their children, with segment angles proportional to values. This radial visualization excels at revealing hierarchical structures and part-to-whole relationships across multiple levels simultaneously.
""" anyplot.ai

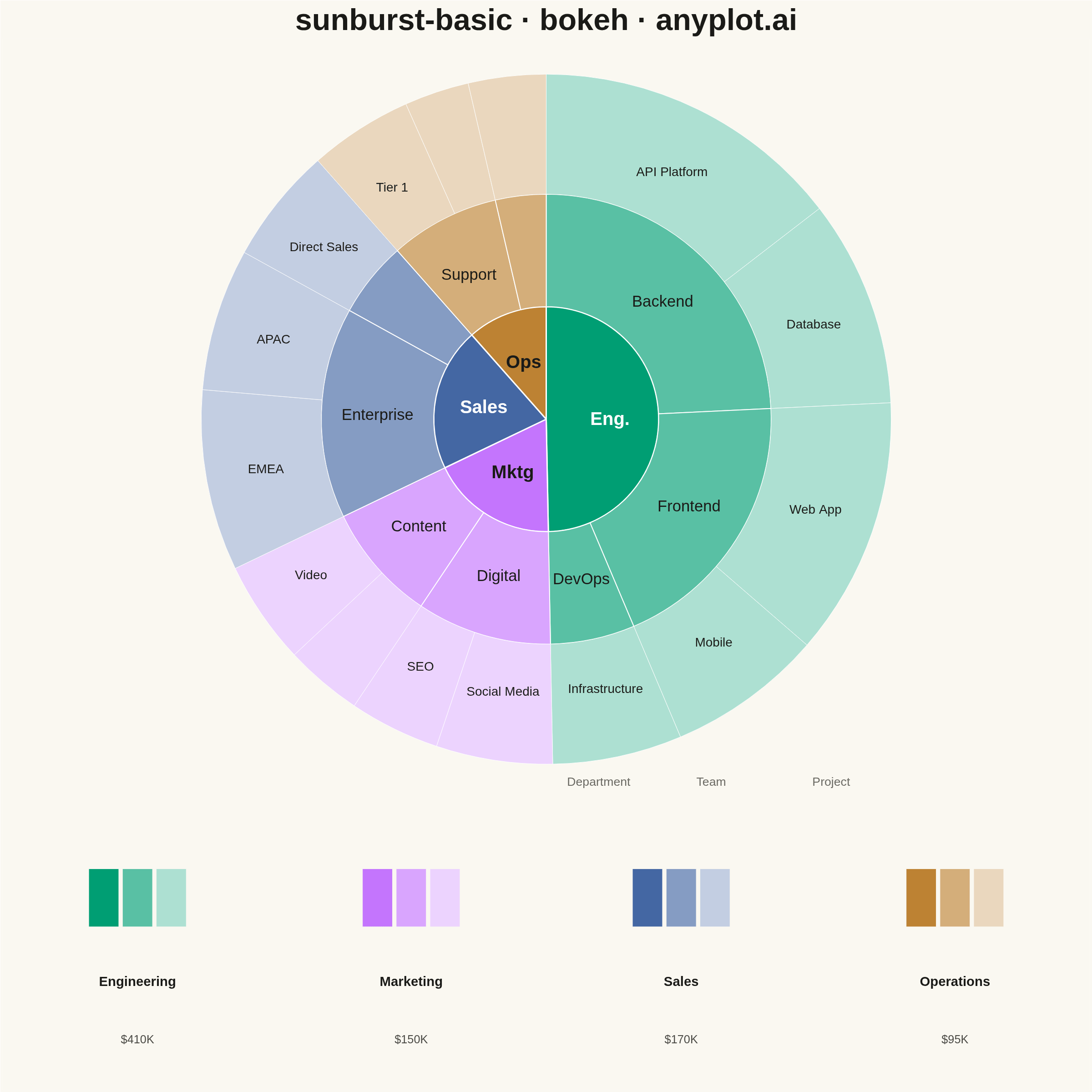

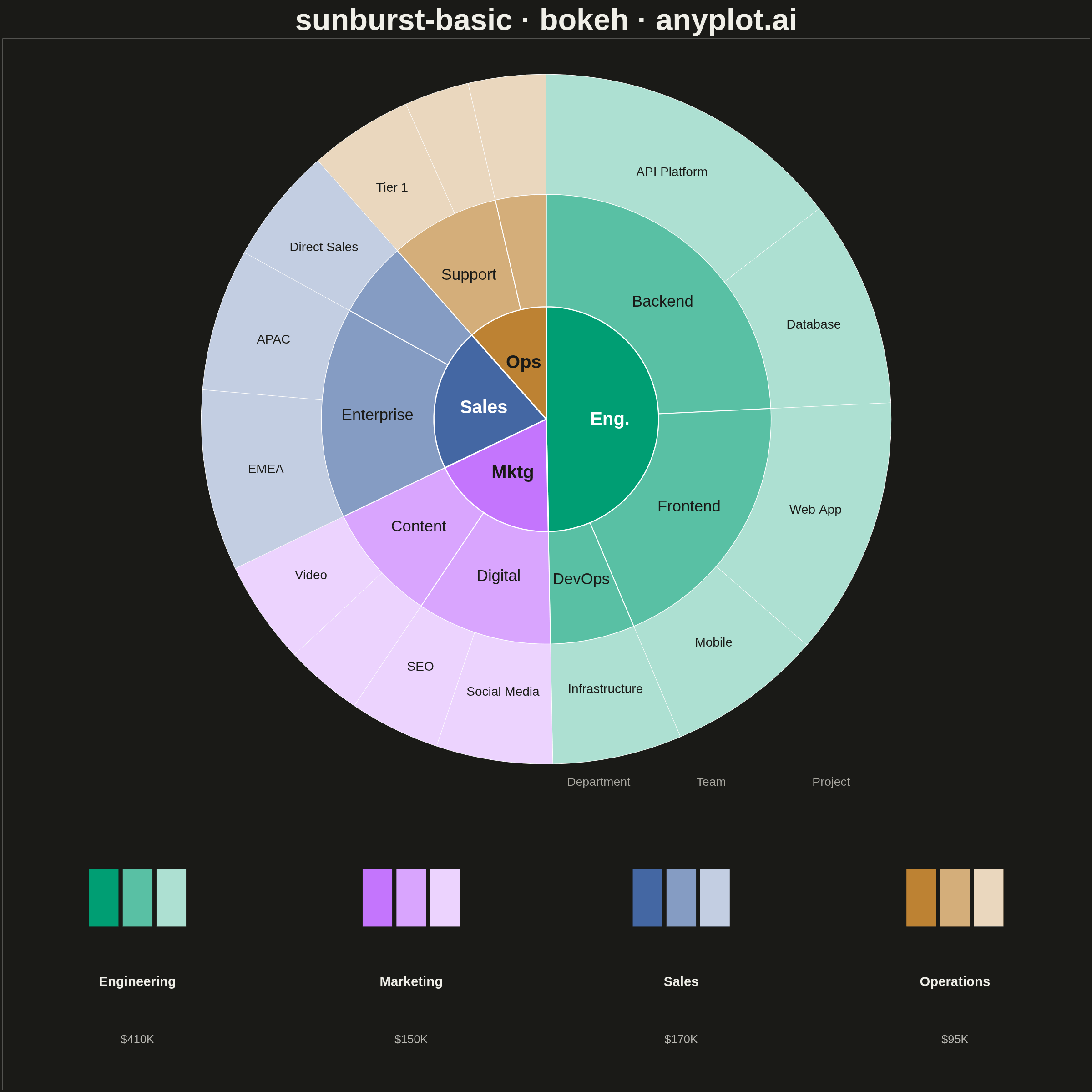

sunburst-basic: Basic Sunburst Chart
Library: bokeh 3.9.2 | Python 3.13.14
Quality: 90/100 | Updated: 2026-07-26
"""
import os
import sys
import time
from math import cos, pi, sin
from pathlib import Path
# Remove this script's directory from sys.path so "bokeh" resolves to the
# installed package, not this file itself (which is also named bokeh.py).
sys.path = [p for p in sys.path if os.path.abspath(p) != os.path.dirname(os.path.abspath(__file__))]
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Label
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Output directory: same folder as this script, regardless of cwd
OUT_DIR = Path(__file__).parent
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Data - Organizational budget breakdown (Department -> Team -> Project)
hierarchy = [
# Engineering
{"level_1": "Engineering", "level_2": "Backend", "level_3": "API Platform", "value": 120},
{"level_1": "Engineering", "level_2": "Backend", "level_3": "Database", "value": 80},
{"level_1": "Engineering", "level_2": "Frontend", "level_3": "Web App", "value": 100},
{"level_1": "Engineering", "level_2": "Frontend", "level_3": "Mobile", "value": 60},
{"level_1": "Engineering", "level_2": "DevOps", "level_3": "Infrastructure", "value": 50},
# Marketing
{"level_1": "Marketing", "level_2": "Digital", "level_3": "Social Media", "value": 45},
{"level_1": "Marketing", "level_2": "Digital", "level_3": "SEO", "value": 35},
{"level_1": "Marketing", "level_2": "Content", "level_3": "Blog", "value": 30},
{"level_1": "Marketing", "level_2": "Content", "level_3": "Video", "value": 40},
# Sales
{"level_1": "Sales", "level_2": "Enterprise", "level_3": "EMEA", "value": 70},
{"level_1": "Sales", "level_2": "Enterprise", "level_3": "APAC", "value": 55},
{"level_1": "Sales", "level_2": "SMB", "level_3": "Direct Sales", "value": 45},
# Operations
{"level_1": "Operations", "level_2": "Support", "level_3": "Tier 1", "value": 40},
{"level_1": "Operations", "level_2": "Support", "level_3": "Tier 2", "value": 25},
{"level_1": "Operations", "level_2": "HR", "level_3": "Recruiting", "value": 30},
]
# Imprint categorical palette (canonical order) — departments walk positions
# 1->N in hierarchy order (Engineering, Marketing, Sales, Operations).
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
dept_order = ["Engineering", "Marketing", "Sales", "Operations"]
def _lerp_hex(c0, c1, t):
r0, g0, b0 = (int(c0[i : i + 2], 16) for i in (1, 3, 5))
r1, g1, b1 = (int(c1[i : i + 2], 16) for i in (1, 3, 5))
r, g, b = (round(a + (b - a) * t) for a, b in ((r0, r1), (g0, g1), (b0, b1)))
return f"#{r:02X}{g:02X}{b:02X}"
def _text_on(bg_hex):
"""Fixed (non theme-adaptive) black/white text pick via YIQ luminance —
data-layer labels sit on data colors that stay constant across themes,
so their text color must stay constant too."""
r, g, b = (int(bg_hex[i : i + 2], 16) for i in (1, 3, 5))
yiq = (r * 299 + g * 587 + b * 114) / 1000
return "#1A1A17" if yiq >= 128 else "#FFFFFF"
# Department color families: Imprint base tinted toward white for child rings
dept_colors = {
dept: {"base": base, "mid": _lerp_hex(base, "#FFFFFF", 0.35), "light": _lerp_hex(base, "#FFFFFF", 0.68)}
for dept, base in zip(dept_order, IMPRINT_PALETTE, strict=True)
}
# Clearer abbreviations than 3-char truncation
dept_abbrev = {"Engineering": "Eng.", "Marketing": "Mktg", "Sales": "Sales", "Operations": "Ops"}
# Calculate totals
level_1_totals = {}
level_2_totals = {}
for item in hierarchy:
l1, l2, val = item["level_1"], item["level_2"], item["value"]
level_1_totals[l1] = level_1_totals.get(l1, 0) + val
level_2_totals[(l1, l2)] = level_2_totals.get((l1, l2), 0) + val
total = sum(item["value"] for item in hierarchy)
# Ring radii — rings touch directly (no radial gap); the white wedge borders
# alone provide separation. A gap here would show as PAGE_BG, which reads as
# a distracting near-black ring on the dark theme.
r1_inner, r1_outer = 0.0, 0.30
r2_inner, r2_outer = 0.30, 0.60
r3_inner, r3_outer = 0.60, 0.92
# Build vectorized segment data for each ring (enables HoverTool)
_keys = ["x", "y", "inner_radius", "outer_radius", "start_angle", "end_angle", "fill_color", "name", "budget"]
l1_data = {k: [] for k in _keys}
l2_data = {k: [] for k in _keys}
l3_data = {k: [] for k in _keys}
l1_angles = {}
l2_angles = {}
l3_labels = [] # (mid_angle, text, fill_color, show) — computed once, reused for labels
# Level 1 segments
start_angle = pi / 2
for l1 in dept_order:
angle_span = (level_1_totals[l1] / total) * 2 * pi
end_angle = start_angle - angle_span
for k, v in zip(
_keys,
[0, 0, r1_inner, r1_outer, end_angle, start_angle, dept_colors[l1]["base"], l1, f"${level_1_totals[l1]}K"],
strict=True,
):
l1_data[k].append(v)
l1_angles[l1] = {"start": start_angle, "end": end_angle}
start_angle = end_angle
# Level 2 segments
for l1 in dept_order:
l1_start = l1_angles[l1]["start"]
l1_span = l1_start - l1_angles[l1]["end"]
l2_items = [(k, v) for k, v in level_2_totals.items() if k[0] == l1]
l1_total = level_1_totals[l1]
current_start = l1_start
for (_, l2_name), l2_val in l2_items:
angle_span = (l2_val / l1_total) * l1_span
end_angle = current_start - angle_span
for k, v in zip(
_keys,
[0, 0, r2_inner, r2_outer, end_angle, current_start, dept_colors[l1]["mid"], l2_name, f"${l2_val}K"],
strict=True,
):
l2_data[k].append(v)
l2_angles[(l1, l2_name)] = {"start": current_start, "end": end_angle}
current_start = end_angle
# Level 3 segments — mid_angle is computed once here and reused by the label
# loop below instead of being recomputed from the hierarchy a second time.
for item in hierarchy:
l1, l2, l3, val = item["level_1"], item["level_2"], item["level_3"], item["value"]
l2_start = l2_angles[(l1, l2)]["start"]
l2_span = l2_start - l2_angles[(l1, l2)]["end"]
l2_total = level_2_totals[(l1, l2)]
l3_items = [h for h in hierarchy if h["level_1"] == l1 and h["level_2"] == l2]
l3_idx = next(i for i, h in enumerate(l3_items) if h["level_3"] == l3)
cumulative = sum(l3_items[i]["value"] for i in range(l3_idx))
seg_start = l2_start - (cumulative / l2_total) * l2_span
seg_end = seg_start - (val / l2_total) * l2_span
fill = dept_colors[l1]["light"]
for k, v in zip(_keys, [0, 0, r3_inner, r3_outer, seg_end, seg_start, fill, l3, f"${val}K"], strict=True):
l3_data[k].append(v)
l3_labels.append(((seg_start + seg_end) / 2, l3, fill, val / total > 0.04))
# Plot — square canvas: a sunburst has no preferred horizontal axis.
W = H = 2400
p = figure(
width=W,
height=H,
title="sunburst-basic · bokeh · anyplot.ai",
toolbar_location=None,
tools="",
x_range=(-1.45, 1.45),
y_range=(-1.85, 1.05),
)
# Draw rings via ColumnDataSource (required for HoverTool)
l1_r = p.annular_wedge(
x="x",
y="y",
inner_radius="inner_radius",
outer_radius="outer_radius",
start_angle="start_angle",
end_angle="end_angle",
fill_color="fill_color",
line_color="white",
line_width=3,
source=ColumnDataSource(l1_data),
)
l2_r = p.annular_wedge(
x="x",
y="y",
inner_radius="inner_radius",
outer_radius="outer_radius",
start_angle="start_angle",
end_angle="end_angle",
fill_color="fill_color",
line_color="white",
line_width=2,
source=ColumnDataSource(l2_data),
)
l3_r = p.annular_wedge(
x="x",
y="y",
inner_radius="inner_radius",
outer_radius="outer_radius",
start_angle="start_angle",
end_angle="end_angle",
fill_color="fill_color",
line_color="white",
line_width=1,
source=ColumnDataSource(l3_data),
)
# Hover tooltips for each ring level
p.add_tools(HoverTool(renderers=[l1_r], tooltips=[("Department", "@name"), ("Budget", "@budget")]))
p.add_tools(HoverTool(renderers=[l2_r], tooltips=[("Team", "@name"), ("Budget", "@budget")]))
p.add_tools(HoverTool(renderers=[l3_r], tooltips=[("Project", "@name"), ("Budget", "@budget")]))
# Level 1 labels (clearer abbreviations) — fixed text color per segment,
# never theme-adaptive INK, since the segment fill is constant across themes.
for l1 in dept_order:
angles = l1_angles[l1]
mid_angle = (angles["start"] + angles["end"]) / 2
label_r = (r1_inner + r1_outer) / 2 + 0.02
p.add_layout(
Label(
x=label_r * cos(mid_angle),
y=label_r * sin(mid_angle),
text=dept_abbrev[l1],
text_font_size="30pt",
text_color=_text_on(dept_colors[l1]["base"]),
text_font_style="bold",
text_align="center",
text_baseline="middle",
)
)
# Level 2 labels (full names, no truncation)
for l1 in dept_order:
l1_start = l1_angles[l1]["start"]
l1_span = l1_start - l1_angles[l1]["end"]
l2_items = [(k, v) for k, v in level_2_totals.items() if k[0] == l1]
l1_total = level_1_totals[l1]
current_start = l1_start
for (_, l2_name), l2_val in l2_items:
angle_span = (l2_val / l1_total) * l1_span
end_angle = current_start - angle_span
if l2_val / total > 0.06:
mid_angle = (current_start + end_angle) / 2
label_r = (r2_inner + r2_outer) / 2
p.add_layout(
Label(
x=label_r * cos(mid_angle),
y=label_r * sin(mid_angle),
text=l2_name,
text_font_size="26pt",
text_color=_text_on(dept_colors[l1]["mid"]),
text_align="center",
text_baseline="middle",
)
)
current_start = end_angle
# Level 3 labels — reuses mid_angle/fill computed during the segment build above.
for mid_angle, text, fill, show in l3_labels:
if show:
label_r = (r3_inner + r3_outer) / 2
p.add_layout(
Label(
x=label_r * cos(mid_angle),
y=label_r * sin(mid_angle),
text=text,
text_font_size="21pt",
text_color=_text_on(fill),
text_align="center",
text_baseline="middle",
)
)
# Ring level labels
for radius, text in [(0.14, "Department"), (0.44, "Team"), (0.76, "Project")]:
p.add_layout(
Label(
x=radius,
y=-1.0,
text=text,
text_font_size="20pt",
text_color=INK_MUTED,
text_align="center",
text_baseline="middle",
)
)
# Legend — horizontal row below the rings (square canvas has no side gutter)
legend_y_swatch = -1.32
legend_y_label = -1.55
legend_col_x = [-1.09, -0.36, 0.36, 1.09]
for i, l1 in enumerate(dept_order):
colors = dept_colors[l1]
cx = legend_col_x[i]
for shade, x_off in [("base", -0.09), ("mid", 0.0), ("light", 0.09)]:
p.rect(
x=cx + x_off,
y=legend_y_swatch,
width=0.08,
height=0.16,
fill_color=colors[shade],
line_color=PAGE_BG,
line_width=1,
)
p.add_layout(
Label(
x=cx,
y=legend_y_label,
text=l1,
text_font_size="22pt",
text_color=INK,
text_font_style="bold",
text_align="center",
text_baseline="middle",
)
)
p.add_layout(
Label(
x=cx,
y=legend_y_label - 0.16,
text=f"${level_1_totals[l1]}K",
text_font_size="19pt",
text_color=INK_SOFT,
text_align="center",
text_baseline="middle",
)
)
# Style
p.title.text_font_size = "50pt"
p.title.text_color = INK
p.title.align = "center"
p.axis.visible = False
p.grid.visible = False
p.outline_line_color = None
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
# Save HTML (use OUT_DIR so script runs correctly from any cwd)
html_path = OUT_DIR / f"plot-{THEME}.html"
png_path = OUT_DIR / f"plot-{THEME}.png"
output_file(str(html_path))
save(p)
# Screenshot with headless Chrome
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{html_path.resolve()}")
# Headless Chrome's --window-size sets the OUTER window, which still reserves
# a phantom title-bar height even headless — pin the viewport exactly via CDP.
driver.execute_cdp_cmd(
"Emulation.setDeviceMetricsOverride", {"width": W, "height": H, "deviceScaleFactor": 1, "mobile": False}
)
time.sleep(3)
driver.save_screenshot(str(png_path))
driver.quit()
Part of Basic Sunburst Chart on anyplot.ai.
