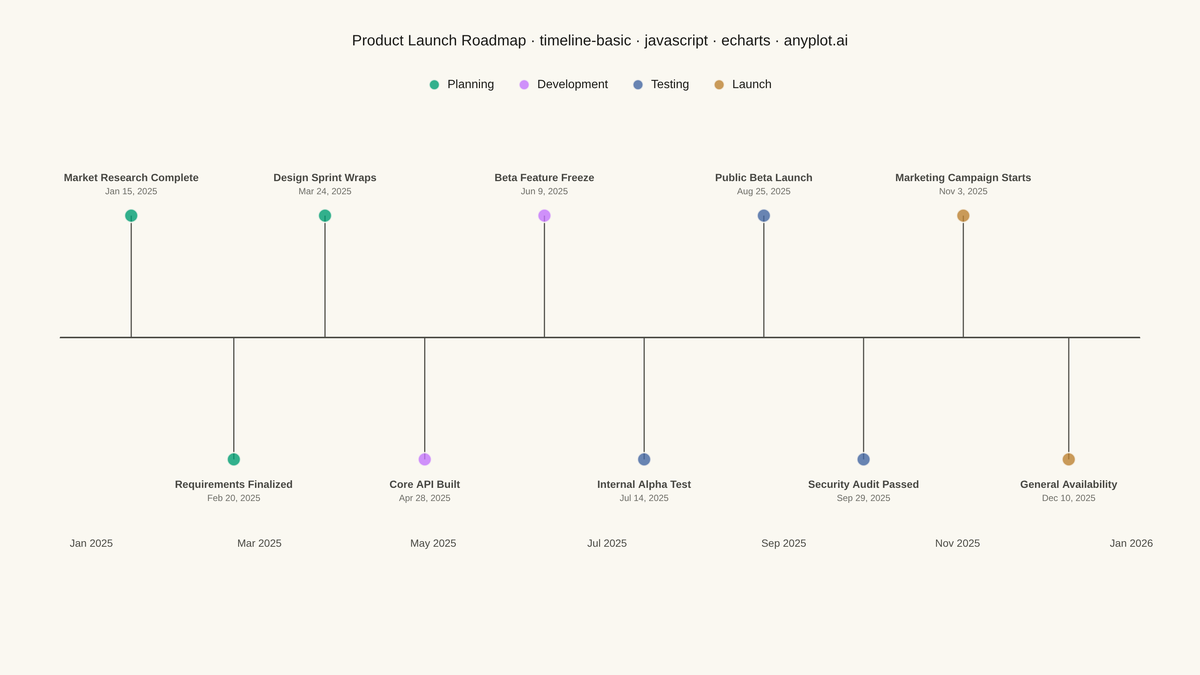

A timeline visualization that displays events and milestones along a temporal axis. Events are represented as points or markers with accompanying labels, making it easy to understand the sequence and timing of events. This plot type excels at showing chronological progressions and is particularly effective for communicating project phases, historical events, or any time-ordered sequence of occurrences.
// anyplot.ai
// timeline-basic: Event Timeline
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 85/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ---------------------------------------
// Product launch roadmap: milestones grouped by project phase.
const categories = ["Planning", "Development", "Testing", "Launch"];
const events = [
{ date: "2025-01-15", name: "Market Research Complete", category: "Planning" },
{ date: "2025-02-20", name: "Requirements Finalized", category: "Planning" },
{ date: "2025-03-24", name: "Design Sprint Wraps", category: "Planning" },
{ date: "2025-04-28", name: "Core API Built", category: "Development" },
{ date: "2025-06-09", name: "Beta Feature Freeze", category: "Development" },
{ date: "2025-07-14", name: "Internal Alpha Test", category: "Testing" },
{ date: "2025-08-25", name: "Public Beta Launch", category: "Testing" },
{ date: "2025-09-29", name: "Security Audit Passed", category: "Testing" },
{ date: "2025-11-03", name: "Marketing Campaign Starts", category: "Launch" },
{ date: "2025-12-10", name: "General Availability", category: "Launch" },
];
const DATE_LABEL = new Intl.DateTimeFormat("en-US", { month: "short", day: "numeric", year: "numeric" });
const points = events.map((e, i) => ({
timestamp: new Date(`${e.date}T00:00:00Z`).getTime(),
name: e.name,
category: e.category,
dateLabel: DATE_LABEL.format(new Date(`${e.date}T00:00:00Z`)),
side: i % 2 === 0 ? 1 : -1,
}));
const dayMs = 24 * 60 * 60 * 1000;
const minTime = Math.min(...points.map((p) => p.timestamp)) - 25 * dayMs;
const maxTime = Math.max(...points.map((p) => p.timestamp)) + 25 * dayMs;
// Vertical stems from the baseline (y=0) to each event marker, broken between
// events via a null-y point so ECharts starts a fresh segment per stem.
const stemData = [];
points.forEach((p) => {
stemData.push([p.timestamp, 0]);
stemData.push([p.timestamp, p.side]);
stemData.push([p.timestamp, null]);
});
// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -----------------------------------------------------------------
const titleText = "Product Launch Roadmap · timeline-basic · javascript · echarts · anyplot.ai";
const titleFontSize = Math.round(22 * Math.min(1, 67 / titleText.length));
const labelRich = {
name: { color: t.ink, fontSize: 14, fontWeight: "bold", lineHeight: 20 },
date: { color: t.inkSoft, fontSize: 12, lineHeight: 16 },
};
const categorySeries = categories.map((cat, i) => ({
name: cat,
type: "scatter",
data: points
.filter((p) => p.category === cat)
.map((p) => ({
value: [p.timestamp, p.side],
name: p.name,
dateLabel: p.dateLabel,
label: {
show: true,
position: p.side > 0 ? "top" : "bottom",
distance: 14,
formatter: `{name|${p.name}}\n{date|${p.dateLabel}}`,
rich: labelRich,
align: "center",
},
})),
symbolSize: 18,
itemStyle: { color: t.palette[i], borderColor: t.pageBg, borderWidth: 2 },
z: 3,
}));
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: titleText,
left: "center",
top: 40,
textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
},
legend: {
data: categories,
top: 100,
left: "center",
itemGap: 32,
textStyle: { color: t.ink, fontSize: 16 },
},
tooltip: {
trigger: "item",
backgroundColor: t.elevatedBg,
borderColor: t.grid,
textStyle: { color: t.ink },
formatter: (params) =>
`<b>${params.data.name}</b><br/>${params.seriesName} · ${params.data.dateLabel}`,
},
grid: { left: 80, right: 80, top: 190, bottom: 190 },
xAxis: {
type: "time",
min: minTime,
max: maxTime,
axisLabel: { color: t.inkSoft, fontSize: 14, formatter: "{MMM} {yyyy}" },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
min: -1.6,
max: 1.6,
show: false,
},
series: [
{
name: "baseline",
type: "line",
data: [
[minTime, 0],
[maxTime, 0],
],
showSymbol: false,
silent: true,
lineStyle: { color: t.inkSoft, width: 2 },
z: 1,
},
{
name: "stems",
type: "line",
data: stemData,
showSymbol: false,
silent: true,
connectNulls: false,
lineStyle: { color: t.inkSoft, width: 1.5 },
z: 2,
},
...categorySeries,
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/timeline-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "timeline-basic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/timeline-basic/javascript/echarts",
"hub": "https://anyplot.ai/timeline-basic",
"code_json": "https://api.anyplot.ai/specs/timeline-basic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/timeline-basic",

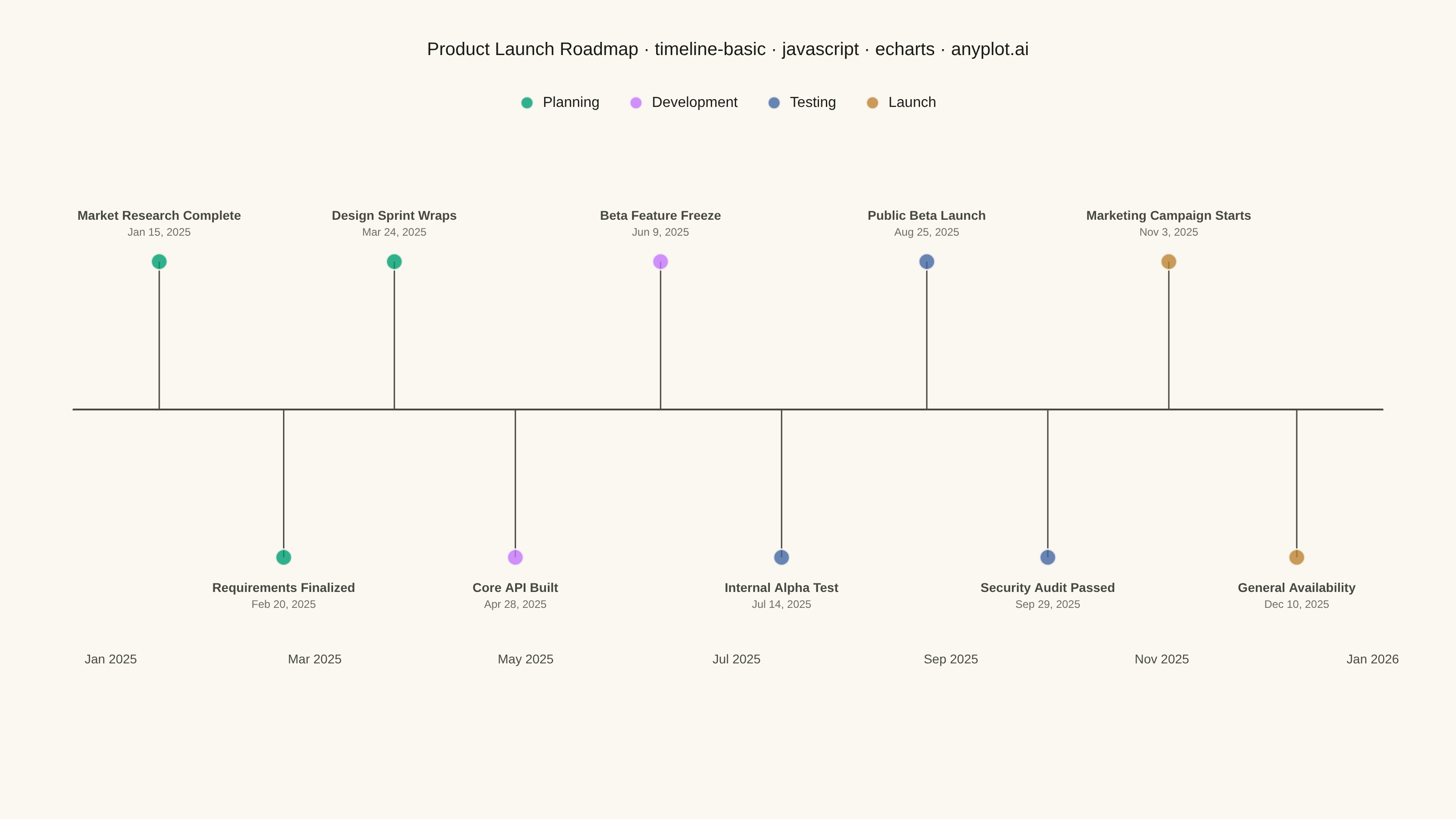

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/timeline-basic/javascript/echarts/plot-light.png",

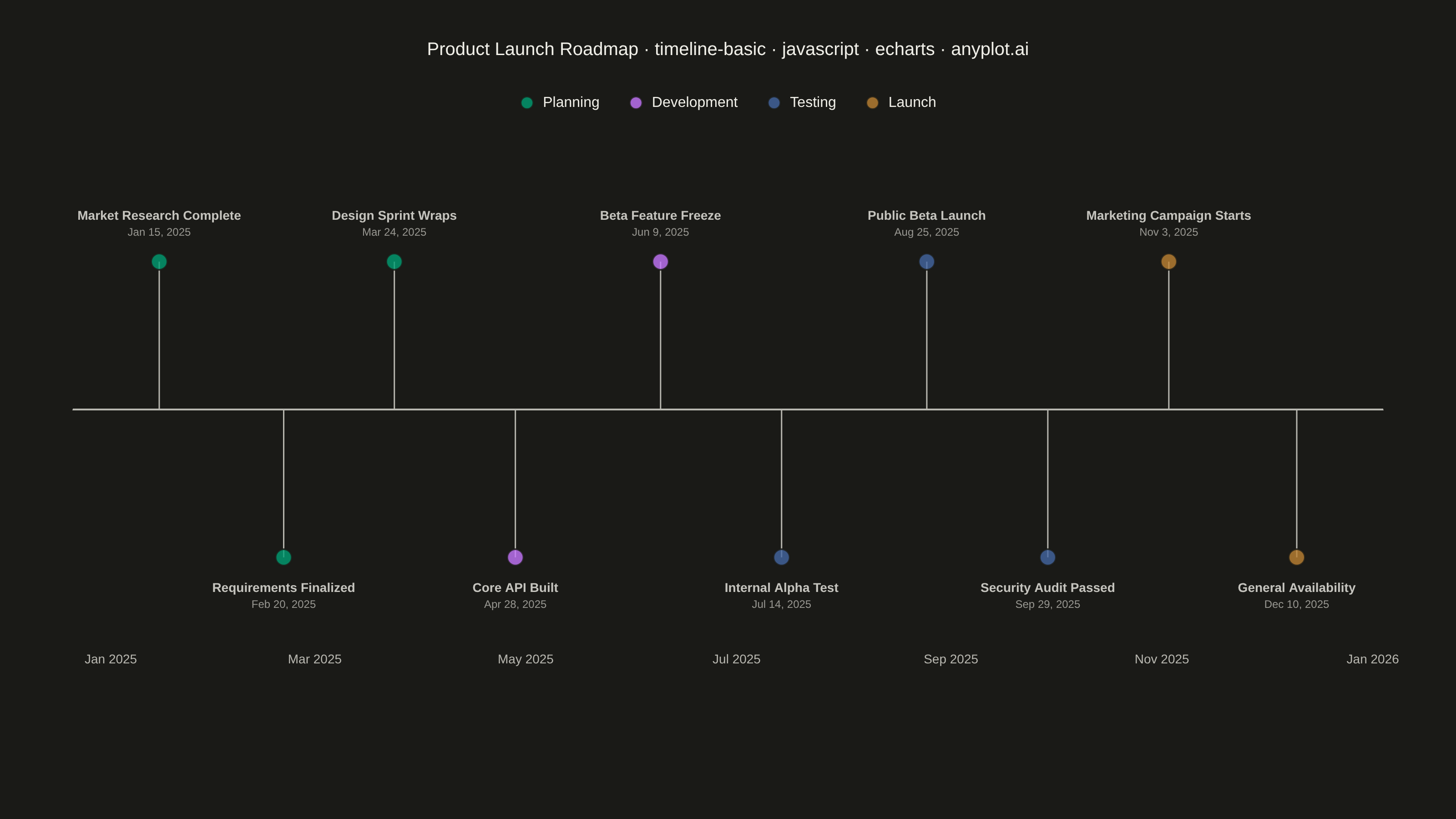

"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/timeline-basic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/timeline-basic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/timeline-basic/javascript/echarts/plot-dark.html",
"quality_score": 85.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Event Timeline on anyplot.ai.
