Event Timeline — lets-plot

A timeline visualization that displays events and milestones along a temporal axis. Events are represented as points or markers with accompanying labels, making it easy to understand the sequence and timing of events. This plot type excels at showing chronological progressions and is particularly effective for communicating project phases, historical events, or any time-ordered sequence of occurrences.

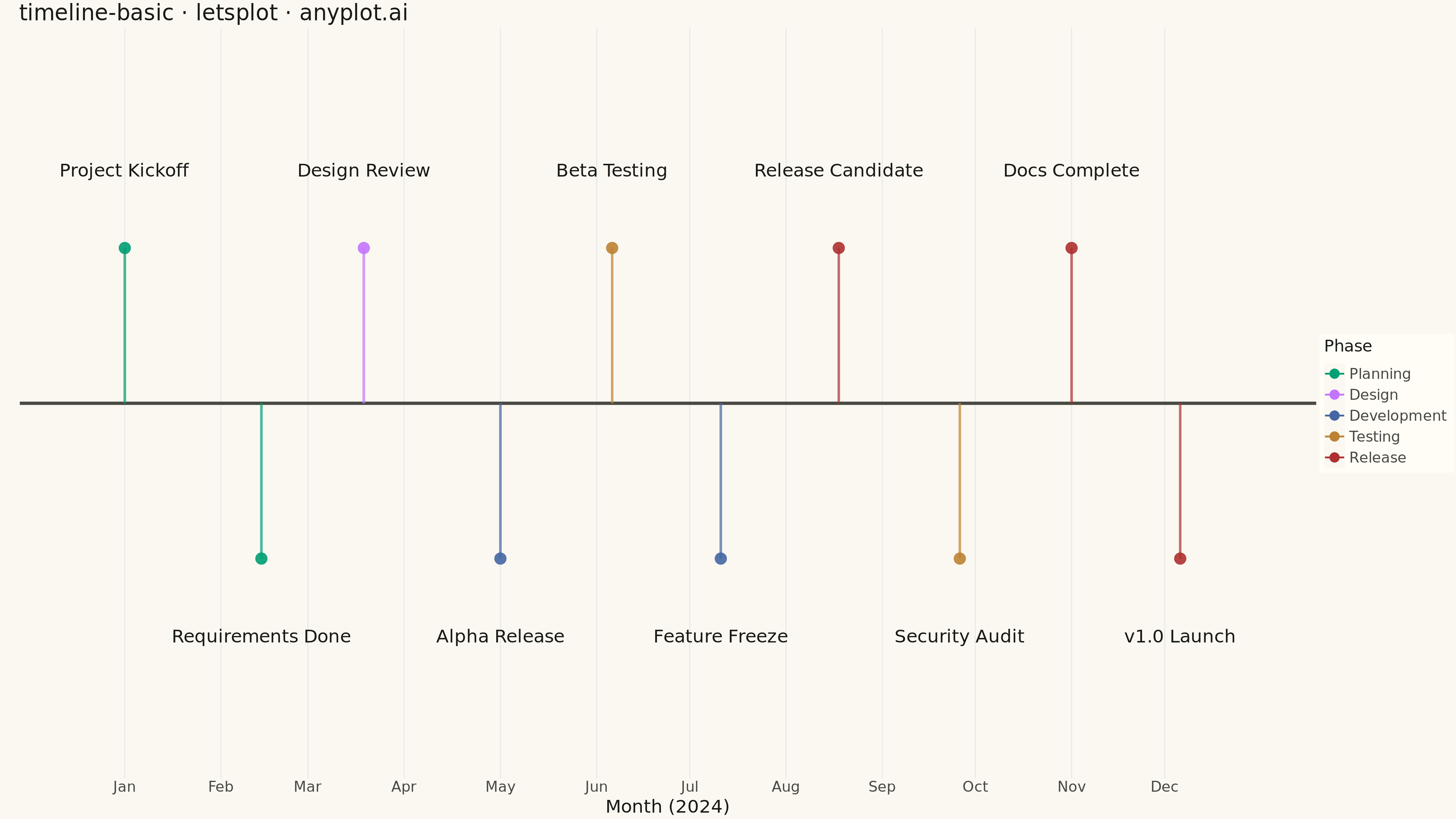

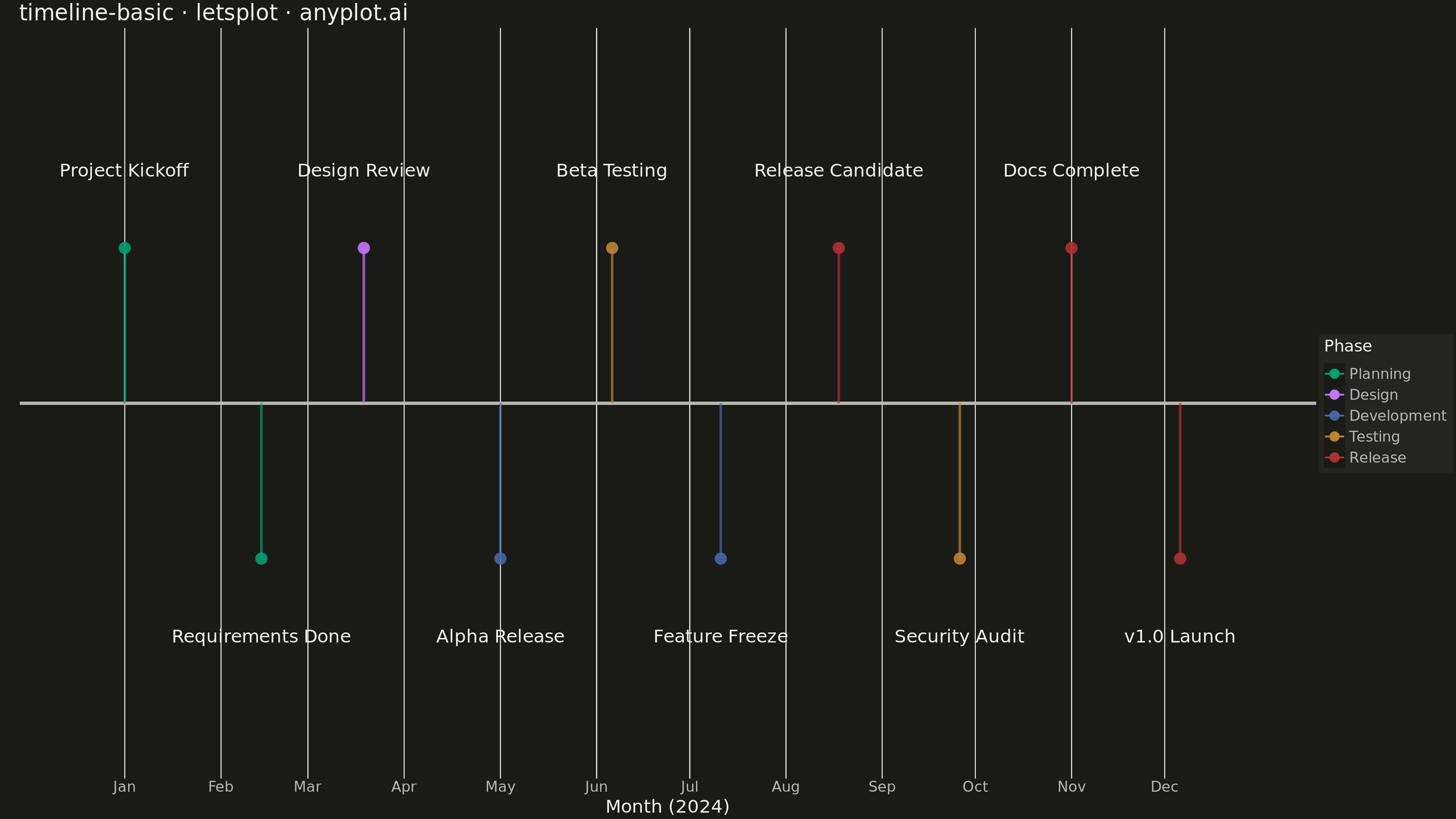

Event Timeline rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
timeline-basic: Event Timeline
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 85/100 | Updated: 2026-05-11
"""

import os

import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_hline,
    geom_point,
    geom_segment,
    geom_text,
    ggplot,
    ggsize,
    labs,
    scale_color_manual,
    scale_x_continuous,
    scale_y_continuous,
    theme,
    theme_minimal,
)
from lets_plot.export import ggsave


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first series always #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030"]

# Data - Software project milestones (10 events for better readability)
events = pd.DataFrame(
    {
        "date": pd.to_datetime(
            [
                "2024-01-15",
                "2024-02-28",
                "2024-04-01",
                "2024-05-15",
                "2024-06-20",
                "2024-07-25",
                "2024-09-01",
                "2024-10-10",
                "2024-11-15",
                "2024-12-20",
            ]
        ),
        "event": [
            "Project Kickoff",
            "Requirements Done",
            "Design Review",
            "Alpha Release",
            "Beta Testing",
            "Feature Freeze",
            "Release Candidate",
            "Security Audit",
            "Docs Complete",
            "v1.0 Launch",
        ],
        "category": [
            "Planning",
            "Planning",
            "Design",
            "Development",
            "Testing",
            "Development",
            "Release",
            "Testing",
            "Release",
            "Release",
        ],
    }
)

# Convert dates to numeric for plotting and create alternating y positions
events["date_num"] = (events["date"] - events["date"].min()).dt.days
events["y_offset"] = [1.0, -1.0, 1.0, -1.0, 1.0, -1.0, 1.0, -1.0, 1.0, -1.0]
events["label_y"] = [1.5, -1.5, 1.5, -1.5, 1.5, -1.5, 1.5, -1.5, 1.5, -1.5]

# Create month breaks for x-axis
month_breaks = [0, 31, 59, 90, 121, 152, 182, 213, 244, 274, 305, 335]
month_labels = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]

# Create plot
plot = (
    ggplot(events)
    # Timeline axis (horizontal line at y=0)
    + geom_hline(yintercept=0, color=INK_SOFT, size=1.5)
    # Vertical connectors from axis to event points
    + geom_segment(
        mapping=aes(x="date_num", xend="date_num", yend="y_offset", color="category"), y=0, size=1.2, alpha=0.7
    )
    # Event points
    + geom_point(mapping=aes(x="date_num", y="y_offset", color="category"), size=6, alpha=0.9)
    # Event labels (positioned at label_y)
    + geom_text(mapping=aes(x="date_num", y="label_y", label="event"), size=10, color=INK)
    # Color scale using Okabe-Ito palette
    + scale_color_manual(values=IMPRINT, name="Phase")
    # Axis configuration - use simple month labels with padding
    + scale_x_continuous(name="Month (2024)", breaks=month_breaks, labels=month_labels, limits=[-15, 365])
    + scale_y_continuous(limits=[-2.2, 2.2])
    # Labels
    + labs(title="timeline-basic · letsplot · anyplot.ai", y="")
    # Theme
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        plot_title=element_text(size=24, color=INK),
        axis_title_x=element_text(size=20, color=INK),
        axis_text_x=element_text(size=16, color=INK_SOFT),
        axis_text_y=element_blank(),
        axis_ticks_y=element_blank(),
        axis_line_x=element_line(color=INK_SOFT, size=0.5),
        axis_line_y=element_blank(),
        legend_title=element_text(size=18, color=INK),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_position="right",
        panel_grid_major_y=element_blank(),
        panel_grid_minor=element_blank(),
    )
    + ggsize(1600, 900)
)

# Save as PNG (scale 3x for 4800x2700 px) and HTML
ggsave(plot, filename=f"plot-{THEME}.png", path=".", scale=3)
ggsave(plot, filename=f"plot-{THEME}.html", path=".")

Part of Event Timeline on anyplot.ai.
