Event Timeline — Matplotlib

A timeline visualization that displays events and milestones along a temporal axis. Events are represented as points or markers with accompanying labels, making it easy to understand the sequence and timing of events. This plot type excels at showing chronological progressions and is particularly effective for communicating project phases, historical events, or any time-ordered sequence of occurrences.

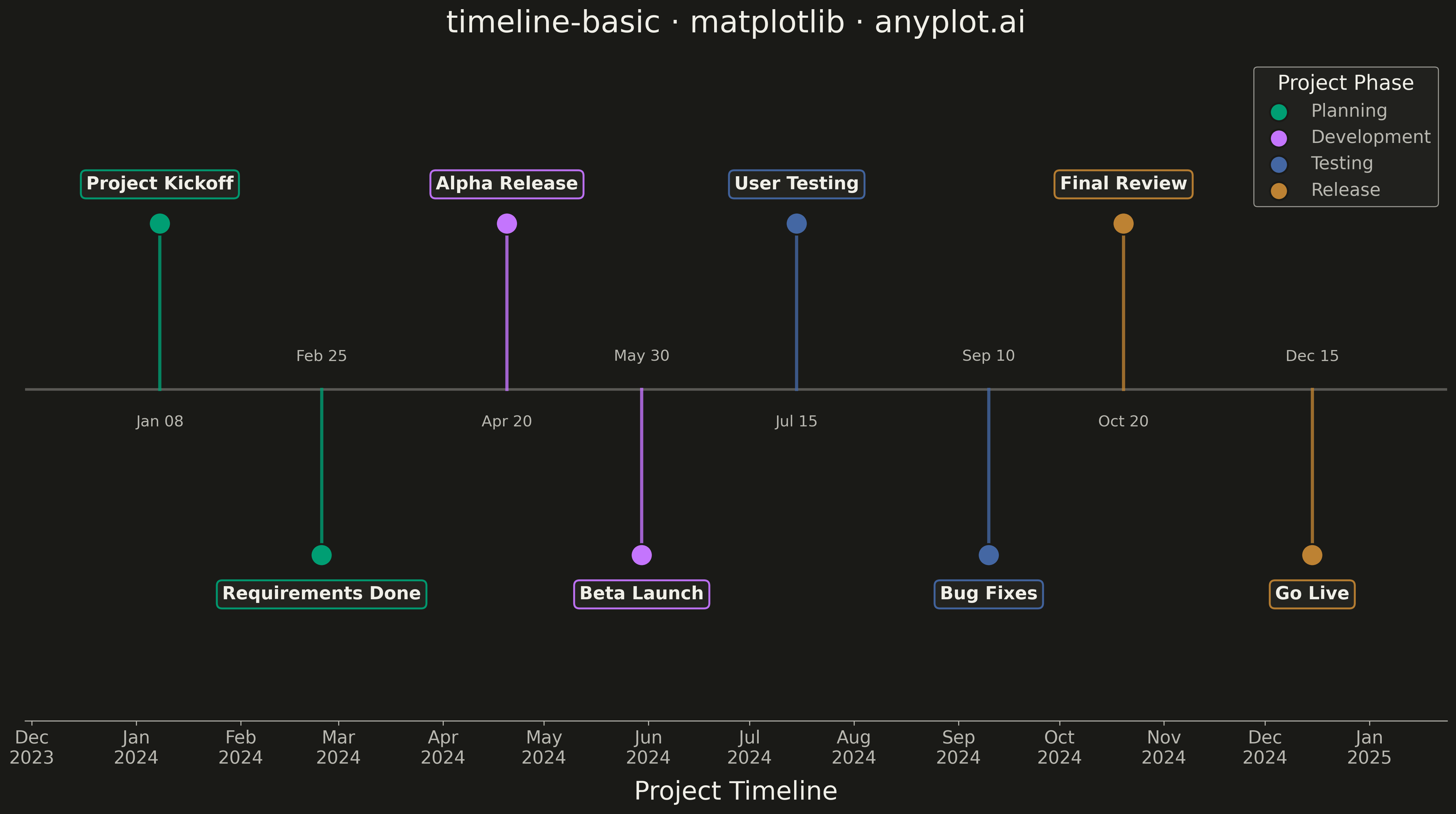

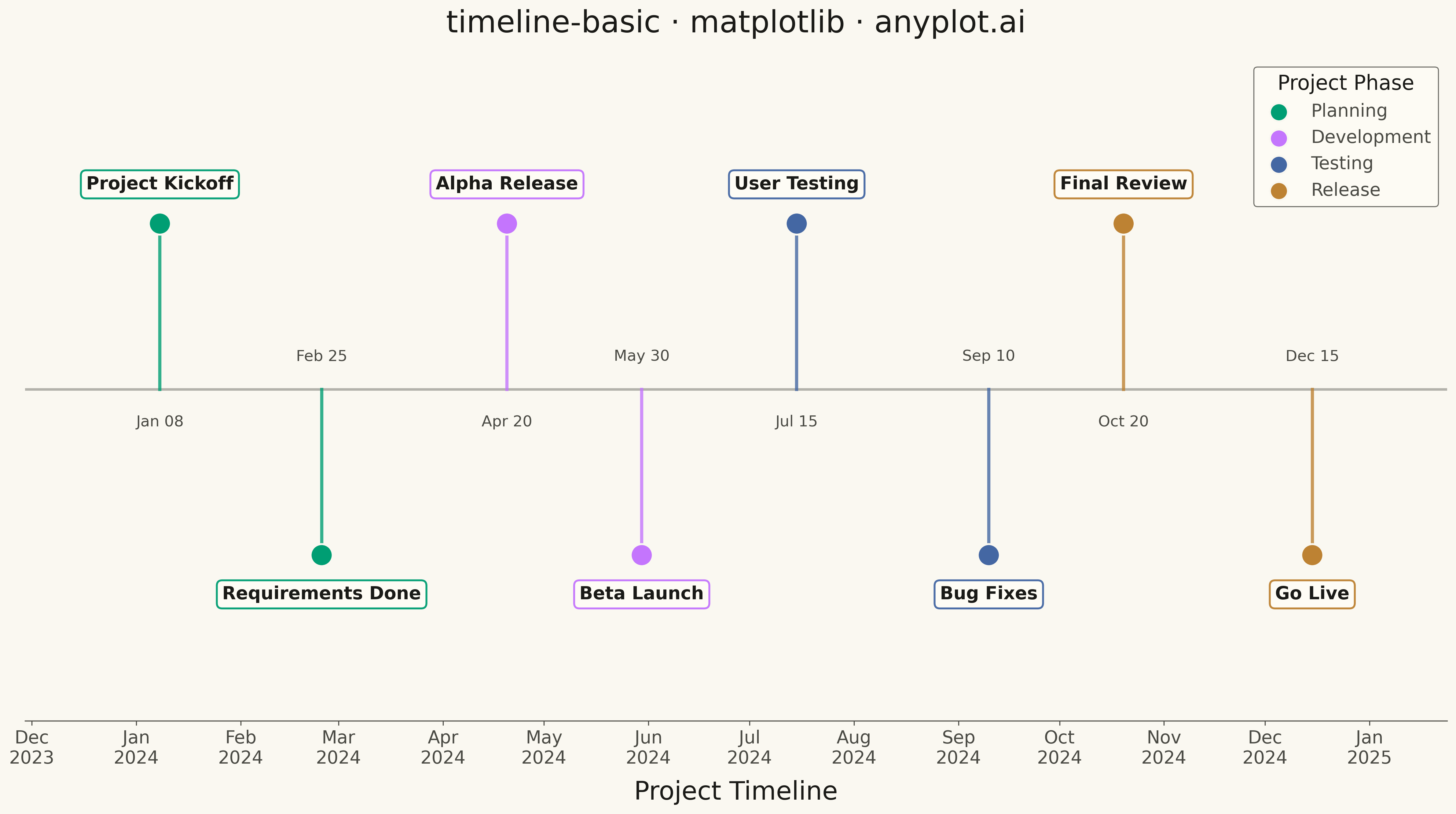

Event Timeline rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
timeline-basic: Event Timeline
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-11
"""

import os

import matplotlib.dates as mdates
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

np.random.seed(42)
events = pd.DataFrame(
    {
        "date": pd.to_datetime(
            [
                "2024-01-08",
                "2024-02-25",
                "2024-04-20",
                "2024-05-30",
                "2024-07-15",
                "2024-09-10",
                "2024-10-20",
                "2024-12-15",
            ]
        ),
        "event": [
            "Project Kickoff",
            "Requirements Done",
            "Alpha Release",
            "Beta Launch",
            "User Testing",
            "Bug Fixes",
            "Final Review",
            "Go Live",
        ],
        "category": ["Planning", "Planning", "Development", "Development", "Testing", "Testing", "Release", "Release"],
    }
)

category_colors = {
    "Planning": IMPRINT[0],
    "Development": IMPRINT[1],
    "Testing": IMPRINT[2],
    "Release": IMPRINT[3],
}
colors = [category_colors[cat] for cat in events["category"]]

fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

ax.axhline(y=0, color=INK_SOFT, linewidth=2, zorder=1, alpha=0.4)

levels = np.tile([1, -1], len(events) // 2 + 1)[: len(events)]
level_heights = levels * 0.3

for date, height, color in zip(events["date"], level_heights, colors, strict=True):
    ax.plot([date, date], [0, height], color=color, linewidth=2.5, zorder=2, alpha=0.8)

ax.scatter(events["date"], level_heights, c=colors, s=300, zorder=3, edgecolors=PAGE_BG, linewidths=1.5)

for date, event, height, color in zip(events["date"], events["event"], level_heights, colors, strict=True):
    va = "bottom" if height > 0 else "top"
    offset = 0.08 if height > 0 else -0.08
    ax.annotate(
        event,
        xy=(date, height),
        xytext=(0, offset * 300),
        textcoords="offset points",
        ha="center",
        va=va,
        fontsize=14,
        fontweight="bold",
        color=INK,
        bbox={
            "boxstyle": "round,pad=0.3",
            "facecolor": ELEVATED_BG,
            "edgecolor": color,
            "linewidth": 1.5,
            "alpha": 0.95,
        },
    )

for date, height in zip(events["date"], level_heights, strict=True):
    ax.annotate(
        date.strftime("%b %d"),
        xy=(date, 0),
        xytext=(0, -20 if height > 0 else 20),
        textcoords="offset points",
        ha="center",
        va="top" if height > 0 else "bottom",
        fontsize=12,
        color=INK_SOFT,
    )

legend_handles = [
    plt.scatter([], [], c=color, s=200, label=cat, edgecolors=PAGE_BG, linewidths=1.5)
    for cat, color in category_colors.items()
]
leg = ax.legend(
    handles=legend_handles, loc="upper right", fontsize=14, title="Project Phase", title_fontsize=16, frameon=True
)
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    leg.get_frame().set_linewidth(0.8)
    plt.setp(leg.get_texts(), color=INK_SOFT)
    leg.get_title().set_color(INK)

ax.set_xlim(events["date"].min() - pd.Timedelta(days=40), events["date"].max() + pd.Timedelta(days=40))
ax.set_ylim(-0.6, 0.6)

ax.xaxis.set_major_locator(mdates.MonthLocator())
ax.xaxis.set_major_formatter(mdates.DateFormatter("%b\n%Y"))
ax.tick_params(axis="x", labelsize=14, colors=INK_SOFT, labelcolor=INK_SOFT)

ax.yaxis.set_visible(False)
ax.spines["left"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["top"].set_visible(False)
ax.spines["bottom"].set_color(INK_SOFT)
ax.spines["bottom"].set_linewidth(0.8)

ax.set_title("timeline-basic · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK, pad=20)

ax.set_xlabel("Project Timeline", fontsize=20, color=INK, labelpad=10)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Event Timeline on anyplot.ai.
