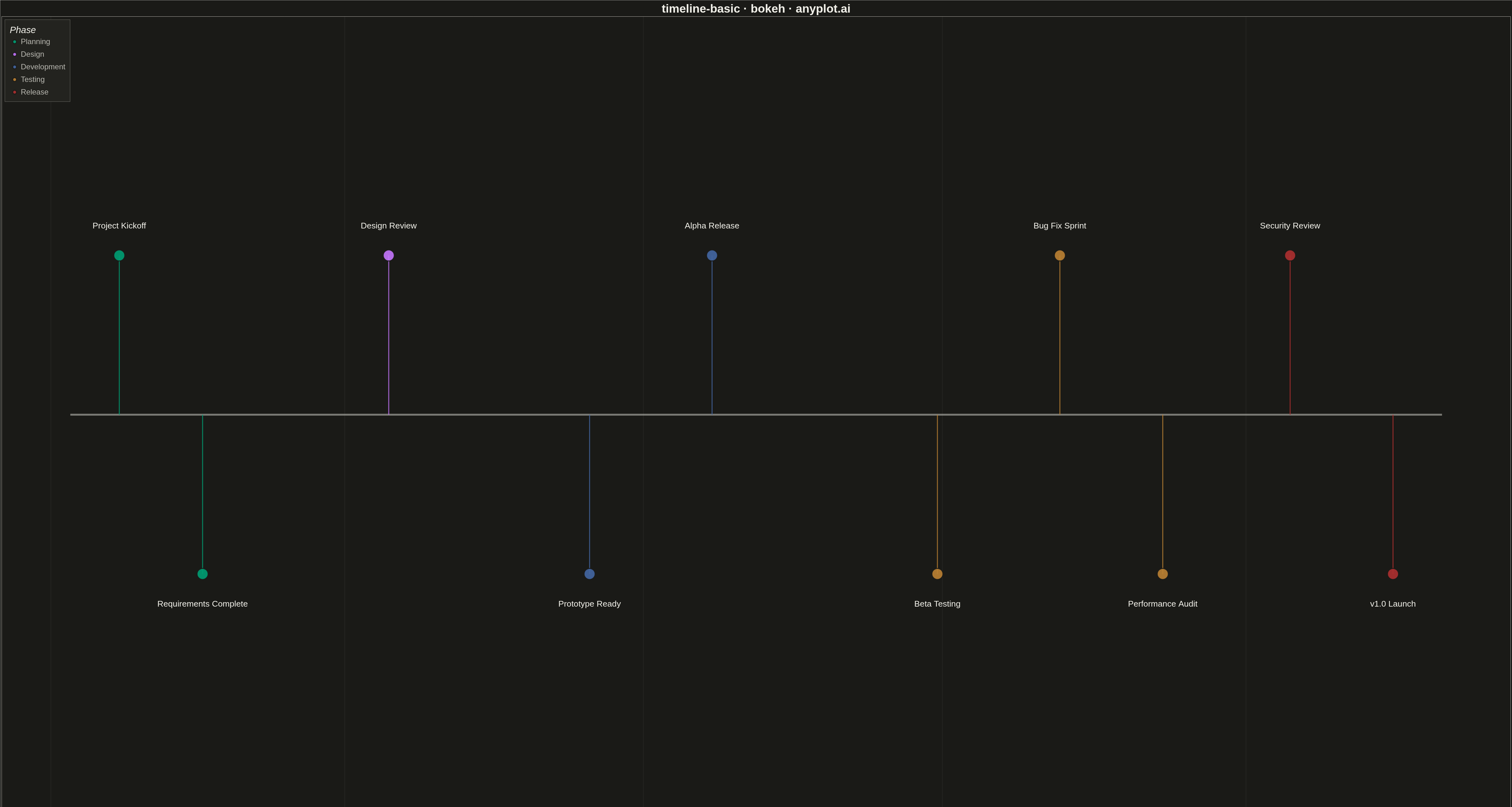

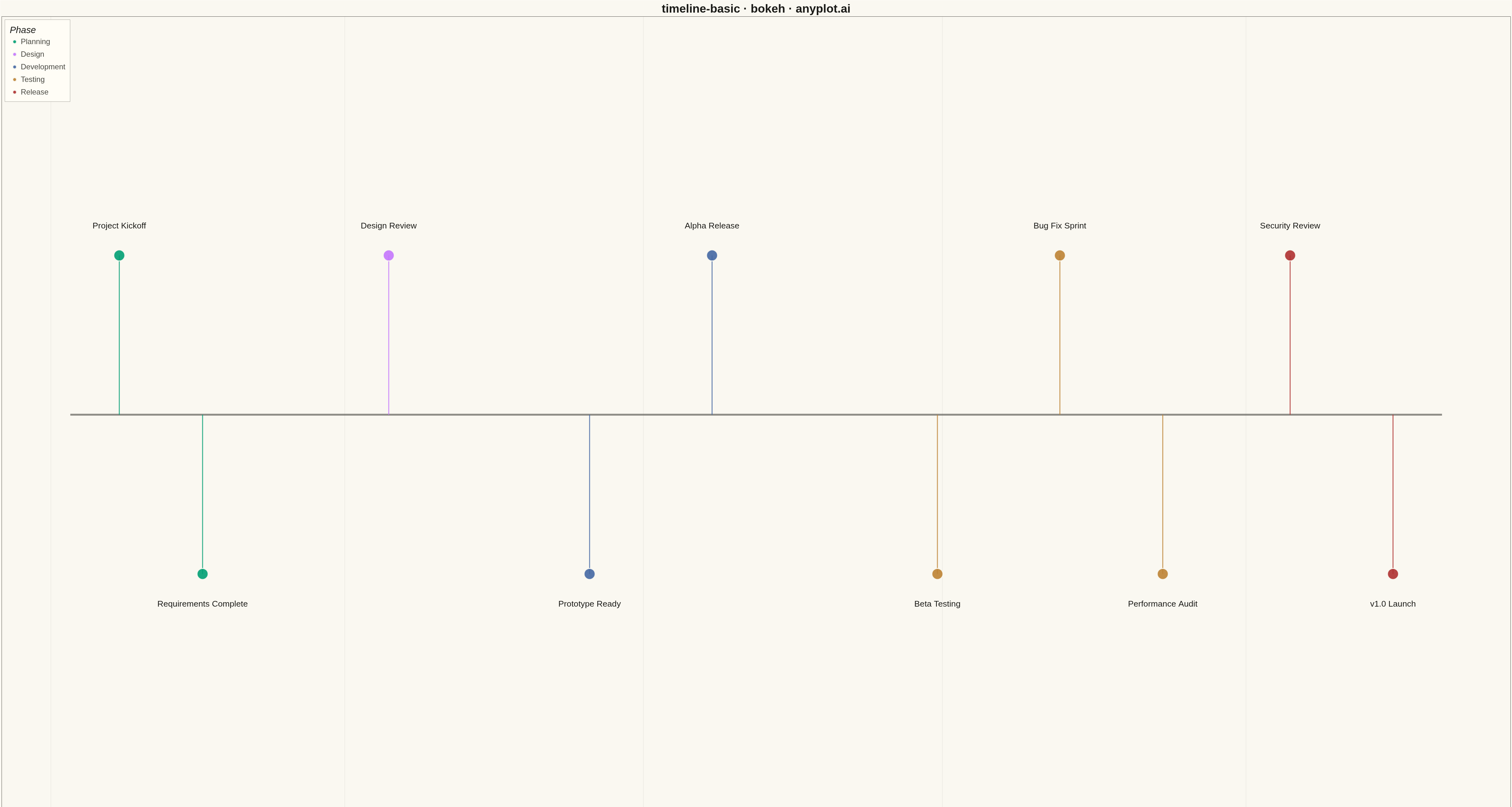

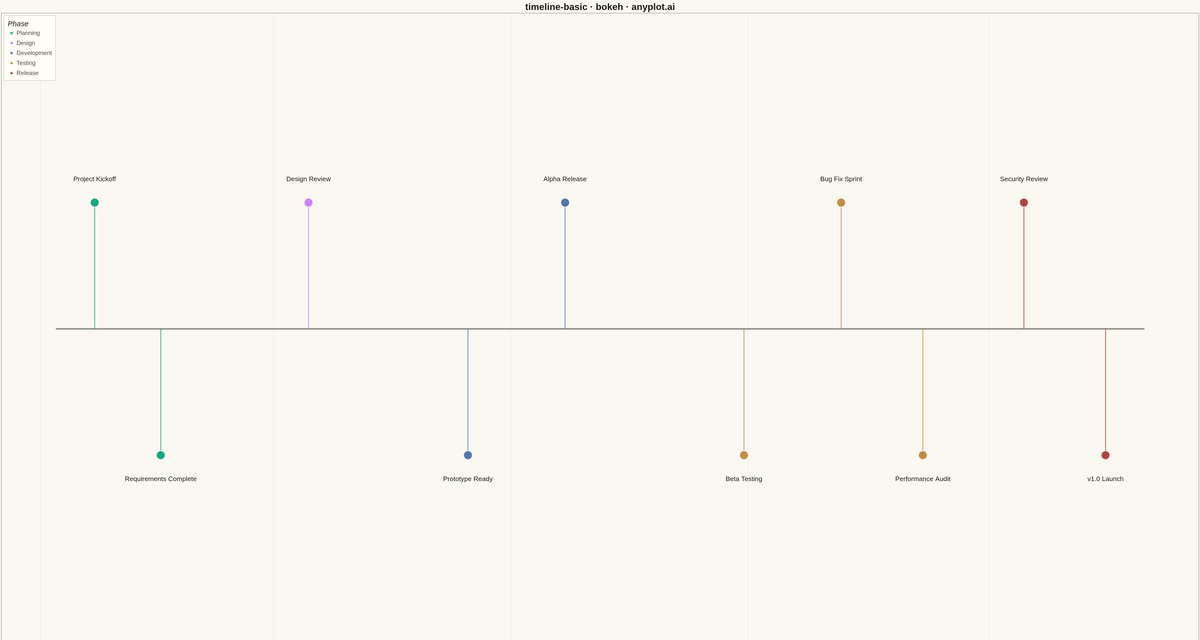

A timeline visualization that displays events and milestones along a temporal axis. Events are represented as points or markers with accompanying labels, making it easy to understand the sequence and timing of events. This plot type excels at showing chronological progressions and is particularly effective for communicating project phases, historical events, or any time-ordered sequence of occurrences.
""" anyplot.ai
timeline-basic: Event Timeline
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-11
"""
import os
import time
from pathlib import Path
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, Label
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Save files in the directory where this script is located
SCRIPT_DIR = Path(__file__).parent
os.chdir(SCRIPT_DIR)
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette (first series always #009E73)
IMPRINT = [
"#009E73", # brand green
"#C475FD", # vermillion
"#4467A3", # blue
"#BD8233", # reddish purple
"#AE3030", # orange
]
# Data - Software project milestones
events = [
("2024-01-15", "Project Kickoff", "Planning"),
("2024-02-01", "Requirements Complete", "Planning"),
("2024-03-10", "Design Review", "Design"),
("2024-04-20", "Prototype Ready", "Development"),
("2024-05-15", "Alpha Release", "Development"),
("2024-06-30", "Beta Testing", "Testing"),
("2024-07-25", "Bug Fix Sprint", "Testing"),
("2024-08-15", "Performance Audit", "Testing"),
("2024-09-10", "Security Review", "Release"),
("2024-10-01", "v1.0 Launch", "Release"),
]
df = pd.DataFrame(events, columns=["date", "event", "category"])
df["date"] = pd.to_datetime(df["date"])
# Assign alternating y positions for label readability (above/below axis)
df["y_pos"] = [0.6 if i % 2 == 0 else -0.6 for i in range(len(df))]
# Map categories to Okabe-Ito colors
categories = df["category"].unique().tolist()
color_map = {cat: IMPRINT[i % len(IMPRINT)] for i, cat in enumerate(categories)}
df["color"] = df["category"].map(color_map)
# Create figure
p = figure(
width=4800,
height=2700,
title="timeline-basic · bokeh · anyplot.ai",
x_axis_type="datetime",
y_range=(-1.5, 1.5),
tools="",
toolbar_location=None,
)
# Draw the central timeline axis (horizontal line)
p.line(
x=[df["date"].min() - pd.Timedelta(days=10), df["date"].max() + pd.Timedelta(days=10)],
y=[0, 0],
line_width=6,
line_color=INK_SOFT,
line_alpha=0.6,
)
# Draw vertical connector lines for each event
for _, row in df.iterrows():
p.line(x=[row["date"], row["date"]], y=[0, row["y_pos"]], line_width=3, line_color=row["color"], line_alpha=0.8)
# Plot event markers with category colors
for cat in categories:
cat_df = df[df["category"] == cat]
cat_source = ColumnDataSource(cat_df)
p.scatter(
x="date",
y="y_pos",
source=cat_source,
size=35,
color=color_map[cat],
alpha=0.9,
marker="circle",
legend_label=cat,
line_color=PAGE_BG,
line_width=3,
)
# Add event labels with proper positioning
for _, row in df.iterrows():
y_offset = 80 if row["y_pos"] > 0 else -80
baseline = "bottom" if row["y_pos"] > 0 else "top"
label = Label(
x=row["date"],
y=row["y_pos"],
text=row["event"],
text_font_size="20pt",
text_color=INK,
text_align="center",
text_baseline=baseline,
y_offset=y_offset,
)
p.add_layout(label)
# Style the plot
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.title.align = "center"
p.xaxis.axis_label = "Date"
p.xaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.xaxis.major_label_orientation = 0.4
p.xaxis.axis_line_color = INK_SOFT
p.xaxis.axis_line_width = 2
p.xaxis.major_tick_line_color = INK_SOFT
p.xaxis.major_tick_line_width = 2
p.xaxis.minor_tick_line_width = 1
p.yaxis.visible = False
p.ygrid.visible = False
p.xgrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
# Configure legend
p.legend.location = "top_left"
p.legend.title = "Phase"
p.legend.title_text_font_size = "22pt"
p.legend.title_text_color = INK
p.legend.label_text_font_size = "18pt"
p.legend.label_text_color = INK_SOFT
p.legend.glyph_height = 30
p.legend.glyph_width = 30
p.legend.border_line_color = INK_SOFT
p.legend.background_fill_color = ELEVATED_BG
p.legend.background_fill_alpha = 0.95
p.legend.padding = 15
p.legend.spacing = 10
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome via Selenium
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Event Timeline on anyplot.ai.
