Grouped Violin Plot with Swarm Overlay — Matplotlib

A grouped violin plot with individual data points overlaid as swarm points, showing distributions across two categorical dimensions simultaneously. Multiple violin plots are arranged by category on the x-axis and grouped by a secondary variable using color/hue, with swarm points revealing the underlying raw data. This visualization combines distribution shape visualization with complete data transparency, ideal for comparing how distributions differ across multiple factors.

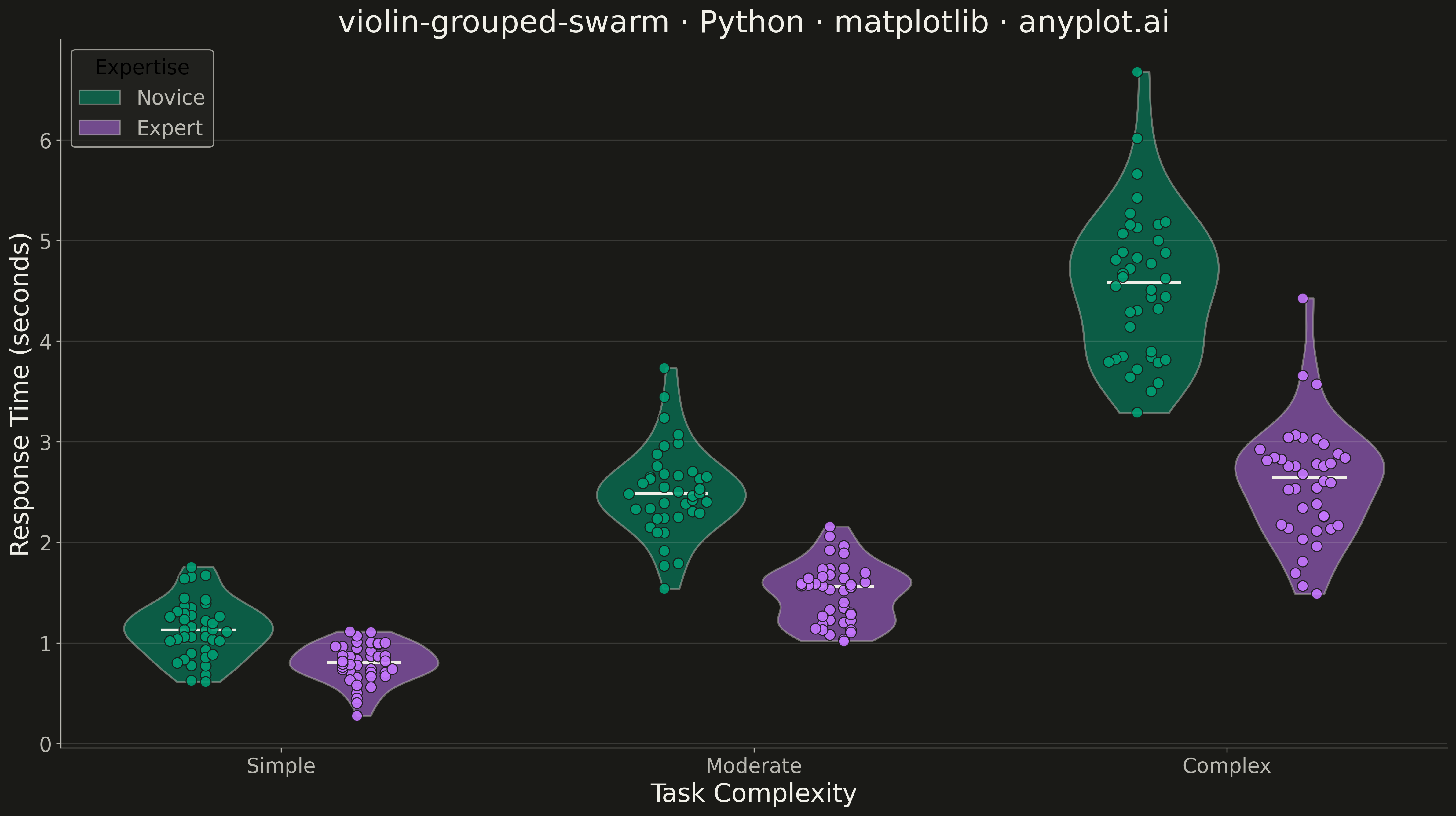

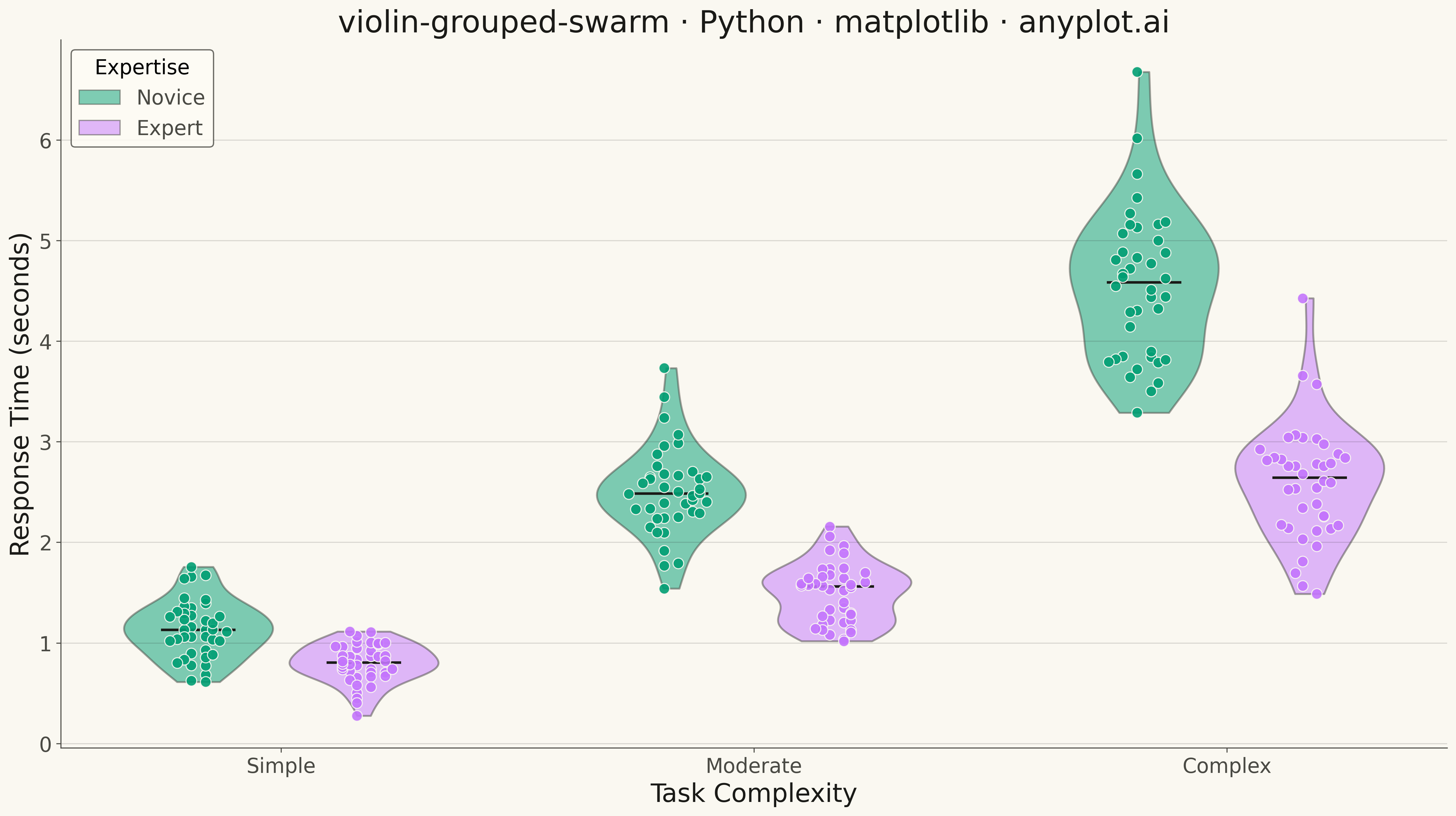

Grouped Violin Plot with Swarm Overlay rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
violin-grouped-swarm: Grouped Violin Plot with Swarm Overlay
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-18
"""

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first two colors for the two groups)
COLORS = ["#009E73", "#C475FD"]

# Data - Response times across task types and expertise levels
np.random.seed(42)

categories = ["Simple", "Moderate", "Complex"]
groups = ["Novice", "Expert"]

# Generate data: different distributions for each category-group combination
data = {}
positions = {}
width = 0.35

for i, cat in enumerate(categories):
    for j, grp in enumerate(groups):
        if grp == "Novice":
            if cat == "Simple":
                vals = np.random.normal(loc=1.2, scale=0.3, size=40)
            elif cat == "Moderate":
                vals = np.random.normal(loc=2.5, scale=0.5, size=40)
            else:  # Complex
                vals = np.random.normal(loc=4.5, scale=0.8, size=40)
        else:  # Expert
            if cat == "Simple":
                vals = np.random.normal(loc=0.8, scale=0.2, size=40)
            elif cat == "Moderate":
                vals = np.random.normal(loc=1.5, scale=0.3, size=40)
            else:  # Complex
                vals = np.random.normal(loc=2.5, scale=0.5, size=40)
        vals = np.maximum(vals, 0.1)
        data[(cat, grp)] = vals
        offset = -width / 2 if j == 0 else width / 2
        positions[(cat, grp)] = i + offset

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Draw violins for each group
for j, grp in enumerate(groups):
    violin_data = [data[(cat, grp)] for cat in categories]
    pos = [i + (-width / 2 if j == 0 else width / 2) for i in range(len(categories))]

    parts = ax.violinplot(
        violin_data, positions=pos, widths=width * 0.9, showmeans=False, showmedians=True, showextrema=False
    )

    # Style violins
    for pc in parts["bodies"]:
        pc.set_facecolor(COLORS[j])
        pc.set_edgecolor(INK_SOFT)
        pc.set_alpha(0.5)
        pc.set_linewidth(1.5)

    # Style median lines
    parts["cmedians"].set_color(INK)
    parts["cmedians"].set_linewidth(2)

# Overlay swarm points
for cat in categories:
    for j, grp in enumerate(groups):
        vals = data[(cat, grp)]
        base_x = positions[(cat, grp)]

        # Create swarm-like jitter
        sorted_indices = np.argsort(vals)
        n_points = len(vals)
        jitter = np.zeros(n_points)

        bin_width = (vals.max() - vals.min()) / 20
        for idx in sorted_indices:
            val = vals[idx]
            nearby = np.abs(vals - val) < bin_width
            nearby_count = np.sum(nearby & (np.arange(n_points) <= idx))
            if nearby_count % 2 == 0:
                jitter[idx] = (nearby_count // 2) * 0.015
            else:
                jitter[idx] = -((nearby_count + 1) // 2) * 0.015

        x_positions = base_x + jitter

        ax.scatter(x_positions, vals, s=70, c=COLORS[j], edgecolors=PAGE_BG, linewidths=0.8, alpha=0.9, zorder=3)

# Style
ax.set_xticks(range(len(categories)))
ax.set_xticklabels(categories, fontsize=18, color=INK_SOFT)
ax.set_xlabel("Task Complexity", fontsize=20, color=INK)
ax.set_ylabel("Response Time (seconds)", fontsize=20, color=INK)
ax.set_title("violin-grouped-swarm · Python · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Spines
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

# Grid
ax.yaxis.grid(True, alpha=0.15, linewidth=0.8, color=INK)

# Legend
legend_handles = [
    plt.Rectangle((0, 0), 1, 1, facecolor=COLORS[0], edgecolor=INK_SOFT, alpha=0.5, label=groups[0]),
    plt.Rectangle((0, 0), 1, 1, facecolor=COLORS[1], edgecolor=INK_SOFT, alpha=0.5, label=groups[1]),
]
leg = ax.legend(handles=legend_handles, fontsize=16, title="Expertise", title_fontsize=16, loc="upper left")
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    plt.setp(leg.get_texts(), color=INK_SOFT)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
