Grouped Violin Plot with Swarm Overlay — Seaborn

A grouped violin plot with individual data points overlaid as swarm points, showing distributions across two categorical dimensions simultaneously. Multiple violin plots are arranged by category on the x-axis and grouped by a secondary variable using color/hue, with swarm points revealing the underlying raw data. This visualization combines distribution shape visualization with complete data transparency, ideal for comparing how distributions differ across multiple factors.

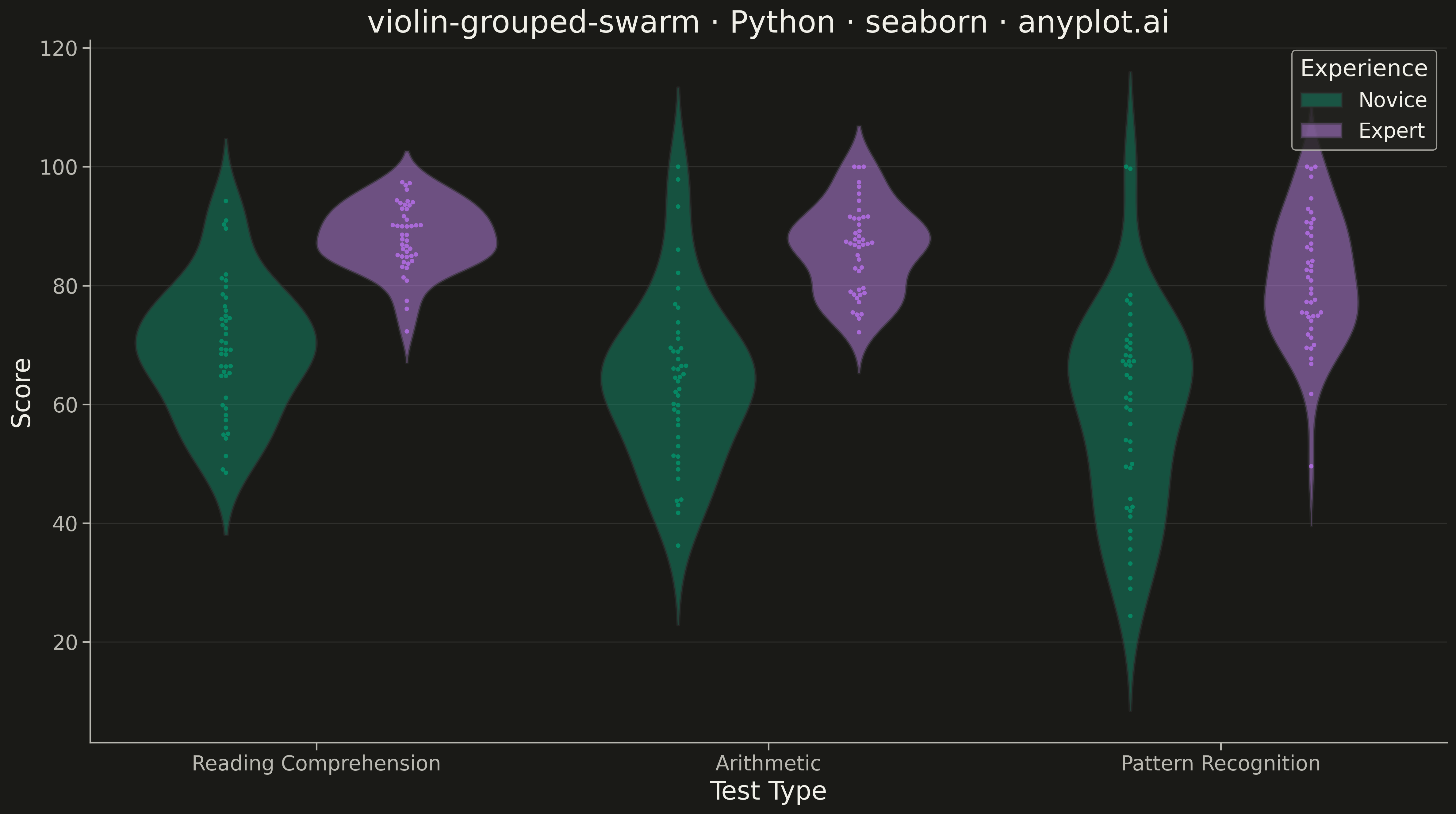

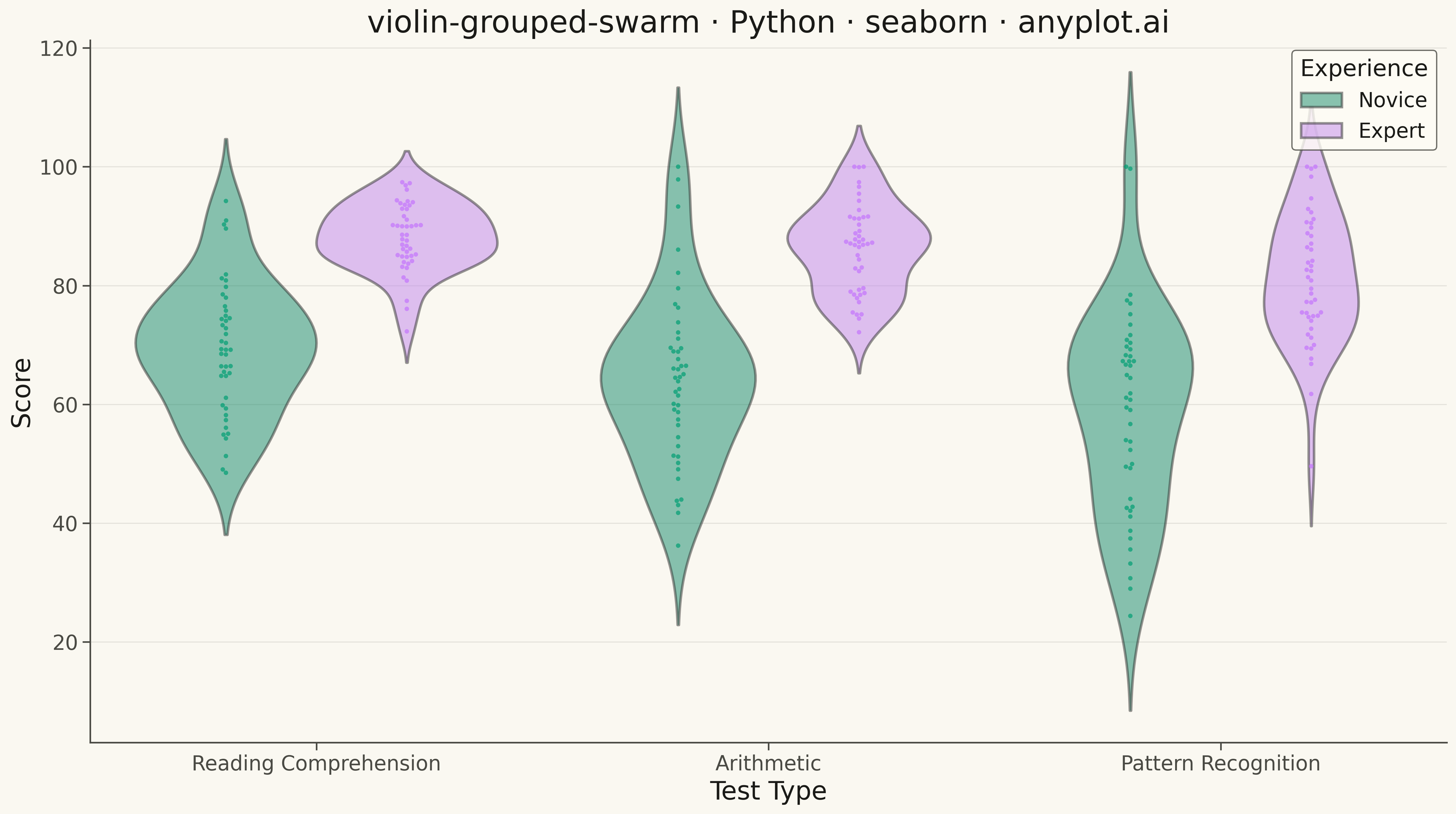

Grouped Violin Plot with Swarm Overlay rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
violin-grouped-swarm: Grouped Violin Plot with Swarm Overlay
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-18
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD"]

# Data: Cognitive test performance across different test types and experience levels
np.random.seed(42)

test_types = ["Reading Comprehension", "Arithmetic", "Pattern Recognition"]
experience_levels = ["Novice", "Expert"]

data = []
for test_type in test_types:
    for exp_level in experience_levels:
        # Create different distributions based on test type and experience
        if test_type == "Reading Comprehension":
            base_mean = 72 if exp_level == "Novice" else 88
            base_std = 12 if exp_level == "Novice" else 6
        elif test_type == "Arithmetic":
            base_mean = 65 if exp_level == "Novice" else 85
            base_std = 15 if exp_level == "Novice" else 8
        else:  # Pattern Recognition
            base_mean = 58 if exp_level == "Novice" else 82
            base_std = 18 if exp_level == "Novice" else 10

        scores = np.random.normal(base_mean, base_std, 45)
        scores = np.clip(scores, 20, 100)  # Keep scores in 0-100 range

        for score in scores:
            data.append({"Test Type": test_type, "Experience": exp_level, "Score": score})

df = pd.DataFrame(data)

# Plot
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)

# Violin plot with transparency
sns.violinplot(
    data=df, x="Test Type", y="Score", hue="Experience", palette=IMPRINT, alpha=0.5, inner=None, ax=ax, linewidth=2
)

# Swarm overlay with matching colors and dodging
sns.swarmplot(
    data=df,
    x="Test Type",
    y="Score",
    hue="Experience",
    palette=IMPRINT,
    dodge=True,
    size=3.5,
    alpha=0.7,
    ax=ax,
    legend=False,
)

# Labels and styling
ax.set_xlabel("Test Type", fontsize=20, color=INK)
ax.set_ylabel("Score", fontsize=20, color=INK)
ax.set_title("violin-grouped-swarm · Python · seaborn · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Remove top and right spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["left"].set_color(INK_SOFT)
ax.spines["bottom"].set_color(INK_SOFT)

# Subtle grid on y-axis
ax.yaxis.grid(True, alpha=0.10, linewidth=0.8, color=INK)
ax.set_axisbelow(True)

# Legend styling
ax.legend(title="Experience", fontsize=16, title_fontsize=18, loc="upper right")

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Grouped Violin Plot with Swarm Overlay on anyplot.ai.
