Grouped Violin Plot with Swarm Overlay — plotnine

A grouped violin plot with individual data points overlaid as swarm points, showing distributions across two categorical dimensions simultaneously. Multiple violin plots are arranged by category on the x-axis and grouped by a secondary variable using color/hue, with swarm points revealing the underlying raw data. This visualization combines distribution shape visualization with complete data transparency, ideal for comparing how distributions differ across multiple factors.

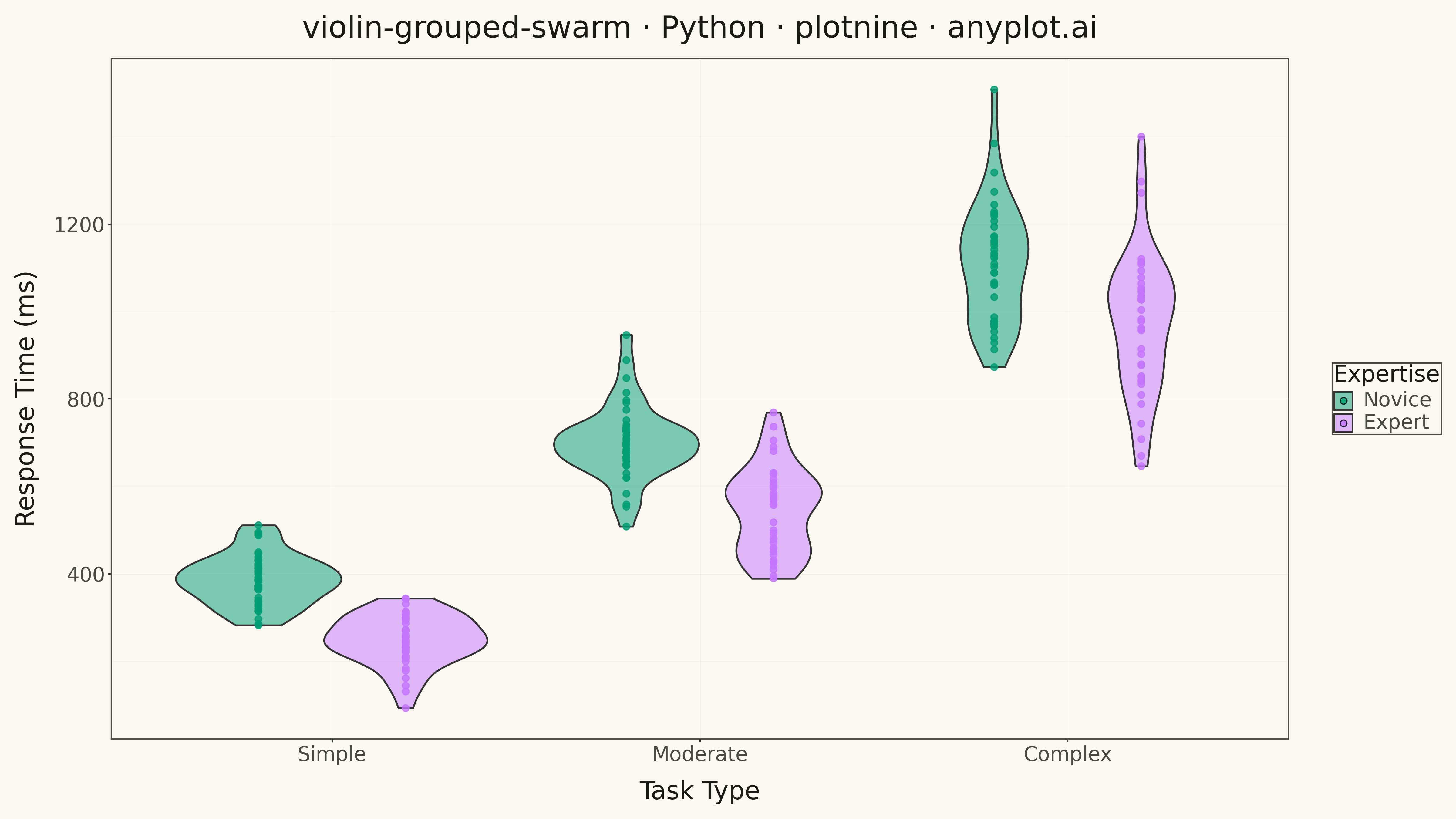

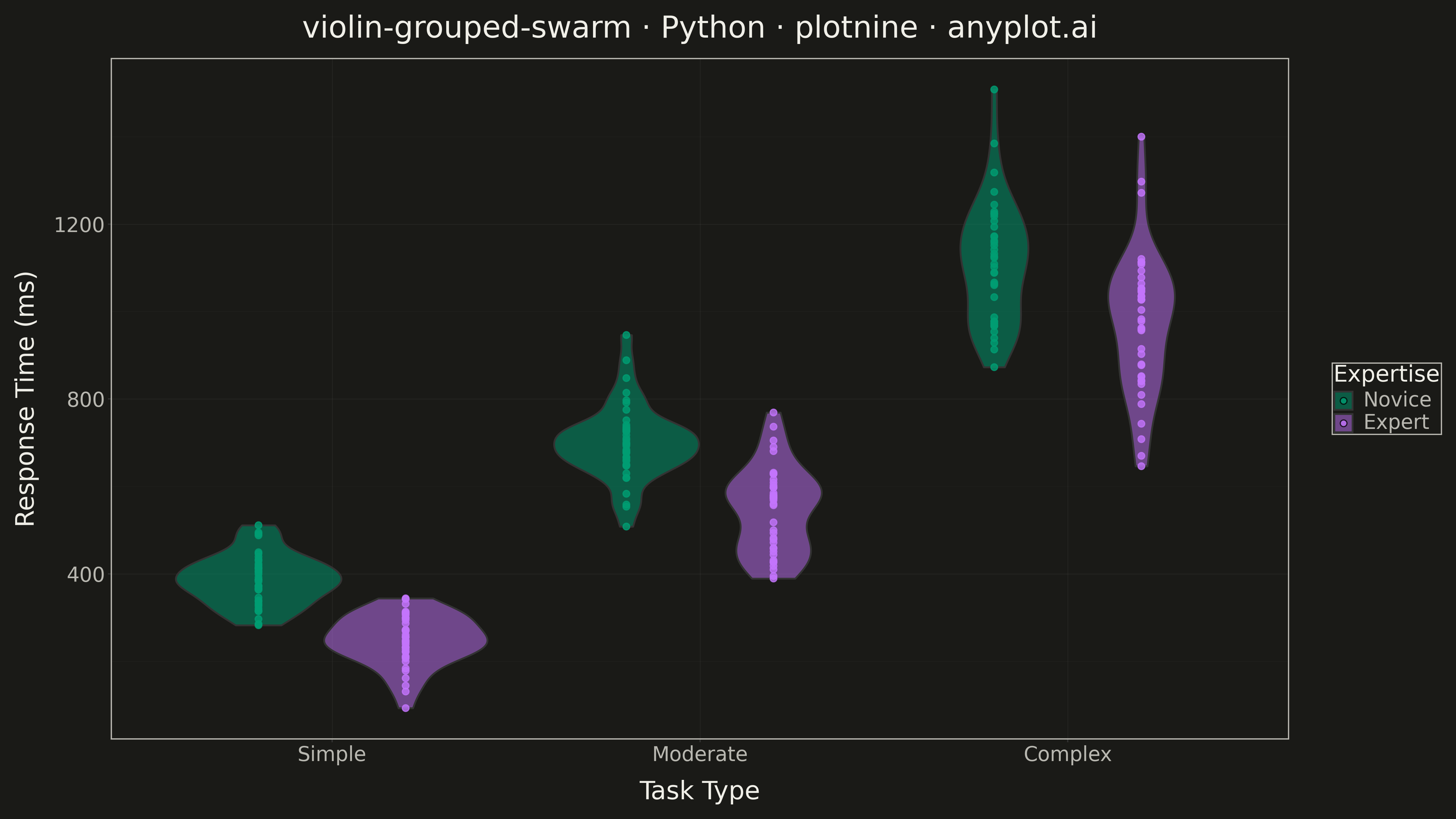

Grouped Violin Plot with Swarm Overlay rendered with plotnine

Python source (plotnine)

""" anyplot.ai
violin-grouped-swarm: Grouped Violin Plot with Swarm Overlay
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-18
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_line,
    element_rect,
    element_text,
    geom_jitter,
    geom_violin,
    ggplot,
    guides,
    labs,
    position_dodge,
    scale_color_manual,
    scale_fill_manual,
    theme,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD"]

# Data - Response times (ms) across task types and expertise levels
np.random.seed(42)

categories = ["Simple", "Moderate", "Complex"]
groups = ["Novice", "Expert"]
n_per_combination = 40

data = []
for category in categories:
    for group in groups:
        base = {"Simple": 400, "Moderate": 700, "Complex": 1100}[category]
        if group == "Expert":
            base -= 150
        spread = {"Simple": 60, "Moderate": 100, "Complex": 150}[category]
        values = np.random.normal(base, spread, n_per_combination)
        values = np.clip(values, base - 3 * spread, base + 3 * spread)
        for v in values:
            data.append({"task_type": category, "expertise": group, "response_time": v})

df = pd.DataFrame(data)
df["task_type"] = pd.Categorical(df["task_type"], categories=categories, ordered=True)
df["expertise"] = pd.Categorical(df["expertise"], categories=groups, ordered=True)

# Plot
plot = (
    ggplot(df, aes(x="task_type", y="response_time", fill="expertise"))
    + geom_violin(position=position_dodge(width=0.8), alpha=0.5, size=0.8)
    + geom_jitter(aes(color="expertise"), position=position_dodge(width=0.8), size=2.5, alpha=0.8)
    + scale_fill_manual(values=IMPRINT, name="Expertise")
    + scale_color_manual(values=IMPRINT, name="Expertise")
    + guides(color="none")
    + labs(title="violin-grouped-swarm · Python · plotnine · anyplot.ai", x="Task Type", y="Response Time (ms)")
    + theme(
        figure_size=(16, 9),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_border=element_rect(color=INK_SOFT, fill=None),
        panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
        panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        plot_title=element_text(size=24, color=INK),
        legend_background=element_rect(fill=PAGE_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
        text=element_text(size=14),
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of Grouped Violin Plot with Swarm Overlay on anyplot.ai.
