Grouped Violin Plot with Swarm Overlay — ggplot2

A grouped violin plot with individual data points overlaid as swarm points, showing distributions across two categorical dimensions simultaneously. Multiple violin plots are arranged by category on the x-axis and grouped by a secondary variable using color/hue, with swarm points revealing the underlying raw data. This visualization combines distribution shape visualization with complete data transparency, ideal for comparing how distributions differ across multiple factors.

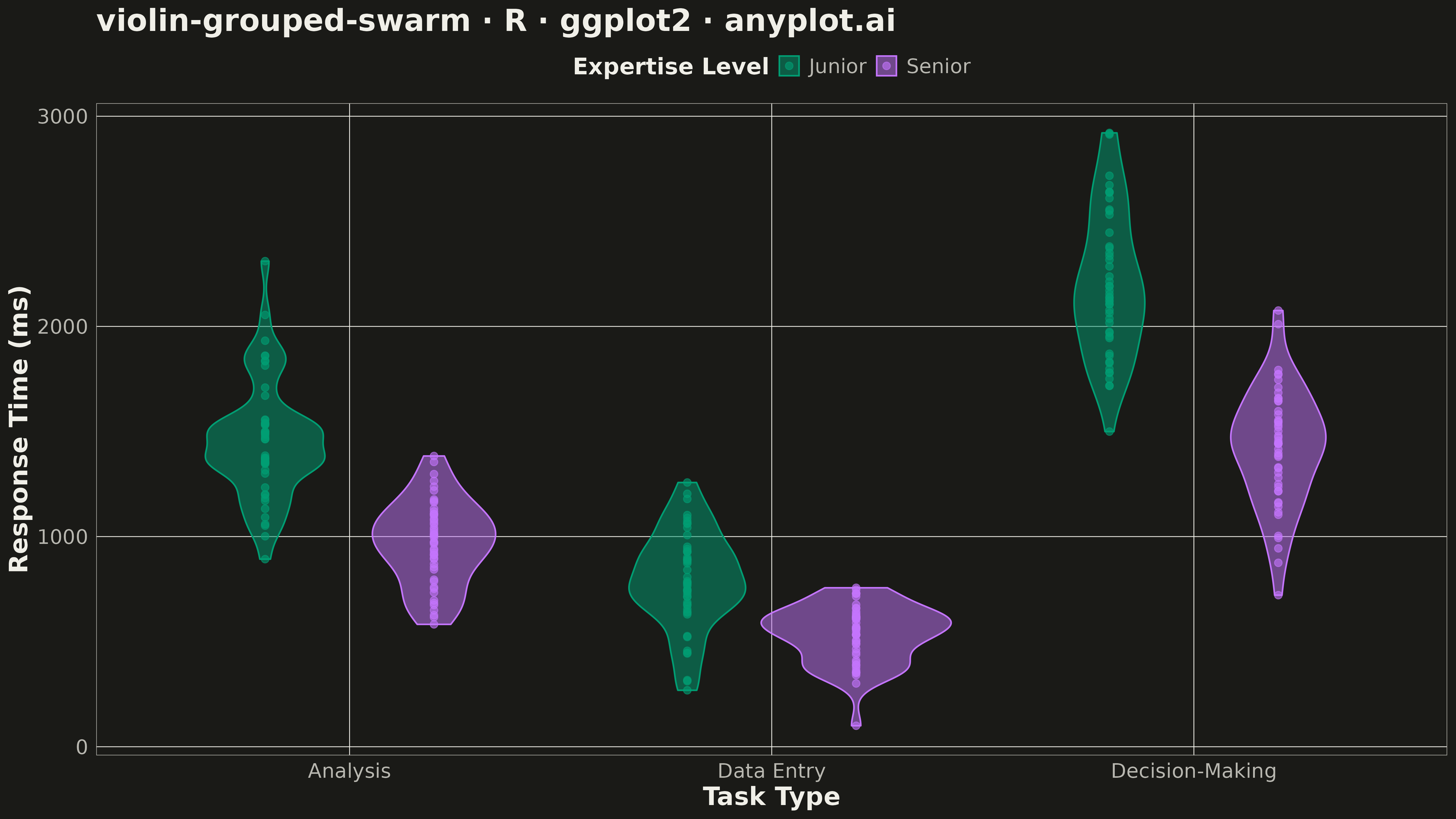

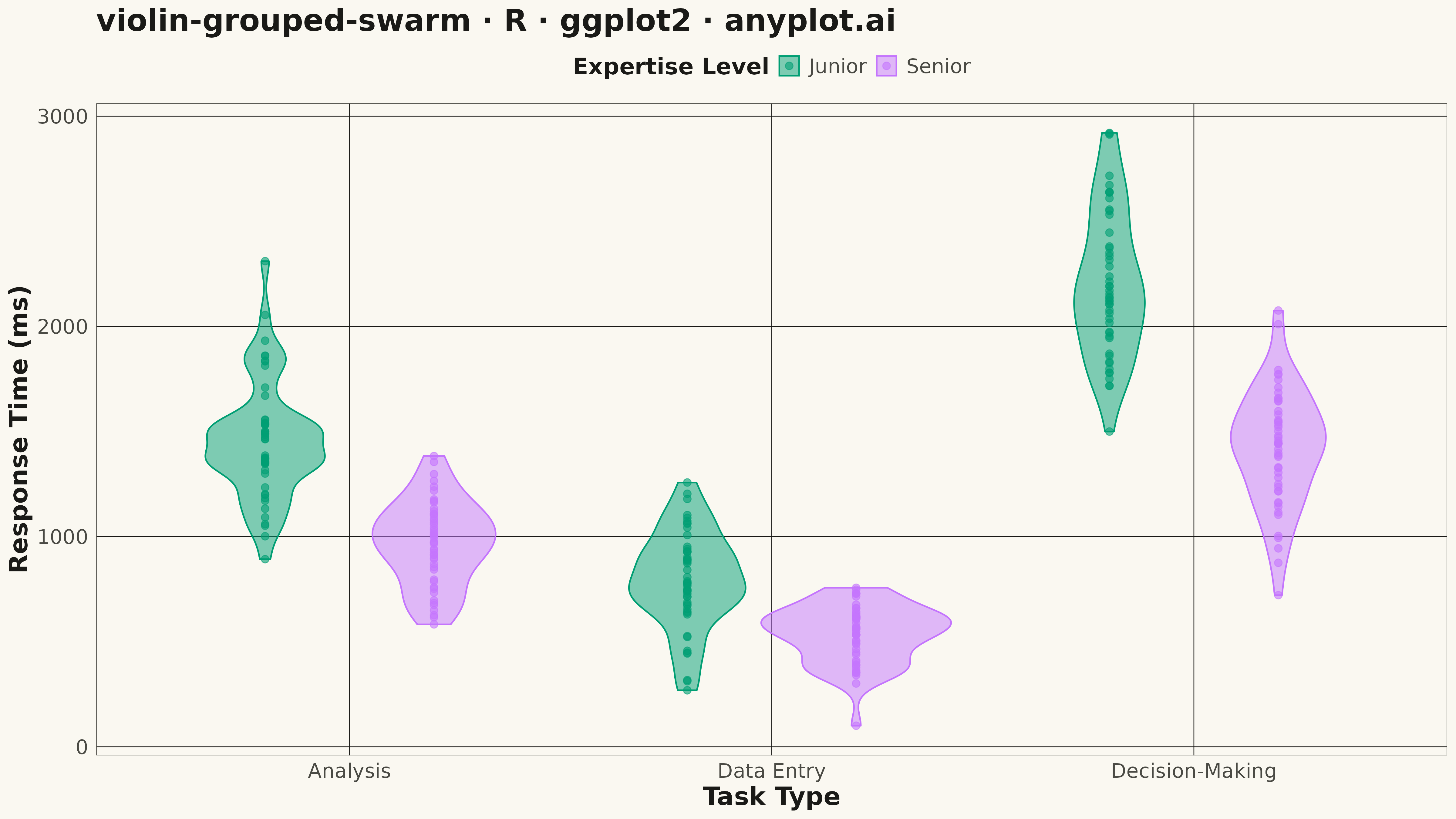

Grouped Violin Plot with Swarm Overlay rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' violin-grouped-swarm: Grouped Violin Plot with Swarm Overlay
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 88/100 | Created: 2026-05-18

library(ggplot2)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
IMPRINT   <- c("#009E73", "#C475FD", "#4467A3", "#BD8233",
                 "#AE3030", "#2ABCCD", "#954477")

# --- Data -------------------------------------------------------------------
# Response times (ms) across task types and expertise levels
set.seed(42)
n_per_group <- 50

df <- data.frame(
  category = character(n_per_group * 6),
  group = character(n_per_group * 6),
  value = numeric(n_per_group * 6),
  stringsAsFactors = FALSE
)

idx <- 1
for (cat in c("Data Entry", "Analysis", "Decision-Making")) {
  for (grp in c("Junior", "Senior")) {
    mean_val <- if (cat == "Data Entry") {
      if (grp == "Junior") 800 else 520
    } else if (cat == "Analysis") {
      if (grp == "Junior") 1500 else 975
    } else {
      if (grp == "Junior") 2200 else 1430
    }

    sd_val <- if (cat == "Data Entry") 200 else if (cat == "Analysis") 300 else 350
    if (grp == "Senior") sd_val <- sd_val * 0.75

    for (i in 1:n_per_group) {
      df$category[idx] <- cat
      df$group[idx] <- grp
      df$value[idx] <- max(100, rnorm(1, mean = mean_val, sd = sd_val))
      idx <- idx + 1
    }
  }
}

# --- Plot -------------------------------------------------------------------
p <- ggplot(df, aes(x = category, y = value, fill = group, color = group)) +
  geom_violin(
    alpha = 0.5,
    linewidth = 0.6,
    position = position_dodge(width = 0.8)
  ) +
  geom_point(
    size = 2.5,
    alpha = 0.6,
    position = position_dodge(width = 0.8),
    shape = 21,
    stroke = 0.5
  ) +
  scale_fill_manual(values = IMPRINT[1:2]) +
  scale_color_manual(values = IMPRINT[1:2]) +
  labs(
    title = "violin-grouped-swarm · R · ggplot2 · anyplot.ai",
    x = "Task Type",
    y = "Response Time (ms)",
    fill = "Expertise Level",
    color = "Expertise Level"
  ) +
  theme_minimal(base_size = 14) +
  theme(
    plot.background  = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major = element_line(color = INK, linewidth = 0.3),
    panel.grid.minor = element_blank(),
    axis.title       = element_text(color = INK, size = 20, face = "bold"),
    axis.text        = element_text(color = INK_SOFT, size = 16),
    plot.title       = element_text(color = INK, size = 24, face = "bold"),
    legend.background = element_rect(fill = PAGE_BG, color = NA),
    legend.text      = element_text(color = INK_SOFT, size = 16),
    legend.title     = element_text(color = INK, size = 18, face = "bold"),
    legend.position  = "top",
    panel.border     = element_rect(color = INK_SOFT, fill = NA, linewidth = 0.4)
  )

# --- Save -------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 16,
  height   = 9,
  units    = "in",
  dpi      = 300
)

Part of Grouped Violin Plot with Swarm Overlay on anyplot.ai.
