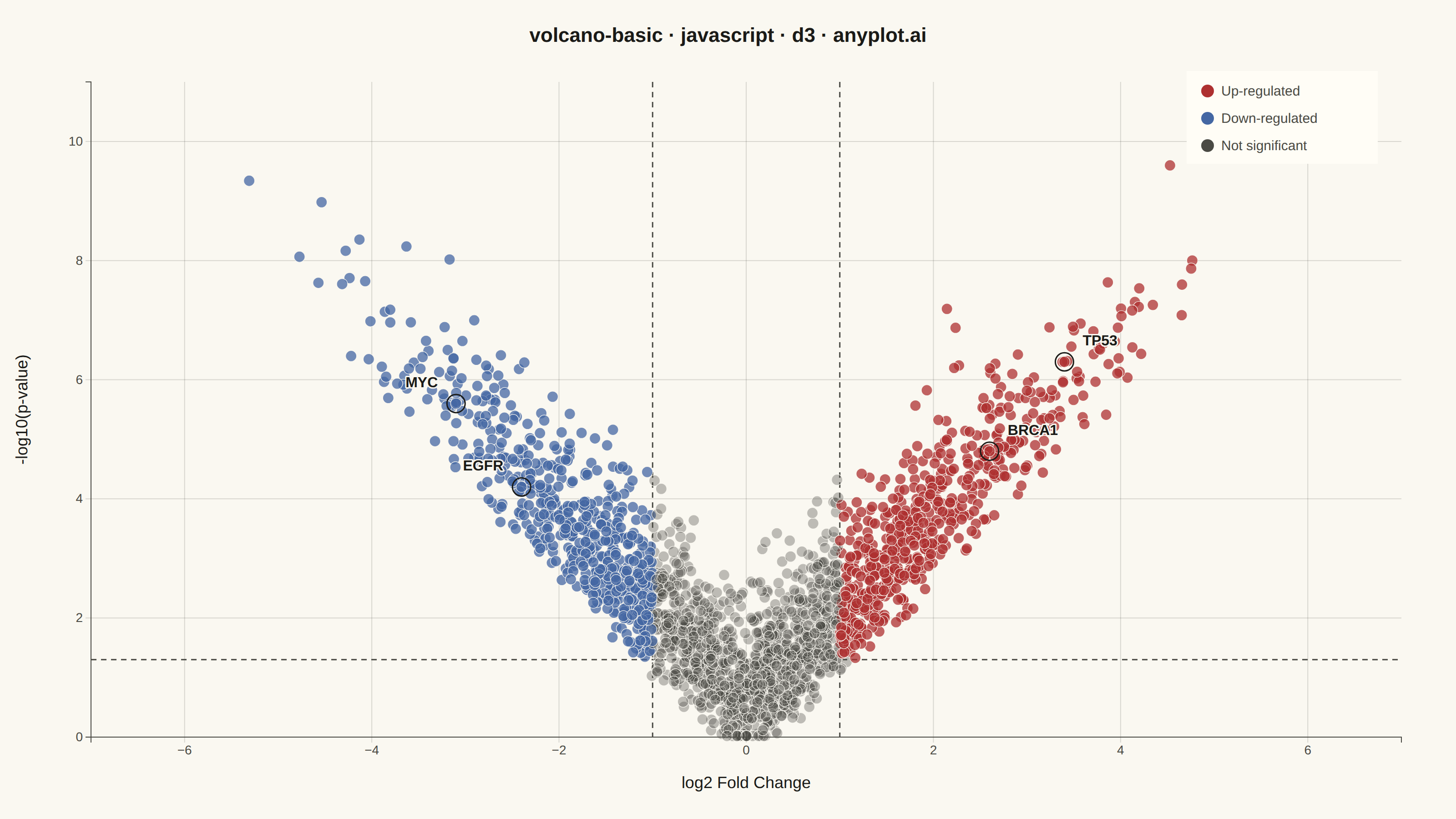

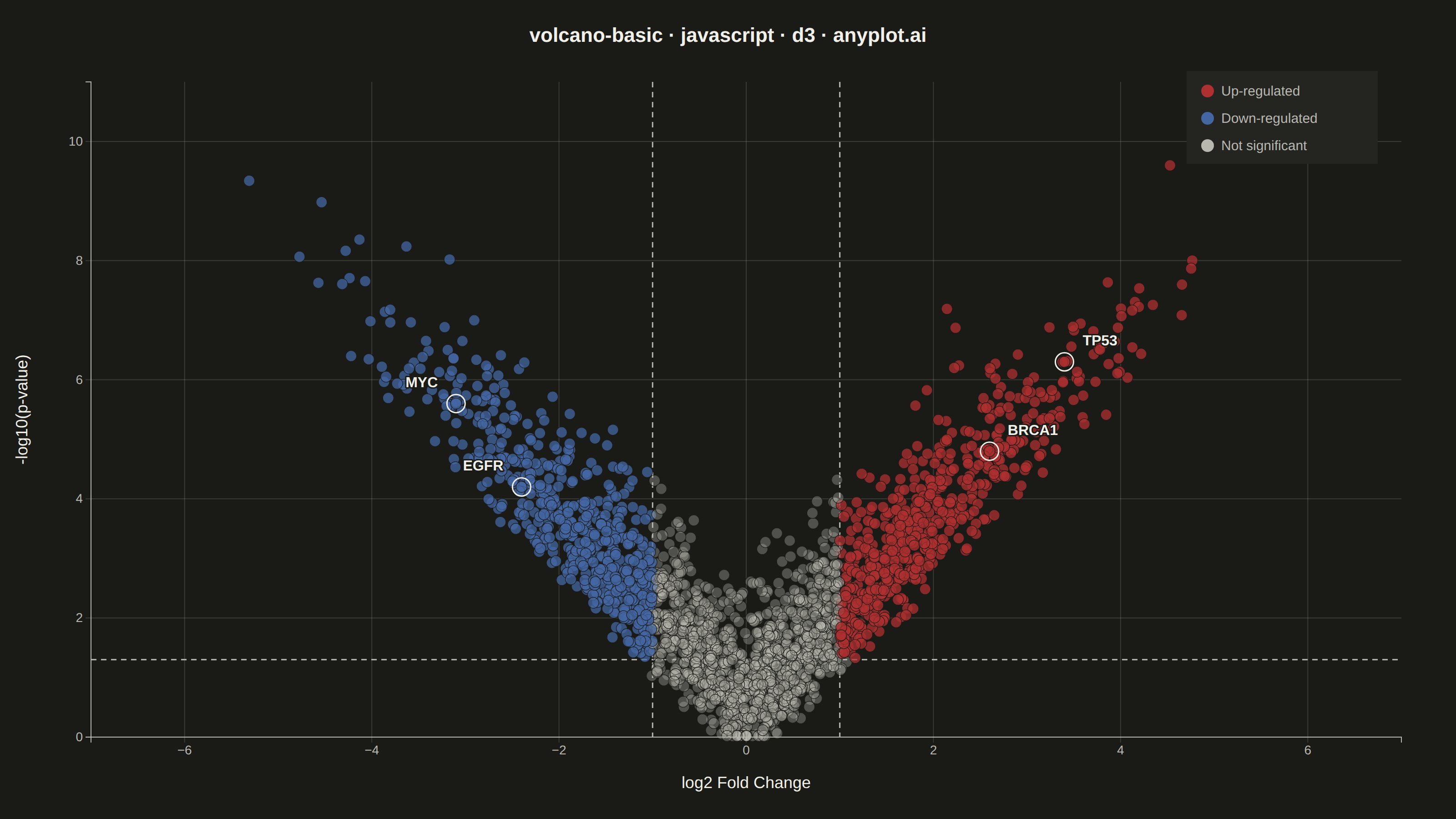

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.
// anyplot.ai
// volcano-basic: Volcano Plot for Statistical Significance
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 60, bottom: 90, left: 100 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic RNA-seq differential expression) -------
// Small fixed-seed LCG — the browser has no seeded RNG.
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
function randn() {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const N_GENES = 2200;
const FC_SIG = 1.6;
const P_THRESHOLD = 1.3; // -log10(0.05)
const FC_THRESHOLD = 1;
const genes = [];
for (let i = 0; i < N_GENES; i += 1) {
const logFc = randn() * FC_SIG;
// stronger fold changes tend to carry lower p-values (more significant)
const base = Math.abs(logFc) * 1.55 + Math.abs(randn()) * 0.9;
const negLogP = Math.max(0.02, base + (rand() - 0.5) * 1.3);
genes.push({ logFc, negLogP });
}
const topHits = [
{ label: "TP53", logFc: 3.4, negLogP: 6.3 },
{ label: "MYC", logFc: -3.1, negLogP: 5.6 },
{ label: "BRCA1", logFc: 2.6, negLogP: 4.8 },
{ label: "EGFR", logFc: -2.4, negLogP: 4.2 },
];
for (const hit of topHits) genes.push({ ...hit });
function status(d) {
if (d.negLogP < P_THRESHOLD || Math.abs(d.logFc) < FC_THRESHOLD) return "ns";
return d.logFc > 0 ? "up" : "down";
}
const colorFor = { ns: t.inkSoft, up: t.palette[4], down: t.palette[2] };
// --- SVG mount ---------------------------------------------------------------
const svg = d3
.select("#container")
.append("svg")
.attr("width", width)
.attr("height", height);
const g = svg
.append("g")
.attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales -------------------------------------------------------------------
const fcExtent = d3.max(genes, (d) => Math.abs(d.logFc)) * 1.15;
const x = d3.scaleLinear().domain([-fcExtent, fcExtent]).nice().range([0, iw]);
const yMax = d3.max(genes, (d) => d.negLogP) * 1.1;
const y = d3.scaleLinear().domain([0, yMax]).nice().range([ih, 0]);
// --- Gridlines (both axes — scatter plot) --------------------------------------
g.append("g")
.selectAll("line")
.data(y.ticks(6))
.join("line")
.attr("x1", 0)
.attr("x2", iw)
.attr("y1", (d) => y(d))
.attr("y2", (d) => y(d))
.attr("stroke", t.grid);
g.append("g")
.selectAll("line")
.data(x.ticks(8))
.join("line")
.attr("y1", 0)
.attr("y2", ih)
.attr("x1", (d) => x(d))
.attr("x2", (d) => x(d))
.attr("stroke", t.grid);
// --- Threshold lines ------------------------------------------------------------
g.append("line")
.attr("x1", 0)
.attr("x2", iw)
.attr("y1", y(P_THRESHOLD))
.attr("y2", y(P_THRESHOLD))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "6,5");
for (const fc of [-FC_THRESHOLD, FC_THRESHOLD]) {
g.append("line")
.attr("x1", x(fc))
.attr("x2", x(fc))
.attr("y1", 0)
.attr("y2", ih)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "6,5");
}
// --- Points -----------------------------------------------------------------
g.selectAll("circle")
.data(genes)
.join("circle")
.attr("cx", (d) => x(d.logFc))
.attr("cy", (d) => y(d.negLogP))
.attr("r", 6)
.attr("fill", (d) => colorFor[status(d)])
.attr("fill-opacity", (d) => (status(d) === "ns" ? 0.35 : 0.75))
.attr("stroke", t.pageBg)
.attr("stroke-width", 0.6);
// --- Top-hit emphasis rings ---------------------------------------------------
g.selectAll(".hit-ring")
.data(topHits)
.join("circle")
.attr("class", "hit-ring")
.attr("cx", (d) => x(d.logFc))
.attr("cy", (d) => y(d.negLogP))
.attr("r", 10)
.attr("fill", "none")
.attr("stroke", t.ink)
.attr("stroke-width", 1.5);
// --- Top-hit labels ----------------------------------------------------------
g.selectAll(".hit-label")
.data(topHits)
.join("text")
.attr("class", "hit-label")
.attr("x", (d) => x(d.logFc) + (d.logFc > 0 ? 20 : -20))
.attr("y", (d) => y(d.negLogP) - 18)
.attr("text-anchor", (d) => (d.logFc > 0 ? "start" : "end"))
.attr("fill", t.ink)
.attr("stroke", t.pageBg)
.attr("stroke-width", 3)
.attr("stroke-linejoin", "round")
.style("paint-order", "stroke")
.style("font-size", "16px")
.style("font-weight", "600")
.text((d) => d.label);
// --- Axes ----------------------------------------------------------------------
const xAxis = g
.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(8));
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(6));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
ax.selectAll("line").attr("stroke", t.grid);
ax.select(".domain").attr("stroke", t.inkSoft);
}
// --- Axis labels -----------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("log2 Fold Change");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -70)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("-log10(p-value)");
// --- Legend -----------------------------------------------------------------
const legendItems = [
{ key: "up", label: "Up-regulated" },
{ key: "down", label: "Down-regulated" },
{ key: "ns", label: "Not significant" },
];
const legend = svg
.append("g")
.attr(
"transform",
`translate(${width - margin.right - 220},${margin.top + 10})`,
);
legend
.append("rect")
.attr("x", -16)
.attr("y", -22)
.attr("width", 210)
.attr("height", legendItems.length * 30 + 12)
.attr("fill", t.elevatedBg);
legendItems.forEach((item, i) => {
const row = legend.append("g").attr("transform", `translate(0,${i * 30})`);
row
.append("circle")
.attr("r", 7)
.attr("cx", 7)
.attr("cy", 0)
.attr("fill", colorFor[item.key]);
row
.append("text")
.attr("x", 22)
.attr("y", 5)
.attr("fill", t.inkSoft)
.style("font-size", "15px")
.text(item.label);
});
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 46)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("volcano-basic · javascript · d3 · anyplot.ai");
