Volcano Plot for Statistical Significance — Seaborn

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.

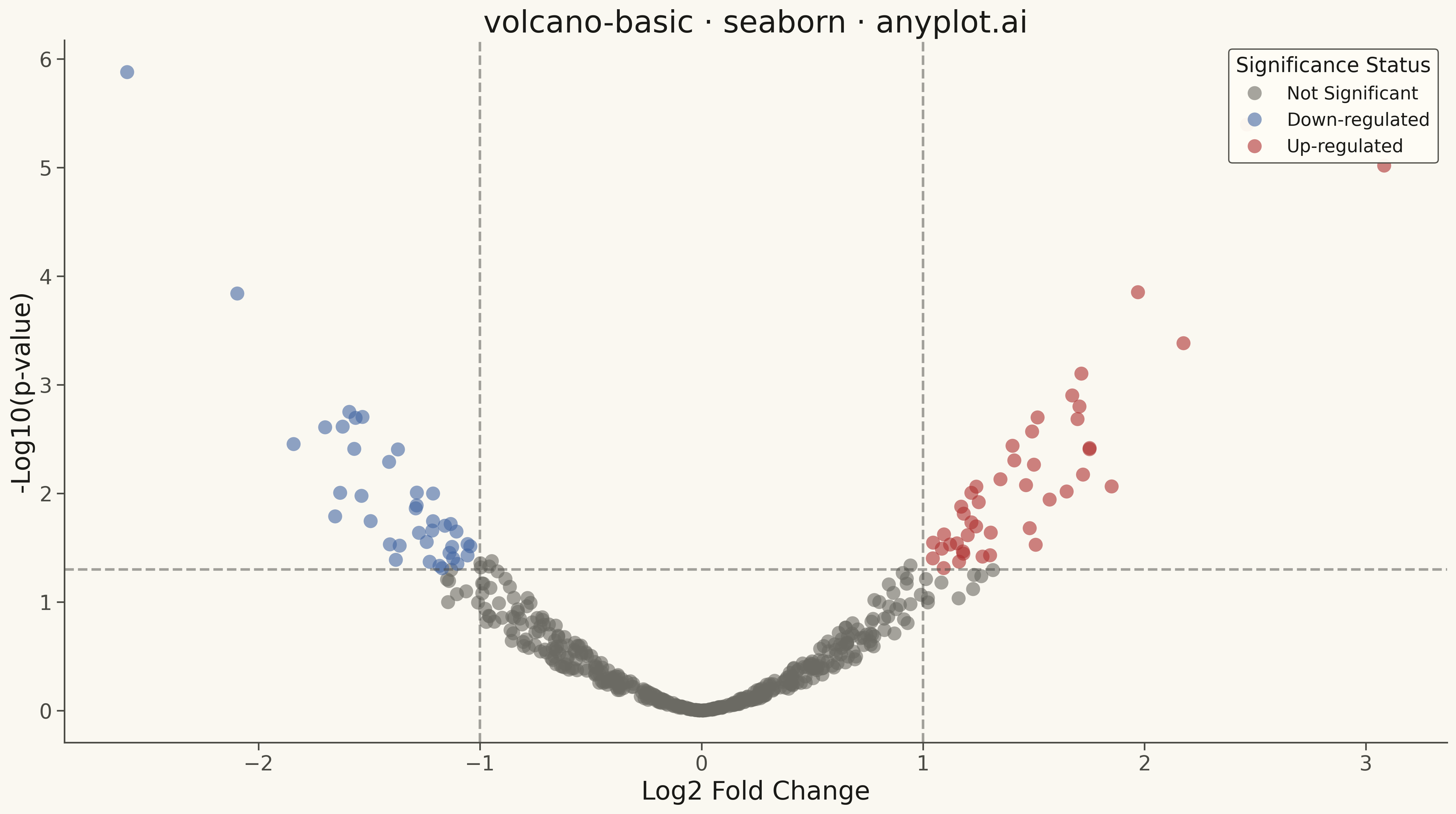

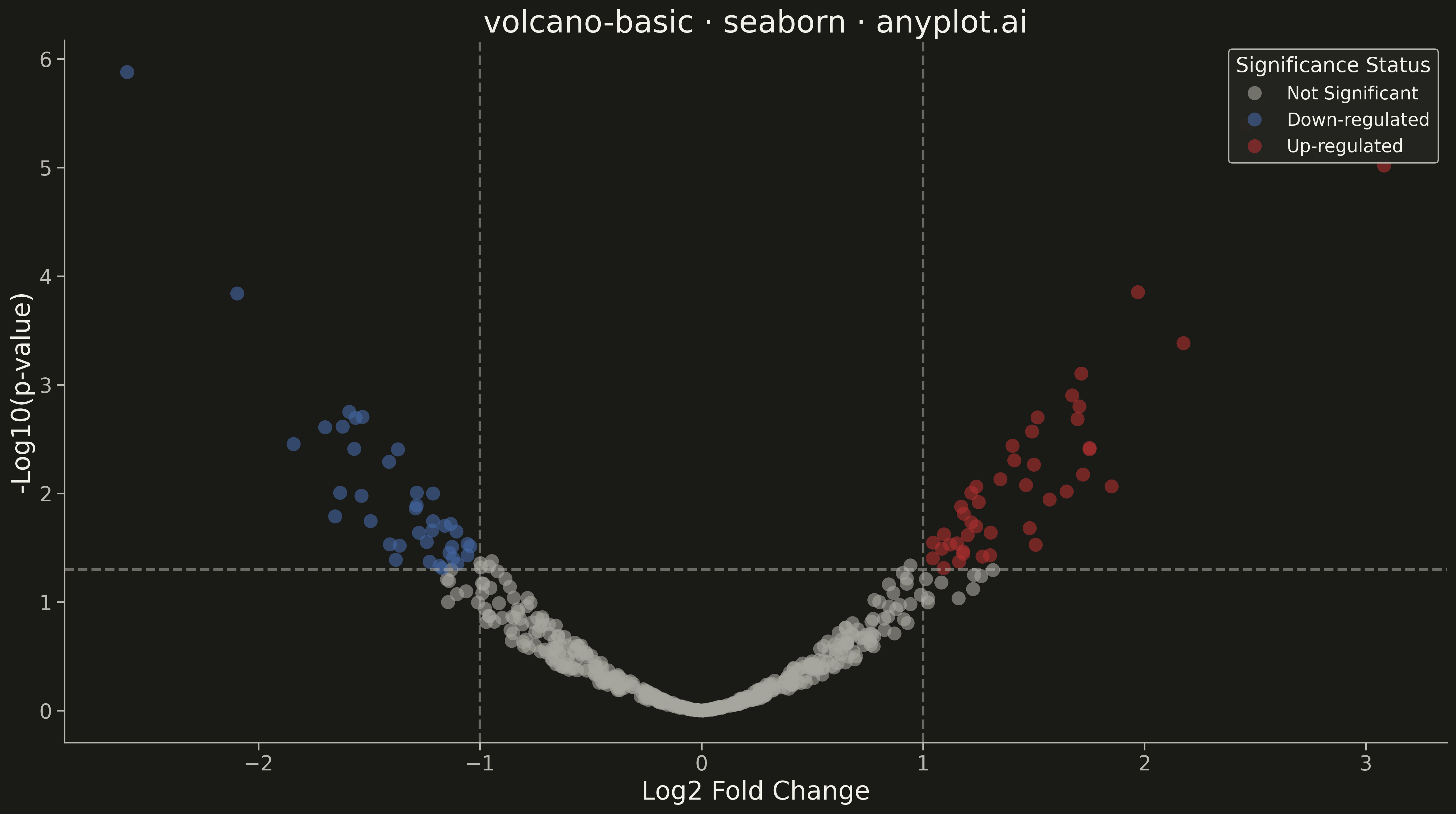

Volcano Plot for Statistical Significance rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
volcano-basic: Volcano Plot for Statistical Significance
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-14
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Okabe-Ito palette for volcano plot
# Non-significant: adaptive neutral
# Down-regulated: #4467A3 (Okabe-Ito blue)
# Up-regulated: #AE3030 (Okabe-Ito orange)
NOT_SIG_COLOR = INK_MUTED
DOWN_COLOR = "#4467A3"
UP_COLOR = "#AE3030"

# Data generation
np.random.seed(42)
n_genes = 500

# Single normal distribution for log2 fold changes
log2_fold_change = np.random.normal(0, 0.8, n_genes)

# Generate p-values: correlation with fold change magnitude for realistic volcano shape
# Genes with larger fold changes tend to have lower p-values
base_pvalues = 10 ** (-(np.abs(log2_fold_change) ** 1.5) * np.random.uniform(0.8, 1.5, n_genes))
base_pvalues = np.clip(base_pvalues, 1e-10, 1.0)
neg_log10_pvalue = -np.log10(base_pvalues)

# Define significance thresholds
pval_threshold = 1.3  # -log10(0.05)
fc_threshold = 1.0  # log2(2) = 1

# Categorize genes
categories = np.where(
    neg_log10_pvalue < pval_threshold,
    "Not Significant",
    np.where(
        log2_fold_change > fc_threshold,
        "Up-regulated",
        np.where(log2_fold_change < -fc_threshold, "Down-regulated", "Not Significant"),
    ),
)

# Create DataFrame
df = pd.DataFrame({"log2_fold_change": log2_fold_change, "neg_log10_pvalue": neg_log10_pvalue, "category": categories})

# Sort by category to plot significant genes on top
category_order = {"Not Significant": 0, "Down-regulated": 1, "Up-regulated": 2}
df["order"] = df["category"].map(category_order)
df = df.sort_values("order")

# Color palette with Okabe-Ito colors
palette = {"Not Significant": NOT_SIG_COLOR, "Down-regulated": DOWN_COLOR, "Up-regulated": UP_COLOR}

# Set seaborn theme with adaptive colors
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Create figure
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Scatter plot
sns.scatterplot(
    data=df,
    x="log2_fold_change",
    y="neg_log10_pvalue",
    hue="category",
    hue_order=["Not Significant", "Down-regulated", "Up-regulated"],
    palette=palette,
    s=120,
    alpha=0.6,
    edgecolor="none",
    ax=ax,
)

# Threshold lines with adaptive colors
ax.axhline(y=pval_threshold, color=INK_SOFT, linestyle="--", linewidth=2, alpha=0.5)
ax.axvline(x=fc_threshold, color=INK_SOFT, linestyle="--", linewidth=2, alpha=0.5)
ax.axvline(x=-fc_threshold, color=INK_SOFT, linestyle="--", linewidth=2, alpha=0.5)

# Labels and styling
ax.set_xlabel("Log2 Fold Change", fontsize=20, color=INK, fontweight="medium")
ax.set_ylabel("-Log10(p-value)", fontsize=20, color=INK, fontweight="medium")
ax.set_title("volcano-basic · seaborn · anyplot.ai", fontsize=24, color=INK, fontweight="medium")
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Remove top and right spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["left"].set_color(INK_SOFT)
ax.spines["bottom"].set_color(INK_SOFT)

# Legend styling
legend = ax.legend(
    title="Significance Status", fontsize=14, title_fontsize=16, loc="upper right", framealpha=0.95, edgecolor=INK_SOFT
)
legend.get_frame().set_facecolor(ELEVATED_BG)
for text in legend.get_texts():
    text.set_color(INK)
legend.get_title().set_color(INK)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Volcano Plot for Statistical Significance on anyplot.ai.
