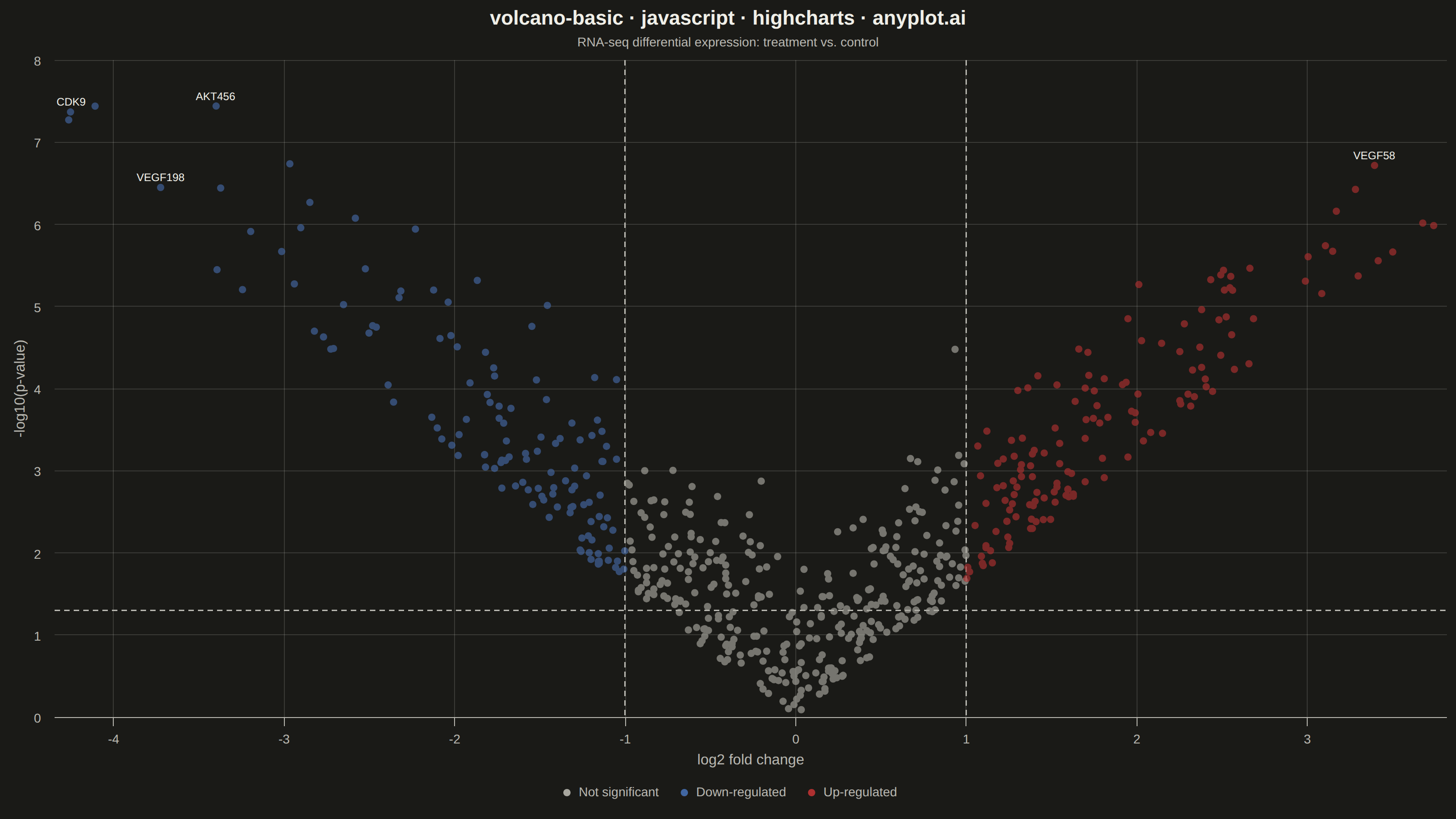

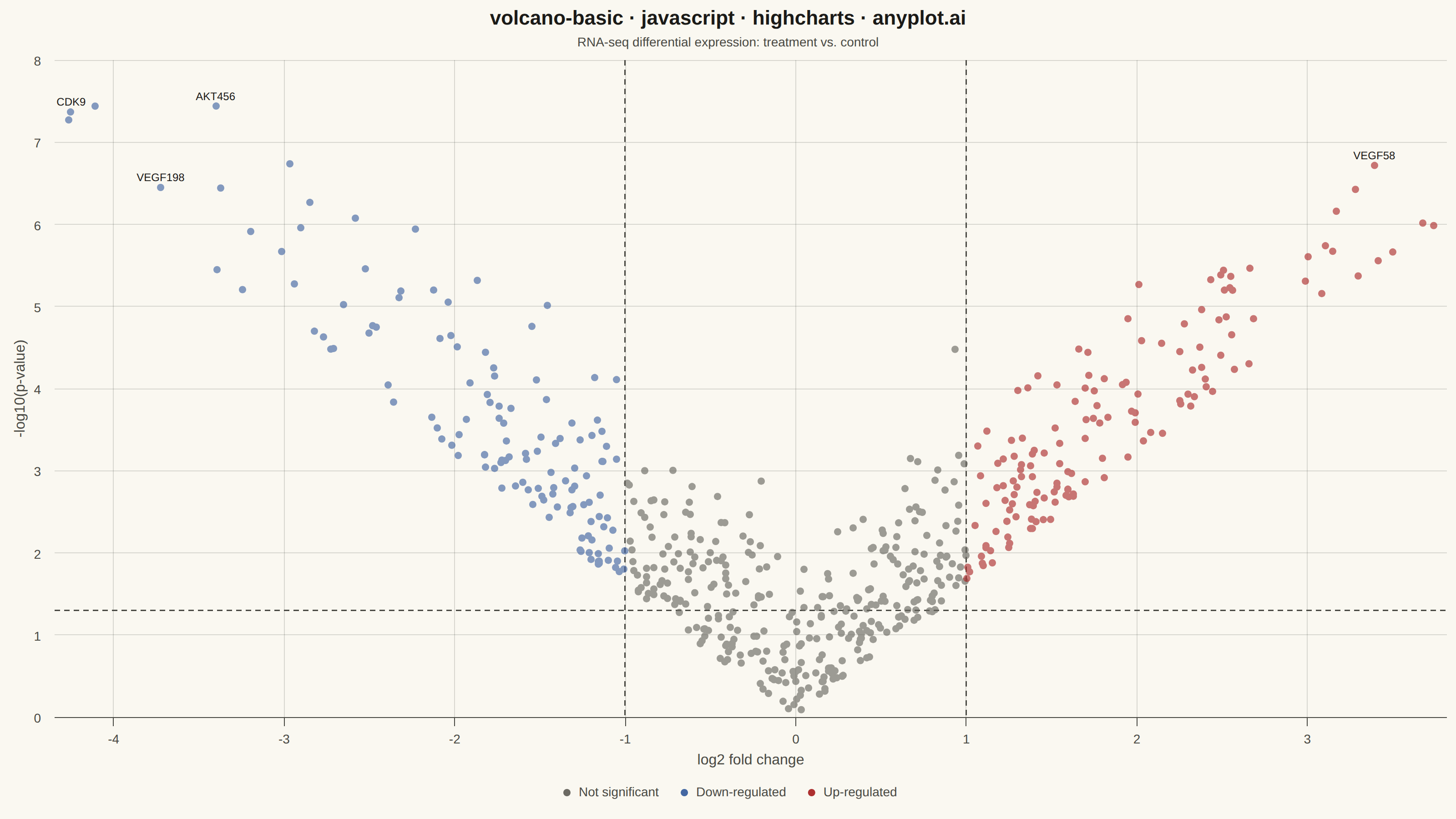

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.
// anyplot.ai
// volcano-basic: Volcano Plot for Statistical Significance
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// ANYPLOT_TOKENS has no "muted" anchor — derive it per default-style-guide.md
// theme-adaptive chrome table (INK_MUTED: #6B6A63 light / #A8A79F dark).
const MUTED = t.theme === "dark" ? "#A8A79F" : "#6B6A63";
// --- Data (in-memory, deterministic LCG) ------------------------------------
// Simulated differential gene expression results (RNA-seq treatment vs. control).
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1103515245 + 12345) & 0x7fffffff;
return state / 0x7fffffff;
};
}
const rand = lcg(42);
const randn = () => {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
};
const FC_THRESHOLD = 1; // log2 fold change cutoff (2-fold)
const P_THRESHOLD = 1.3; // -log10(0.05)
const genePrefixes = ["BRCA", "TP53", "MYC", "EGFR", "KRAS", "PTEN", "AKT", "PIK3", "VEGF", "CDK"];
const geneCount = 600;
const downregulated = [];
const upregulated = [];
const nonsignificant = [];
for (let i = 0; i < geneCount; i++) {
const logFc = randn() * 1.4;
const noise = Math.abs(randn()) * 0.9;
// Genes with larger |fold change| tend to carry more significance (realistic funnel shape).
const negLog10P = Math.max(0.02, Math.abs(logFc) * 1.6 + noise);
const label = `${genePrefixes[i % genePrefixes.length]}${i}`;
const point = { x: Number(logFc.toFixed(3)), y: Number(negLog10P.toFixed(3)), name: label };
const isSignificant = negLog10P >= P_THRESHOLD && Math.abs(logFc) >= FC_THRESHOLD;
if (isSignificant && logFc > 0) {
upregulated.push(point);
} else if (isSignificant && logFc < 0) {
downregulated.push(point);
} else {
nonsignificant.push(point);
}
}
// Top significant features by combined score, labeled directly on the chart.
const topLabeled = [...upregulated, ...downregulated]
.sort((a, b) => Math.abs(b.x) * b.y - Math.abs(a.x) * a.y)
.slice(0, 6);
const topLabelSet = new Set(topLabeled.map((p) => p.name));
const addDataLabel = (p) => ({
...p,
dataLabels: topLabelSet.has(p.name)
? { enabled: true, format: "{point.name}", style: { color: t.ink, fontSize: "12px", fontWeight: "500", textOutline: "none" } }
: undefined,
});
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "scatter",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: [MUTED, t.palette[2], t.palette[4]],
title: {
text: "volcano-basic · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "RNA-seq differential expression: treatment vs. control",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
title: { text: "log2 fold change", style: { color: t.inkSoft, fontSize: "16px" } },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
plotLines: [
{ value: -FC_THRESHOLD, color: t.inkSoft, dashStyle: "Dash", width: 1.5, zIndex: 3 },
{ value: FC_THRESHOLD, color: t.inkSoft, dashStyle: "Dash", width: 1.5, zIndex: 3 },
],
},
yAxis: {
title: { text: "-log10(p-value)", style: { color: t.inkSoft, fontSize: "16px" } },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
plotLines: [{ value: P_THRESHOLD, color: t.inkSoft, dashStyle: "Dash", width: 1.5, zIndex: 3 }],
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
plotOptions: {
series: { animation: false, marker: { radius: 4, symbol: "circle", lineWidth: 0 } },
scatter: { opacity: 0.65 },
},
tooltip: { enabled: false },
series: [
{ name: "Not significant", data: nonsignificant.map(addDataLabel) },
{ name: "Down-regulated", data: downregulated.map(addDataLabel) },
{ name: "Up-regulated", data: upregulated.map(addDataLabel) },
],
});
