Volcano Plot for Statistical Significance — Matplotlib

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.

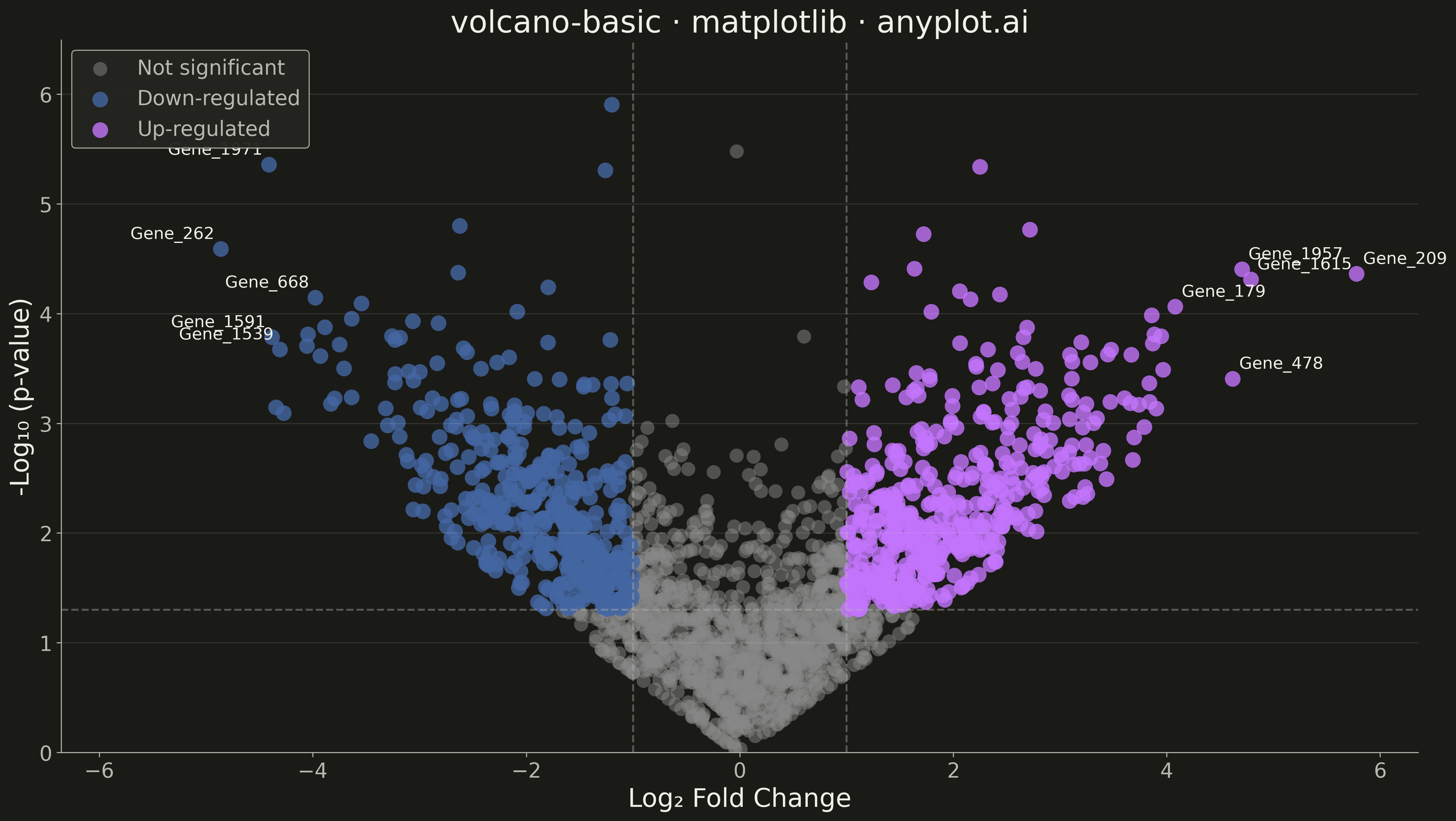

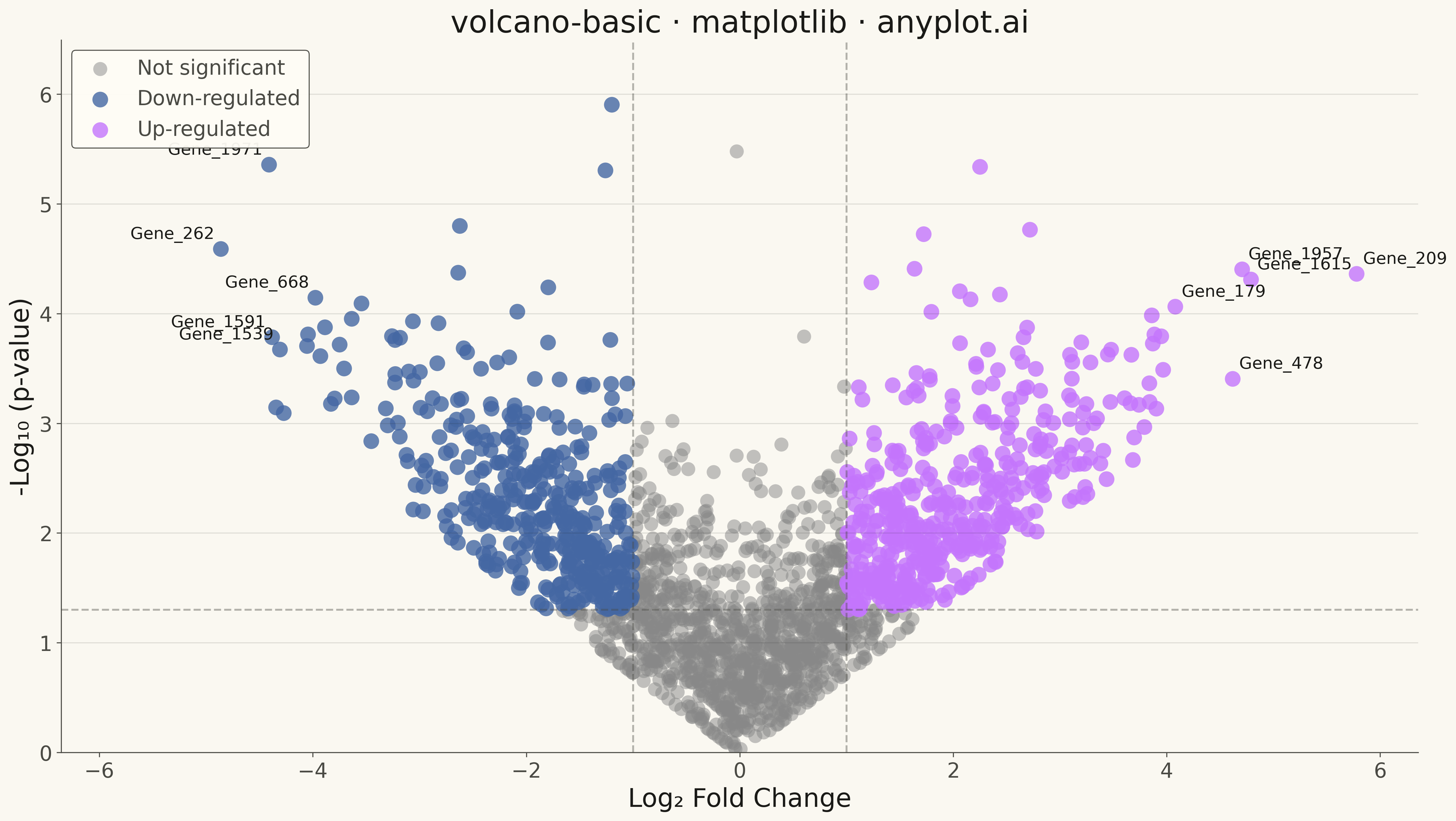

Volcano Plot for Statistical Significance rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
volcano-basic: Volcano Plot for Statistical Significance
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-14
"""

import os

import matplotlib.pyplot as plt
import numpy as np


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette for significance categories
COLOR_DOWNREG = "#4467A3"  # Blue
COLOR_UPREG = "#C475FD"  # Vermillion
COLOR_NONSIG = "#888888"  # Neutral gray

# Data - simulated differential expression results
np.random.seed(42)
n_genes = 2000

# Generate log2 fold changes (centered around 0)
log2_fc = np.random.normal(0, 1.5, n_genes)

# Generate p-values (most non-significant, some significant)
base_pvalues = np.random.exponential(0.3, n_genes)
base_pvalues = np.clip(base_pvalues, 1e-50, 1.0)

# Make genes with large fold changes more likely to be significant
significance_boost = np.abs(log2_fc) / 3
pvalues = base_pvalues * np.exp(-significance_boost * 5)
pvalues = np.clip(pvalues, 1e-50, 1.0)

# Convert to -log10(p-value)
neg_log10_pval = -np.log10(pvalues)

# Significance thresholds
pval_threshold = 1.3  # -log10(0.05)
fc_threshold = 1.0  # log2(2) = 1

# Classify points
sig_up = (neg_log10_pval > pval_threshold) & (log2_fc > fc_threshold)
sig_down = (neg_log10_pval > pval_threshold) & (log2_fc < -fc_threshold)
non_sig = ~sig_up & ~sig_down

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Plot non-significant points first (gray)
ax.scatter(
    log2_fc[non_sig],
    neg_log10_pval[non_sig],
    c=COLOR_NONSIG,
    s=120,
    alpha=0.5,
    label="Not significant",
    edgecolors="none",
)

# Plot significant down-regulated (blue)
ax.scatter(
    log2_fc[sig_down],
    neg_log10_pval[sig_down],
    c=COLOR_DOWNREG,
    s=150,
    alpha=0.8,
    label="Down-regulated",
    edgecolors="none",
)

# Plot significant up-regulated (vermillion)
ax.scatter(
    log2_fc[sig_up], neg_log10_pval[sig_up], c=COLOR_UPREG, s=150, alpha=0.8, label="Up-regulated", edgecolors="none"
)

# Add threshold lines
ax.axhline(y=pval_threshold, color=INK_SOFT, linestyle="--", linewidth=1.5, alpha=0.4, zorder=1)
ax.axvline(x=fc_threshold, color=INK_SOFT, linestyle="--", linewidth=1.5, alpha=0.4, zorder=1)
ax.axvline(x=-fc_threshold, color=INK_SOFT, linestyle="--", linewidth=1.5, alpha=0.4, zorder=1)

# Label top significant genes
top_up_idx = np.where(sig_up)[0]
if len(top_up_idx) > 0:
    top_up_scores = neg_log10_pval[top_up_idx] + np.abs(log2_fc[top_up_idx])
    top_up = top_up_idx[np.argsort(top_up_scores)[-5:]]
    for idx in top_up:
        ax.annotate(
            f"Gene_{idx}",
            (log2_fc[idx], neg_log10_pval[idx]),
            fontsize=13,
            ha="left",
            va="bottom",
            xytext=(5, 5),
            textcoords="offset points",
            color=INK,
        )

top_down_idx = np.where(sig_down)[0]
if len(top_down_idx) > 0:
    top_down_scores = neg_log10_pval[top_down_idx] + np.abs(log2_fc[top_down_idx])
    top_down = top_down_idx[np.argsort(top_down_scores)[-5:]]
    for idx in top_down:
        ax.annotate(
            f"Gene_{idx}",
            (log2_fc[idx], neg_log10_pval[idx]),
            fontsize=13,
            ha="right",
            va="bottom",
            xytext=(-5, 5),
            textcoords="offset points",
            color=INK,
        )

# Styling
ax.set_xlabel("Log₂ Fold Change", fontsize=20, color=INK)
ax.set_ylabel("-Log₁₀ (p-value)", fontsize=20, color=INK)
ax.set_title("volcano-basic · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Spines and grid
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)

ax.yaxis.grid(True, alpha=0.12, linewidth=0.8, color=INK)

# Legend styling
leg = ax.legend(fontsize=16, loc="upper left", framealpha=0.95)
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    leg.get_frame().set_linewidth(0.8)
    for text in leg.get_texts():
        text.set_color(INK_SOFT)

# Set axis limits with padding
x_max = max(abs(log2_fc.min()), abs(log2_fc.max())) * 1.1
ax.set_xlim(-x_max, x_max)
ax.set_ylim(0, neg_log10_pval.max() * 1.1)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
