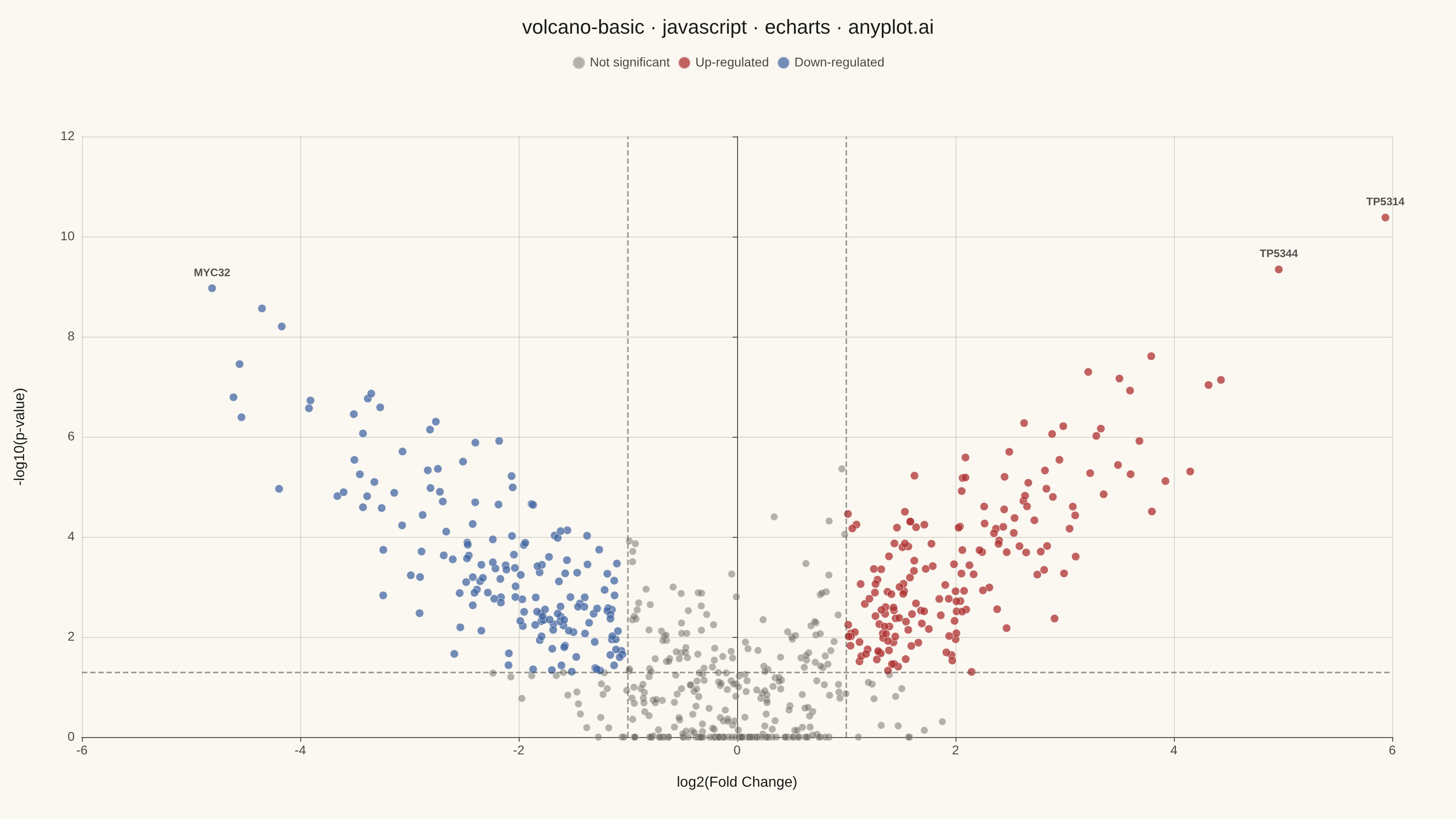

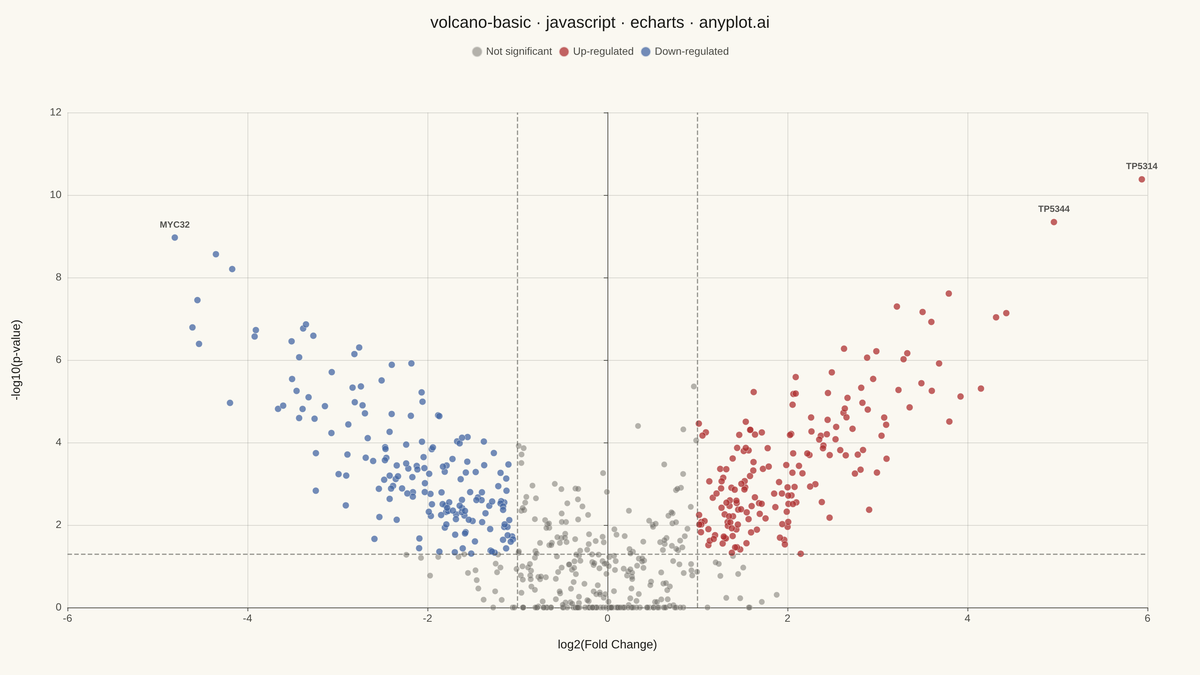

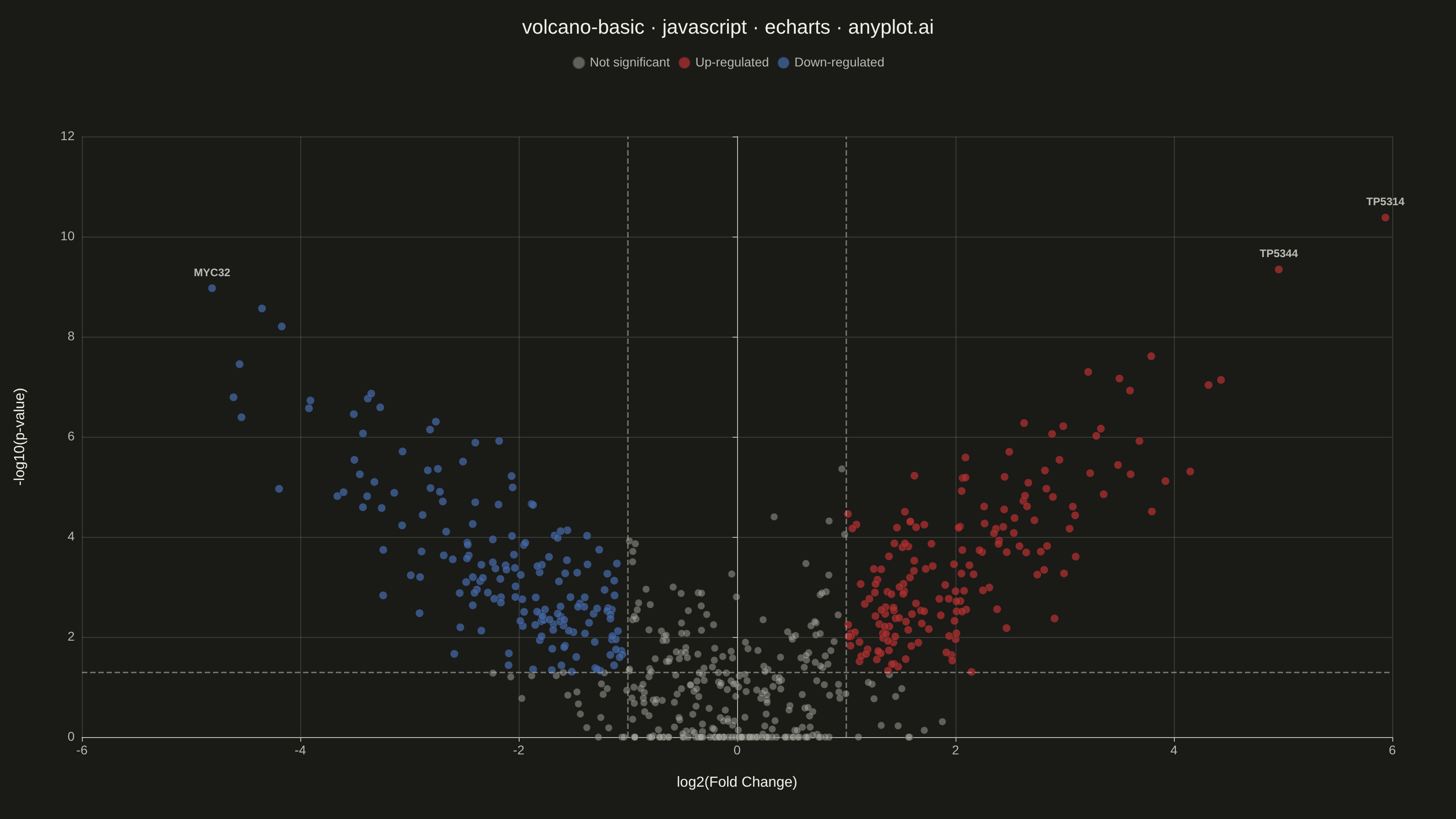

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.
// anyplot.ai
// volcano-basic: Volcano Plot for Statistical Significance
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-09
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const inkMuted = window.ANYPLOT_THEME === "dark" ? "#A8A79F" : "#6B6A63";
// --- Data: simulated RNA-seq differential expression (deterministic LCG) ----
let seed = 42;
function rand() {
seed = (seed * 1664525 + 1013904223) % 4294967296;
return seed / 4294967296;
}
function randNormal() {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const GENE_STEMS = ["TP53", "BRCA1", "EGFR", "MYC", "KRAS", "PTEN", "AKT1", "PIK3CA", "STAT3", "NFKB1", "VEGFA", "CDKN2A"];
const FC_THRESHOLD = 1; // log2 fold change cutoff (2-fold)
const P_THRESHOLD = 1.3; // -log10(0.05)
const notSignificant = [];
const upRegulated = [];
const downRegulated = [];
for (let i = 0; i < 650; i += 1) {
const log2FoldChange = randNormal() * 1.7;
const negLog10Pvalue = Math.max(0, Math.abs(log2FoldChange) * 1.5 + randNormal() * 1.2 + rand() * 0.3);
const gene = `${GENE_STEMS[i % GENE_STEMS.length]}${Math.floor(i / GENE_STEMS.length) + 1}`;
const point = { name: gene, value: [log2FoldChange, negLog10Pvalue] };
if (negLog10Pvalue < P_THRESHOLD || Math.abs(log2FoldChange) < FC_THRESHOLD) {
notSignificant.push(point);
} else if (log2FoldChange > 0) {
upRegulated.push(point);
} else {
downRegulated.push(point);
}
}
// Label the top 3 most significant genes by name to add storytelling focus.
[...upRegulated, ...downRegulated]
.sort((a, b) => b.value[1] - a.value[1])
.slice(0, 3)
.forEach((point) => {
point.label = {
show: true,
formatter: "{b}",
position: "top",
distance: 6,
color: t.ink,
fontSize: 12,
fontWeight: 600,
};
});
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ---------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "volcano-basic · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
legend: {
top: 56,
data: ["Not significant", "Up-regulated", "Down-regulated"],
textStyle: { color: t.inkSoft, fontSize: 14 },
itemWidth: 14,
itemHeight: 14,
},
tooltip: {
trigger: "item",
formatter: (p) => `${p.data.name}<br/>log2FC: ${p.data.value[0].toFixed(2)}<br/>-log10(p): ${p.data.value[1].toFixed(2)}`,
},
grid: { left: 90, right: 70, top: 150, bottom: 90 },
xAxis: {
type: "value",
name: "log2(Fold Change)",
nameLocation: "middle",
nameGap: 42,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "value",
name: "-log10(p-value)",
nameLocation: "middle",
nameGap: 60,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
name: "Not significant",
type: "scatter",
data: notSignificant,
symbolSize: 8,
itemStyle: { color: inkMuted, opacity: 0.5, borderColor: t.pageBg, borderWidth: 0.5 },
markLine: {
silent: true,
symbol: "none",
label: { show: false },
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5, opacity: 0.6 },
data: [{ yAxis: P_THRESHOLD }, { xAxis: -FC_THRESHOLD }, { xAxis: FC_THRESHOLD }],
},
},
{
name: "Down-regulated",
type: "scatter",
data: downRegulated,
symbolSize: 9,
itemStyle: { color: t.palette[2], opacity: 0.75, borderColor: t.pageBg, borderWidth: 0.5 },
},
{
name: "Up-regulated",
type: "scatter",
data: upRegulated,
symbolSize: 9,
itemStyle: { color: t.palette[4], opacity: 0.75, borderColor: t.pageBg, borderWidth: 0.5 },
},
],
});
