Volcano Plot for Statistical Significance — lets-plot

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.

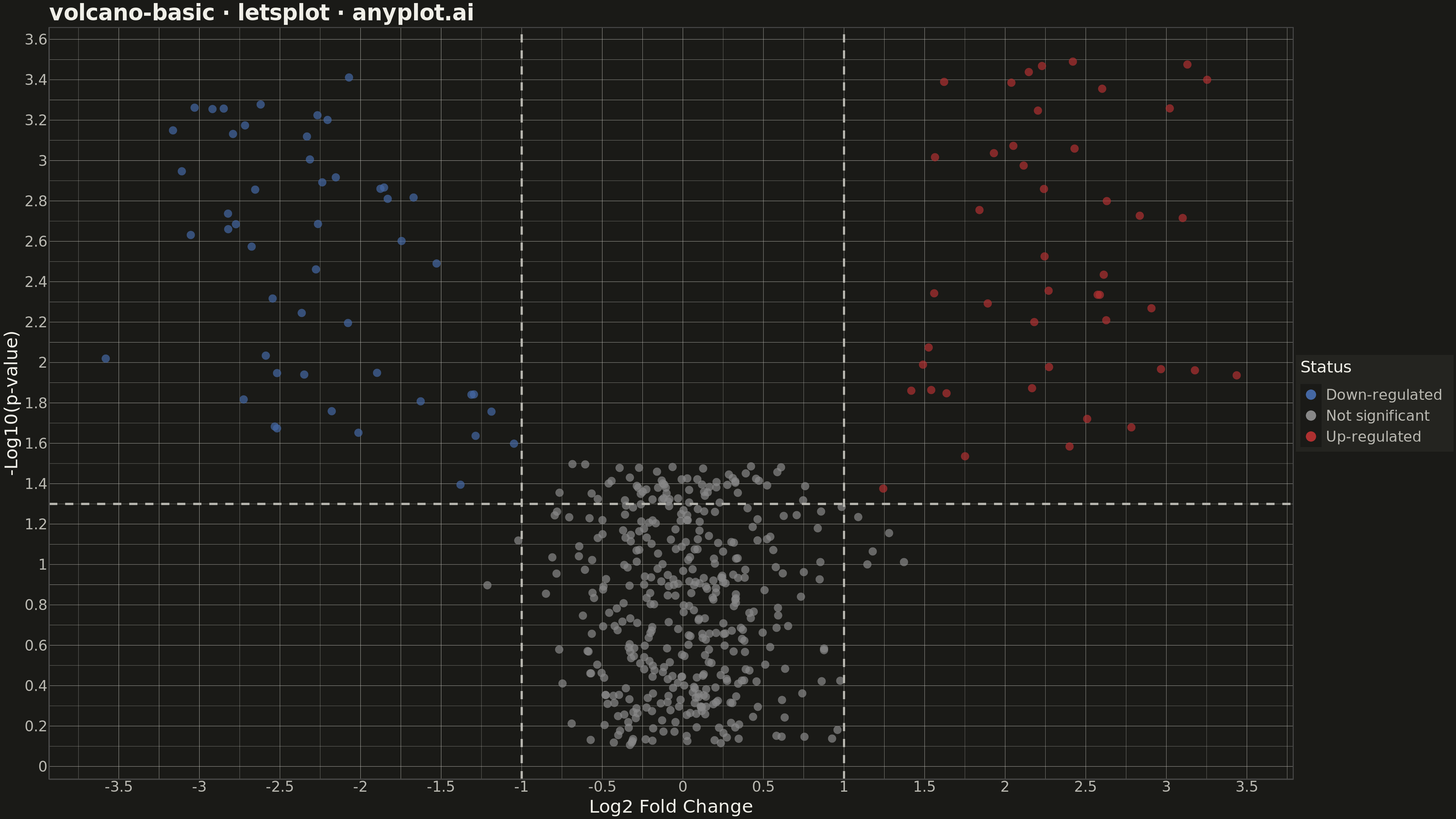

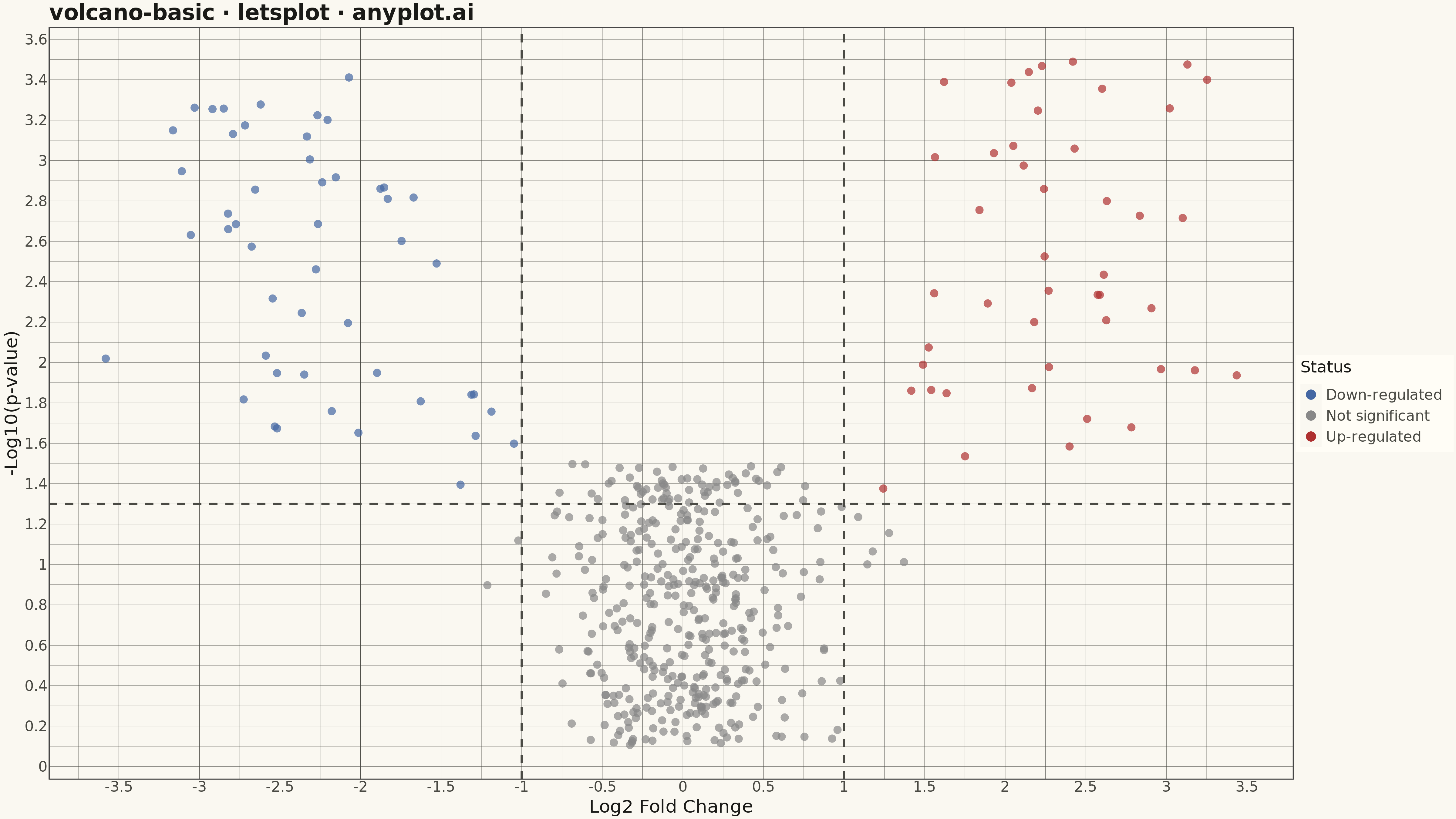

Volcano Plot for Statistical Significance rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
volcano-basic: Volcano Plot for Statistical Significance
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 80/100 | Updated: 2026-05-14
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme-adaptive colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (colorblind-safe)
OKABE_ITO_DOWN = "#4467A3"  # imprint blue — down-regulated (cool)
OKABE_ITO_UP = "#AE3030"  # imprint red — up-regulated (warm semantic)
OKABE_ITO_NEUTRAL = "#888888"  # Gray for not significant

# Data - Simulated differential expression results
np.random.seed(42)
n_genes = 500

# Generate log2 fold changes (mostly near zero with some extremes)
log2_fc = np.concatenate(
    [
        np.random.normal(0, 0.4, n_genes - 100),  # Unchanged genes
        np.random.normal(2.2, 0.6, 50),  # Up-regulated
        np.random.normal(-2.2, 0.6, 50),  # Down-regulated
    ]
)

# Generate p-values (strongly correlated with fold change magnitude)
# Higher fold change = lower p-value (more significant)
neg_log10_pval = np.zeros(n_genes)
for i, fc in enumerate(log2_fc):
    if abs(fc) > 1.5:  # Large fold changes get significant p-values
        neg_log10_pval[i] = np.random.uniform(1.5, 3.5)
    elif abs(fc) > 1.0:  # Moderate fold changes get borderline p-values
        neg_log10_pval[i] = np.random.uniform(0.8, 2.0)
    else:  # Small fold changes get non-significant p-values
        neg_log10_pval[i] = np.random.uniform(0.1, 1.5)

# Determine significance status
p_threshold = 1.3  # -log10(0.05)
fc_threshold = 1.0  # log2(2) = 1

significance = []
for fc, nlp in zip(log2_fc, neg_log10_pval, strict=False):
    if nlp > p_threshold and fc > fc_threshold:
        significance.append("Up-regulated")
    elif nlp > p_threshold and fc < -fc_threshold:
        significance.append("Down-regulated")
    else:
        significance.append("Not significant")

# Create DataFrame
df = pd.DataFrame({"log2_fold_change": log2_fc, "neg_log10_pvalue": neg_log10_pval, "significance": significance})

# Create volcano plot
plot = (
    ggplot(df, aes(x="log2_fold_change", y="neg_log10_pvalue", color="significance"))
    + geom_point(aes(color="significance"), size=4, alpha=0.7)
    + geom_hline(yintercept=p_threshold, linetype="dashed", color=INK_SOFT, size=1)
    + geom_vline(xintercept=-fc_threshold, linetype="dashed", color=INK_SOFT, size=1)
    + geom_vline(xintercept=fc_threshold, linetype="dashed", color=INK_SOFT, size=1)
    + scale_color_manual(
        values=[OKABE_ITO_DOWN, OKABE_ITO_NEUTRAL, OKABE_ITO_UP],
        breaks=["Down-regulated", "Not significant", "Up-regulated"],
    )
    + labs(x="Log2 Fold Change", y="-Log10(p-value)", title="volcano-basic · letsplot · anyplot.ai", color="Status")
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK_SOFT, size=0.3),
        panel_grid_minor=element_line(color=INK_SOFT, size=0.2),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        plot_title=element_text(size=24, face="bold", color=INK),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
        legend_position="right",
    )
    + ggsize(1600, 900)
)

# Save as PNG (scale=3 gives 4800x2700)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)

# Save as HTML for interactivity
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Volcano Plot for Statistical Significance on anyplot.ai.
