Volcano Plot for Statistical Significance — plotnine

A volcano plot displays statistical significance (-log10 p-value) on the y-axis versus effect size (log2 fold change) on the x-axis. Points are typically color-coded to highlight features that are both statistically significant and have large effect sizes. This visualization is essential for quickly identifying the most important changes in differential expression, proteomics, and genomics studies.

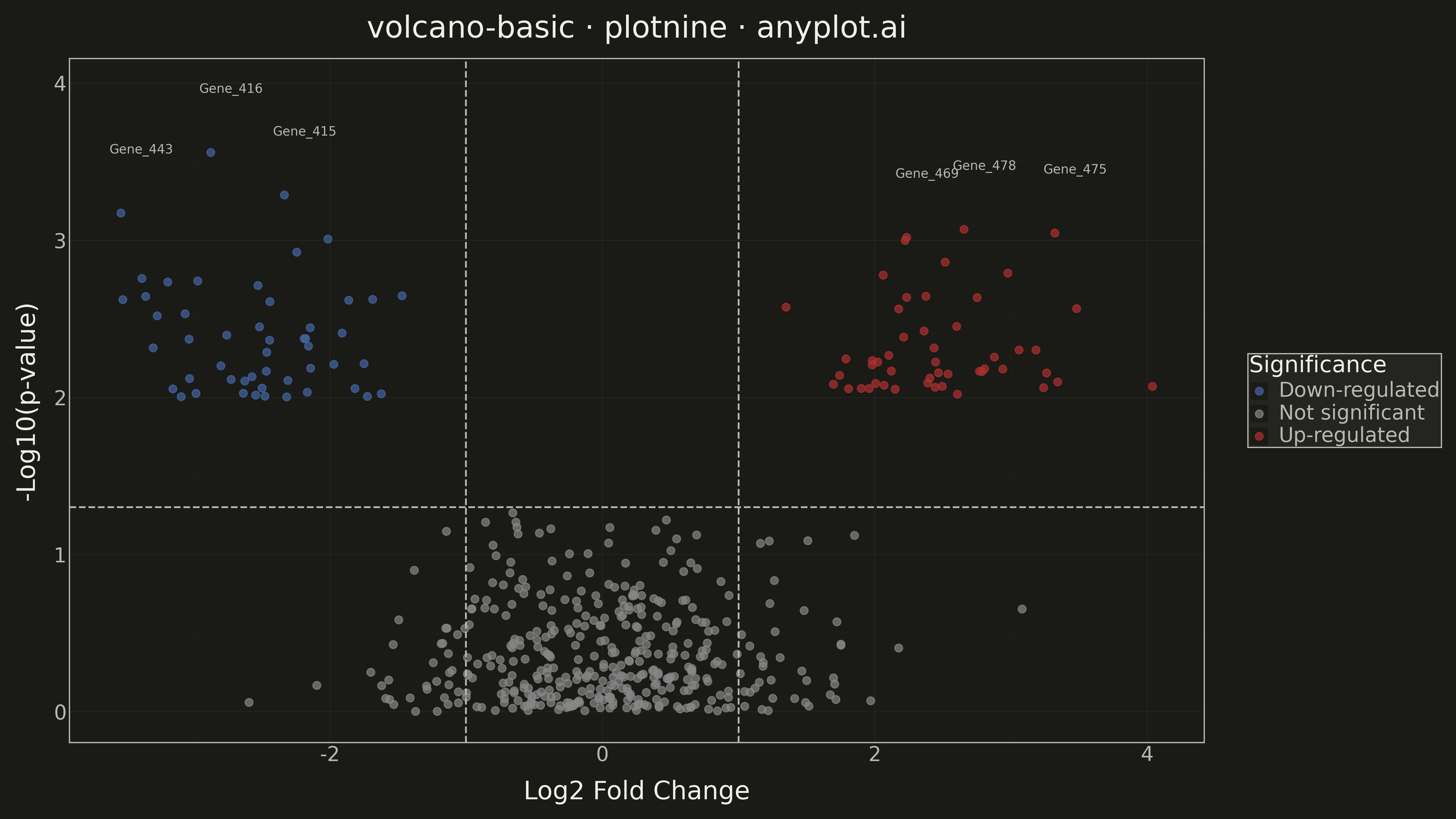

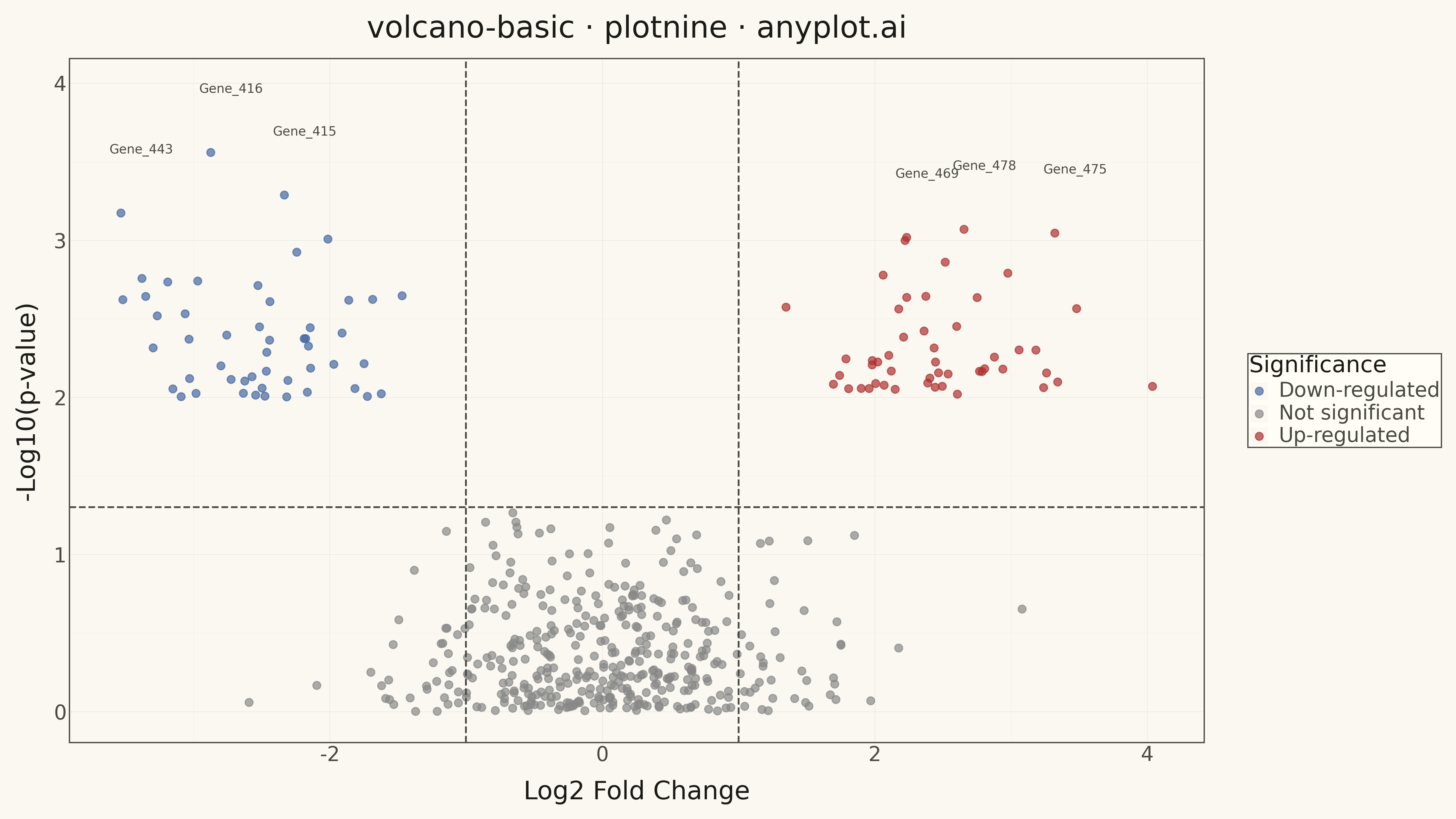

Volcano Plot for Statistical Significance rendered with plotnine

Python source (plotnine)

""" anyplot.ai
volcano-basic: Volcano Plot for Statistical Significance
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-14
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_line,
    element_rect,
    element_text,
    geom_hline,
    geom_point,
    geom_text,
    geom_vline,
    ggplot,
    labs,
    scale_color_manual,
    theme,
    theme_minimal,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - simulated differential gene expression results
np.random.seed(42)
n_genes = 500

# Generate log2 fold changes (centered around 0 with some outliers)
log2_fold_change = np.concatenate(
    [
        np.random.normal(0, 0.8, 400),  # Most genes have small changes
        np.random.normal(-2.5, 0.5, 50),  # Down-regulated genes
        np.random.normal(2.5, 0.5, 50),  # Up-regulated genes
    ]
)

# Generate p-values with a realistic range (avoiding extreme values)
pvalues = np.concatenate(
    [
        np.random.uniform(0.05, 1.0, 400),  # Most genes not significant
        np.random.uniform(0.0001, 0.01, 50),  # Down-regulated significant
        np.random.uniform(0.0001, 0.01, 50),  # Up-regulated significant
    ]
)

neg_log10_pvalue = -np.log10(pvalues)

# Create gene labels
gene_labels = [f"Gene_{i + 1}" for i in range(n_genes)]

# Determine significance status based on thresholds
significance_threshold = -np.log10(0.05)  # ~1.3
fold_change_threshold = 1.0

status = []
for fc, nlp in zip(log2_fold_change, neg_log10_pvalue, strict=True):
    if nlp > significance_threshold and fc > fold_change_threshold:
        status.append("Up-regulated")
    elif nlp > significance_threshold and fc < -fold_change_threshold:
        status.append("Down-regulated")
    else:
        status.append("Not significant")

# Create DataFrame
df = pd.DataFrame(
    {
        "log2_fold_change": log2_fold_change,
        "neg_log10_pvalue": neg_log10_pvalue,
        "label": gene_labels,
        "status": pd.Categorical(status, categories=["Down-regulated", "Not significant", "Up-regulated"]),
    }
)

# Identify top genes to label (top 4 by significance in each direction, better spacing)
df_up = df[df["status"] == "Up-regulated"].nlargest(3, "neg_log10_pvalue")
df_down = df[df["status"] == "Down-regulated"].nlargest(3, "neg_log10_pvalue")
df_labels = pd.concat([df_up, df_down])

# Okabe-Ito palette (blue for down, gray for not significant, orange for up)
color_map = {
    "Down-regulated": "#4467A3",  # Okabe-Ito blue
    "Not significant": "#888888",  # neutral gray
    "Up-regulated": "#AE3030",  # Okabe-Ito orange
}

# Create volcano plot
plot = (
    ggplot(df, aes(x="log2_fold_change", y="neg_log10_pvalue", color="status"))
    + geom_point(size=3, alpha=0.7)
    + geom_hline(yintercept=significance_threshold, linetype="dashed", color=INK_SOFT, size=0.8)
    + geom_vline(xintercept=-fold_change_threshold, linetype="dashed", color=INK_SOFT, size=0.8)
    + geom_vline(xintercept=fold_change_threshold, linetype="dashed", color=INK_SOFT, size=0.8)
    + geom_text(data=df_labels, mapping=aes(label="label"), size=10, nudge_y=0.4, nudge_x=0.15, color=INK_SOFT)
    + scale_color_manual(values=color_map)
    + labs(
        x="Log2 Fold Change", y="-Log10(p-value)", title="volcano-basic · plotnine · anyplot.ai", color="Significance"
    )
    + theme_minimal()
    + theme(
        figure_size=(16, 9),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10, linetype="solid"),
        panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
        panel_border=element_rect(color=INK_SOFT, fill=None),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        plot_title=element_text(size=24, color=INK),
        text=element_text(size=14),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
    )
)

# Save plot
plot.save(f"plot-{THEME}.png", dpi=300)
