Basic Waffle Chart — Apache ECharts

A waffle chart displays proportions using a grid of equal-sized squares where colored squares represent parts of a whole. Each square typically represents 1% of the total, making it easy to count and compare values visually. It provides an intuitive alternative to pie charts, offering more accurate perception of proportions.

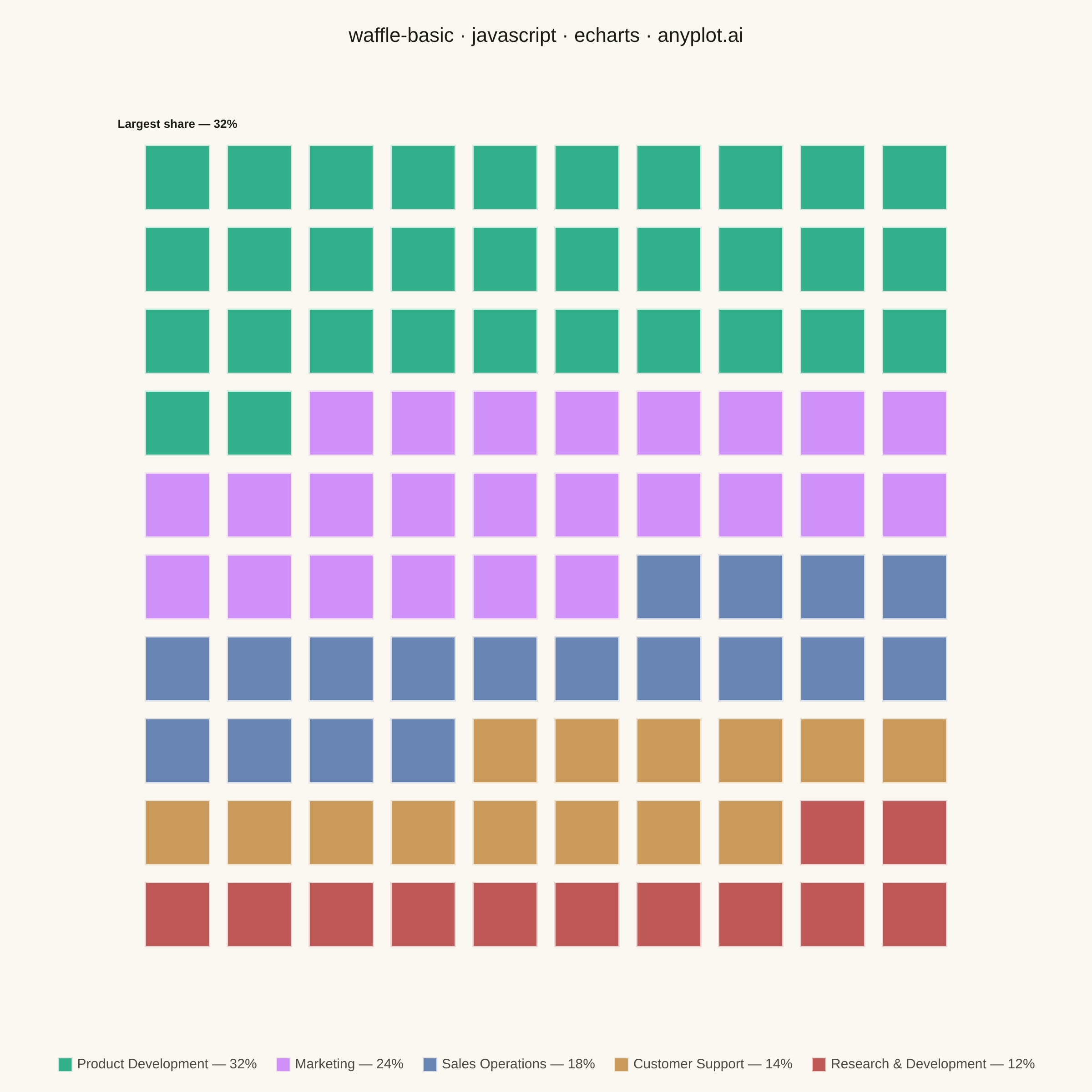

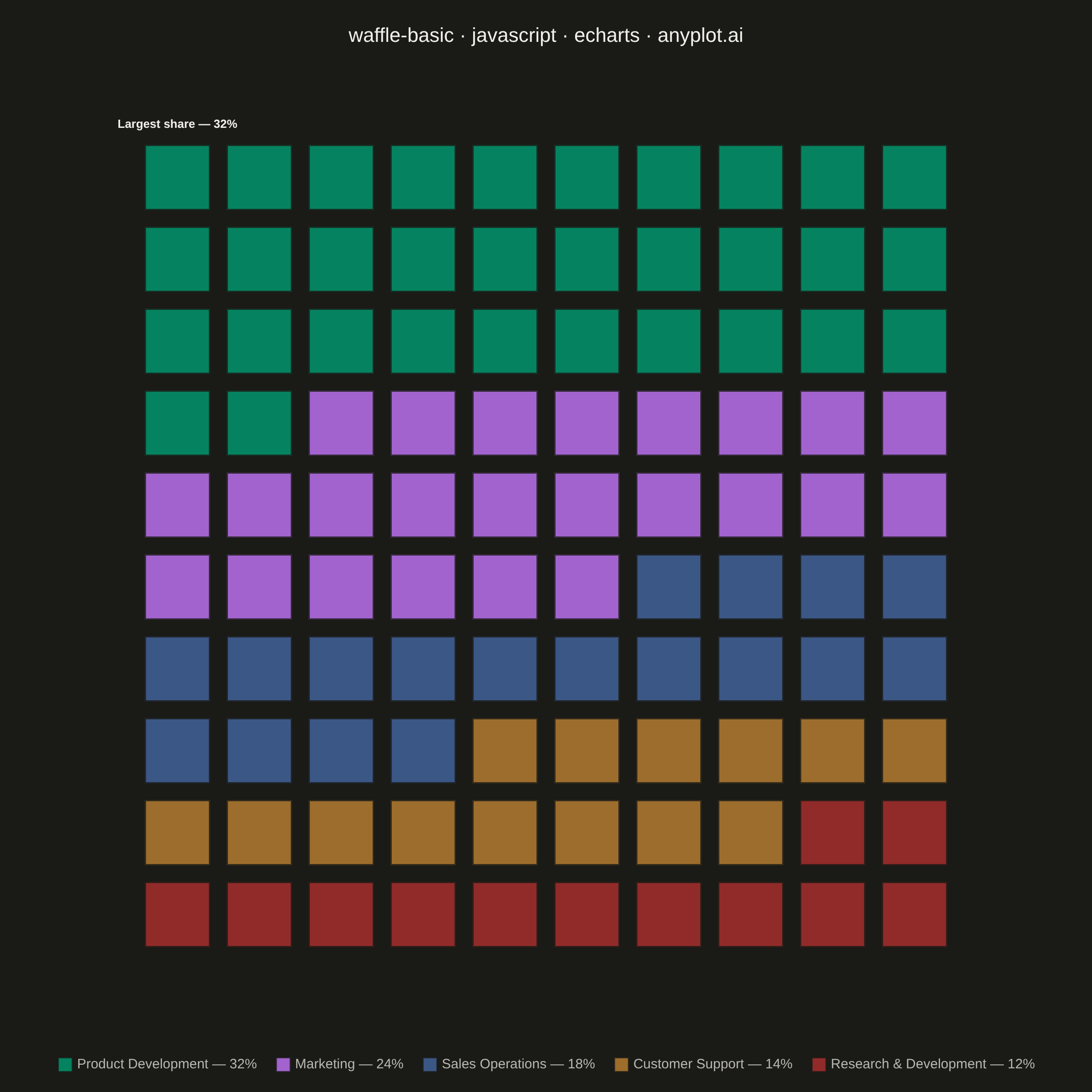

Basic Waffle Chart rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// waffle-basic: Basic Waffle Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-09
//# anyplot-orientation: square

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Annual engineering-org budget allocation, in whole percentage points
// (sums to 100 — each of the 100 squares below represents exactly 1%).
const categories = [
  { name: "Product Development", value: 32 },
  { name: "Marketing", value: 24 },
  { name: "Sales Operations", value: 18 },
  { name: "Customer Support", value: 14 },
  { name: "Research & Development", value: 12 },
];

// Fill a 10x10 grid top-to-bottom, left-to-right, one cell per percentage
// point, in category order — the largest category anchors the top row.
const GRID = 10;
let cursor = 0;
const series = categories.map((cat, i) => {
  const points = [];
  for (let n = 0; n < cat.value; n += 1) {
    const col = cursor % GRID;
    const row = GRID - 1 - Math.floor(cursor / GRID);
    points.push([col, row]);
    cursor += 1;
  }
  const s = {
    name: `${cat.name} — ${cat.value}%`,
    type: "scatter",
    symbol: "rect",
    symbolSize: 72,
    data: points,
    itemStyle: {
      color: t.palette[i],
      borderColor: t.pageBg,
      borderWidth: 3,
    },
  };
  // Callout on the largest category's corner square, anchored via markPoint
  // so echarts positions it in data space rather than hand-computed pixels.
  if (i === 0) {
    s.markPoint = {
      symbol: "circle",
      symbolSize: 1,
      itemStyle: { color: "transparent", borderColor: "transparent" },
      label: {
        show: true,
        position: "top",
        distance: 50,
        color: t.ink,
        fontSize: 13,
        fontWeight: 600,
        formatter: `Largest share — ${cat.value}%`,
      },
      data: [{ coord: [0, GRID - 1] }],
    };
  }
  return s;
});

// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option -------------------------------------------------------------------
chart.setOption({
  animation: false,
  backgroundColor: "transparent",
  title: {
    text: "waffle-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 24,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
  },
  legend: {
    bottom: 16,
    left: "center",
    itemWidth: 16,
    itemHeight: 16,
    icon: "rect",
    textStyle: { color: t.inkSoft, fontSize: 15 },
    itemGap: 20,
  },
  grid: {
    top: 150,
    bottom: 150,
    left: 150,
    right: 150,
  },
  xAxis: {
    type: "value",
    min: -0.5,
    max: GRID - 0.5,
    interval: 1,
    show: false,
  },
  yAxis: {
    type: "value",
    min: -0.5,
    max: GRID - 0.5,
    interval: 1,
    show: false,
  },
  series,
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/waffle-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "waffle-basic",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/waffle-basic/javascript/echarts",
  "hub": "https://anyplot.ai/waffle-basic",
  "code_json": "https://api.anyplot.ai/specs/waffle-basic/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/waffle-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/waffle-basic/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/waffle-basic/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/waffle-basic/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/waffle-basic/javascript/echarts/plot-dark.html",
  "quality_score": 89.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Waffle Chart on anyplot.ai.
