A waffle chart displays proportions using a grid of equal-sized squares where colored squares represent parts of a whole. Each square typically represents 1% of the total, making it easy to count and compare values visually. It provides an intuitive alternative to pie charts, offering more accurate perception of proportions.

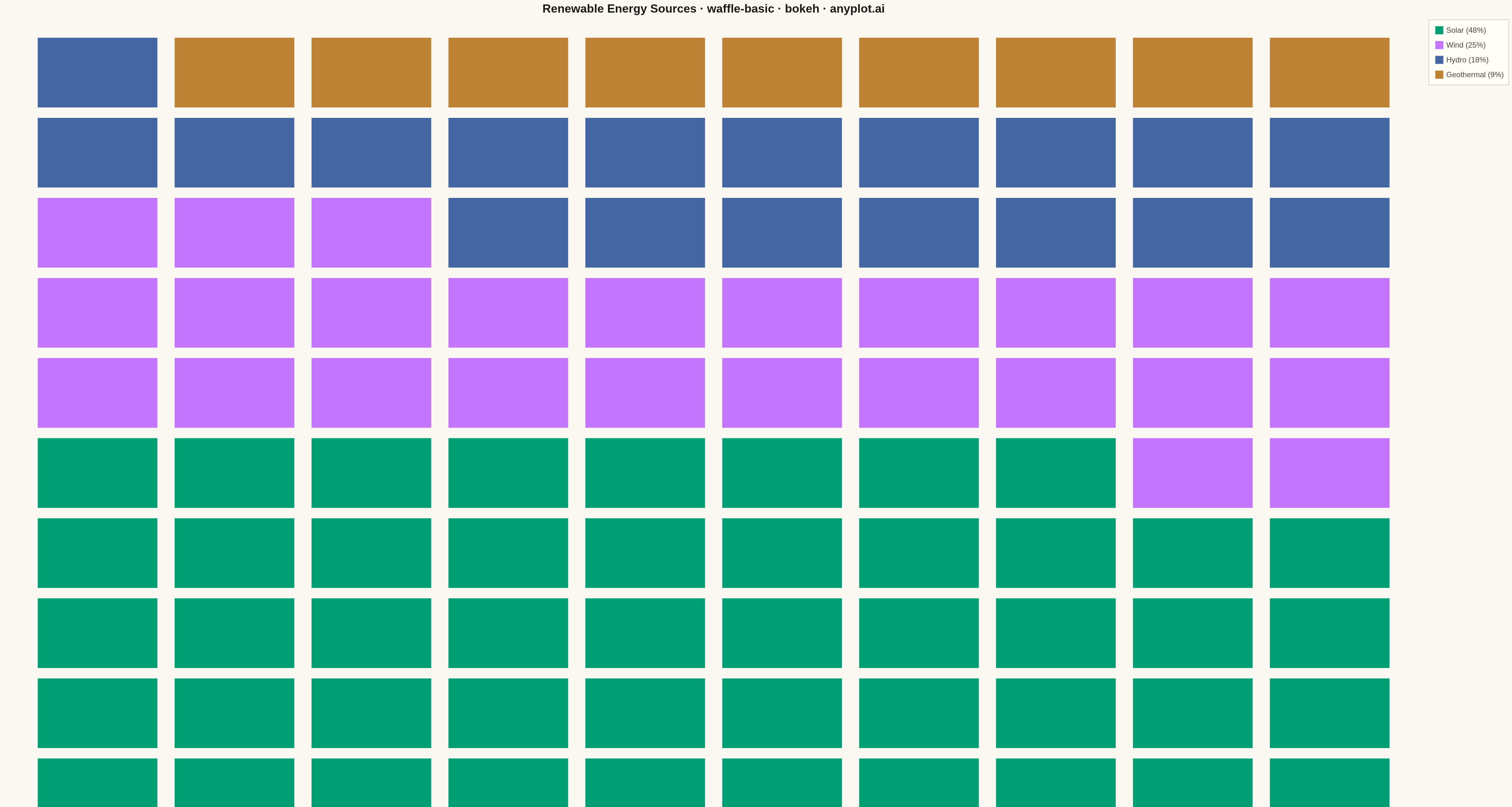

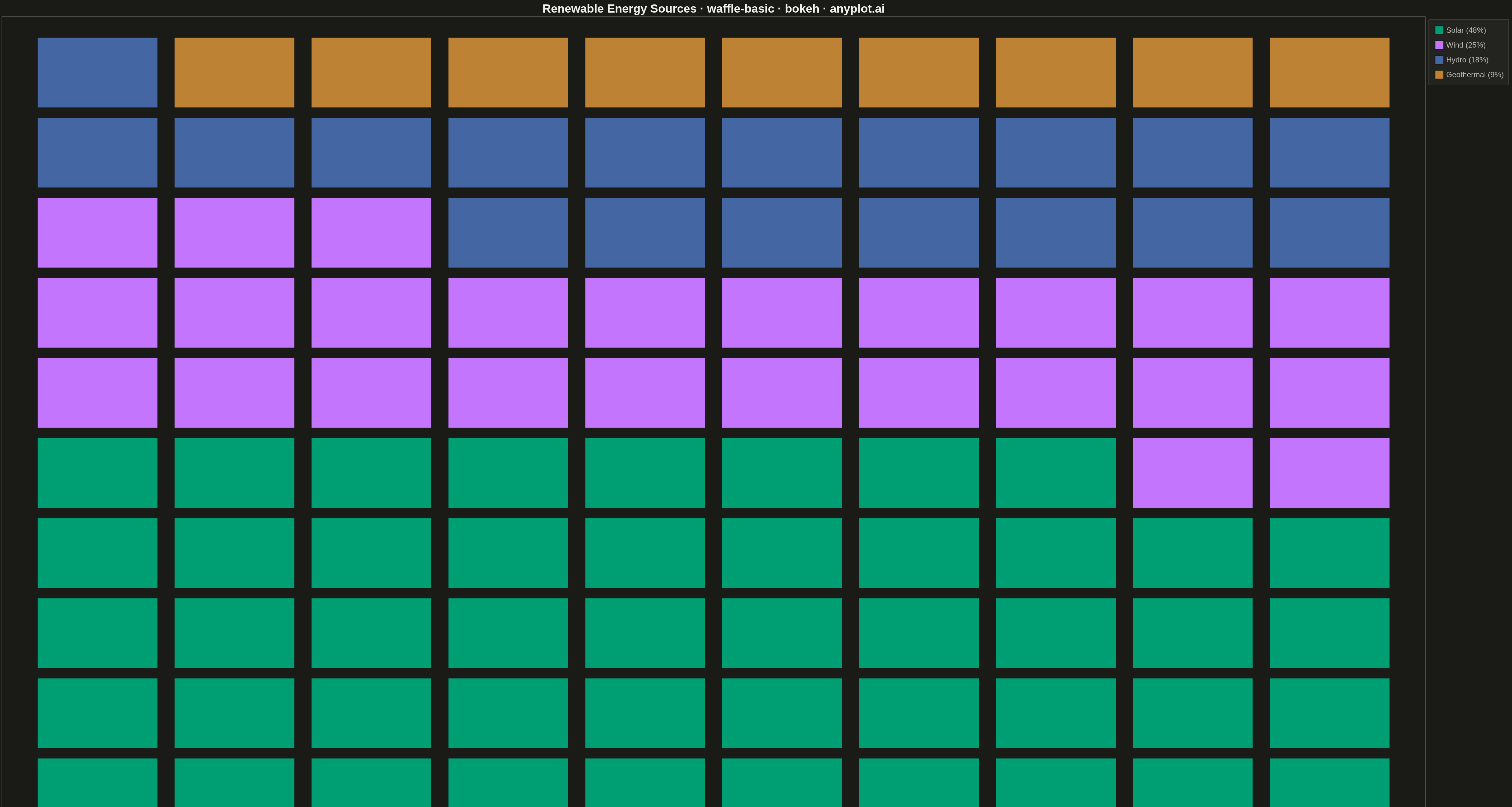

Basic Waffle Chart rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
waffle-basic: Basic Waffle Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-05
"""

import os
import time
from pathlib import Path

from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Legend, LegendItem
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first series always brand green)
PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data - Survey results on renewable energy adoption
categories = ["Solar", "Wind", "Hydro", "Geothermal"]
values = [48, 25, 18, 9]  # Percentages summing to 100

# Build waffle grid (10x10 = 100 squares)
grid_size = 10
total_squares = grid_size * grid_size

# Assign category to each square based on percentages
square_categories = []
color_map = []
for i, (cat, val) in enumerate(zip(categories, values, strict=True)):
    square_categories.extend([cat] * val)
    color_map.extend([PALETTE[i]] * val)

# Create grid coordinates (fill left-to-right, bottom-to-top)
x_coords = []
y_coords = []
for idx in range(total_squares):
    x_coords.append(idx % grid_size)
    y_coords.append(idx // grid_size)

source = ColumnDataSource(data={"x": x_coords, "y": y_coords, "category": square_categories, "color": color_map})

# Create figure
p = figure(
    width=4800,
    height=2700,
    title="Renewable Energy Sources · waffle-basic · bokeh · anyplot.ai",
    x_range=(-0.7, grid_size - 0.3),
    y_range=(-0.7, grid_size - 0.3),
    tools="",
    toolbar_location=None,
)

# Draw squares with small gap between them
square_size = 0.88
renderers = []
for i, (cat, color) in enumerate(zip(categories, PALETTE, strict=True)):
    # Filter data for this category
    indices = [j for j, c in enumerate(square_categories) if c == cat]
    cat_source = ColumnDataSource(
        data={
            "x": [x_coords[j] for j in indices],
            "y": [y_coords[j] for j in indices],
            "category": [cat] * len(indices),
            "percentage": [values[i]] * len(indices),
        }
    )
    r = p.rect(
        x="x",
        y="y",
        width=square_size,
        height=square_size,
        source=cat_source,
        fill_color=color,
        line_color=PAGE_BG,
        line_width=2.5,
        fill_alpha=1.0,
    )
    renderers.append((f"{cat} ({values[i]}%)", [r]))

# Add hover tool
hover = HoverTool(tooltips=[("Category", "@category"), ("Percentage", "@percentage%")])
p.add_tools(hover)

# Add legend
legend = Legend(items=[LegendItem(label=label, renderers=rends) for label, rends in renderers])
legend.label_text_font_size = "18pt"
legend.glyph_height = 35
legend.glyph_width = 35
legend.spacing = 12
legend.padding = 15
legend.location = "top_right"
legend.background_fill_color = ELEVATED_BG
legend.border_line_color = INK_SOFT
legend.label_text_color = INK_SOFT
p.add_layout(legend, "right")

# Style the plot
p.title.text_font_size = "28pt"
p.title.align = "center"
p.title.text_color = INK

# Hide axes
p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.visible = False
p.ygrid.visible = False
p.outline_line_color = None

# Set background
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG

# Save HTML
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
