A waffle chart displays proportions using a grid of equal-sized squares where colored squares represent parts of a whole. Each square typically represents 1% of the total, making it easy to count and compare values visually. It provides an intuitive alternative to pie charts, offering more accurate perception of proportions.

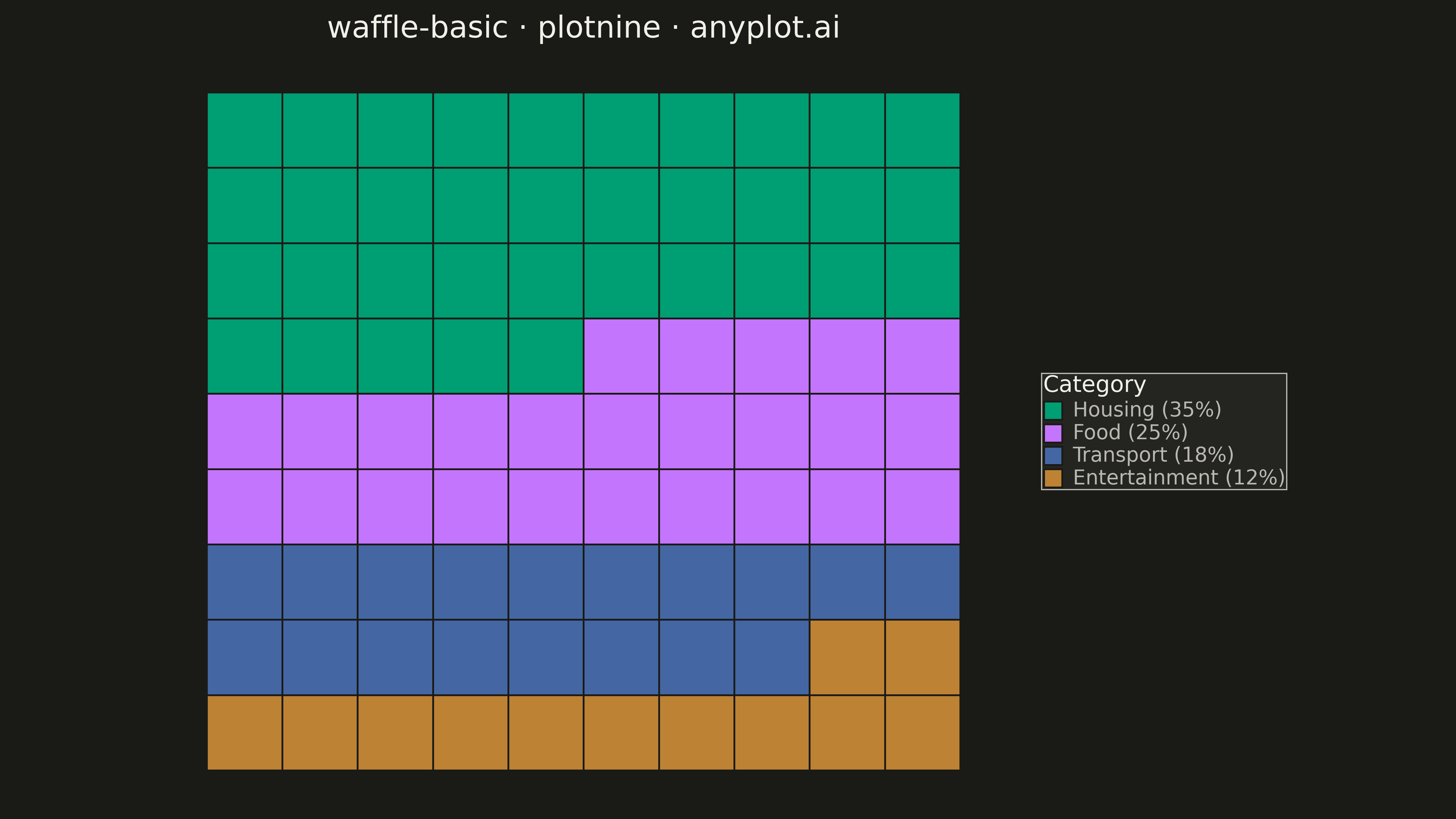

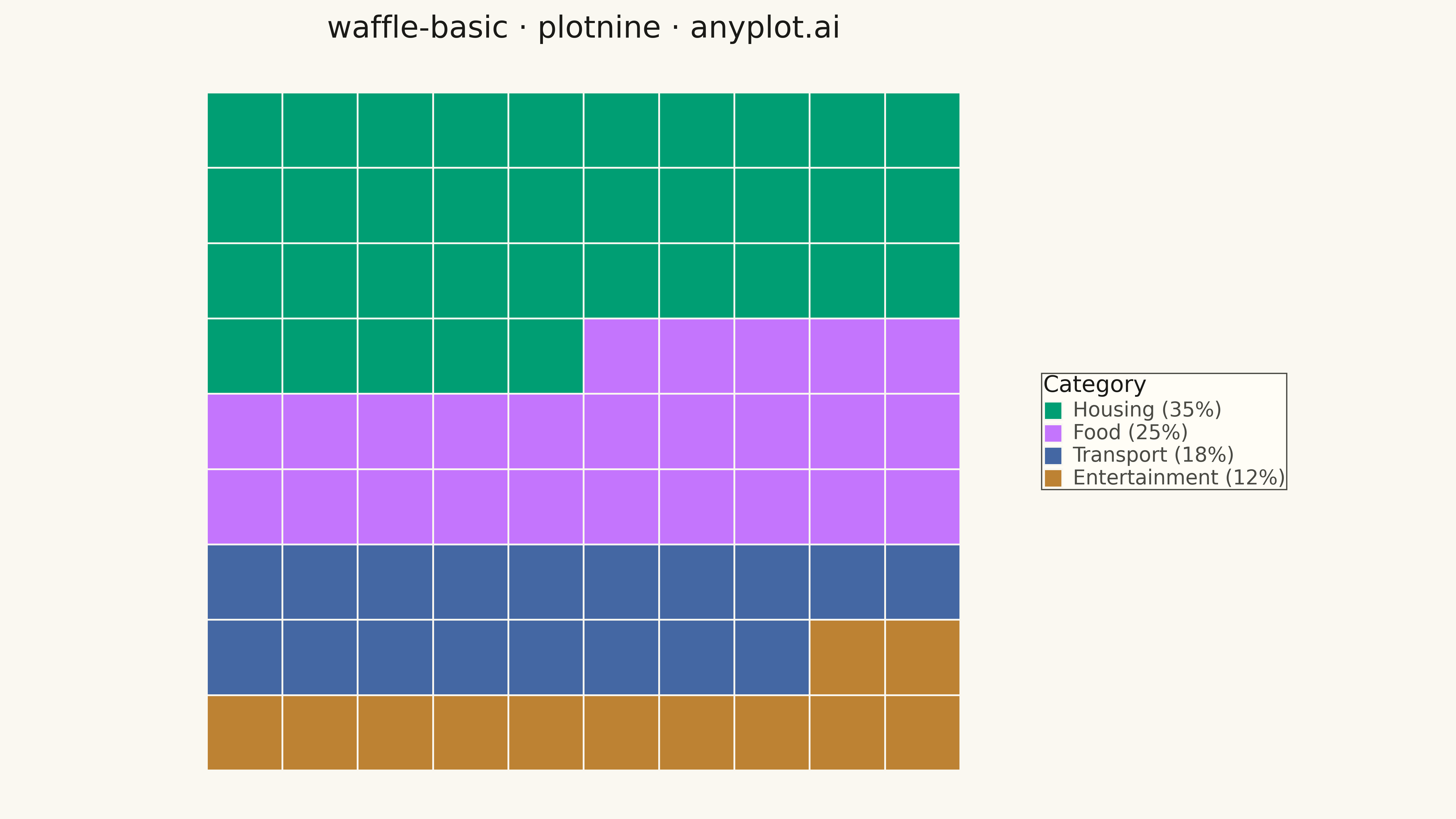

Basic Waffle Chart rendered with plotnine

Python source (plotnine)

""" anyplot.ai
waffle-basic: Basic Waffle Chart
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 79/100 | Created: 2026-05-05
"""

import os
import sys

import pandas as pd


sys.path.pop(0)
from plotnine import (
    aes,
    coord_equal,
    element_blank,
    element_rect,
    element_text,
    geom_tile,
    ggplot,
    guide_legend,
    guides,
    labs,
    scale_fill_manual,
    theme,
    theme_minimal,
)


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data - Budget allocation by category
categories = ["Housing", "Food", "Transport", "Entertainment"]
values = [35, 25, 18, 12]
category_order = categories

# Create waffle grid (10x10 = 100 squares)
grid_size = 10
squares = []
square_id = 0

for val, cat in zip(values, categories, strict=True):
    for _ in range(val):
        row = square_id // grid_size
        col = square_id % grid_size
        squares.append({"x": col, "y": grid_size - 1 - row, "category": cat})
        square_id += 1

df = pd.DataFrame(squares)
df["category"] = pd.Categorical(df["category"], categories=category_order, ordered=True)

# Create color mapping with Okabe-Ito palette
color_map = dict(zip(category_order, IMPRINT, strict=True))
value_map = dict(zip(categories, values, strict=True))

# Build legend labels with percentages
legend_labels = {cat: f"{cat} ({value_map[cat]}%)" for cat in category_order}

# Theme configuration
anyplot_theme = theme(
    figure_size=(16, 9),
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    plot_title=element_text(size=24, color=INK, ha="center"),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_title=element_text(size=18, color=INK),
    legend_text=element_text(size=16, color=INK_SOFT),
    legend_position="right",
    axis_text=element_blank(),
    axis_title=element_blank(),
    axis_ticks=element_blank(),
    panel_grid=element_blank(),
)

# Plot
plot = (
    ggplot(df, aes(x="x", y="y", fill="category"))
    + geom_tile(color=PAGE_BG, size=0.8)
    + scale_fill_manual(values=color_map, labels=lambda x: [legend_labels[c] for c in x])
    + coord_equal()
    + labs(title="waffle-basic · plotnine · anyplot.ai", fill="Category")
    + guides(fill=guide_legend(ncol=1))
    + theme_minimal()
    + anyplot_theme
)

plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)
