Wind Barb Plot for Meteorological Data — Seaborn

A wind barb plot displays wind speed and direction at specific locations using standard meteorological barb notation. Each barb consists of a staff pointing in the direction from which the wind blows, with short barbs (5 knots), long barbs (10 knots), and triangular pennants (50 knots) attached to indicate speed. This internationally recognized symbology enables rapid interpretation of wind patterns across weather maps and atmospheric data visualizations.

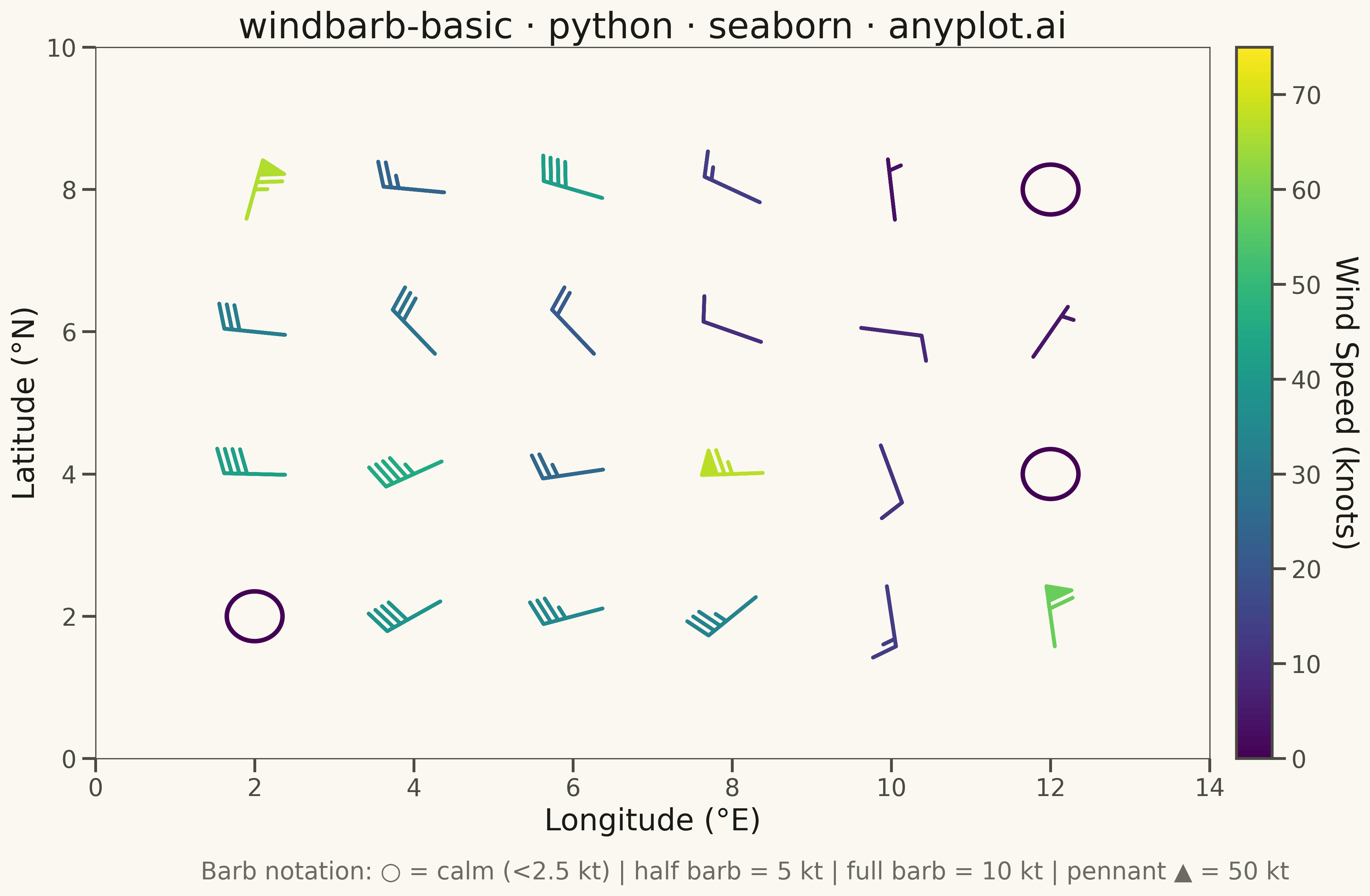

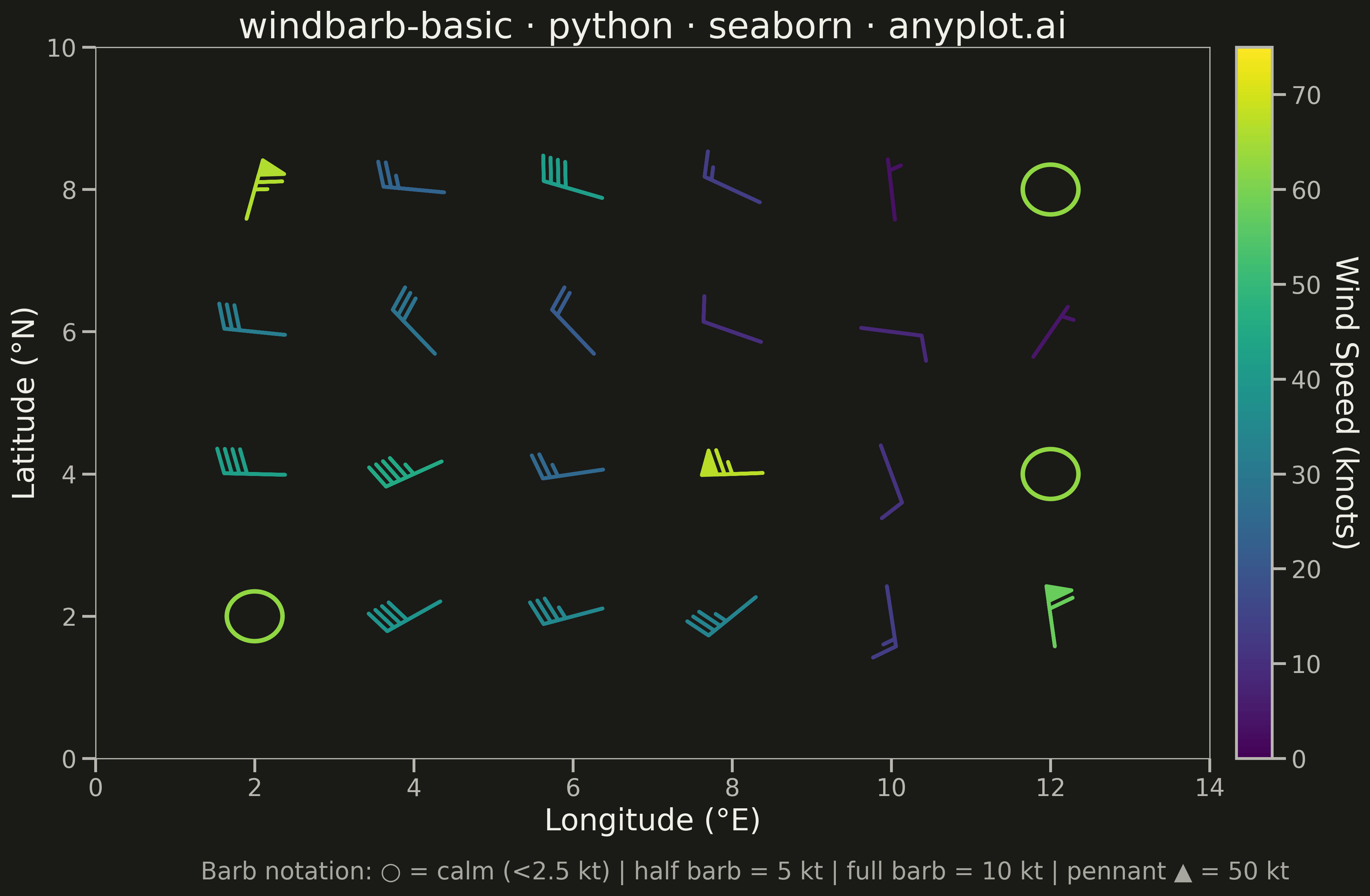

Wind Barb Plot for Meteorological Data rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
windbarb-basic: Wind Barb Plot for Meteorological Data
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 83/100 | Updated: 2026-05-19
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from matplotlib.patches import Circle


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
    },
)
sns.set_context("talk", font_scale=1.2)

# Data: Simulated surface wind observations from a grid of weather stations
np.random.seed(42)

# Create a grid of observation points (6x4 grid = 24 stations)
x_grid = np.linspace(2, 12, 6)
y_grid = np.linspace(2, 8, 4)
x, y = np.meshgrid(x_grid, y_grid)
x = x.flatten()
y = y.flatten()

n_points = len(x)

# Generate wind components with full range: calm, moderate, and strong (with pennants)
base_u = 20 * np.sin(x * 0.4) + 15
base_v = 15 * np.cos(y * 0.5) + 10
noise_u = np.random.randn(n_points) * 8
noise_v = np.random.randn(n_points) * 8

u = base_u + noise_u
v = base_v + noise_v

# Force calm winds (< 2.5 knots) shown as open circles
calm_indices = [0, 11, 23]
for idx in calm_indices:
    u[idx] = 0.5 * (np.random.rand() - 0.5)
    v[idx] = 0.5 * (np.random.rand() - 0.5)

# Force strong winds with pennants (50+ knots)
strong_indices = [5, 9, 18]
for idx in strong_indices:
    angle = np.random.rand() * 2 * np.pi
    speed_val = 55 + np.random.rand() * 15
    u[idx] = speed_val * np.cos(angle)
    v[idx] = speed_val * np.sin(angle)

speed = np.sqrt(u**2 + v**2)

calm_mask = speed < 2.5
barb_mask = ~calm_mask

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)
fig.subplots_adjust(bottom=0.15)

if np.any(barb_mask):
    barbs = ax.barbs(
        x[barb_mask],
        y[barb_mask],
        u[barb_mask],
        v[barb_mask],
        speed[barb_mask],
        cmap="viridis",
        length=9,
        linewidth=2.5,
        barb_increments={"half": 5, "full": 10, "flag": 50},
        pivot="middle",
        clim=(0, 75),
    )

    cbar = plt.colorbar(barbs, ax=ax, pad=0.02)
    cbar.set_label("Wind Speed (knots)", fontsize=20, color=INK, rotation=270, labelpad=25)
    cbar.ax.tick_params(labelsize=16, colors=INK_SOFT)
    cbar.ax.yaxis.set_tick_params(color=INK_SOFT)
    plt.setp(cbar.ax.yaxis.get_ticklabels(), color=INK_SOFT)
    cbar.outline.set_edgecolor(INK_SOFT)

# Calm winds as open circles (standard meteorological notation)
calm_circle_color = "#440154" if THEME == "light" else "#90d743"
for idx in np.where(calm_mask)[0]:
    circle = Circle((x[idx], y[idx]), radius=0.35, fill=False, edgecolor=calm_circle_color, linewidth=3)
    ax.add_patch(circle)

# Style
ax.set_xlabel("Longitude (°E)", fontsize=20, color=INK)
ax.set_ylabel("Latitude (°N)", fontsize=20, color=INK)
ax.set_title("windbarb-basic · python · seaborn · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

ax.set_xlim(0, 14)
ax.set_ylim(0, 10)
ax.grid(False)

for spine in ax.spines.values():
    spine.set_color(INK_SOFT)
    spine.set_linewidth(0.8)

legend_text = "Barb notation: ○ = calm (<2.5 kt) | half barb = 5 kt | full barb = 10 kt | pennant ▲ = 50 kt"
fig.text(0.5, 0.02, legend_text, fontsize=16, ha="center", va="bottom", color=INK_MUTED)

# Save
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
