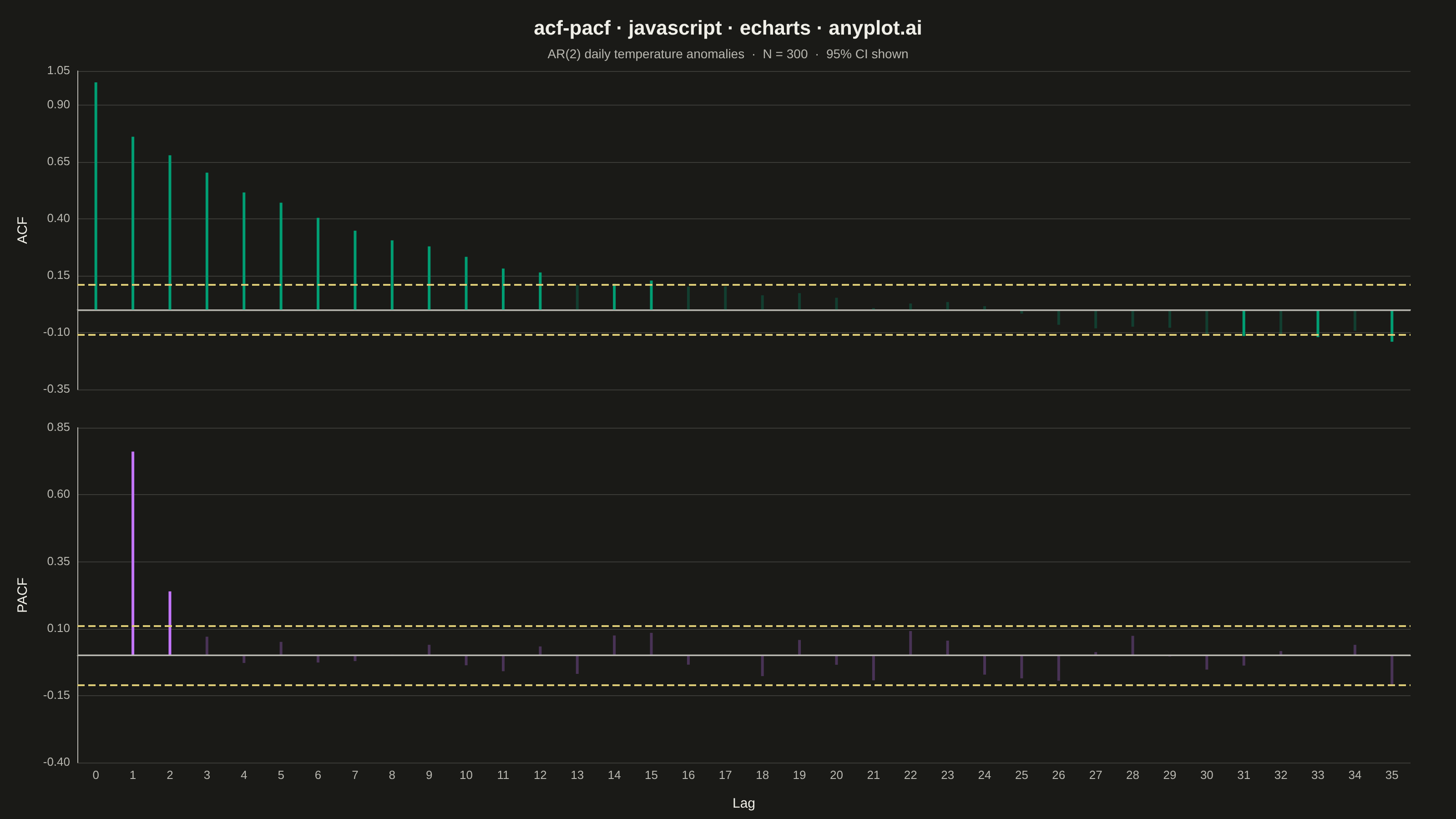

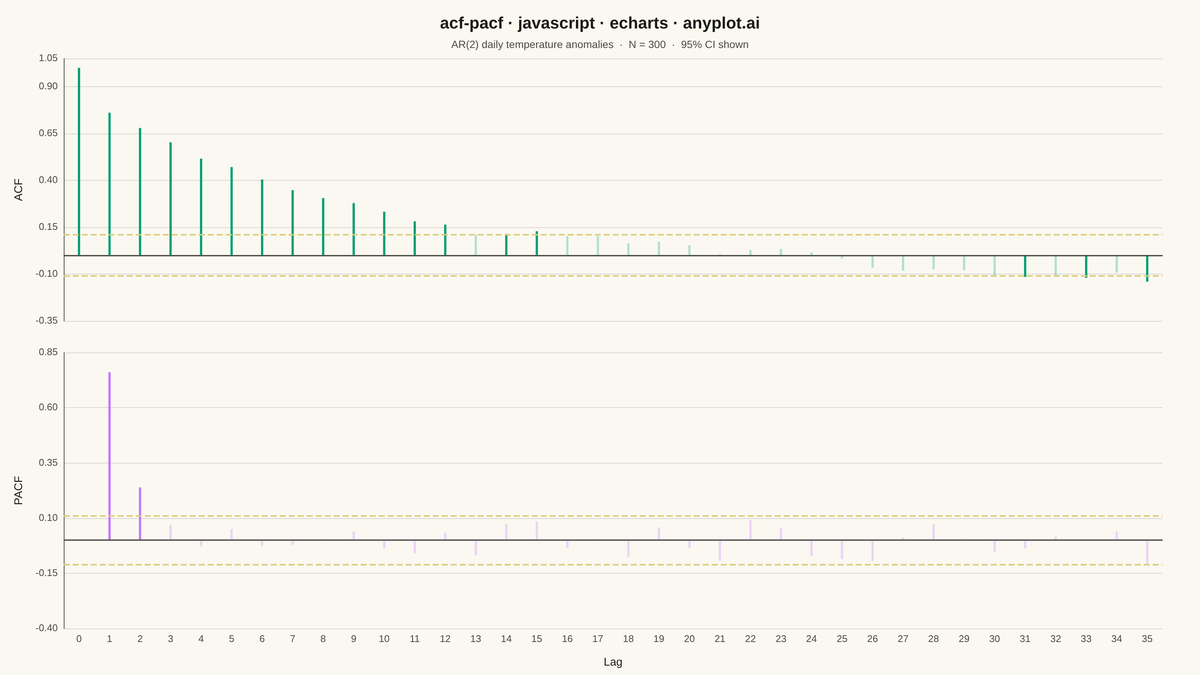

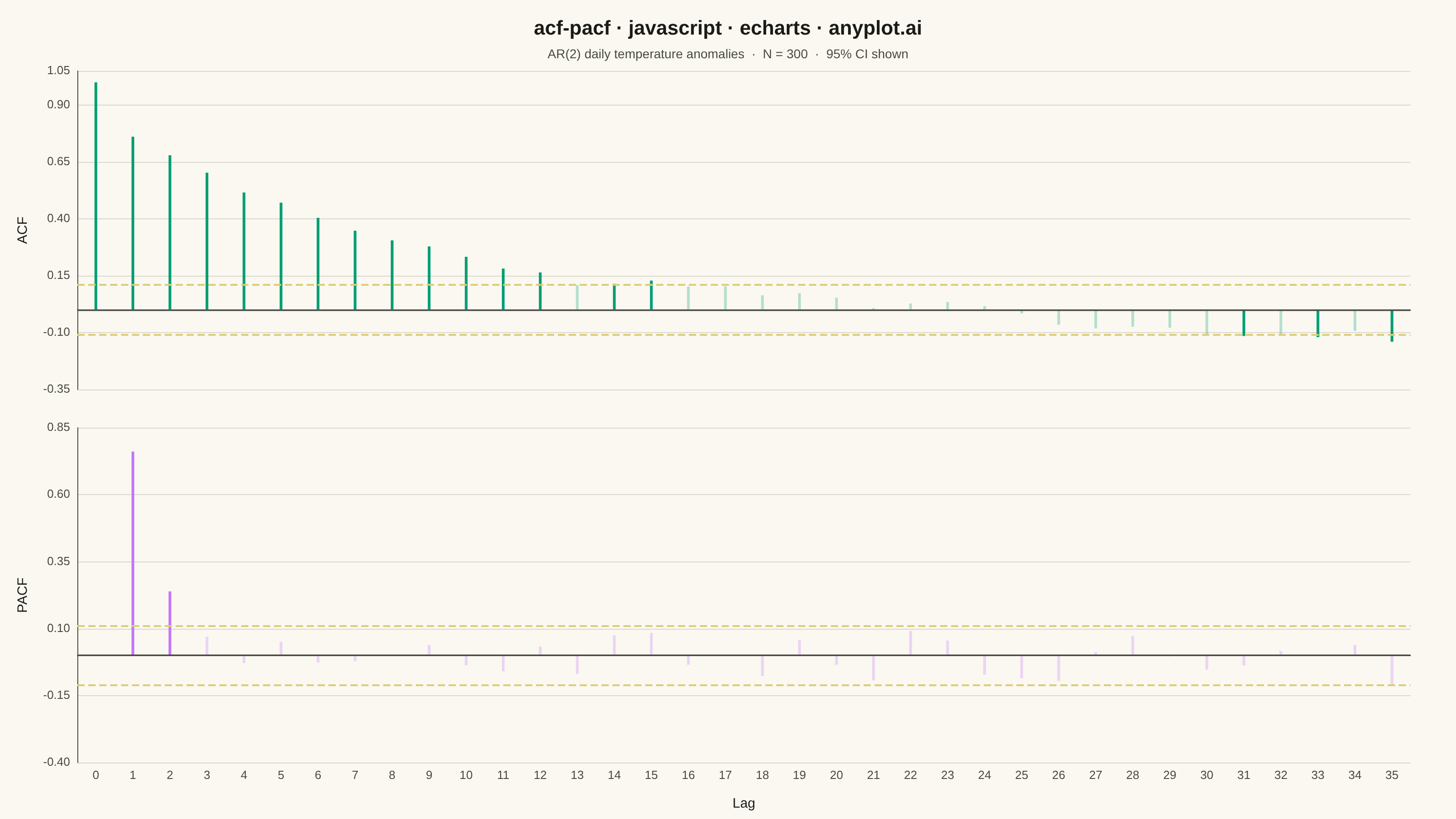

Displays the autocorrelation function (ACF) and partial autocorrelation function (PACF) of a time series as vertical stem/bar plots arranged in two vertically stacked subplots. Each lag is represented by a vertical line from zero to the correlation value, with horizontal dashed lines indicating 95% confidence bounds. These plots are essential for identifying the order of AR and MA components in ARIMA modeling and for diagnosing residual independence.
// anyplot.ai
// acf-pacf: Autocorrelation and Partial Autocorrelation (ACF/PACF) Plot
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-10
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// Seeded LCG for deterministic data generation
let _seed = 42;
function _lcg() {
_seed = (Math.imul(_seed, 1664525) + 1013904223) >>> 0;
return _seed / 0x100000000;
}
function _randn() {
const u1 = _lcg() + 1e-10, u2 = _lcg();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
// Generate AR(2) time series: x_t = 0.6*x_{t-1} + 0.25*x_{t-2} + ε_t
// Represents daily temperature anomaly residuals (°C)
const N = 300;
const series = new Array(N).fill(0);
for (let i = 2; i < N; i++) {
series[i] = 0.6 * series[i - 1] + 0.25 * series[i - 2] + _randn();
}
const MAX_LAG = 35;
const ci = 1.96 / Math.sqrt(N);
// Sample ACF at lags 0..MAX_LAG
const acfMean = series.reduce((s, v) => s + v, 0) / N;
const acfDenom = series.reduce((s, v) => s + (v - acfMean) ** 2, 0);
const acf = Array.from({ length: MAX_LAG + 1 }, (_, k) => {
let num = 0;
for (let i = k; i < N; i++) num += (series[i] - acfMean) * (series[i - k] - acfMean);
return num / acfDenom;
});
// Sample PACF at lags 1..MAX_LAG via Durbin-Levinson recursion
const pacf = [acf[1]];
let phi = [acf[1]];
for (let k = 2; k <= MAX_LAG; k++) {
let num = acf[k], den = 1;
for (let j = 0; j < k - 1; j++) {
num -= phi[j] * acf[k - 1 - j];
den -= phi[j] * acf[j + 1];
}
const pkk = num / den;
const next = new Array(k);
for (let j = 0; j < k - 1; j++) next[j] = phi[j] - pkk * phi[k - 2 - j];
next[k - 1] = pkk;
phi = next;
pacf.push(pkk);
}
// Color tokens: palette[0] = ACF green #009E73, palette[1] = PACF lavender #C475FD
const SIG_ACF = t.palette[0];
const INSIG_ACF = "rgba(0,158,115,0.28)";
const SIG_PACF = t.palette[1];
const INSIG_PACF = "rgba(196,117,253,0.28)";
// Shared 36-slot category axis (lags 0–35) for both panels so bars align vertically
const lagLabels = Array.from({ length: MAX_LAG + 1 }, (_, i) => String(i));
const acfBarData = acf.map((v, i) => ({
value: +v.toFixed(4),
itemStyle: { color: (i === 0 || Math.abs(v) > ci) ? SIG_ACF : INSIG_ACF }
}));
// Prepend null at lag-0 slot so PACF panel columns align with ACF panel
const pacfBarData = [{ value: null, itemStyle: { color: "transparent" } }].concat(
pacf.map((v) => ({
value: +v.toFixed(4),
itemStyle: { color: Math.abs(v) > ci ? SIG_PACF : INSIG_PACF }
}))
);
// Init chart
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "acf-pacf · javascript · echarts · anyplot.ai",
subtext: "AR(2) daily temperature anomalies · N = 300 · 95% CI shown",
left: "center",
top: 16,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "600" },
subtextStyle: { color: t.inkSoft, fontSize: 14 }
},
// Two stacked grids (1600 × 900 CSS canvas)
grid: [
{ left: 85, right: 50, top: 78, bottom: 472 }, // ACF
{ left: 85, right: 50, top: 470, bottom: 62 } // PACF
],
xAxis: [
{
gridIndex: 0,
type: "category",
data: lagLabels,
axisLabel: { show: false },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false }
},
{
gridIndex: 1,
type: "category",
data: lagLabels,
name: "Lag",
nameLocation: "middle",
nameGap: 38,
nameTextStyle: { color: t.ink, fontSize: 15, fontWeight: "500" },
axisLabel: { color: t.inkSoft, fontSize: 13 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false }
}
],
yAxis: [
{
gridIndex: 0,
type: "value",
name: "ACF",
nameLocation: "middle",
nameGap: 52,
nameTextStyle: { color: t.ink, fontSize: 15, fontWeight: "500" },
min: -0.35,
max: 1.05,
interval: 0.25,
axisLabel: { color: t.inkSoft, fontSize: 13, formatter: v => v.toFixed(2) },
axisLine: { show: true, lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } }
},
{
gridIndex: 1,
type: "value",
name: "PACF",
nameLocation: "middle",
nameGap: 52,
nameTextStyle: { color: t.ink, fontSize: 15, fontWeight: "500" },
min: -0.40,
max: 0.85,
interval: 0.25,
axisLabel: { color: t.inkSoft, fontSize: 13, formatter: v => v.toFixed(2) },
axisLine: { show: true, lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } }
}
],
series: [
{
type: "bar",
xAxisIndex: 0,
yAxisIndex: 0,
data: acfBarData,
barWidth: 3,
markLine: {
silent: true,
symbol: "none",
label: { show: false },
data: [
{ yAxis: 0, lineStyle: { color: t.inkSoft, type: "solid", width: 1.5 } },
{ yAxis: ci, lineStyle: { color: t.amber, type: "dashed", width: 2 } },
{ yAxis: -ci, lineStyle: { color: t.amber, type: "dashed", width: 2 } }
]
}
},
{
type: "bar",
xAxisIndex: 1,
yAxisIndex: 1,
data: pacfBarData,
barWidth: 3,
markLine: {
silent: true,
symbol: "none",
label: { show: false },
data: [
{ yAxis: 0, lineStyle: { color: t.inkSoft, type: "solid", width: 1.5 } },
{ yAxis: ci, lineStyle: { color: t.amber, type: "dashed", width: 2 } },
{ yAxis: -ci, lineStyle: { color: t.amber, type: "dashed", width: 2 } }
]
}
}
]
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/acf-pacf/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
