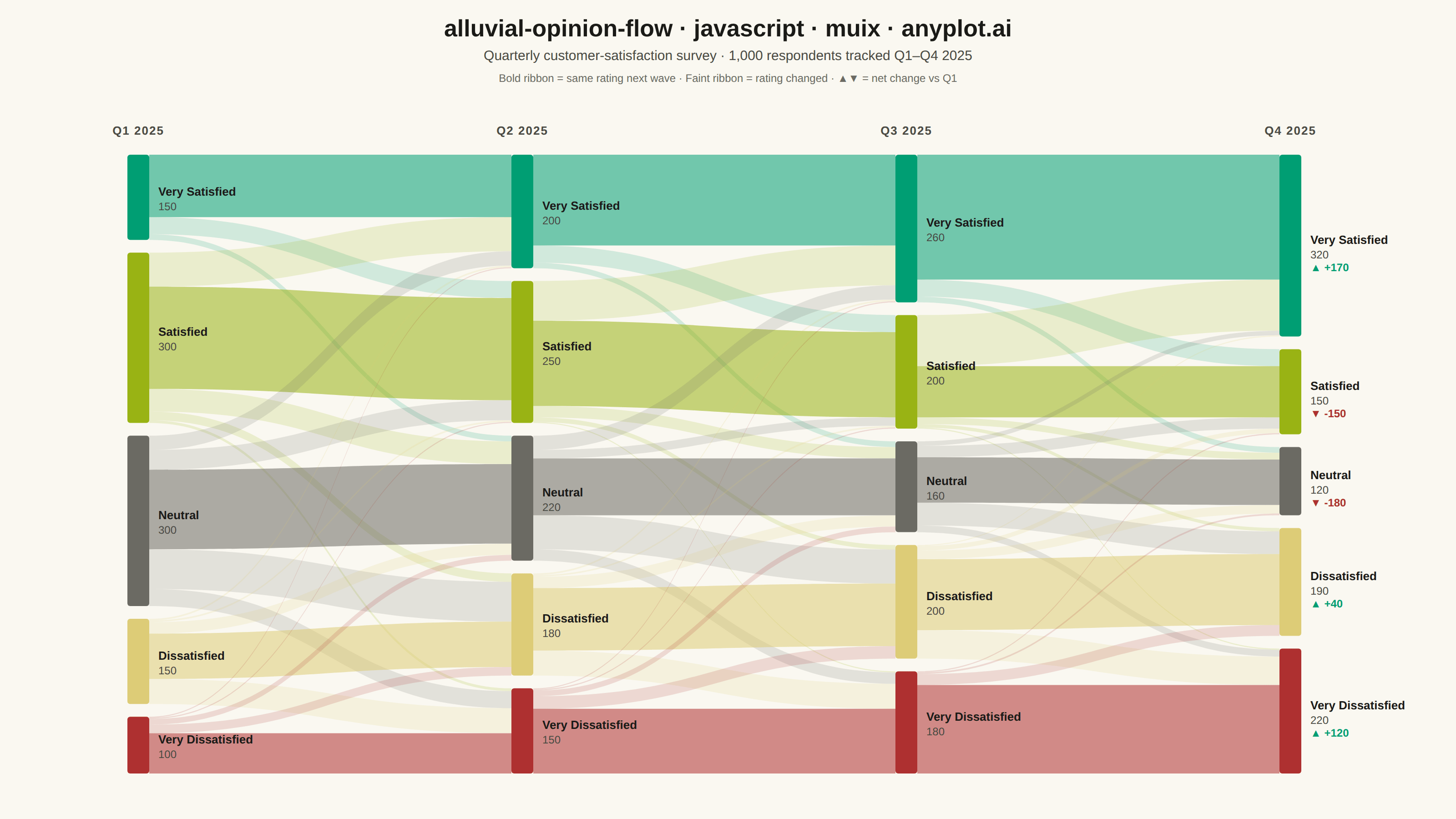

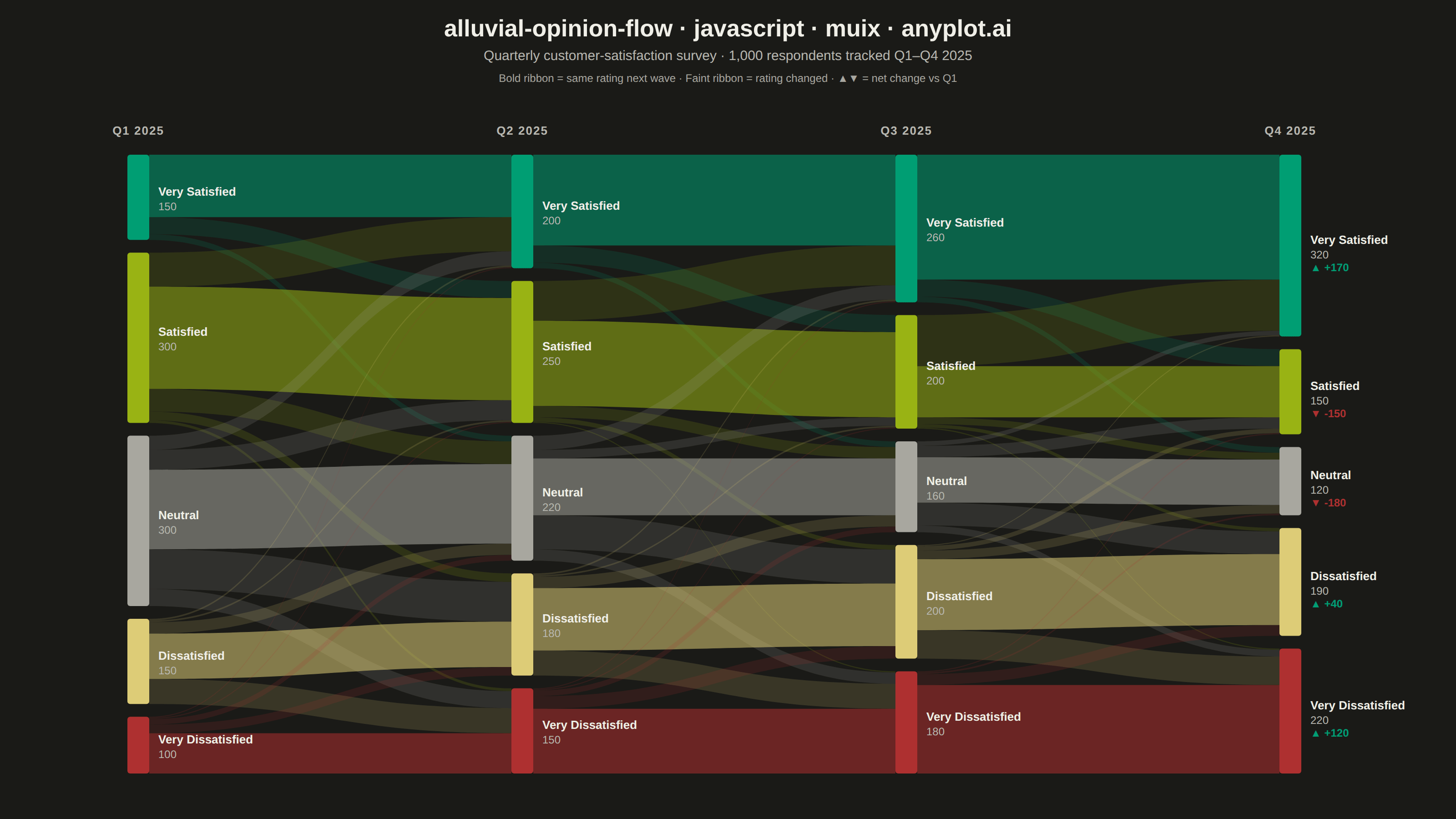

An alluvial/Sankey-style diagram showing how opinions or group memberships shift between survey waves or time periods. Flows connect the same response categories across columns, revealing patterns of opinion change, stability, and polarization. Unlike a basic alluvial diagram, this variant emphasizes distinguishing stable respondents from net changers and displays respondent totals per category at each wave.
// anyplot.ai
// alluvial-opinion-flow: Opinion Flow Diagram
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-08-26
import { ChartContainer } from "@mui/x-charts/ChartContainer";
import { useXScale, useYScale } from "@mui/x-charts/hooks";
const t = window.ANYPLOT_TOKENS;
const SIZE = window.ANYPLOT_SIZE;
const TITLE = "alluvial-opinion-flow · javascript · muix · anyplot.ai";
const MUTED = t.theme === "light" ? "#6B6A63" : "#A8A79F"; // Imprint muted anchor
const FONT =
'-apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif';
// --- Data: quarterly customer-satisfaction survey, 1,000 respondents ---------
// Ordinal sentiment scale, deterministic. Populations and transition counts
// are hand-designed so row/column sums match exactly (no rounding drift):
// each wave sums to 1,000, and every transition matrix's row sums equal the
// source wave's populations while its column sums equal the target wave's.
// The scenario deliberately drifts toward the extremes (polarization) while
// "Neutral" and "Satisfied" shrink.
const CATEGORIES = [
{ id: "vs", label: "Very Satisfied", color: t.palette[0] }, // brand green — always first series
{ id: "s", label: "Satisfied", color: t.palette[7] }, // lime — still green family, reads "positive"
{ id: "n", label: "Neutral", color: MUTED }, // muted semantic anchor
{ id: "d", label: "Dissatisfied", color: t.amber }, // amber semantic anchor — caution
{ id: "vd", label: "Very Dissatisfied", color: t.palette[4] }, // matte red — bad/error semantic anchor
];
const CATEGORY_ORDER = CATEGORIES.map((c) => c.id);
const CATEGORY_BY_ID = Object.fromEntries(CATEGORIES.map((c) => [c.id, c]));
const WAVES = ["Q1 2025", "Q2 2025", "Q3 2025", "Q4 2025"];
const POPULATIONS = [
{ vs: 150, s: 300, n: 300, d: 150, vd: 100 },
{ vs: 200, s: 250, n: 220, d: 180, vd: 150 },
{ vs: 260, s: 200, n: 160, d: 200, vd: 180 },
{ vs: 320, s: 150, n: 120, d: 190, vd: 220 },
];
// One transition matrix per wave-to-wave step (3 steps for 4 waves).
const TRANSITIONS = [
[
{ source: "vs", target: "vs", count: 110 },
{ source: "vs", target: "s", count: 30 },
{ source: "vs", target: "n", count: 10 },
{ source: "s", target: "vs", count: 60 },
{ source: "s", target: "s", count: 180 },
{ source: "s", target: "n", count: 40 },
{ source: "s", target: "d", count: 15 },
{ source: "s", target: "vd", count: 5 },
{ source: "n", target: "vs", count: 25 },
{ source: "n", target: "s", count: 35 },
{ source: "n", target: "n", count: 140 },
{ source: "n", target: "d", count: 70 },
{ source: "n", target: "vd", count: 30 },
{ source: "d", target: "vs", count: 3 },
{ source: "d", target: "s", count: 3 },
{ source: "d", target: "n", count: 20 },
{ source: "d", target: "d", count: 80 },
{ source: "d", target: "vd", count: 44 },
{ source: "vd", target: "vs", count: 2 },
{ source: "vd", target: "s", count: 2 },
{ source: "vd", target: "n", count: 10 },
{ source: "vd", target: "d", count: 15 },
{ source: "vd", target: "vd", count: 71 },
],
[
{ source: "vs", target: "vs", count: 160 },
{ source: "vs", target: "s", count: 30 },
{ source: "vs", target: "n", count: 10 },
{ source: "s", target: "vs", count: 70 },
{ source: "s", target: "s", count: 150 },
{ source: "s", target: "n", count: 20 },
{ source: "s", target: "d", count: 8 },
{ source: "s", target: "vd", count: 2 },
{ source: "n", target: "vs", count: 25 },
{ source: "n", target: "s", count: 15 },
{ source: "n", target: "n", count: 100 },
{ source: "n", target: "d", count: 60 },
{ source: "n", target: "vd", count: 20 },
{ source: "d", target: "vs", count: 3 },
{ source: "d", target: "s", count: 3 },
{ source: "d", target: "n", count: 20 },
{ source: "d", target: "d", count: 110 },
{ source: "d", target: "vd", count: 44 },
{ source: "vd", target: "vs", count: 2 },
{ source: "vd", target: "s", count: 2 },
{ source: "vd", target: "n", count: 10 },
{ source: "vd", target: "d", count: 22 },
{ source: "vd", target: "vd", count: 114 },
],
[
{ source: "vs", target: "vs", count: 220 },
{ source: "vs", target: "s", count: 30 },
{ source: "vs", target: "n", count: 10 },
{ source: "s", target: "vs", count: 90 },
{ source: "s", target: "s", count: 90 },
{ source: "s", target: "n", count: 12 },
{ source: "s", target: "d", count: 6 },
{ source: "s", target: "vd", count: 2 },
{ source: "n", target: "vs", count: 8 },
{ source: "n", target: "s", count: 20 },
{ source: "n", target: "n", count: 80 },
{ source: "n", target: "d", count: 40 },
{ source: "n", target: "vd", count: 12 },
{ source: "d", target: "vs", count: 2 },
{ source: "d", target: "s", count: 8 },
{ source: "d", target: "n", count: 15 },
{ source: "d", target: "d", count: 125 },
{ source: "d", target: "vd", count: 50 },
{ source: "vd", target: "s", count: 2 },
{ source: "vd", target: "n", count: 3 },
{ source: "vd", target: "d", count: 19 },
{ source: "vd", target: "vd", count: 156 },
],
];
// --- Layout: fixed category row order in every column (polarization reads as
// the top and bottom bands growing wave over wave) ---------------------------
const NODE_W = 24;
const GAP = 14;
const LEFT_MARGIN = 140;
const RIGHT_MARGIN = 170; // room for the last wave's node labels + net-change deltas
const PLOT_TOP = 170;
const PLOT_BOTTOM = SIZE.height - 50;
const PLOT_H = PLOT_BOTTOM - PLOT_TOP;
const H = SIZE.height; // flips top-down pixel y into the chart's bottom-up data y
const usableW = SIZE.width - LEFT_MARGIN - RIGHT_MARGIN - NODE_W;
const COL_X = WAVES.map((_, w) => LEFT_MARGIN + (usableW * w) / (WAVES.length - 1));
const SCALE = (PLOT_H - GAP * (CATEGORIES.length - 1)) / 1000; // every wave sums to 1,000
const nodes = [];
const nodeByKey = {};
for (let w = 0; w < WAVES.length; w++) {
let cursor = PLOT_TOP;
for (const cat of CATEGORIES) {
const value = POPULATIONS[w][cat.id];
const height = value * SCALE;
const node = {
key: `${w}:${cat.id}`,
wave: w,
catId: cat.id,
label: cat.label,
color: cat.color,
value,
x0: COL_X[w],
x1: COL_X[w] + NODE_W,
y0: cursor,
y1: cursor + height,
out: [],
in: [],
};
nodes.push(node);
nodeByKey[node.key] = node;
cursor = node.y1 + GAP;
}
}
const flows = [];
TRANSITIONS.forEach((step, t) => {
step.forEach((f) => {
const source = nodeByKey[`${t}:${f.source}`];
const target = nodeByKey[`${t + 1}:${f.target}`];
const flow = { source, target, count: f.count, stable: f.source === f.target };
source.out.push(flow);
target.in.push(flow);
flows.push(flow);
});
});
// Stack each node's links along its edge, ordered by the counterpart's fixed
// row rank, so ribbons fan out with minimal crossing near the node.
const rankOf = (catId) => CATEGORY_ORDER.indexOf(catId);
for (const n of nodes) {
n.out.sort((a, b) => rankOf(a.target.catId) - rankOf(b.target.catId));
let oc = n.y0;
for (const f of n.out) {
f.sy0 = oc;
f.sy1 = oc + f.count * SCALE;
f.sx = n.x1;
oc = f.sy1;
}
n.in.sort((a, b) => rankOf(a.source.catId) - rankOf(b.source.catId));
let ic = n.y0;
for (const f of n.in) {
f.ty0 = ic;
f.ty1 = ic + f.count * SCALE;
f.tx = n.x0;
ic = f.ty1;
}
}
function ribbonPath(xs, ys, f) {
const cx = (f.sx + f.tx) / 2;
const P = (x, yPix) => `${xs(x).toFixed(1)} ${ys(H - yPix).toFixed(1)}`;
const C = (yPix) => `${xs(cx).toFixed(1)} ${ys(H - yPix).toFixed(1)}`;
return (
`M ${P(f.sx, f.sy0)} ` +
`C ${C(f.sy0)}, ${C(f.ty0)}, ${P(f.tx, f.ty0)} ` +
`L ${P(f.tx, f.ty1)} ` +
`C ${C(f.ty1)}, ${C(f.sy1)}, ${P(f.sx, f.sy1)} Z`
);
}
// --- Overlay layers -----------------------------------------------------------
function Links() {
const xs = useXScale();
const ys = useYScale();
return (
<g>
{flows.map((f, k) => (
<path
key={k}
d={ribbonPath(xs, ys, f)}
fill={CATEGORY_BY_ID[f.source.catId].color}
fillOpacity={f.stable ? 0.55 : 0.16}
>
<title>
{`${f.source.label} (${WAVES[f.source.wave]}) → ${f.target.label} (${WAVES[f.target.wave]}): ${f.count} respondents`}
</title>
</path>
))}
</g>
);
}
function Nodes() {
const xs = useXScale();
const ys = useYScale();
return (
<g>
{nodes.map((n) => (
<rect
key={n.key}
x={xs(n.x0).toFixed(1)}
y={ys(H - n.y0).toFixed(1)}
width={(xs(n.x1) - xs(n.x0)).toFixed(1)}
height={(ys(H - n.y1) - ys(H - n.y0)).toFixed(1)}
fill={n.color}
rx={3}
>
<title>{`${n.label} · ${WAVES[n.wave]}: ${n.value} respondents`}</title>
</rect>
))}
</g>
);
}
function Labels() {
const xs = useXScale();
const ys = useYScale();
const firstWaveByCat = Object.fromEntries(CATEGORIES.map((c) => [c.id, POPULATIONS[0][c.id]]));
return (
<g fontFamily={FONT}>
{WAVES.map((label, w) => (
<text
key={label}
x={xs(COL_X[w] + NODE_W / 2)}
y={ys(H - (PLOT_TOP - 22))}
textAnchor="middle"
fontSize={13}
fontWeight={600}
letterSpacing={1}
fill={t.inkSoft}
>
{label.toUpperCase()}
</text>
))}
{nodes.map((n) => {
const cy = (n.y0 + n.y1) / 2;
const lx = xs(n.x1) + 10;
const isLast = n.wave === WAVES.length - 1;
const delta = isLast ? n.value - firstWaveByCat[n.catId] : null;
return (
<g key={n.key}>
<text x={lx} y={ys(H - (cy - 2))} textAnchor="start" fontSize={13} fontWeight={600} fill={t.ink}>
{n.label}
</text>
<text x={lx} y={ys(H - (cy + 14))} textAnchor="start" fontSize={12} fill={t.inkSoft}>
{n.value}
</text>
{isLast && (
<text
x={lx}
y={ys(H - (cy + 28))}
textAnchor="start"
fontSize={12}
fontWeight={600}
fill={delta >= 0 ? t.palette[0] : t.palette[4]}
>
{delta >= 0 ? `▲ +${delta}` : `▼ ${delta}`}
</text>
)}
</g>
);
})}
</g>
);
}
function Frame() {
const xs = useXScale();
const ys = useYScale();
return (
<g fontFamily={FONT}>
<text x={xs(SIZE.width / 2)} y={ys(H - 40)} textAnchor="middle" fontSize={26} fontWeight={600} fill={t.ink}>
{TITLE}
</text>
<text x={xs(SIZE.width / 2)} y={ys(H - 66)} textAnchor="middle" fontSize={15} fill={t.inkSoft}>
Quarterly customer-satisfaction survey · 1,000 respondents tracked Q1–Q4 2025
</text>
<text x={xs(SIZE.width / 2)} y={ys(H - 90)} textAnchor="middle" fontSize={12} fill={MUTED}>
Bold ribbon = same rating next wave · Faint ribbon = rating changed · ▲▼ = net change vs Q1
</text>
</g>
);
}
// --- Chart (default-exported component — the harness mounts it) -------------
export default function Chart() {
return (
<ChartContainer
width={SIZE.width}
height={SIZE.height}
margin={{ top: 0, right: 0, bottom: 0, left: 0 }}
series={[]}
xAxis={[{ id: "x", scaleType: "linear", min: 0, max: SIZE.width }]}
yAxis={[{ id: "y", scaleType: "linear", min: 0, max: SIZE.height }]}
skipAnimation
>
<Links />
<Nodes />
<Labels />
<Frame />
</ChartContainer>
);
}
Part of Opinion Flow Diagram on anyplot.ai.
