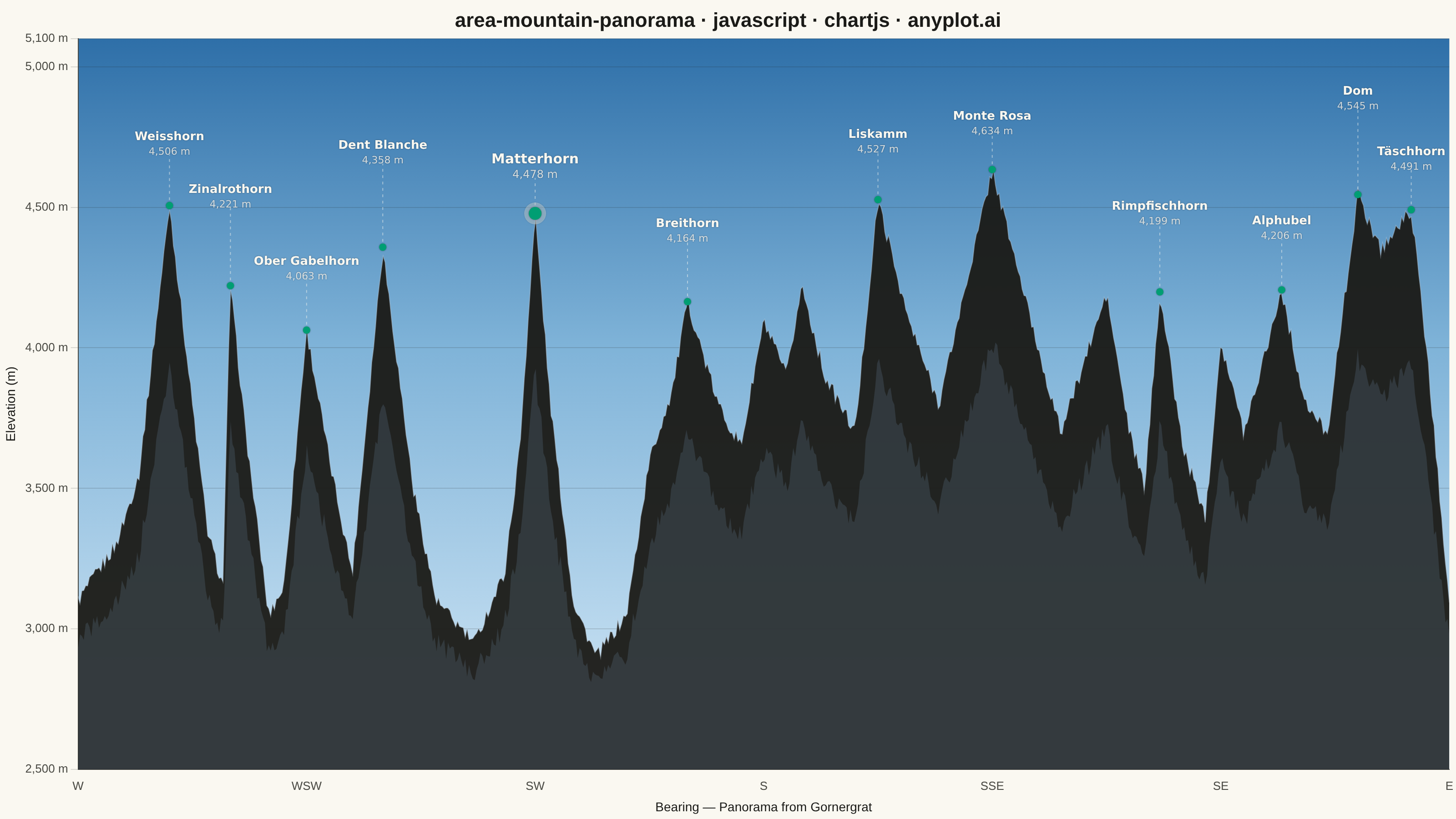

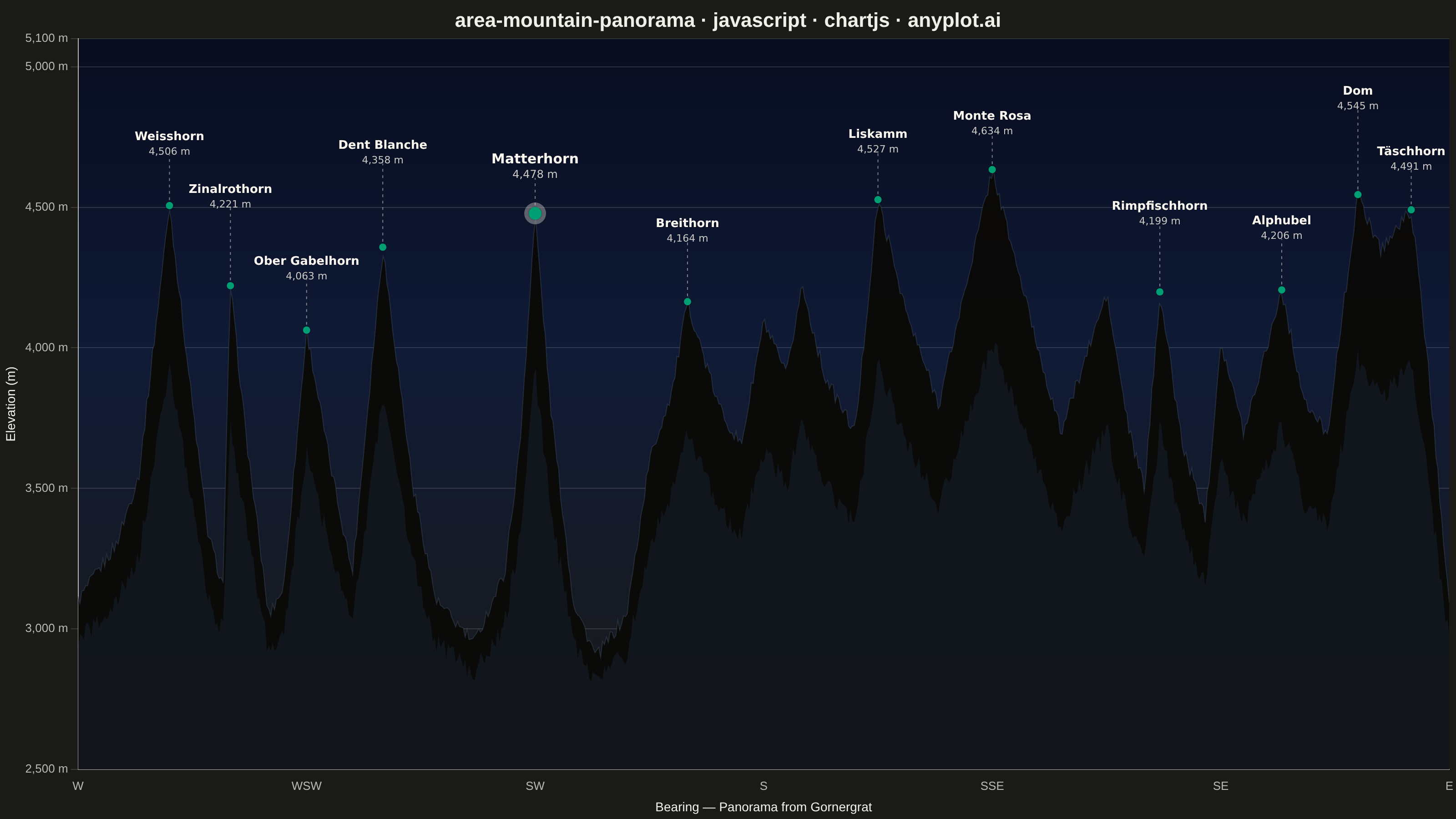

A panoramic mountain silhouette chart that renders the horizon as seen from a fixed vantage point, like a photograph of a ridgeline against the sky. A filled area under the skyline curve traces the ridgeline across a horizontal viewing range (in degrees of bearing or horizontal distance), and major summits are annotated with their name and elevation. The skyline is jagged and angular — sharp triangular peaks with steep, often asymmetric flanks meeting at pointed apexes, connected by rugged ridges with cols, sub-peaks and rocky notches — not a sequence of smooth bell-shaped bumps. Unlike an elevation-profile-along-a-trail, this plot is the angular view of the surrounding peaks from a single observer, making it ideal for summit-identification infographics, alpine panoramas, and travel guides.
// anyplot.ai
// area-mountain-panorama: Mountain Panorama Profile with Labeled Peaks
// Library: chartjs 4.4.7 | JavaScript 22.23.0
// Quality: 89/100 | Created: 2026-06-30
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const theme = window.ANYPLOT_THEME;
// --- Data: Valais Alps panorama from Gornergrat, sweeping W to E ----------
// Piecewise-linear ridgeline control points [bearing_deg, elevation_m]
// Sharp triangular flanks with explicit saddle control points between peaks
const ctrlPts = [
[0, 3100], [5, 3300], [8, 3550],
[12, 4506], // Weisshorn
[15, 3800], [17, 3350], [19, 3150],
[20, 4221], // Zinalrothorn
[22, 3700], [25, 3050], [27, 3150],
[30, 4063], // Ober Gabelhorn
[33, 3600], [36, 3200],
[40, 4358], // Dent Blanche
[44, 3500], [47, 3100], [52, 2950], [56, 3200],
[58, 3650],
[60, 4478], // Matterhorn (focal summit)
[62, 3800], [65, 3100], [68, 2900], [72, 3050],
[75, 3600], [78, 3850],
[80, 4164], // Breithorn
[84, 3800], [87, 3650],
[90, 4092], // Pollux
[93, 3900],
[95, 4223], // Castor
[98, 3900], [102, 3700],
[105, 4527], // Liskamm
[109, 4100], [113, 3800],
[120, 4634], // Monte Rosa / Dufourspitze (highest)
[126, 4000], [129, 3700],
[135, 4190], // Strahlhorn
[138, 3700], [140, 3500],
[142, 4199], // Rimpfischhorn
[145, 3650], [148, 3400],
[150, 4027], // Allalinhorn
[153, 3700],
[158, 4206], // Alphubel
[161, 3800], [164, 3700],
[168, 4545], // Dom
[171, 4350],
[175, 4491], // Täschhorn
[177, 4000], [180, 3100],
];
function lerpElev(angle) {
for (let i = 0; i < ctrlPts.length - 1; i++) {
const [a0, e0] = ctrlPts[i];
const [a1, e1] = ctrlPts[i + 1];
if (angle >= a0 && angle <= a1) {
return e0 + ((angle - a0) / (a1 - a0)) * (e1 - e0);
}
}
return ctrlPts[0][1];
}
// Deterministic sine-hash noise — avoids Math.random() non-reproducibility
function sinNoise(i, salt) {
const v = Math.sin(i * 127.1 + salt * 311.7) * 43758.5453;
return v - Math.floor(v);
}
const N = 720;
const Y_MIN = 2500;
const Y_MAX = 5100;
const mainPts = [];
const bgPts = [];
for (let i = 0; i < N; i++) {
const angle = (i / (N - 1)) * 180;
const base = lerpElev(angle);
const noise = (sinNoise(i, 1) - 0.5) * 50;
mainPts.push({ x: angle, y: Math.max(Y_MIN, Math.round(base + noise)) });
// Background (distance) ridge: scaled lower for atmospheric depth
const bgNoise = (sinNoise(i, 7) - 0.5) * 80;
bgPts.push({ x: angle, y: Math.max(Y_MIN, Math.round(base * 0.70 + 780 + bgNoise)) });
}
// Annotated summits — staggered yOff (px above summit) to prevent overlap
const summits = [
{ name: "Weisshorn", angle: 12, elev: 4506, yOff: 72 },
{ name: "Zinalrothorn", angle: 20, elev: 4221, yOff: 102 },
{ name: "Ober Gabelhorn", angle: 30, elev: 4063, yOff: 72 },
{ name: "Dent Blanche", angle: 40, elev: 4358, yOff: 108 },
{ name: "Matterhorn", angle: 60, elev: 4478, yOff: 55 },
{ name: "Breithorn", angle: 80, elev: 4164, yOff: 82 },
{ name: "Liskamm", angle: 105, elev: 4527, yOff: 68 },
{ name: "Monte Rosa", angle: 120, elev: 4634, yOff: 55 },
{ name: "Rimpfischhorn", angle: 142, elev: 4199, yOff: 90 },
{ name: "Alphubel", angle: 158, elev: 4206, yOff: 72 },
{ name: "Dom", angle: 168, elev: 4545, yOff: 110 },
{ name: "Täschhorn", angle: 175, elev: 4491, yOff: 60 },
];
// --- Mount ------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Theme colors -----------------------------------------------------------
const skyHigh = theme === 'light' ? '#2e6fa8' : '#080d1f';
const skyMid = theme === 'light' ? '#7fb3d8' : '#0f1a36';
const skyLow = theme === 'light' ? '#d6eaf8' : '#1A1A17';
const mtFill = theme === 'light' ? 'rgba(26,24,20,0.94)' : 'rgba(10,9,7,0.96)';
const bgFill = theme === 'light' ? 'rgba(95,115,135,0.28)' : 'rgba(30,45,65,0.36)';
const dotColor = t.palette[0]; // #009E73 brand green — summit markers
// --- Plugins ----------------------------------------------------------------
const skyPlugin = {
id: 'skyGradient',
// beforeDraw ensures gradient is under gridlines and dataset fills
beforeDraw(chart) {
const { ctx, chartArea: { left, top, right, bottom } } = chart;
const g = ctx.createLinearGradient(0, top, 0, bottom);
g.addColorStop(0, skyHigh);
g.addColorStop(0.42, skyMid);
g.addColorStop(1, skyLow);
ctx.save();
ctx.fillStyle = g;
ctx.fillRect(left, top, right - left, bottom - top);
ctx.restore();
},
};
const annotPlugin = {
id: 'peakAnnotations',
afterDraw(chart) {
const { ctx, scales: { x: xSc, y: ySc } } = chart;
ctx.save();
ctx.textAlign = 'center';
// Text shadow for contrast against both light and dark sky
ctx.shadowColor = 'rgba(0,0,0,0.45)';
ctx.shadowBlur = 3;
summits.forEach((s) => {
const isMatterhorn = s.name === 'Matterhorn';
const px = xSc.getPixelForValue(s.angle);
const py = ySc.getPixelForValue(s.elev);
const ly = py - s.yOff; // label baseline y (above summit dot)
// Dashed leader line from just above dot to just below elevation label
ctx.shadowBlur = 0;
ctx.strokeStyle = 'rgba(250,248,241,0.48)';
ctx.lineWidth = 1;
ctx.setLineDash([3, 4]);
ctx.beginPath();
ctx.moveTo(px, py - (isMatterhorn ? 9 : 6));
ctx.lineTo(px, ly + 16);
ctx.stroke();
ctx.setLineDash([]);
ctx.shadowBlur = 3;
// Summit dot — Matterhorn gets a larger highlighted dot
if (isMatterhorn) {
// Outer highlight ring
ctx.fillStyle = 'rgba(250,248,241,0.35)';
ctx.beginPath();
ctx.arc(px, py, 12, 0, Math.PI * 2);
ctx.fill();
}
ctx.fillStyle = dotColor;
ctx.beginPath();
ctx.arc(px, py, isMatterhorn ? 7 : 4, 0, Math.PI * 2);
ctx.fill();
// Peak name — Matterhorn uses larger bold font
ctx.fillStyle = '#FAF8F1';
ctx.font = isMatterhorn ? 'bold 15px system-ui, sans-serif' : 'bold 13px system-ui, sans-serif';
ctx.fillText(s.name, px, ly);
// Elevation in meters below name
ctx.font = isMatterhorn ? '12px system-ui, sans-serif' : '11px system-ui, sans-serif';
ctx.fillStyle = 'rgba(250,248,241,0.80)';
ctx.fillText(`${s.elev.toLocaleString()} m`, px, ly + 16);
});
ctx.shadowBlur = 0;
ctx.restore();
},
};
// --- Chart ------------------------------------------------------------------
const TITLE = "area-mountain-panorama · javascript · chartjs · anyplot.ai";
new Chart(canvas, {
type: 'line',
data: {
datasets: [
{
label: 'Background Ridge',
data: bgPts,
parsing: false,
fill: 'start',
backgroundColor: bgFill,
borderColor: 'transparent',
borderWidth: 0,
pointRadius: 0,
tension: 0,
},
{
label: 'Main Ridgeline',
data: mainPts,
parsing: false,
fill: 'start',
backgroundColor: mtFill,
borderColor: theme === 'light' ? 'rgba(195,208,220,0.40)' : 'rgba(70,85,105,0.40)',
borderWidth: 1,
pointRadius: 0,
tension: 0,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: TITLE,
color: t.ink,
font: { size: 22 },
padding: { top: 10, bottom: 6 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
type: 'linear',
min: 0,
max: 180,
ticks: {
color: t.inkSoft,
font: { size: 13 },
stepSize: 30,
callback: (v) => ({ 0: 'W', 30: 'WSW', 60: 'SW', 90: 'S', 120: 'SSE', 150: 'SE', 180: 'E' })[v] || `${v}°`,
},
grid: { display: false },
border: { color: t.inkSoft },
title: {
display: true,
text: 'Bearing — Panorama from Gornergrat',
color: t.ink,
font: { size: 14 },
},
},
y: {
min: Y_MIN,
max: Y_MAX,
ticks: {
color: t.inkSoft,
font: { size: 13 },
callback: (v) => `${v.toLocaleString()} m`,
},
grid: { color: t.grid },
border: { color: t.inkSoft },
title: {
display: true,
text: 'Elevation (m)',
color: t.ink,
font: { size: 14 },
},
},
},
},
plugins: [skyPlugin, annotPlugin],
});
Part of Mountain Panorama Profile with Labeled Peaks on anyplot.ai.
