Horizontal Bar Chart — Chart.js

A horizontal bar chart displaying categorical data with rectangular bars extending horizontally from the y-axis. The length of each bar is proportional to the value it represents. This orientation is particularly effective when category names are long or numerous, as horizontal labels are easier to read than rotated vertical labels. Horizontal bar charts excel at rankings, comparisons, and survey results visualization.

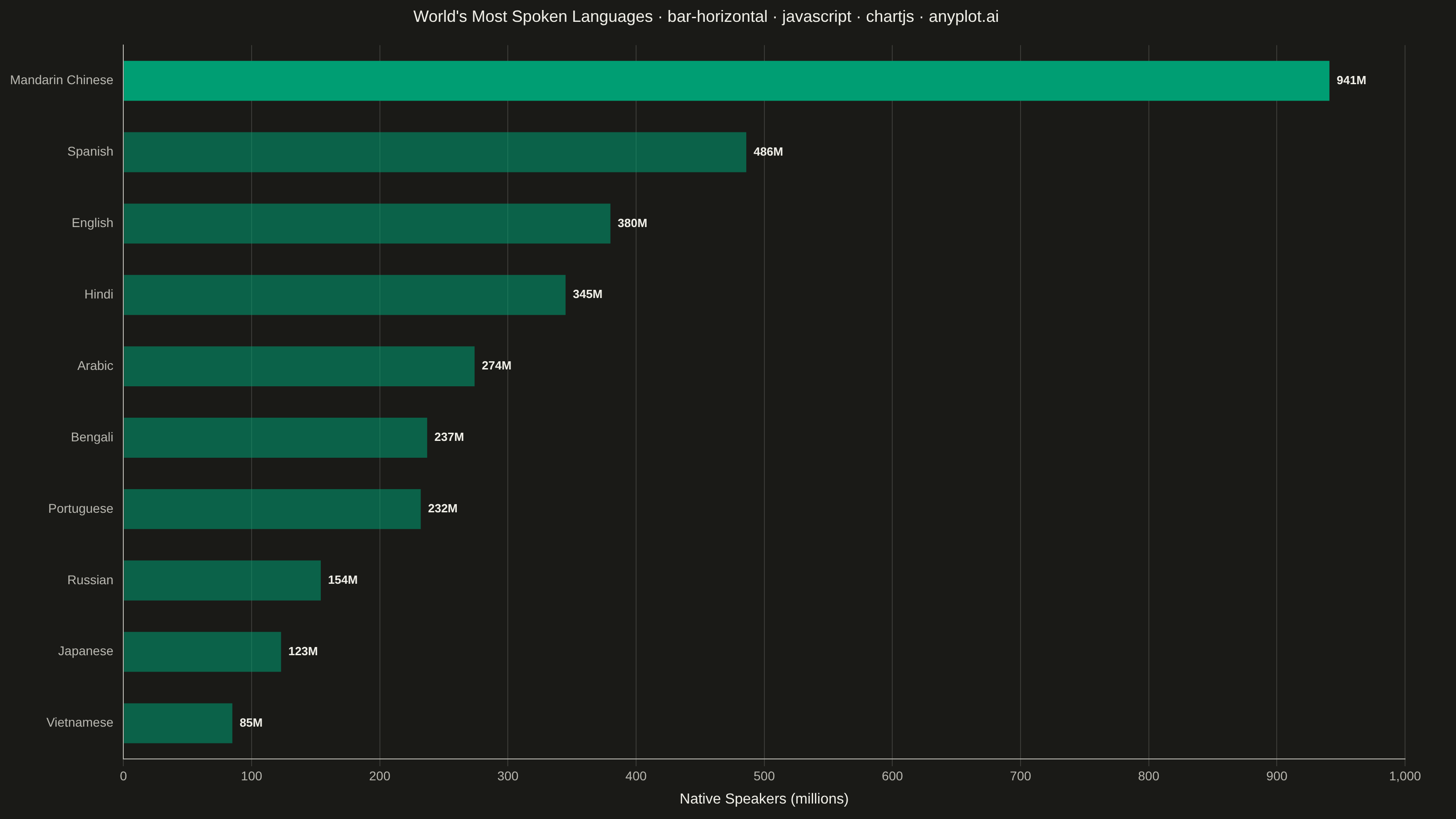

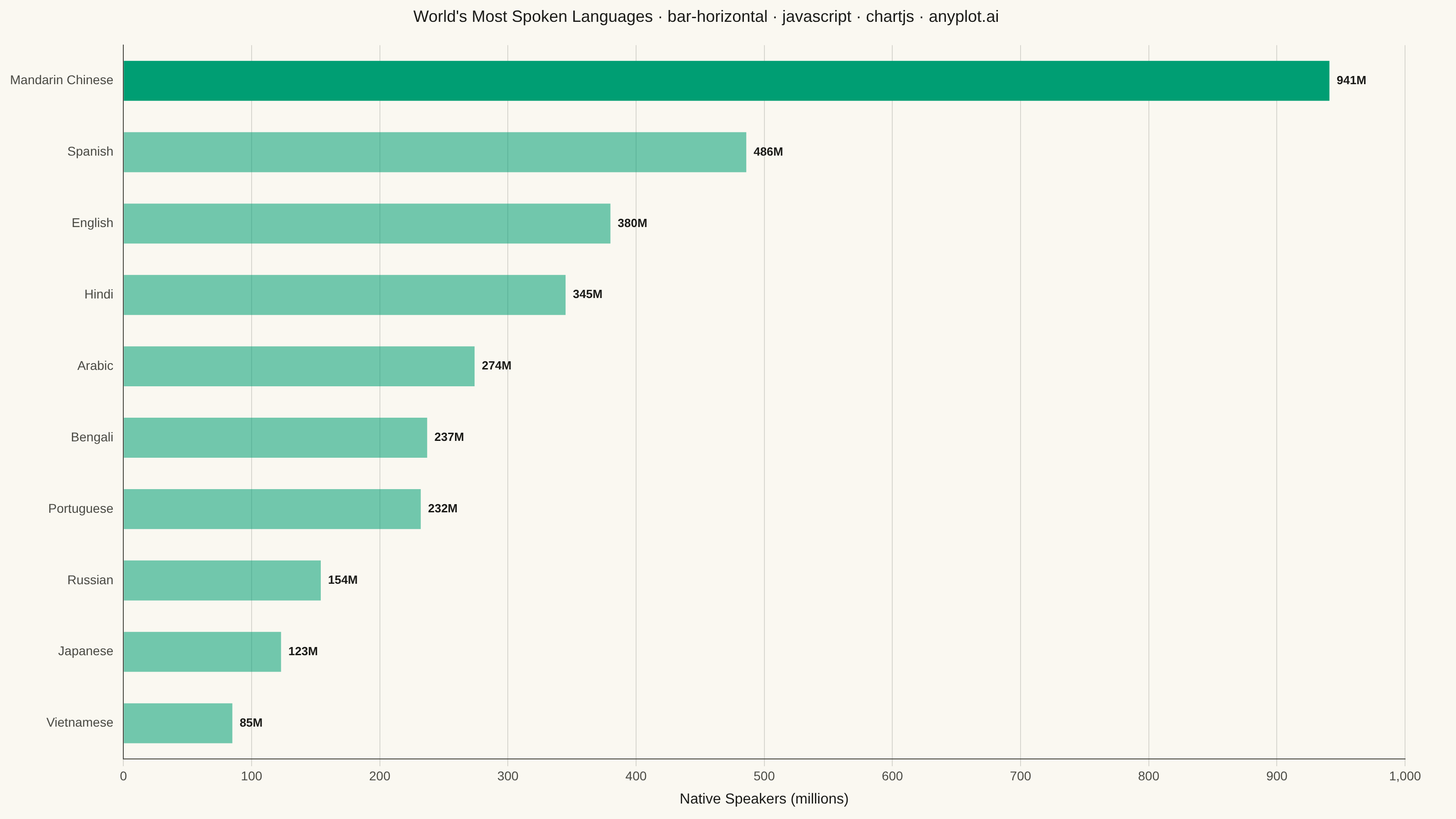

Horizontal Bar Chart rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// bar-horizontal: Horizontal Bar Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.1
// Quality: 90/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Native speakers by language, descending so the largest bar sits on top.
const languages = [
  "Mandarin Chinese",
  "Spanish",
  "English",
  "Hindi",
  "Arabic",
  "Bengali",
  "Portuguese",
  "Russian",
  "Japanese",
  "Vietnamese",
];
const speakersMillions = [941, 486, 380, 345, 274, 237, 232, 154, 123, 85];

// Brand green at full strength for the top-ranked bar, muted for the rest —
// a focal-point highlight layered on top of the sort order.
function hexToRgba(hex, alpha) {
  const r = parseInt(hex.slice(1, 3), 16);
  const g = parseInt(hex.slice(3, 5), 16);
  const b = parseInt(hex.slice(5, 7), 16);
  return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
const barColors = speakersMillions.map((_, i) =>
  i === 0 ? t.palette[0] : hexToRgba(t.palette[0], 0.55),
);

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart -------------------------------------------------------------------
const title =
  "World's Most Spoken Languages · bar-horizontal · javascript · chartjs · anyplot.ai";

// Custom Chart.js plugin: draw the value at the end of each bar so exact
// speaker counts are readable without a separate legend or tooltip.
// Chart.js always paints via requestAnimationFrame (even with animation:
// false), so `afterRender` also flips window.__anyplotReady — the harness's
// signal that drawing (including this plugin's afterDatasetsDraw) is done,
// instead of racing a generic fonts-ready/rAF heuristic against Chart's own
// scheduled frame.
const valueLabelsPlugin = {
  id: "valueLabels",
  afterDatasetsDraw(chart) {
    const { ctx } = chart;
    const meta = chart.getDatasetMeta(0);
    ctx.save();
    ctx.font = `600 13px ${Chart.defaults.font.family}`;
    ctx.fillStyle = t.ink;
    ctx.textAlign = "left";
    ctx.textBaseline = "middle";
    meta.data.forEach((bar, i) => {
      ctx.fillText(`${speakersMillions[i]}M`, bar.x + 8, bar.y);
    });
    ctx.restore();
  },
  afterRender() {
    window.__anyplotReady = true;
  },
};

new Chart(canvas, {
  type: "bar",
  data: {
    labels: languages,
    datasets: [
      {
        label: "Native Speakers (millions)",
        data: speakersMillions,
        backgroundColor: barColors,
        borderWidth: 0,
        barPercentage: 0.7,
        categoryPercentage: 0.8,
      },
    ],
  },
  plugins: [valueLabelsPlugin],
  options: {
    indexAxis: "y",
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    layout: { padding: { top: 8, right: 56, bottom: 8, left: 8 } },
    plugins: {
      title: {
        display: true,
        text: title,
        color: t.ink,
        font: { size: 18, weight: "500" },
        padding: { bottom: 20 },
      },
      legend: { display: false },
    },
    scales: {
      x: {
        beginAtZero: true,
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
        title: {
          display: true,
          text: "Native Speakers (millions)",
          color: t.ink,
          font: { size: 16 },
        },
        border: { color: t.inkSoft },
      },
      y: {
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { display: false },
        border: { color: t.inkSoft },
      },
    },
  },
});

Part of Horizontal Bar Chart on anyplot.ai.

Other implementations
