Horizontal Bar Chart — Highcharts

A horizontal bar chart displaying categorical data with rectangular bars extending horizontally from the y-axis. The length of each bar is proportional to the value it represents. This orientation is particularly effective when category names are long or numerous, as horizontal labels are easier to read than rotated vertical labels. Horizontal bar charts excel at rankings, comparisons, and survey results visualization.

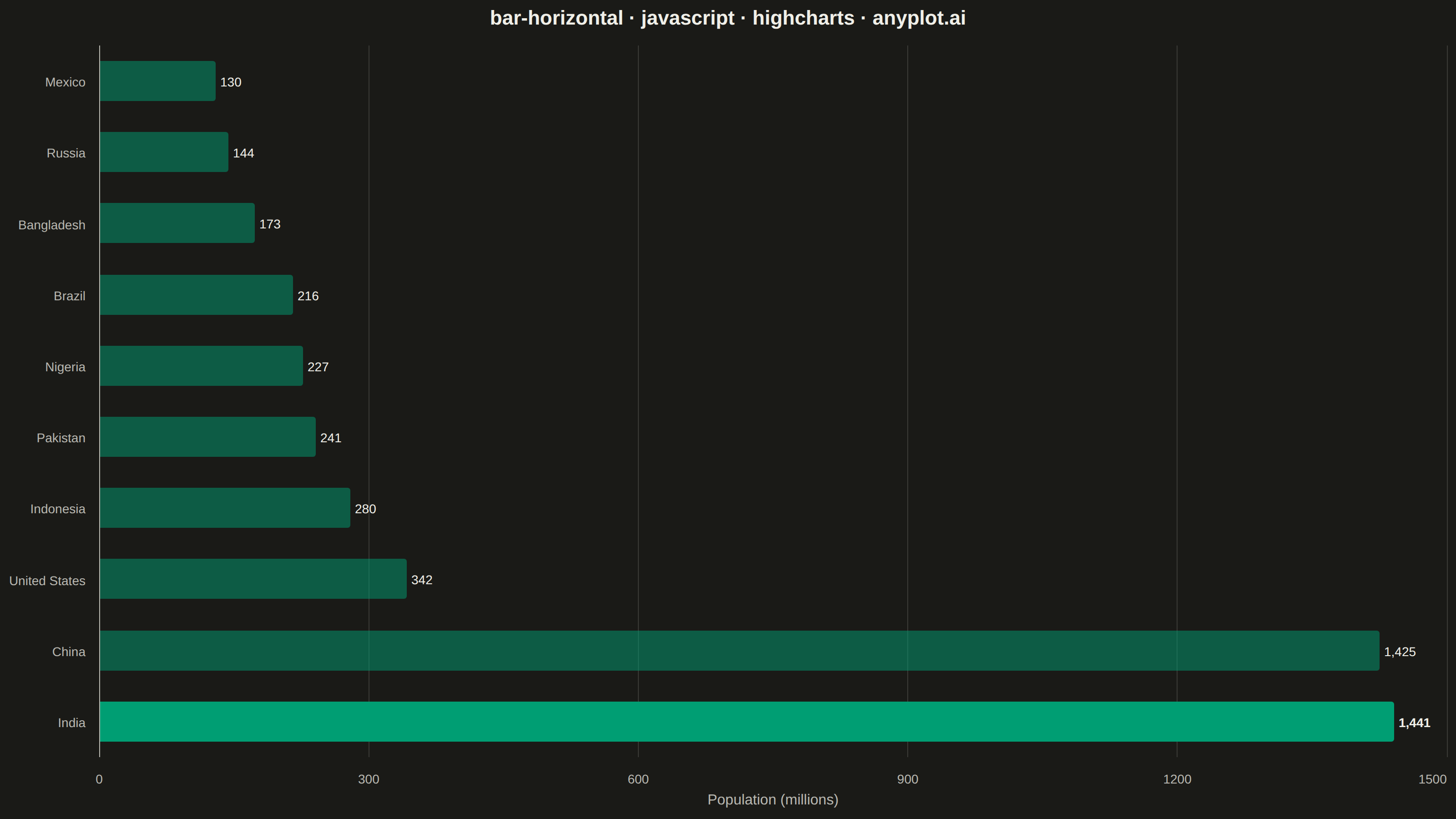

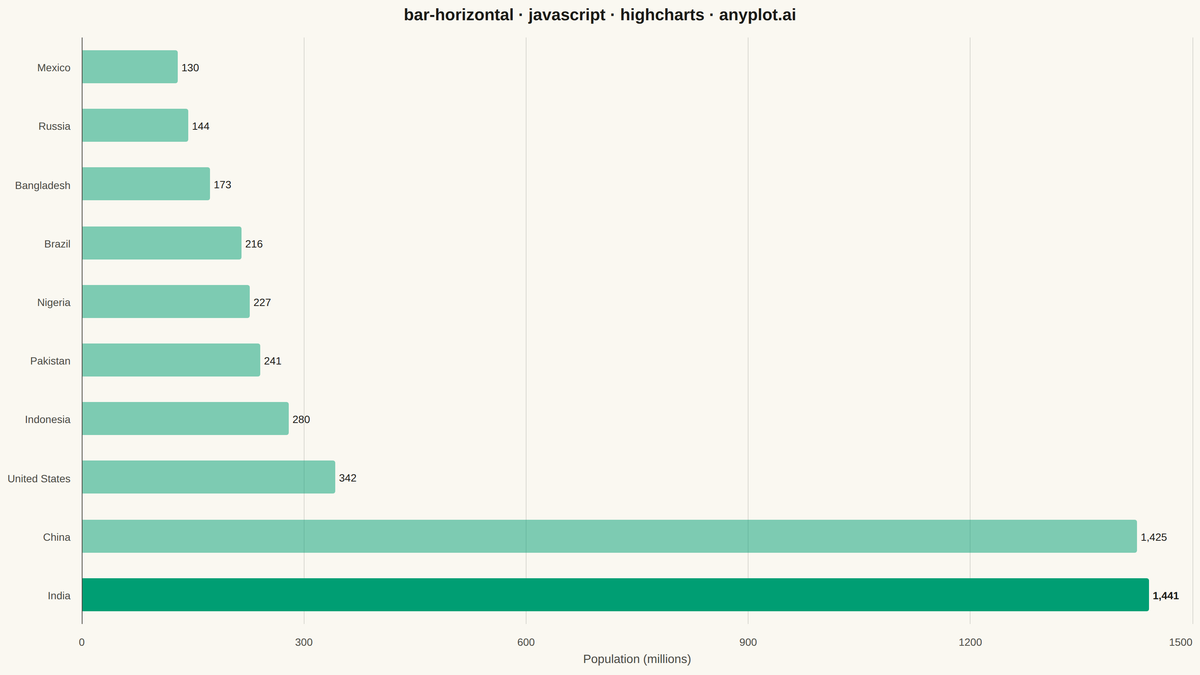

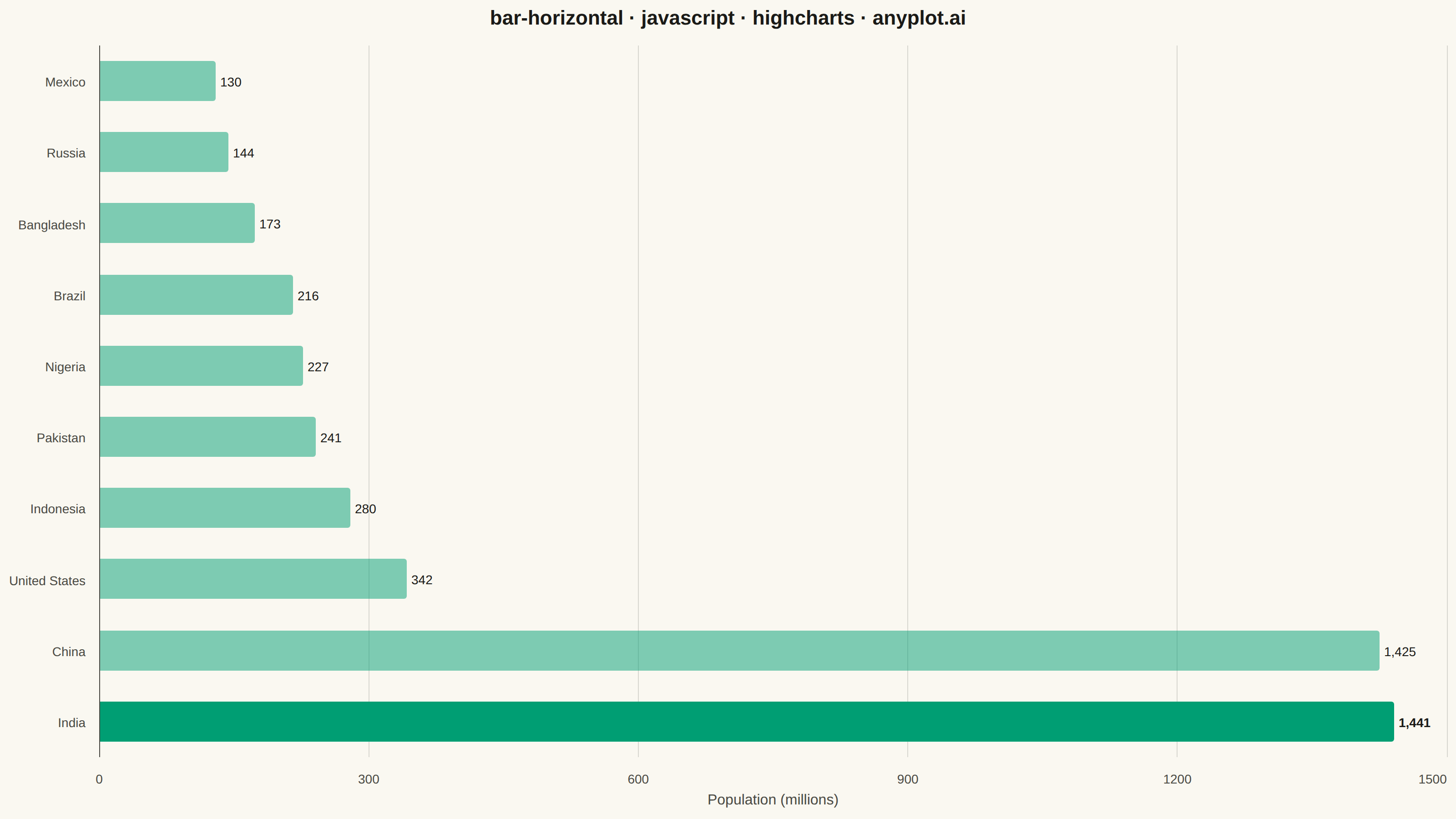

Horizontal Bar Chart rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// bar-horizontal: Horizontal Bar Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.1
// Quality: 92/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) — most populous countries, ascending ---
// renders smallest (Mexico) at top to largest (India) at bottom, matching array order.
const countries = [
  "Mexico",
  "Russia",
  "Bangladesh",
  "Brazil",
  "Nigeria",
  "Pakistan",
  "Indonesia",
  "United States",
  "China",
  "India",
];
const population = [130, 144, 173, 216, 227, 241, 280, 342, 1425, 1441];

// Highlight the top-ranked country (India) at full brand-green; mute the rest
// to a lower-opacity tint of the same hue so the largest value reads as the
// chart's focal point (spec: "highlight specific bars to draw attention").
const topIndex = population.length - 1;
const mutedGreen = Highcharts.color(t.palette[0]).setOpacity(0.5).get();
const seriesData = population.map((value, i) => ({
  y: value,
  color: i === topIndex ? t.palette[0] : mutedGreen,
  dataLabels: i === topIndex ? { style: { fontWeight: "700" } } : undefined,
}));

// --- Chart -------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "bar",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "bar-horizontal · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    categories: countries,
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: "transparent",
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  yAxis: {
    title: {
      text: "Population (millions)",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    max: 1500,
    tickInterval: 300,
    endOnTick: false,
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: { enabled: false },
  plotOptions: {
    series: { animation: false },
    bar: {
      borderWidth: 0,
      pointPadding: 0.15,
      groupPadding: 0.1,
      dataLabels: {
        enabled: true,
        format: "{y:,.0f}",
        style: {
          color: t.ink,
          fontSize: "14px",
          fontWeight: "500",
          textOutline: "none",
        },
      },
    },
  },
  tooltip: { enabled: false },
  series: [
    {
      name: "Population",
      data: seriesData,
    },
  ],
});

Part of Horizontal Bar Chart on anyplot.ai.
