Horizontal Bar Chart — D3.js

A horizontal bar chart displaying categorical data with rectangular bars extending horizontally from the y-axis. The length of each bar is proportional to the value it represents. This orientation is particularly effective when category names are long or numerous, as horizontal labels are easier to read than rotated vertical labels. Horizontal bar charts excel at rankings, comparisons, and survey results visualization.

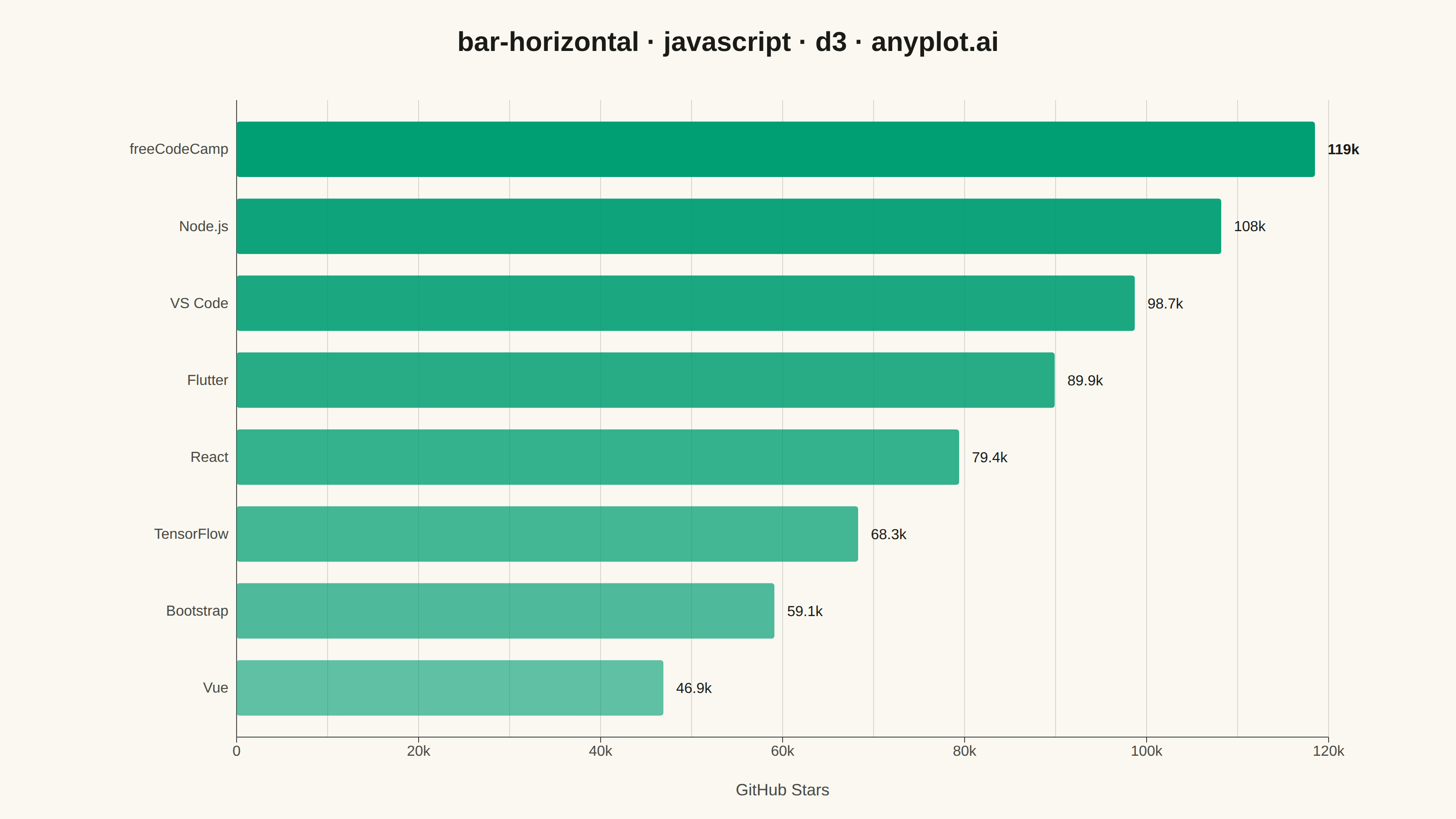

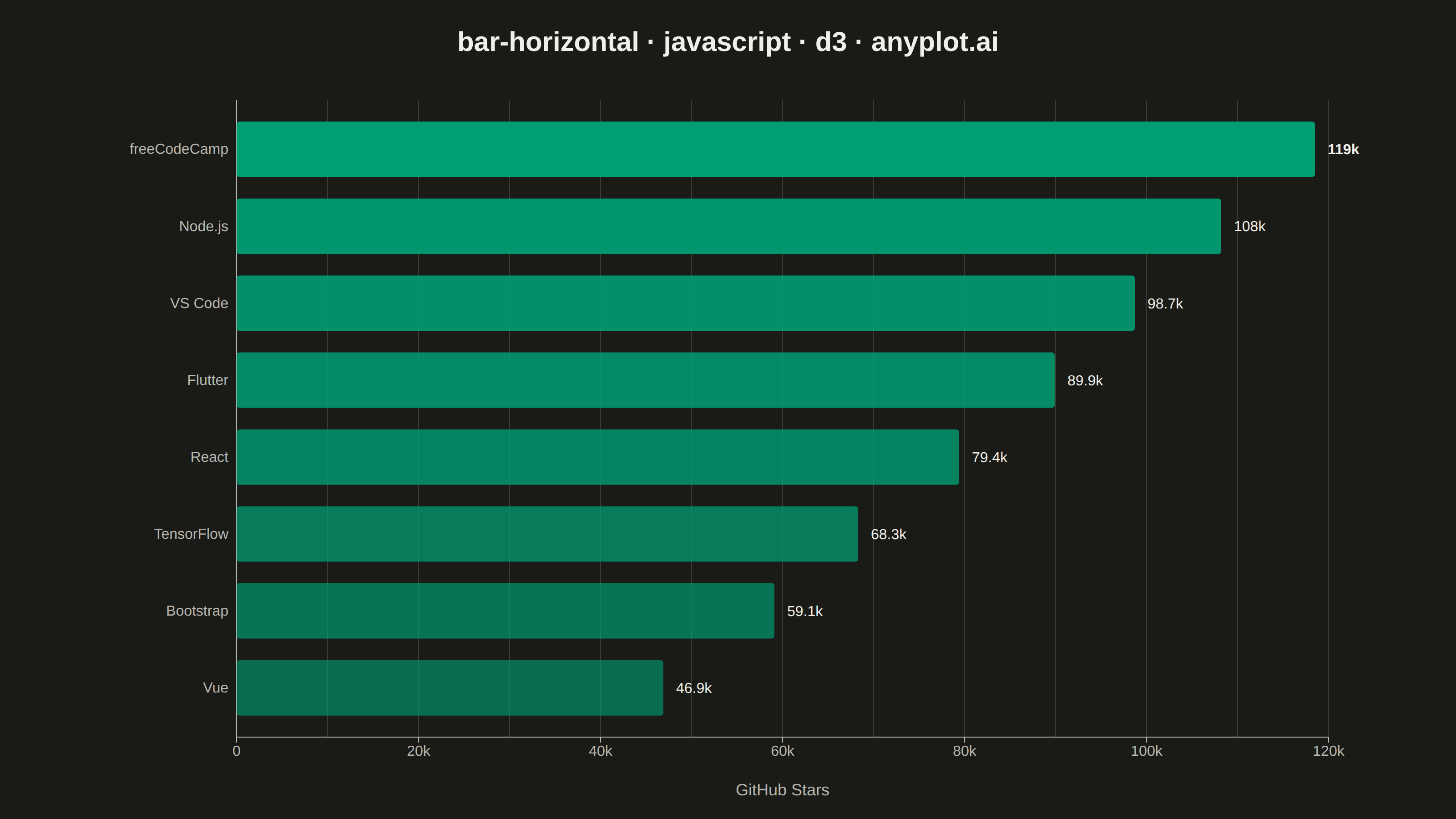

Horizontal Bar Chart rendered with D3.js

Renders

JavaScript source (D3.js)

// anyplot.ai
// bar-horizontal: Horizontal Bar Chart
// Library: d3 7.9.0 | JavaScript 22.23.1
// Quality: 88/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 110, right: 140, bottom: 90, left: 260 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;

// --- Data (in-memory, deterministic) ----------------------------------------
// Most-starred open-source frameworks on GitHub, sorted ascending so the
// largest bar lands at the top when rendered with a reversed band scale.
// Raw star counts (not pre-scaled) — the SI-prefix formatter below derives
// the "k" display units directly from the real magnitude.
const data = [
  { language: "Vue", stars: 46900 },
  { language: "Bootstrap", stars: 59100 },
  { language: "TensorFlow", stars: 68300 },
  { language: "React", stars: 79400 },
  { language: "Flutter", stars: 89900 },
  { language: "VS Code", stars: 98700 },
  { language: "Node.js", stars: 108200 },
  { language: "freeCodeCamp", stars: 118500 },
].sort((a, b) => a.stars - b.stars);

// SI-prefix formatter (d3-format) — auto-derives "k" units from magnitude
// instead of a hardcoded `${d}M` multiplier.
const siFormat = d3.format("~s");
const valueFormat = d3.format(".3~s");
const maxStars = d3.max(data, (d) => d.stars);

// Value-driven opacity ramp — the top-ranked bar reads at full strength while
// lower-ranked bars recede slightly, adding hierarchy beyond sort order alone.
const opacity = d3.scaleLinear().domain([d3.min(data, (d) => d.stars), maxStars]).range([0.62, 1]);

// --- SVG mount ---------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);

// --- Scales -------------------------------------------------------------------
const x = d3.scaleLinear().domain([0, d3.max(data, (d) => d.stars)]).nice().range([0, iw]);
const y = d3.scaleBand().domain(data.map((d) => d.language)).range([ih, 0]).padding(0.28);

// --- Gridlines (x-axis only, per horizontal-bar convention) -------------------
g.append("g")
  .attr("class", "grid")
  .call(d3.axisBottom(x).tickSize(ih).tickFormat(""))
  .attr("transform", `translate(0,0)`)
  .call((sel) => sel.select(".domain").remove())
  .selectAll("line")
  .attr("stroke", t.grid);

// --- Axes -----------------------------------------------------------------
const xAxis = g
  .append("g")
  .attr("transform", `translate(0,${ih})`)
  .call(d3.axisBottom(x).ticks(6).tickFormat(siFormat).tickSizeOuter(0));
const yAxis = g.append("g").call(d3.axisLeft(y).tickSizeOuter(0));

for (const ax of [xAxis, yAxis]) {
  ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "16px");
  ax.selectAll("line").attr("stroke", t.inkSoft);
  ax.select(".domain").attr("stroke", t.inkSoft);
}
yAxis.selectAll("line").remove();

// --- Bars -----------------------------------------------------------------
g.selectAll("rect.bar")
  .data(data)
  .join("rect")
  .attr("class", "bar")
  .attr("x", 0)
  .attr("y", (d) => y(d.language))
  .attr("width", (d) => x(d.stars))
  .attr("height", y.bandwidth())
  .attr("rx", 3)
  .attr("ry", 3)
  .attr("fill", t.palette[0])
  .attr("fill-opacity", (d) => opacity(d.stars));

// --- Value labels at bar ends ------------------------------------------------
g.selectAll("text.value")
  .data(data)
  .join("text")
  .attr("class", "value")
  .attr("x", (d) => x(d.stars) + 14)
  .attr("y", (d) => y(d.language) + y.bandwidth() / 2)
  .attr("dy", "0.35em")
  .attr("fill", t.ink)
  .style("font-size", "16px")
  .style("font-weight", (d) => (d.stars === maxStars ? "700" : "500"))
  .text((d) => `${valueFormat(d.stars)}`);

// --- Axis label ---------------------------------------------------------------
svg
  .append("text")
  .attr("x", margin.left + iw / 2)
  .attr("y", height - 26)
  .attr("text-anchor", "middle")
  .attr("fill", t.inkSoft)
  .style("font-size", "18px")
  .text("GitHub Stars");

// --- Title ------------------------------------------------------------------
svg
  .append("text")
  .attr("x", width / 2)
  .attr("y", 56)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "30px")
  .style("font-weight", "600")
  .text("bar-horizontal · javascript · d3 · anyplot.ai");

Part of Horizontal Bar Chart on anyplot.ai.
