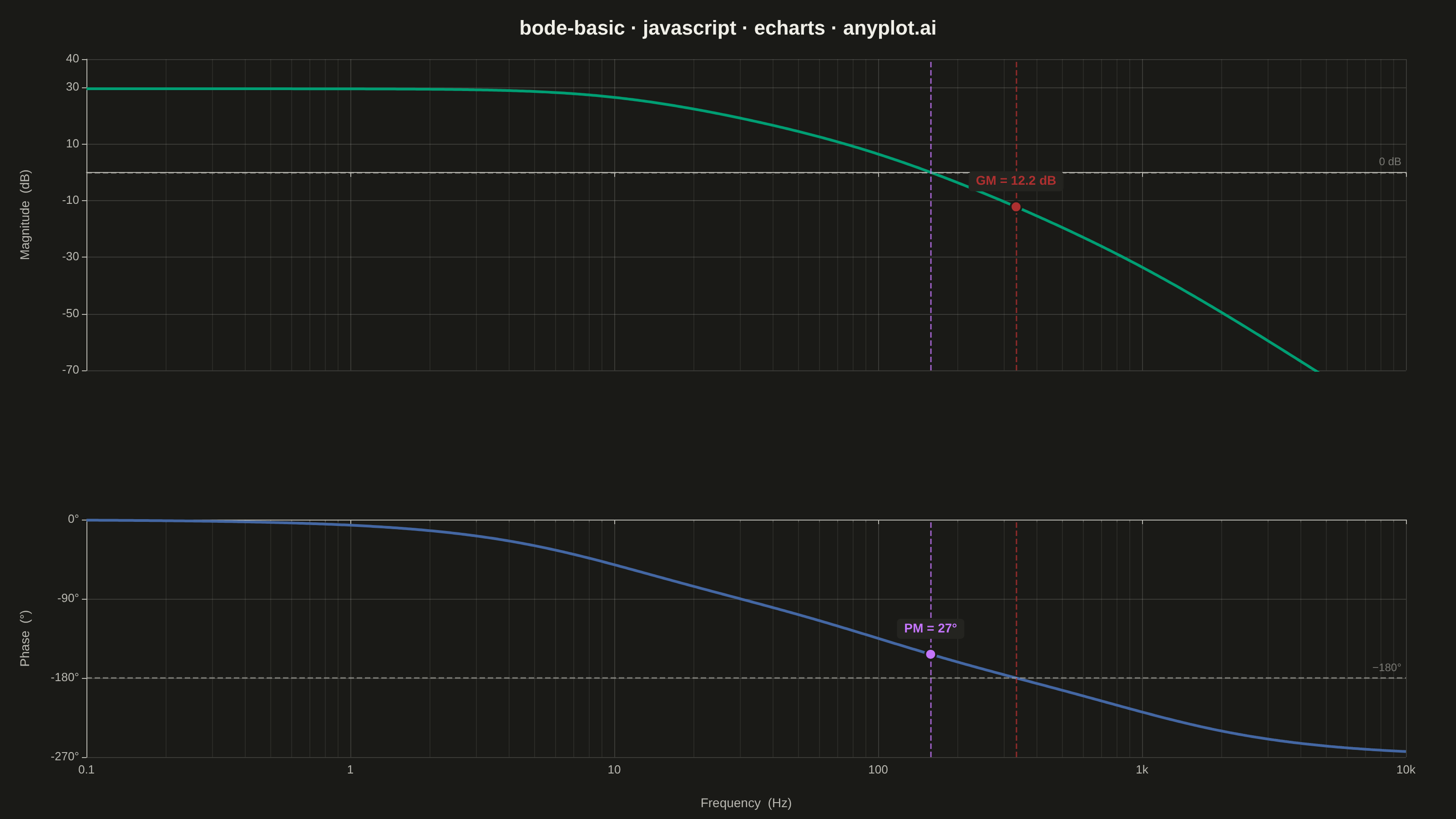

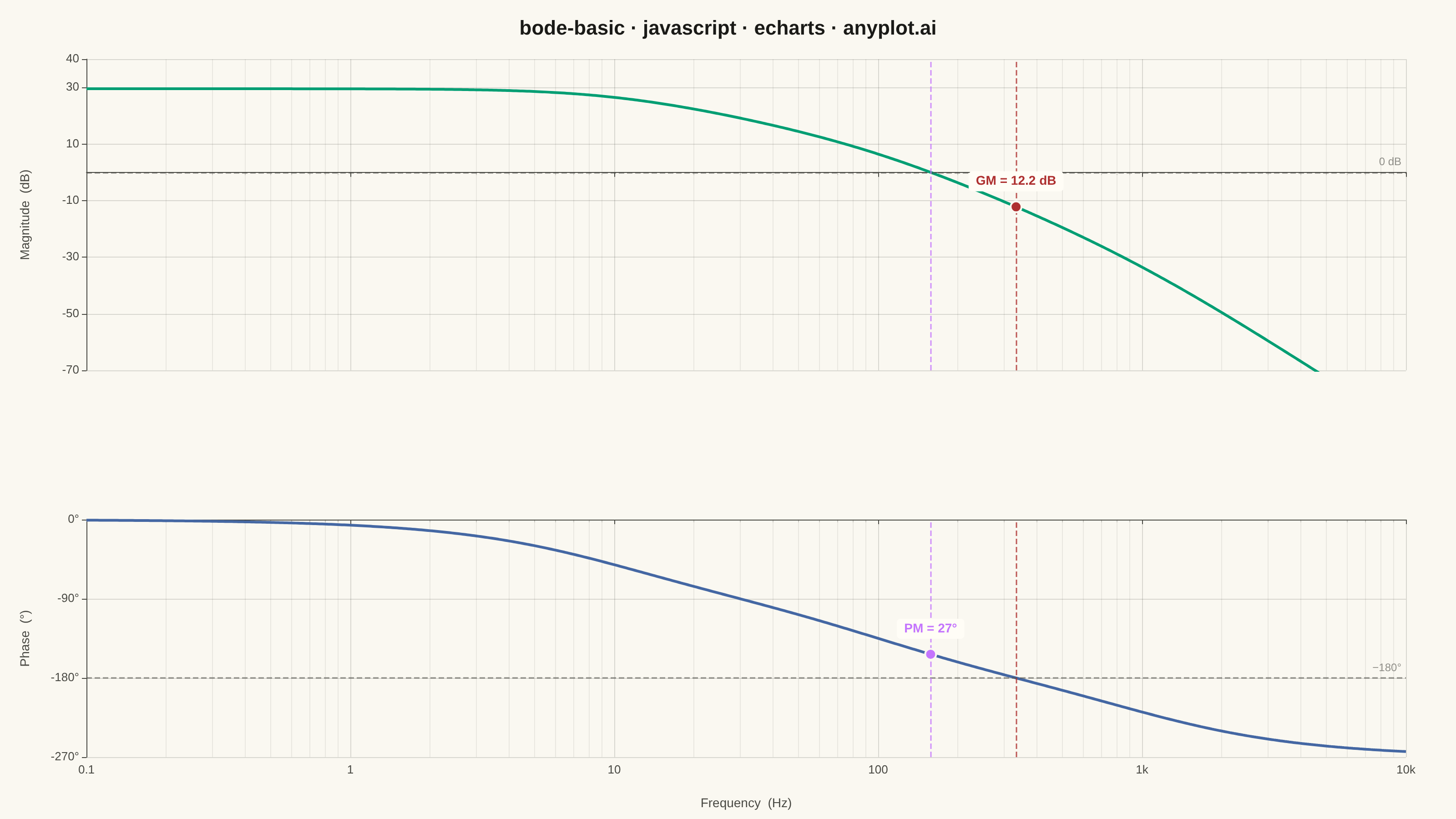

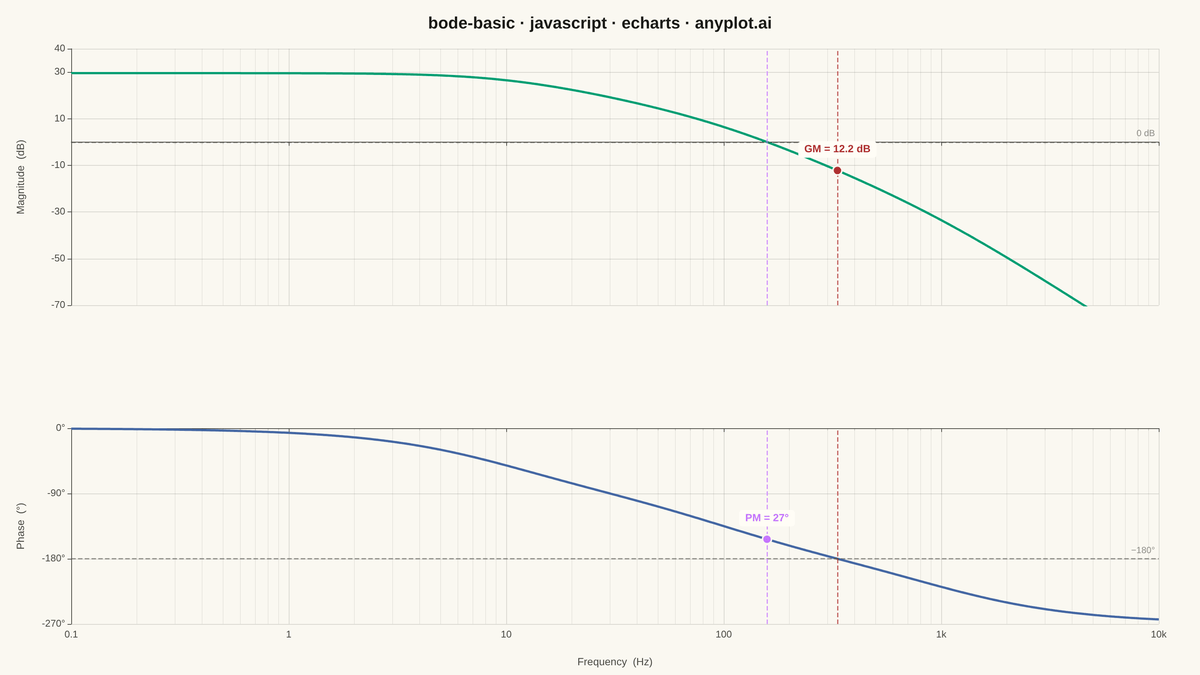

A Bode plot displays a system's frequency response as two vertically aligned panels: magnitude (in decibels) on top and phase (in degrees) on the bottom, both plotted against frequency on a shared logarithmic scale. This visualization is fundamental in control systems engineering and signal processing for analyzing how a system responds to sinusoidal inputs across a range of frequencies, revealing stability characteristics, bandwidth, and resonance behavior.
// anyplot.ai
// bode-basic: Bode Plot for Frequency Response
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-17
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// Open-loop transfer function: G(f) = K / ((1 + jf/f1)(1 + jf/f2)(1 + jf/f3))
// Three poles at f1=10 Hz, f2=100 Hz, f3=1000 Hz; DC gain K=30 (~29.5 dB)
const K_tf = 30, pole1 = 10, pole2 = 100, pole3 = 1000;
const N = 600;
const magData = [], phaseData = [];
for (let i = 0; i < N; i++) {
const f = Math.pow(10, -1 + 5 * i / (N - 1));
const r1 = f / pole1, r2 = f / pole2, r3 = f / pole3;
const magLin = K_tf / (Math.sqrt(1 + r1 * r1) * Math.sqrt(1 + r2 * r2) * Math.sqrt(1 + r3 * r3));
const magDb = 20 * Math.log10(magLin);
const phase = -(Math.atan(r1) + Math.atan(r2) + Math.atan(r3)) * 180 / Math.PI;
magData.push([f, +magDb.toFixed(3)]);
phaseData.push([f, +phase.toFixed(3)]);
}
// Interpolate gain crossover (|G| = 0 dB) and phase crossover (phase = -180°)
let gcFreq = null, gcPhase = null, pcFreq = null, pcMagDb = null;
for (let i = 0; i < N - 1; i++) {
if (magData[i][1] >= 0 && magData[i + 1][1] < 0 && gcFreq === null) {
const a = -magData[i][1] / (magData[i + 1][1] - magData[i][1]);
gcFreq = Math.pow(10, Math.log10(magData[i][0]) + a * Math.log10(magData[i + 1][0] / magData[i][0]));
gcPhase = phaseData[i][1] + a * (phaseData[i + 1][1] - phaseData[i][1]);
}
if (phaseData[i][1] >= -180 && phaseData[i + 1][1] < -180 && pcFreq === null) {
const a = (-180 - phaseData[i][1]) / (phaseData[i + 1][1] - phaseData[i][1]);
pcFreq = Math.pow(10, Math.log10(phaseData[i][0]) + a * Math.log10(phaseData[i + 1][0] / phaseData[i][0]));
pcMagDb = magData[i][1] + a * (magData[i + 1][1] - magData[i][1]);
}
}
const gainMarginDb = pcMagDb !== null ? +(-pcMagDb).toFixed(1) : null;
const phaseMarginDeg = gcPhase !== null ? +(180 + gcPhase).toFixed(1) : null;
const chart = echarts.init(document.getElementById("container"));
const LAVENDER = t.palette[1];
const BLUE = t.palette[2];
const RED = t.palette[4];
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "bode-basic · javascript · echarts · anyplot.ai",
left: "center",
top: 16,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "bold" }
},
grid: [
{ left: 95, right: 55, top: 65, height: "38%" },
{ left: 95, right: 55, bottom: 68, height: "29%" }
],
xAxis: [
{
gridIndex: 0, type: "log", min: 0.1, max: 10000,
axisLabel: { show: false },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
minorTick: { show: true, splitNumber: 9, lineStyle: { color: t.grid } },
splitLine: { lineStyle: { color: t.grid, width: 1 } },
minorSplitLine: { show: true, lineStyle: { color: t.grid, width: 0.5 } }
},
{
gridIndex: 1, type: "log", min: 0.1, max: 10000,
name: "Frequency (Hz)",
nameLocation: "center", nameGap: 44,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: {
color: t.inkSoft, fontSize: 13,
formatter: (v) => ({ 0.1: "0.1", 1: "1", 10: "10", 100: "100", 1000: "1k", 10000: "10k" }[v] || "")
},
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
minorTick: { show: true, splitNumber: 9, lineStyle: { color: t.grid } },
splitLine: { lineStyle: { color: t.grid, width: 1 } },
minorSplitLine: { show: true, lineStyle: { color: t.grid, width: 0.5 } }
}
],
yAxis: [
{
gridIndex: 0, type: "value", min: -70, max: 40, interval: 20,
name: "Magnitude (dB)",
nameLocation: "center", nameGap: 60,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 13 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid, width: 1 } }
},
{
gridIndex: 1, type: "value", min: -270, max: 0, interval: 90,
name: "Phase (°)",
nameLocation: "center", nameGap: 60,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 13, formatter: (v) => v + "°" },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid, width: 1 } }
}
],
series: [
// Magnitude response — Imprint palette position 1 (brand green)
{
name: "Magnitude",
type: "line",
xAxisIndex: 0, yAxisIndex: 0,
data: magData,
lineStyle: { color: t.palette[0], width: 3 },
symbol: "none",
markLine: {
silent: true,
symbol: ["none", "none"],
data: [
{
yAxis: 0,
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5, opacity: 0.6 },
label: { show: true, position: "insideEndTop",
formatter: "0 dB", color: t.inkSoft, fontSize: 12 }
},
...(gcFreq !== null ? [{
xAxis: gcFreq,
lineStyle: { color: LAVENDER, type: "dashed", width: 1.5, opacity: 0.8 },
label: { show: false }
}] : []),
...(pcFreq !== null ? [{
xAxis: pcFreq,
lineStyle: { color: RED, type: "dashed", width: 1.5, opacity: 0.8 },
label: { show: false }
}] : [])
]
},
markPoint: {
symbol: "circle",
symbolSize: 12,
data: pcFreq !== null ? [{
coord: [pcFreq, pcMagDb],
itemStyle: { color: RED, borderColor: t.pageBg, borderWidth: 2 },
label: {
show: true,
position: "top",
distance: 10,
formatter: `GM = ${gainMarginDb} dB`,
color: RED,
fontSize: 14,
fontWeight: "bold",
backgroundColor: t.elevatedBg,
padding: [4, 8],
borderRadius: 4
}
}] : []
}
},
// Phase response — Imprint palette position 3 (blue)
{
name: "Phase",
type: "line",
xAxisIndex: 1, yAxisIndex: 1,
data: phaseData,
lineStyle: { color: BLUE, width: 3 },
symbol: "none",
markLine: {
silent: true,
symbol: ["none", "none"],
data: [
{
yAxis: -180,
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5, opacity: 0.6 },
label: { show: true, position: "insideEndTop",
formatter: "−180°", color: t.inkSoft, fontSize: 12 }
},
...(gcFreq !== null ? [{
xAxis: gcFreq,
lineStyle: { color: LAVENDER, type: "dashed", width: 1.5, opacity: 0.8 },
label: { show: false }
}] : []),
...(pcFreq !== null ? [{
xAxis: pcFreq,
lineStyle: { color: RED, type: "dashed", width: 1.5, opacity: 0.8 },
label: { show: false }
}] : [])
]
},
markPoint: {
symbol: "circle",
symbolSize: 12,
data: gcFreq !== null ? [{
coord: [gcFreq, gcPhase],
itemStyle: { color: LAVENDER, borderColor: t.pageBg, borderWidth: 2 },
label: {
show: true,
position: "top",
distance: 10,
formatter: `PM = ${phaseMarginDeg}°`,
color: LAVENDER,
fontSize: 14,
fontWeight: "bold",
backgroundColor: t.elevatedBg,
padding: [4, 8],
borderRadius: 4
}
}] : []
}
}
]
});
Part of Bode Plot for Frequency Response on anyplot.ai.
