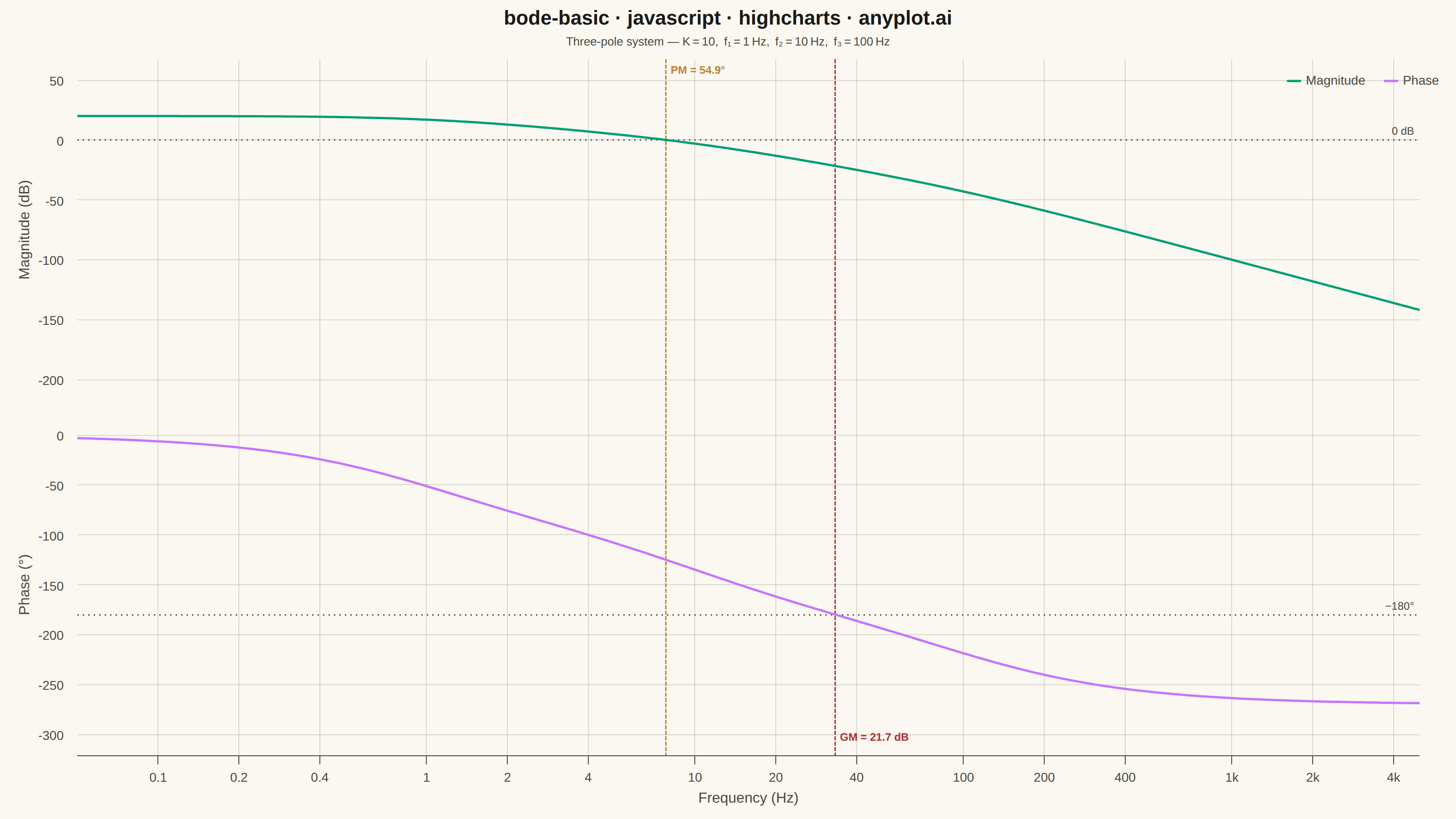

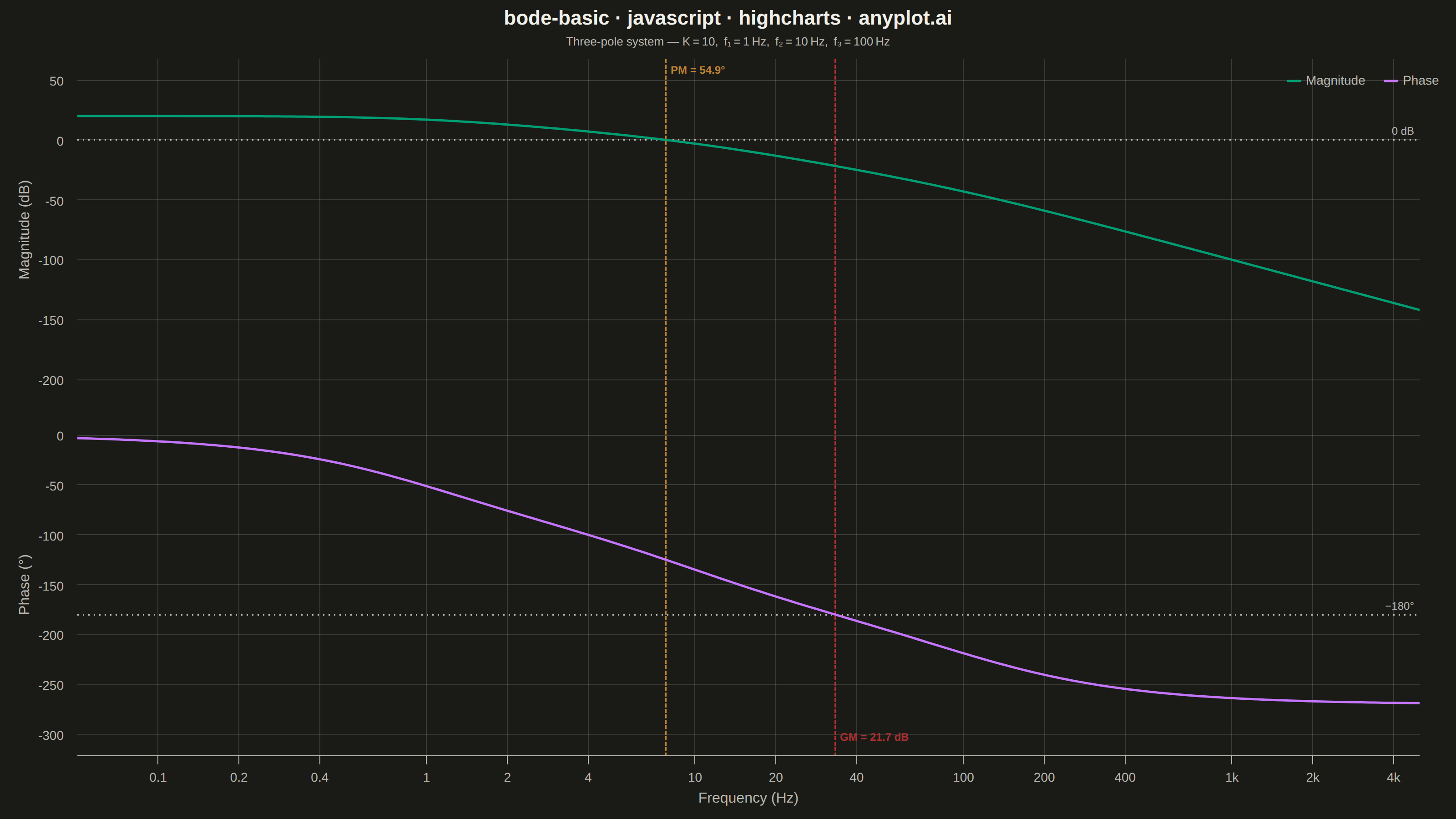

A Bode plot displays a system's frequency response as two vertically aligned panels: magnitude (in decibels) on top and phase (in degrees) on the bottom, both plotted against frequency on a shared logarithmic scale. This visualization is fundamental in control systems engineering and signal processing for analyzing how a system responds to sinusoidal inputs across a range of frequencies, revealing stability characteristics, bandwidth, and resonance behavior.
// anyplot.ai
// bode-basic: Bode Plot for Frequency Response
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 89/100 | Created: 2026-06-17
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Transfer function data --------------------------------------------------
// Three-pole low-pass: H(s) = K / ((s/w1+1)(s/w2+1)(s/w3+1))
// K=10, pole frequencies: f1=1Hz, f2=10Hz, f3=100Hz
// Gives ~54deg phase margin and ~21dB gain margin — a well-tuned stable system
const K = 10, f1 = 1, f2 = 10, f3 = 100;
const N = 300, fMin = 0.05, fMax = 5000;
const magData = [], phaseData = [];
for (let i = 0; i < N; i++) {
const f = fMin * Math.pow(10, i * Math.log10(fMax / fMin) / (N - 1));
const denom = Math.sqrt(1 + (f / f1) ** 2) * Math.sqrt(1 + (f / f2) ** 2) * Math.sqrt(1 + (f / f3) ** 2);
const magDb = 20 * Math.log10(K / denom);
const phaseDeg = -(Math.atan(f / f1) + Math.atan(f / f2) + Math.atan(f / f3)) * (180 / Math.PI);
magData.push([f, +magDb.toFixed(4)]);
phaseData.push([f, +phaseDeg.toFixed(4)]);
}
// --- Stability margin computation (log-linear interpolation) -----------------
// Gain crossover: first frequency where magnitude crosses 0 dB from above
let fGc = null, phaseAtGc = null;
for (let i = 1; i < magData.length; i++) {
if (magData[i - 1][1] >= 0 && magData[i][1] < 0) {
const r = magData[i - 1][1] / (magData[i - 1][1] - magData[i][1]);
fGc = magData[i - 1][0] * Math.pow(magData[i][0] / magData[i - 1][0], r);
phaseAtGc = phaseData[i - 1][1] + (phaseData[i][1] - phaseData[i - 1][1]) * r;
break;
}
}
// Phase crossover: first frequency where phase crosses -180 degrees
let fPc = null, magAtPc = null;
for (let i = 1; i < phaseData.length; i++) {
if (phaseData[i - 1][1] >= -180 && phaseData[i][1] < -180) {
const r = (-180 - phaseData[i - 1][1]) / (phaseData[i][1] - phaseData[i - 1][1]);
fPc = phaseData[i - 1][0] * Math.pow(phaseData[i][0] / phaseData[i - 1][0], r);
magAtPc = magData[i - 1][1] + (magData[i][1] - magData[i - 1][1]) * r;
break;
}
}
const phaseMarginStr = phaseAtGc !== null ? (180 + phaseAtGc).toFixed(1) : null;
const gainMarginStr = magAtPc !== null ? (-magAtPc).toFixed(1) : null;
// Vertical marker lines at crossover frequencies
const xPlotLines = [];
if (fGc !== null) {
xPlotLines.push({
value: fGc,
color: t.palette[3], // ochre — gain crossover
dashStyle: 'ShortDash',
width: 1.5,
zIndex: 3,
label: {
text: 'PM = ' + phaseMarginStr + '°',
style: { color: t.palette[3], fontSize: '12px', fontWeight: '600' },
rotation: 0,
verticalAlign: 'top',
y: 16,
x: 5
}
});
}
if (fPc !== null) {
xPlotLines.push({
value: fPc,
color: t.palette[4], // matte red — phase crossover
dashStyle: 'ShortDash',
width: 1.5,
zIndex: 3,
label: {
text: 'GM = ' + gainMarginStr + ' dB',
style: { color: t.palette[4], fontSize: '12px', fontWeight: '600' },
rotation: 0,
verticalAlign: 'bottom',
y: -16,
x: 5
}
});
}
// --- Chart ------------------------------------------------------------------
Highcharts.chart('container', {
chart: {
type: 'line',
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
marginLeft: 85,
marginRight: 40,
marginBottom: 70,
marginTop: 65
},
credits: { enabled: false },
colors: t.palette,
title: {
text: 'bode-basic · javascript · highcharts · anyplot.ai',
style: { color: t.ink, fontSize: '22px', fontWeight: '600' }
},
subtitle: {
text: 'Three-pole system — K = 10, f₁ = 1 Hz, f₂ = 10 Hz, f₃ = 100 Hz',
style: { color: t.inkSoft, fontSize: '13px' }
},
legend: {
enabled: true,
verticalAlign: 'top',
align: 'right',
y: 6,
itemStyle: { color: t.inkSoft, fontSize: '14px' },
itemHoverStyle: { color: t.ink }
},
xAxis: {
type: 'logarithmic',
min: fMin,
max: fMax,
title: {
text: 'Frequency (Hz)',
style: { color: t.inkSoft, fontSize: '16px' }
},
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: '14px' } },
plotLines: xPlotLines
},
yAxis: [
{
// Top panel — Magnitude
title: {
text: 'Magnitude (dB)',
style: { color: t.inkSoft, fontSize: '16px' }
},
top: '3%',
height: '43%',
offset: 0,
lineColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: '14px' } },
plotLines: [{
value: 0,
color: t.inkSoft,
dashStyle: 'Dot',
width: 1.5,
zIndex: 2,
label: {
text: '0 dB',
style: { color: t.inkSoft, fontSize: '12px' },
align: 'right',
x: -6,
y: -6
}
}]
},
{
// Bottom panel — Phase
title: {
text: 'Phase (°)',
style: { color: t.inkSoft, fontSize: '16px' }
},
top: '54%',
height: '43%',
offset: 0,
lineColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: '14px' } },
plotLines: [{
value: -180,
color: t.inkSoft,
dashStyle: 'Dot',
width: 1.5,
zIndex: 2,
label: {
text: '−180°',
style: { color: t.inkSoft, fontSize: '12px' },
align: 'right',
x: -6,
y: -6
}
}]
}
],
plotOptions: {
series: {
animation: false,
lineWidth: 2.5,
marker: { enabled: false }
}
},
series: [
{
name: 'Magnitude',
data: magData,
yAxis: 0,
color: t.palette[0] // #009E73 brand green — always first series
},
{
name: 'Phase',
data: phaseData,
yAxis: 1,
color: t.palette[1] // #C475FD lavender — canonical second series
}
]
});
Part of Bode Plot for Frequency Response on anyplot.ai.
