Basic Boxen Plot (Letter-Value Plot) — Pygal

A boxen plot (also known as letter-value plot) extends the traditional box plot to show more quantile information, making it ideal for large datasets with 1000+ observations. Instead of just displaying the median and quartiles, it shows additional "letter values" (eighths, sixteenths, etc.) as nested boxes, revealing the full shape of the distribution including tail behavior. This makes outlier detection more meaningful and distribution comparison more detailed.

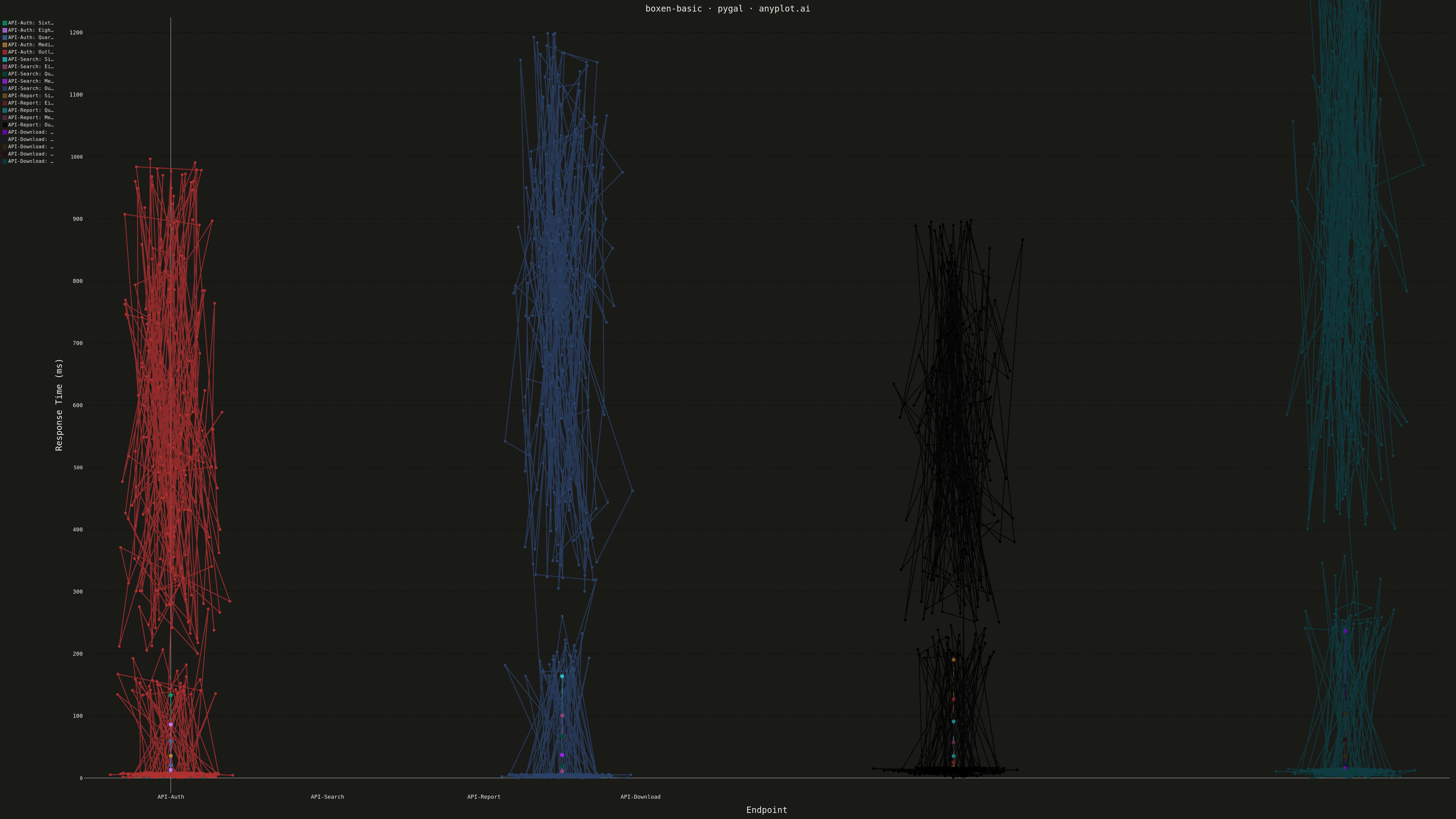

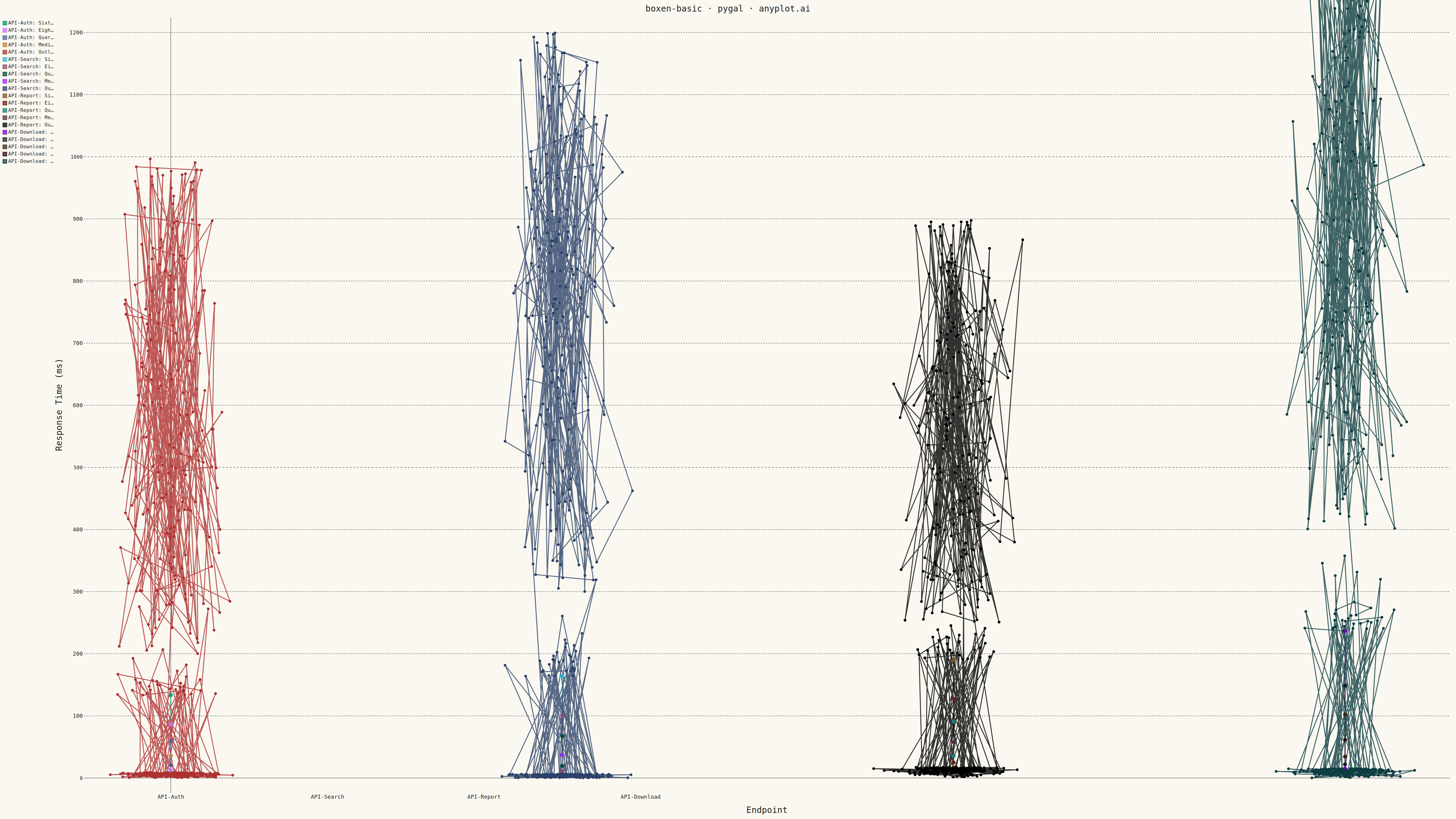

Basic Boxen Plot (Letter-Value Plot) rendered with Pygal

Renders

Python source (Pygal)

""" anyplot.ai
boxen-basic: Basic Boxen Plot (Letter-Value Plot)
Library: pygal 3.1.0 | Python 3.13.13
Quality: 61/100 | Created: 2026-05-17
"""

import importlib
import os
import sys

import numpy as np


script_dir = sys.path[0]
sys.path.pop(0)
pygal = importlib.import_module("pygal")
Style = importlib.import_module("pygal.style").Style
sys.path.insert(0, script_dir)

THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

IMPRINT = ("#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477")

np.random.seed(42)
endpoints = ["API-Auth", "API-Search", "API-Report", "API-Download"]

api_auth = np.concatenate([np.random.gamma(shape=2, scale=20, size=3500), np.random.uniform(200, 1000, size=200)])

api_search = np.concatenate([np.random.gamma(shape=1.5, scale=30, size=3500), np.random.uniform(300, 1200, size=200)])

api_report = np.concatenate([np.random.gamma(shape=2.5, scale=25, size=3500), np.random.uniform(250, 900, size=200)])

api_download = np.concatenate([np.random.gamma(shape=2, scale=35, size=3500), np.random.uniform(400, 1500, size=200)])

datasets = [api_auth, api_search, api_report, api_download]


def get_letter_values(data):
    """Calculate letter values at multiple quantile levels"""
    quantiles = {
        "sixteenths": (np.percentile(data, 6.25), np.percentile(data, 93.75)),
        "eighths": (np.percentile(data, 12.5), np.percentile(data, 87.5)),
        "quartiles": (np.percentile(data, 25), np.percentile(data, 75)),
        "median": (np.percentile(data, 50), np.percentile(data, 50)),
    }
    return quantiles


def get_outliers(data):
    """Get points beyond sixteenths"""
    q_lower = np.percentile(data, 6.25)
    q_upper = np.percentile(data, 93.75)
    return data[(data < q_lower) | (data > q_upper)].tolist()


custom_style = Style(
    background=PAGE_BG,
    plot_background=PAGE_BG,
    foreground=INK,
    foreground_strong=INK,
    foreground_subtle=INK_MUTED,
    colors=IMPRINT,
    title_font_size=28,
    label_font_size=18,
    major_label_font_size=16,
    legend_font_size=16,
    value_font_size=14,
    stroke_width=3,
)

boxen_chart = pygal.XY(
    title="boxen-basic · pygal · anyplot.ai",
    x_title="Endpoint",
    y_title="Response Time (ms)",
    width=4800,
    height=2700,
    style=custom_style,
    show_legend=True,
    range=(0, 1200),
    show_dots=True,
    dots_size=6,
)

for endpoint_idx, endpoint in enumerate(endpoints):
    data = datasets[endpoint_idx]
    lv = get_letter_values(data)

    # Add data points for each letter value level to create nested boxes
    # Sixteenths - outermost box
    s_lower, s_upper = lv["sixteenths"]
    boxen_chart.add(f"{endpoint}: Sixteenths", [(endpoint_idx, s_lower), (endpoint_idx, s_upper)], stroke_width=2)

    # Eighths - middle outer box
    e_lower, e_upper = lv["eighths"]
    boxen_chart.add(f"{endpoint}: Eighths", [(endpoint_idx, e_lower), (endpoint_idx, e_upper)], stroke_width=2)

    # Quartiles - middle inner box (IQR)
    q_lower, q_upper = lv["quartiles"]
    boxen_chart.add(f"{endpoint}: Quartiles", [(endpoint_idx, q_lower), (endpoint_idx, q_upper)], stroke_width=4)

    # Median - innermost
    m_val = lv["median"][0]
    boxen_chart.add(f"{endpoint}: Median", [(endpoint_idx, m_val)], stroke_width=6)

    # Outliers
    outliers = get_outliers(data)
    if outliers:
        outlier_x = [endpoint_idx + np.random.normal(0, 0.06) for _ in outliers]
        outlier_points = list(zip(outlier_x, outliers, strict=False))
        boxen_chart.add(f"{endpoint}: Outliers", outlier_points, dots_size=4)

boxen_chart.x_labels = endpoints

boxen_chart.render_to_png(f"plot-{THEME}.png")

with open(f"plot-{THEME}.html", "wb") as f:
    f.write(boxen_chart.render())

Part of Basic Boxen Plot (Letter-Value Plot) on anyplot.ai.
