Decision Boundary Classifier Visualization — Altair

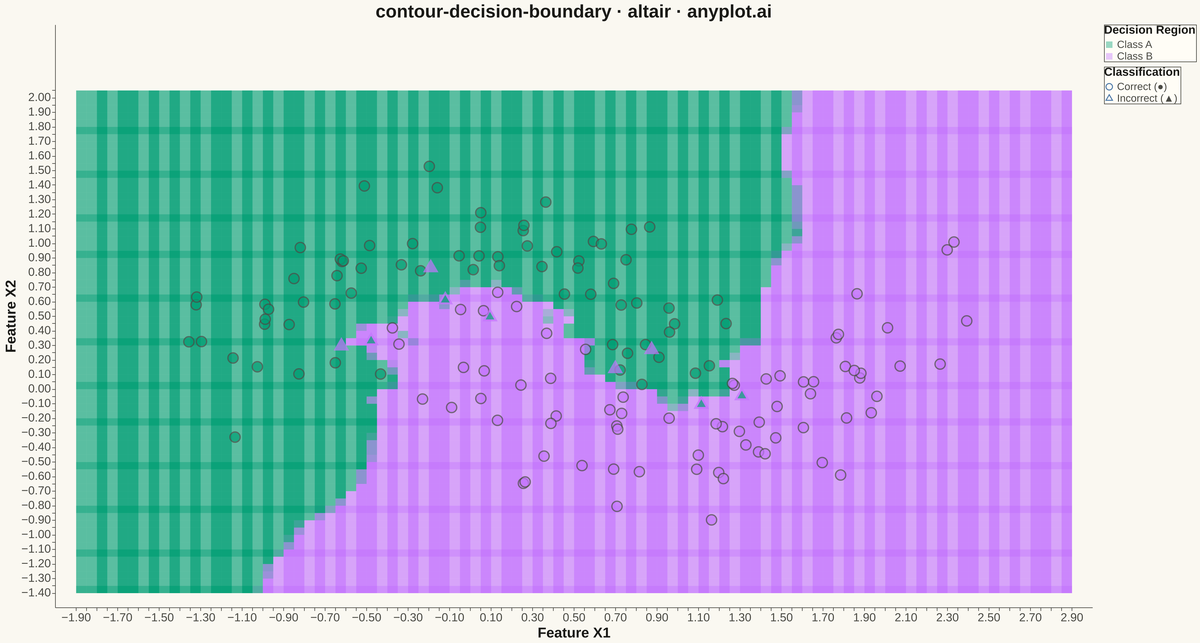

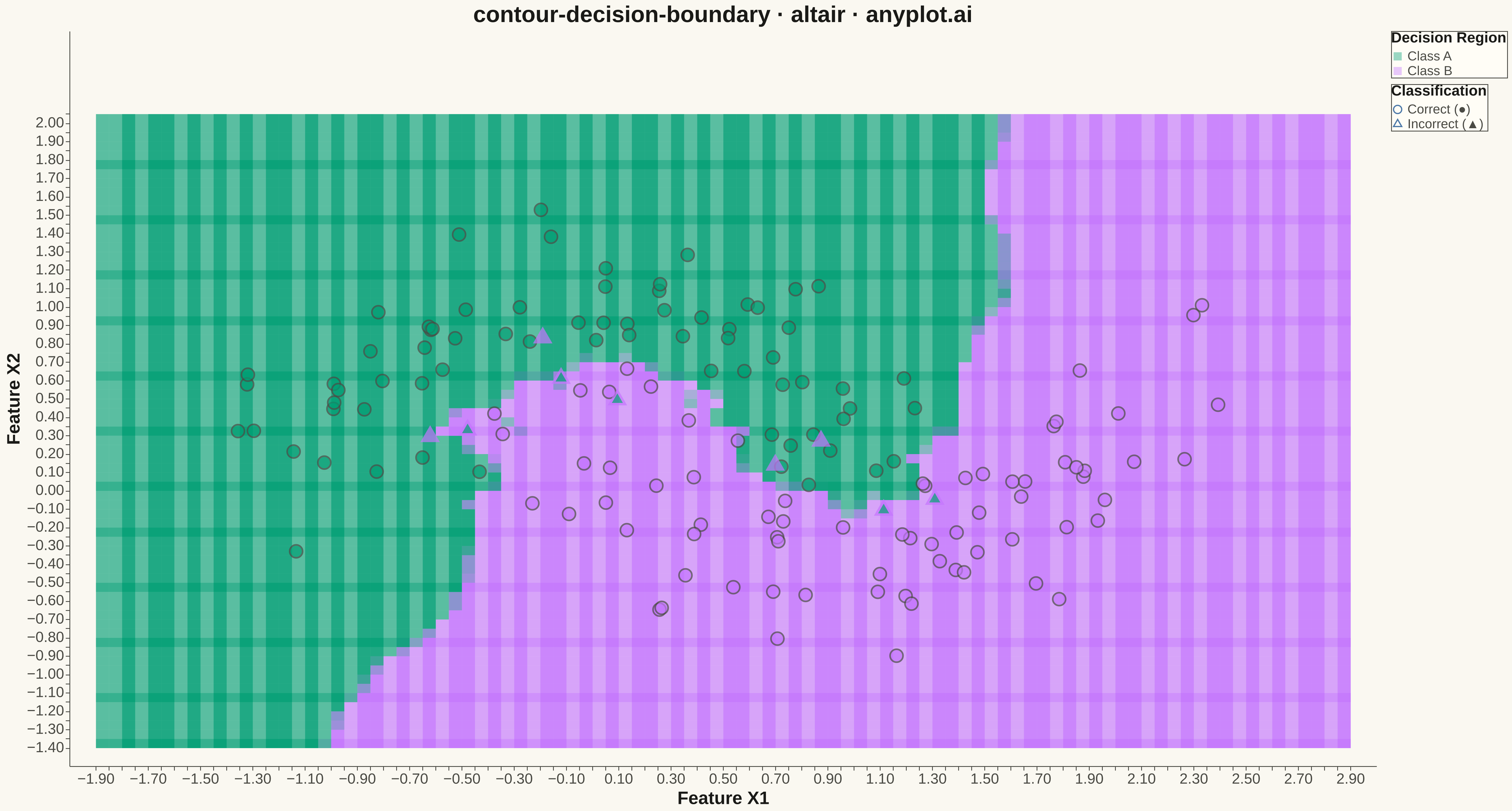

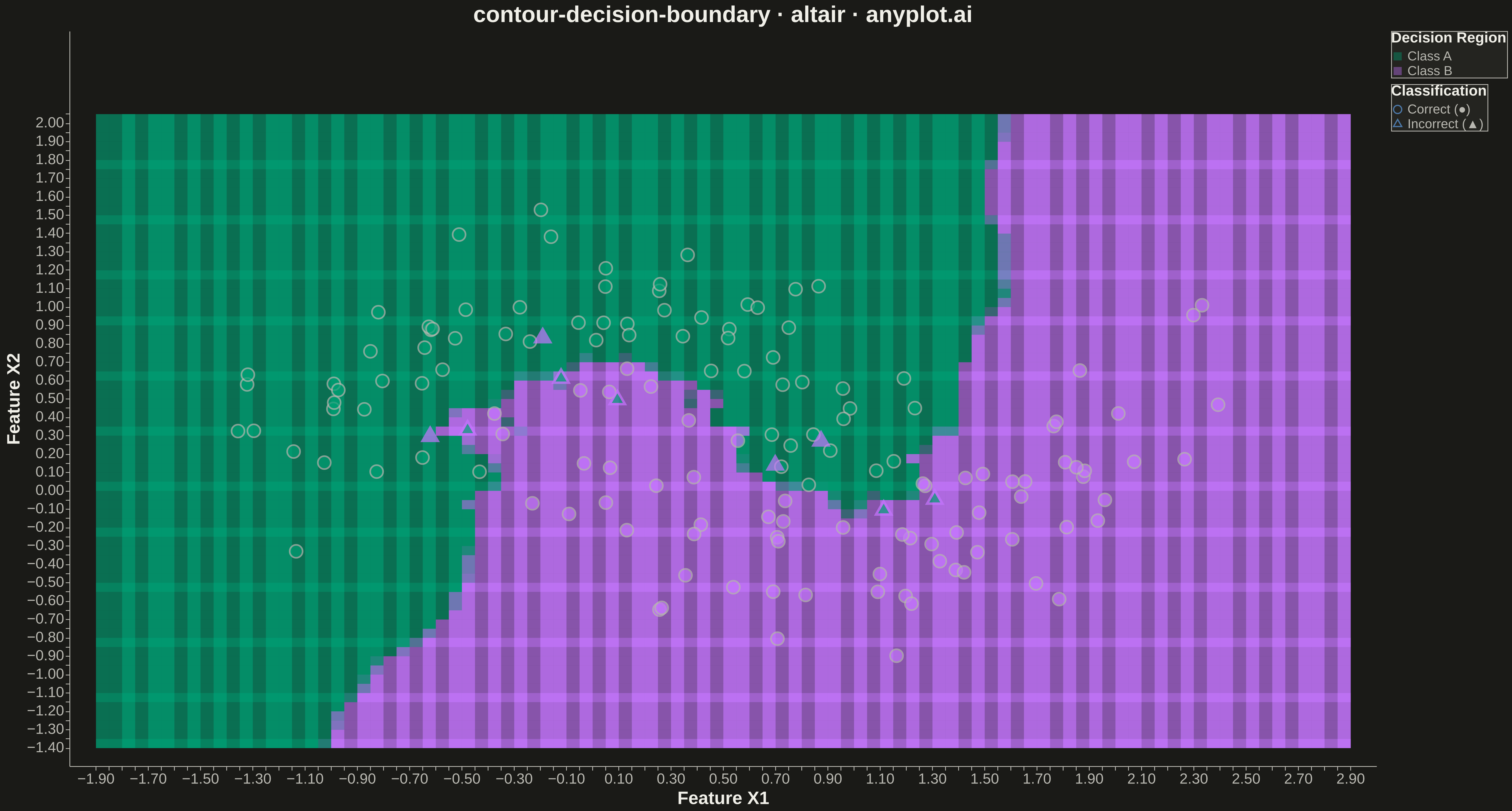

A decision boundary visualization showing how a classifier partitions 2D feature space into predicted class regions. Colored regions indicate the predicted class at each point in the feature space, with training data points overlaid to show how well the classifier separates different classes. This visualization is essential for understanding classifier behavior, identifying decision boundaries, and evaluating classification accuracy in machine learning.

Decision Boundary Classifier Visualization rendered with Altair

Python source (Altair)

""" anyplot.ai
contour-decision-boundary: Decision Boundary Classifier Visualization
Library: altair 6.1.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-16
"""

import os

import altair as alt
import numpy as np
import pandas as pd
from sklearn.datasets import make_moons
from sklearn.neighbors import KNeighborsClassifier


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data - generate two-moon classification dataset
np.random.seed(42)
X, y = make_moons(n_samples=150, noise=0.25, random_state=42)

# Train a KNN classifier
clf = KNeighborsClassifier(n_neighbors=5)
clf.fit(X, y)

# Create mesh grid for decision boundary
x_min, x_max = X[:, 0].min() - 0.5, X[:, 0].max() + 0.5
y_min, y_max = X[:, 1].min() - 0.5, X[:, 1].max() + 0.5
xx, yy = np.meshgrid(np.linspace(x_min, x_max, 150), np.linspace(y_min, y_max, 150))

# Predict on mesh grid
Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

# Create DataFrame for background regions (decision boundary)
mesh_df = pd.DataFrame(
    {"X1": xx.ravel(), "X2": yy.ravel(), "Class": ["Class A" if z == 0 else "Class B" for z in Z.ravel()]}
)

# Create DataFrame for training points
train_df = pd.DataFrame(
    {"X1": X[:, 0], "X2": X[:, 1], "Class": ["Class A" if label == 0 else "Class B" for label in y]}
)

# Add prediction for training points to show misclassified
train_predictions = clf.predict(X)
train_df["Classification"] = ["Correct" if p == t else "Incorrect" for p, t in zip(train_predictions, y, strict=True)]

# Decision boundary background using rect marks
background = (
    alt.Chart(mesh_df)
    .mark_rect(opacity=0.4)
    .encode(
        x=alt.X("X1:Q", bin=alt.Bin(maxbins=150), title="Feature X1"),
        y=alt.Y("X2:Q", bin=alt.Bin(maxbins=150), title="Feature X2"),
        color=alt.Color(
            "Class:N",
            scale=alt.Scale(domain=["Class A", "Class B"], range=[IMPRINT[0], IMPRINT[1]]),
            legend=alt.Legend(title="Decision Region", titleFontSize=18, labelFontSize=16, orient="right"),
        ),
    )
)

# Correctly classified points (circles)
correct_points = (
    alt.Chart(train_df[train_df["Classification"] == "Correct"])
    .mark_circle(size=250, strokeWidth=2)
    .encode(
        x=alt.X("X1:Q"),
        y=alt.Y("X2:Q"),
        fill=alt.Color(
            "Class:N", scale=alt.Scale(domain=["Class A", "Class B"], range=[IMPRINT[0], IMPRINT[1]]), legend=None
        ),
        stroke=alt.value(INK_SOFT),
        tooltip=["X1:Q", "X2:Q", "Class:N", "Classification:N"],
    )
)

# Incorrectly classified points (triangles with orange stroke)
incorrect_points = (
    alt.Chart(train_df[train_df["Classification"] == "Incorrect"])
    .mark_point(shape="triangle", size=350, strokeWidth=3, filled=True)
    .encode(
        x=alt.X("X1:Q"),
        y=alt.Y("X2:Q"),
        fill=alt.Color(
            "Class:N", scale=alt.Scale(domain=["Class A", "Class B"], range=[IMPRINT[0], IMPRINT[1]]), legend=None
        ),
        stroke=alt.value(IMPRINT[1]),
        tooltip=["X1:Q", "X2:Q", "Class:N", "Classification:N"],
    )
)

# Create a separate legend for shapes (classification status)
shape_legend_df = pd.DataFrame({"Classification": ["Correct (●)", "Incorrect (▲)"], "x": [0, 0], "y": [0, 1]})
shape_legend = (
    alt.Chart(shape_legend_df)
    .mark_point(size=0, opacity=0)
    .encode(
        x=alt.X("x:Q"),
        y=alt.Y("y:Q"),
        shape=alt.Shape(
            "Classification:N",
            scale=alt.Scale(domain=["Correct (●)", "Incorrect (▲)"], range=["circle", "triangle"]),
            legend=alt.Legend(title="Classification", titleFontSize=18, labelFontSize=16, orient="right"),
        ),
    )
)

# Combine layers
chart = (
    alt.layer(background, correct_points, incorrect_points, shape_legend)
    .properties(
        width=1600,
        height=900,
        background=PAGE_BG,
        title=alt.Title("contour-decision-boundary · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK),
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT, strokeWidth=0)
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.10,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=18,
        titleFontSize=22,
    )
    .configure_legend(
        fillColor=ELEVATED_BG,
        strokeColor=INK_SOFT,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=16,
        titleFontSize=18,
    )
)

# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
