Decision Boundary Classifier Visualization — Matplotlib

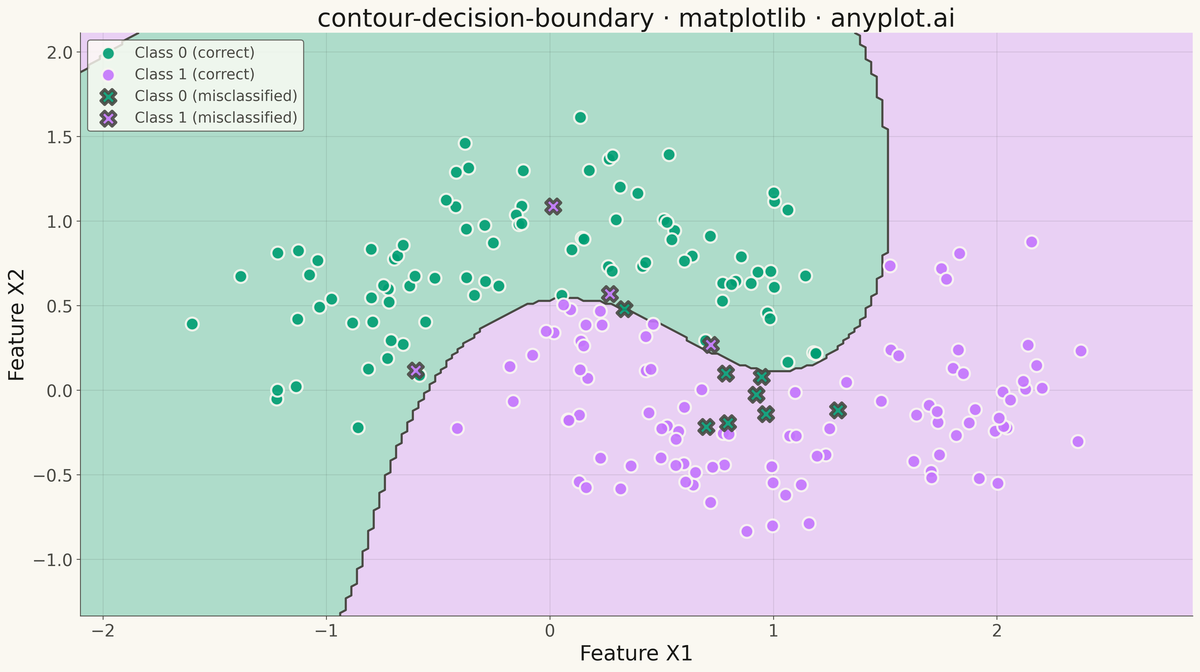

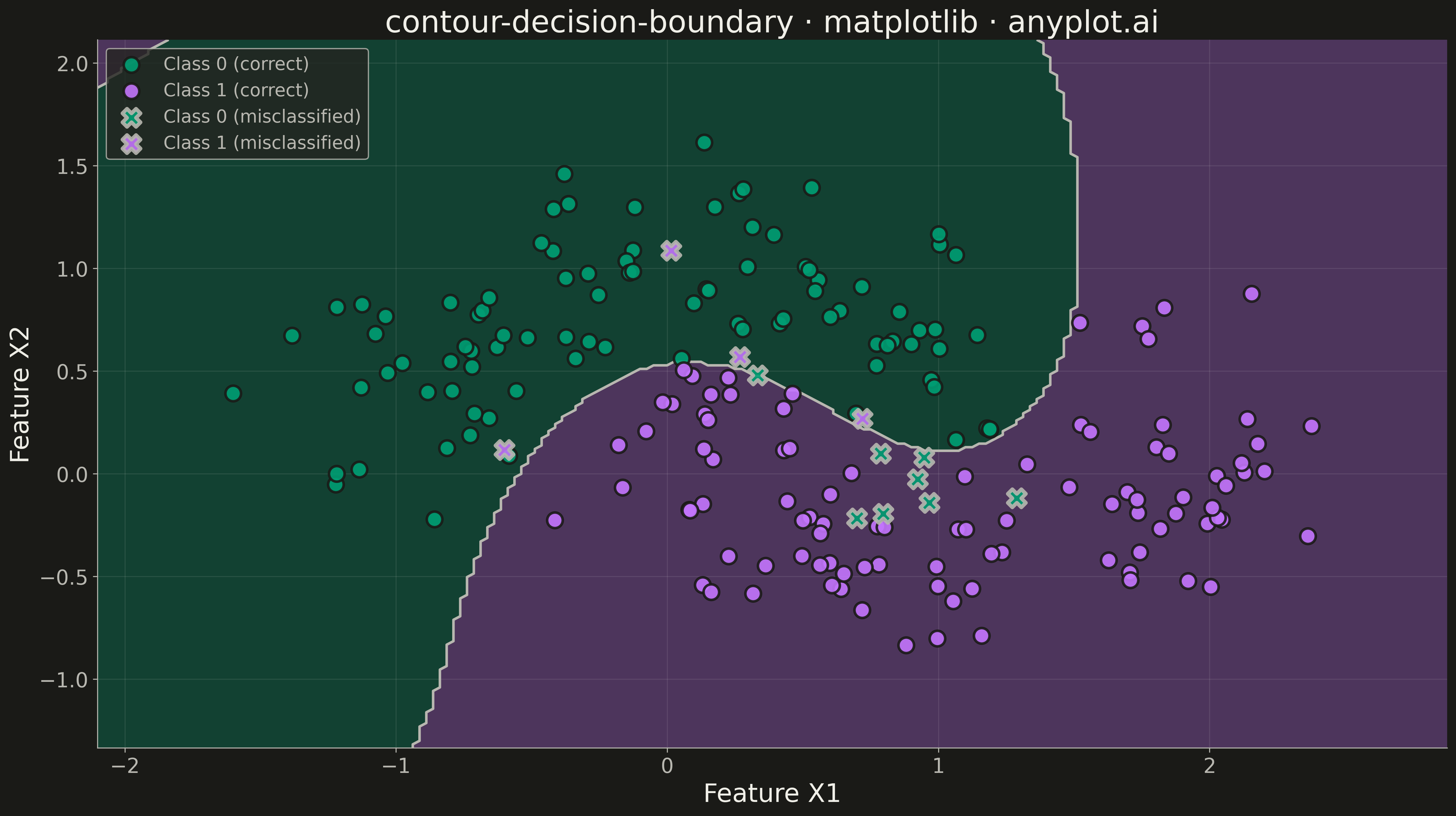

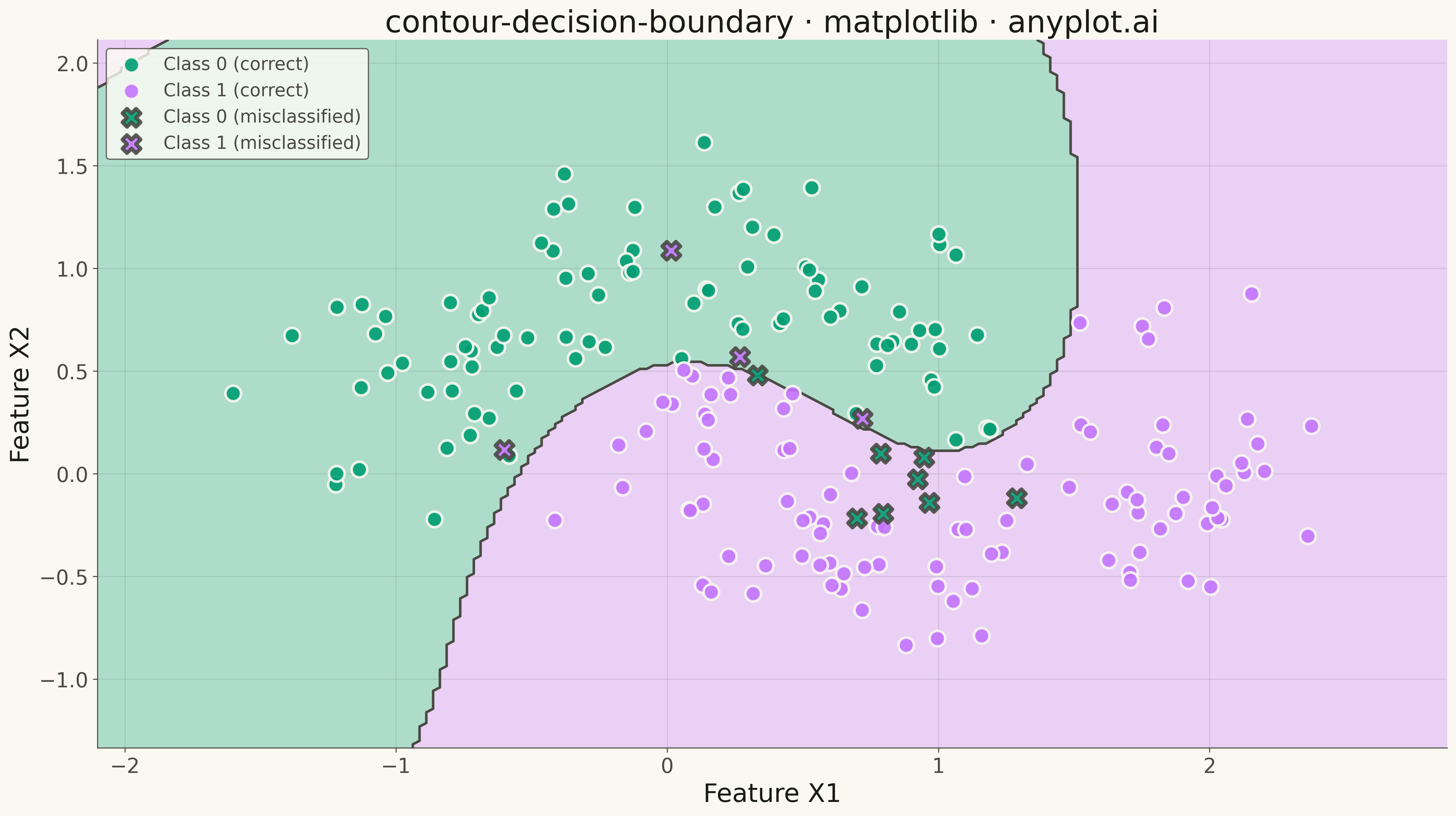

A decision boundary visualization showing how a classifier partitions 2D feature space into predicted class regions. Colored regions indicate the predicted class at each point in the feature space, with training data points overlaid to show how well the classifier separates different classes. This visualization is essential for understanding classifier behavior, identifying decision boundaries, and evaluating classification accuracy in machine learning.

Decision Boundary Classifier Visualization rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
contour-decision-boundary: Decision Boundary Classifier Visualization
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-16
"""

import os

import matplotlib.pyplot as plt
import numpy as np
from sklearn.datasets import make_moons
from sklearn.svm import SVC


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data - generate synthetic two-moon classification data
np.random.seed(42)
X, y = make_moons(n_samples=200, noise=0.25, random_state=42)

# Train a classifier (SVM with RBF kernel)
classifier = SVC(kernel="rbf", C=1.0, gamma="scale")
classifier.fit(X, y)

# Create mesh grid for decision boundary
x_min, x_max = X[:, 0].min() - 0.5, X[:, 0].max() + 0.5
y_min, y_max = X[:, 1].min() - 0.5, X[:, 1].max() + 0.5
xx, yy = np.meshgrid(np.linspace(x_min, x_max, 200), np.linspace(y_min, y_max, 200))

# Predict class for each point in mesh
Z = classifier.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Plot decision regions with contourf
ax.contourf(xx, yy, Z, alpha=0.3, colors=[IMPRINT[0], IMPRINT[1]], levels=[-0.5, 0.5, 1.5])

# Add decision boundary line
ax.contour(xx, yy, Z, colors=INK_SOFT, linewidths=2, levels=[0.5])

# Identify correctly and incorrectly classified points
predictions = classifier.predict(X)
correct = predictions == y
incorrect = ~correct

# Plot training points - correctly classified
class_0_correct = (y == 0) & correct
class_1_correct = (y == 1) & correct
ax.scatter(
    X[class_0_correct, 0],
    X[class_0_correct, 1],
    c=IMPRINT[0],
    s=150,
    alpha=0.9,
    edgecolors=PAGE_BG,
    linewidths=2,
    marker="o",
    label="Class 0 (correct)",
    zorder=3,
)
ax.scatter(
    X[class_1_correct, 0],
    X[class_1_correct, 1],
    c=IMPRINT[1],
    s=150,
    alpha=0.9,
    edgecolors=PAGE_BG,
    linewidths=2,
    marker="o",
    label="Class 1 (correct)",
    zorder=3,
)

# Plot incorrectly classified points with X marker
if np.any(incorrect):
    class_0_incorrect = (y == 0) & incorrect
    class_1_incorrect = (y == 1) & incorrect
    if np.any(class_0_incorrect):
        ax.scatter(
            X[class_0_incorrect, 0],
            X[class_0_incorrect, 1],
            c=IMPRINT[0],
            s=200,
            alpha=0.9,
            edgecolors=INK_SOFT,
            linewidths=3,
            marker="X",
            label="Class 0 (misclassified)",
            zorder=4,
        )
    if np.any(class_1_incorrect):
        ax.scatter(
            X[class_1_incorrect, 0],
            X[class_1_incorrect, 1],
            c=IMPRINT[1],
            s=200,
            alpha=0.9,
            edgecolors=INK_SOFT,
            linewidths=3,
            marker="X",
            label="Class 1 (misclassified)",
            zorder=4,
        )

# Style
ax.set_xlabel("Feature X1", fontsize=20, color=INK)
ax.set_ylabel("Feature X2", fontsize=20, color=INK)
ax.set_title("contour-decision-boundary · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)
ax.grid(True, alpha=0.1, linewidth=0.8, color=INK)

leg = ax.legend(fontsize=14, loc="upper left")
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    plt.setp(leg.get_texts(), color=INK_SOFT)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
