Decision Boundary Classifier Visualization — Seaborn

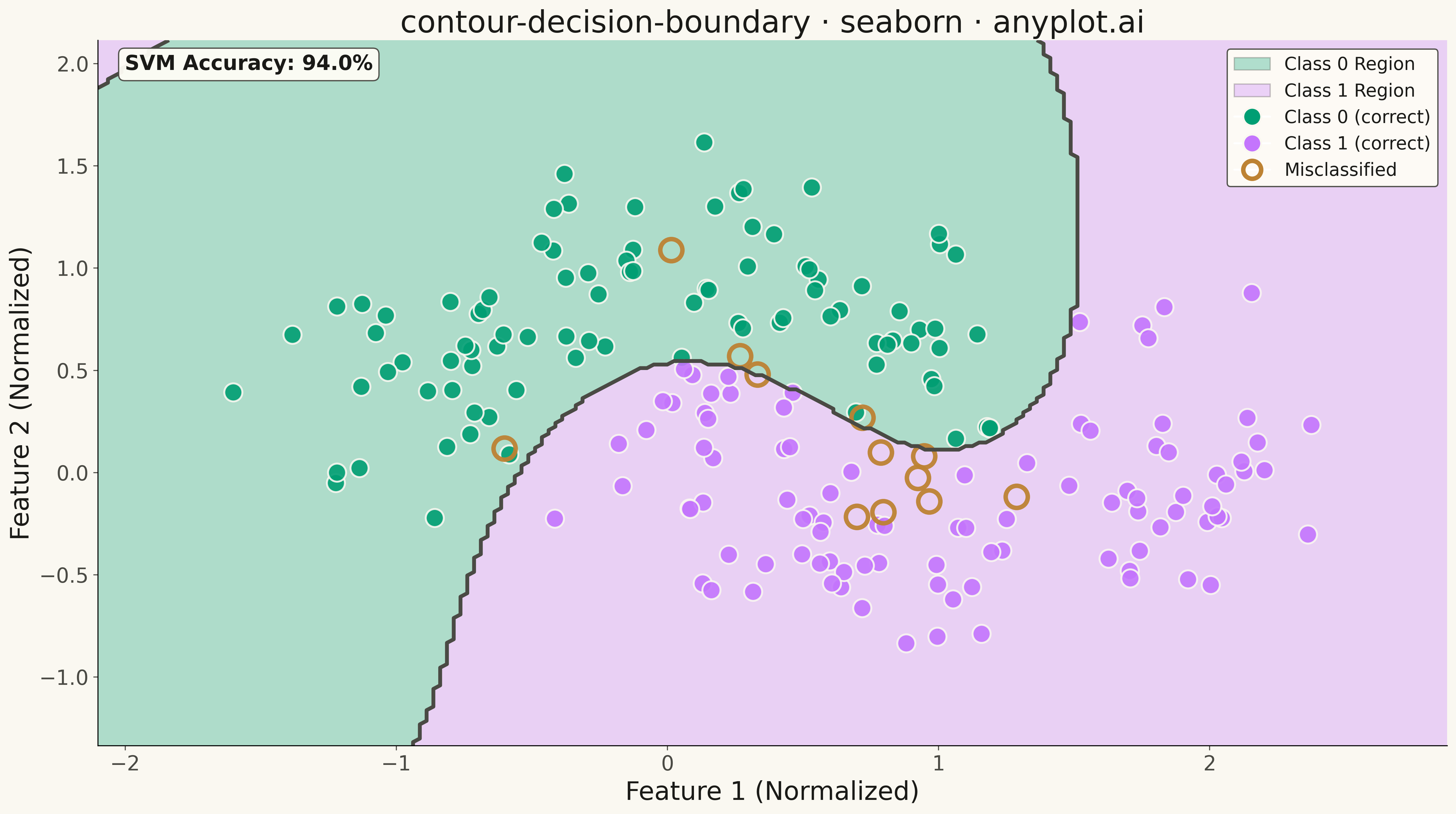

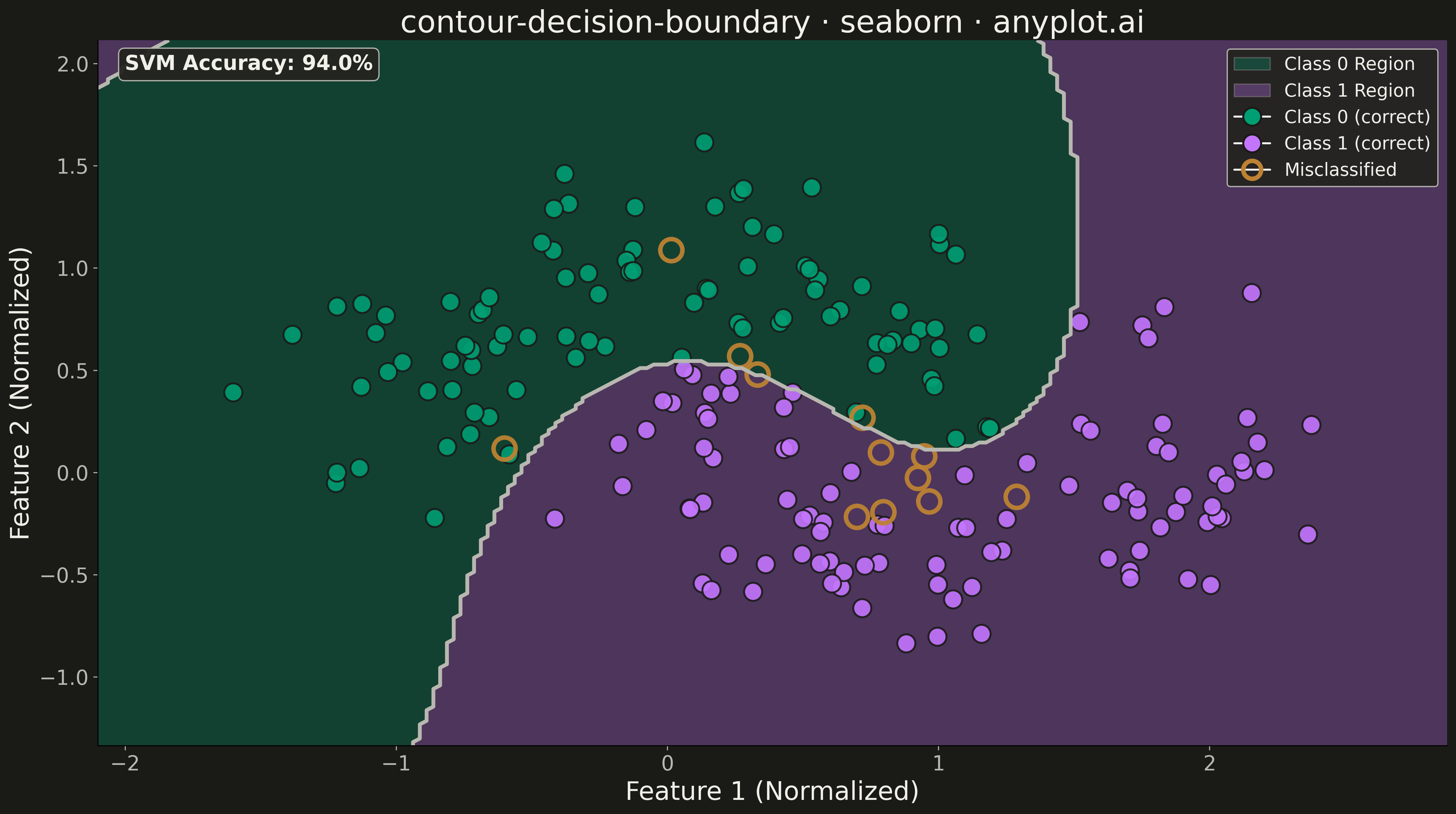

A decision boundary visualization showing how a classifier partitions 2D feature space into predicted class regions. Colored regions indicate the predicted class at each point in the feature space, with training data points overlaid to show how well the classifier separates different classes. This visualization is essential for understanding classifier behavior, identifying decision boundaries, and evaluating classification accuracy in machine learning.

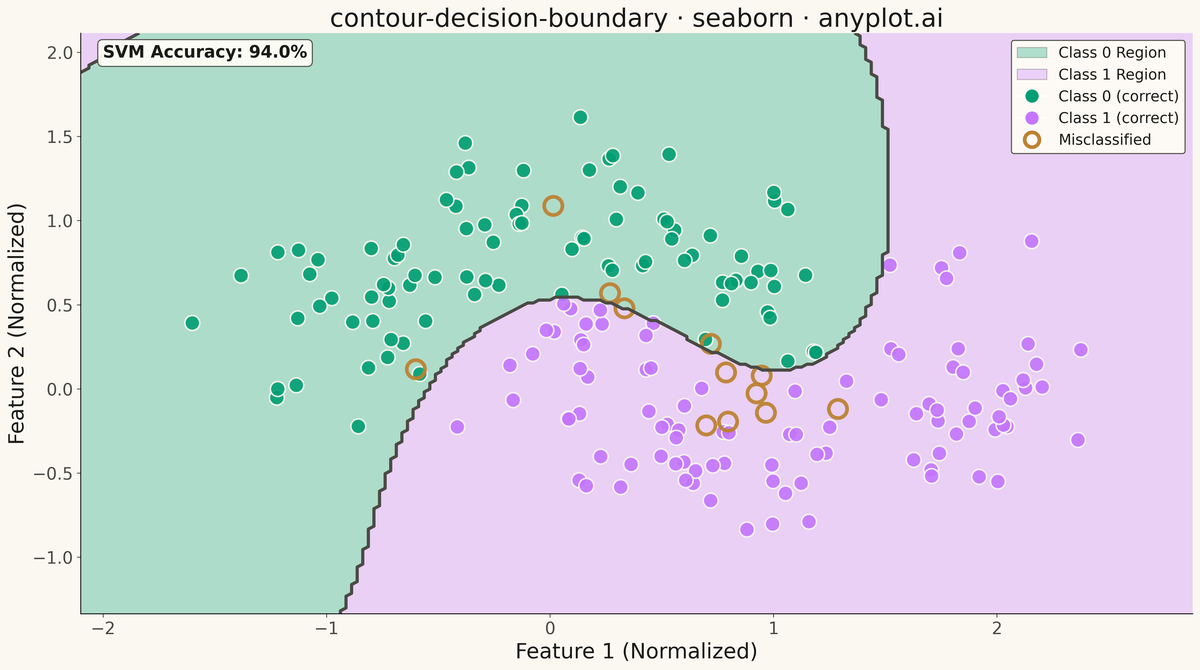

Decision Boundary Classifier Visualization rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
contour-decision-boundary: Decision Boundary Classifier Visualization
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-16
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from matplotlib.lines import Line2D
from matplotlib.patches import Patch
from sklearn.datasets import make_moons
from sklearn.svm import SVC


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

BRAND = "#009E73"
ALT_COLOR = "#C475FD"

np.random.seed(42)
X, y = make_moons(n_samples=200, noise=0.25, random_state=42)
X1 = X[:, 0]
X2 = X[:, 1]

clf = SVC(kernel="rbf", C=1.0, gamma="scale")
clf.fit(X, y)

x1_min, x1_max = X1.min() - 0.5, X1.max() + 0.5
x2_min, x2_max = X2.min() - 0.5, X2.max() + 0.5
xx1, xx2 = np.meshgrid(np.linspace(x1_min, x1_max, 200), np.linspace(x2_min, x2_max, 200))
grid_points = np.c_[xx1.ravel(), xx2.ravel()]

Z = clf.predict(grid_points).reshape(xx1.shape)

fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

contour = ax.contourf(xx1, xx2, Z, levels=[-0.5, 0.5, 1.5], colors=[BRAND, ALT_COLOR], alpha=0.3)

ax.contour(xx1, xx2, Z, levels=[0.5], colors=[INK_SOFT], linewidths=3)

predictions = clf.predict(X)
correct_mask = predictions == y
incorrect_mask = ~correct_mask

sns.scatterplot(
    x=X1[correct_mask],
    y=X2[correct_mask],
    hue=y[correct_mask],
    palette=[BRAND, ALT_COLOR],
    s=200,
    edgecolor=PAGE_BG,
    linewidth=1.5,
    alpha=0.9,
    ax=ax,
    legend=False,
)

if np.any(incorrect_mask):
    ax.scatter(
        X1[incorrect_mask],
        X2[incorrect_mask],
        s=300,
        edgecolors="#BD8233",
        linewidths=3.5,
        facecolors="none",
        alpha=0.95,
        marker="o",
    )

legend_elements = [
    Patch(facecolor=BRAND, alpha=0.3, edgecolor=INK_SOFT, label="Class 0 Region"),
    Patch(facecolor=ALT_COLOR, alpha=0.3, edgecolor=INK_SOFT, label="Class 1 Region"),
    Line2D(
        [0],
        [0],
        marker="o",
        color="w",
        markerfacecolor=BRAND,
        markersize=14,
        markeredgecolor=PAGE_BG,
        markeredgewidth=1.5,
        label="Class 0 (correct)",
    ),
    Line2D(
        [0],
        [0],
        marker="o",
        color="w",
        markerfacecolor=ALT_COLOR,
        markersize=14,
        markeredgecolor=PAGE_BG,
        markeredgewidth=1.5,
        label="Class 1 (correct)",
    ),
    Line2D(
        [0],
        [0],
        marker="o",
        color="w",
        markerfacecolor="none",
        markersize=14,
        markeredgecolor="#BD8233",
        markeredgewidth=3.5,
        label="Misclassified",
    ),
]
ax.legend(handles=legend_elements, loc="upper right", fontsize=14, framealpha=0.95)

ax.set_xlabel("Feature 1 (Normalized)", fontsize=20, color=INK)
ax.set_ylabel("Feature 2 (Normalized)", fontsize=20, color=INK)
ax.set_title("contour-decision-boundary · seaborn · anyplot.ai", fontsize=24, color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

accuracy = np.mean(predictions == y) * 100
ax.text(
    0.02,
    0.98,
    f"SVM Accuracy: {accuracy:.1f}%",
    transform=ax.transAxes,
    fontsize=16,
    verticalalignment="top",
    fontweight="bold",
    bbox={"boxstyle": "round", "facecolor": ELEVATED_BG, "alpha": 0.95, "edgecolor": INK_SOFT},
    color=INK,
)

ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Decision Boundary Classifier Visualization on anyplot.ai.
