Decision Boundary Classifier Visualization — plotnine

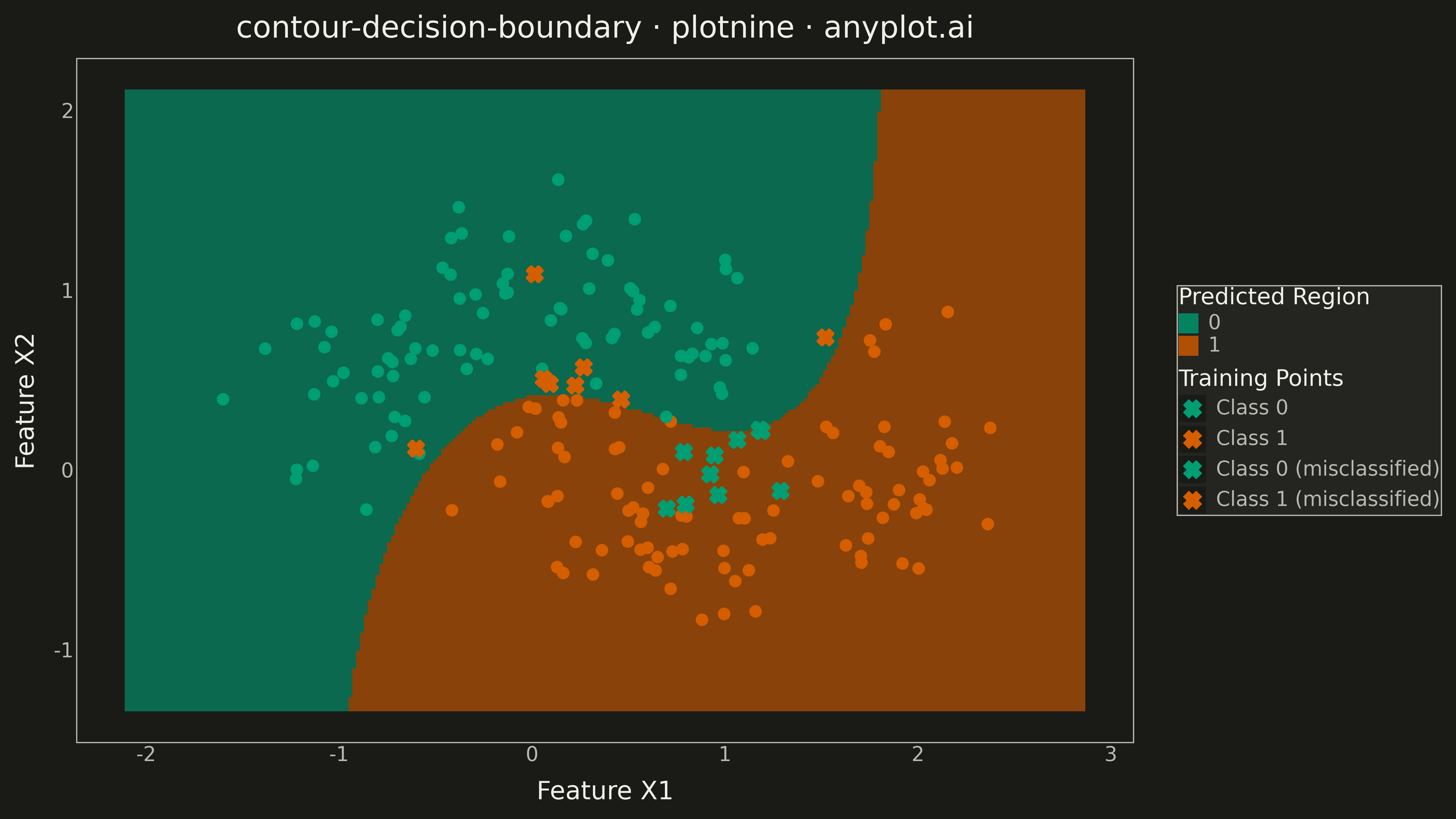

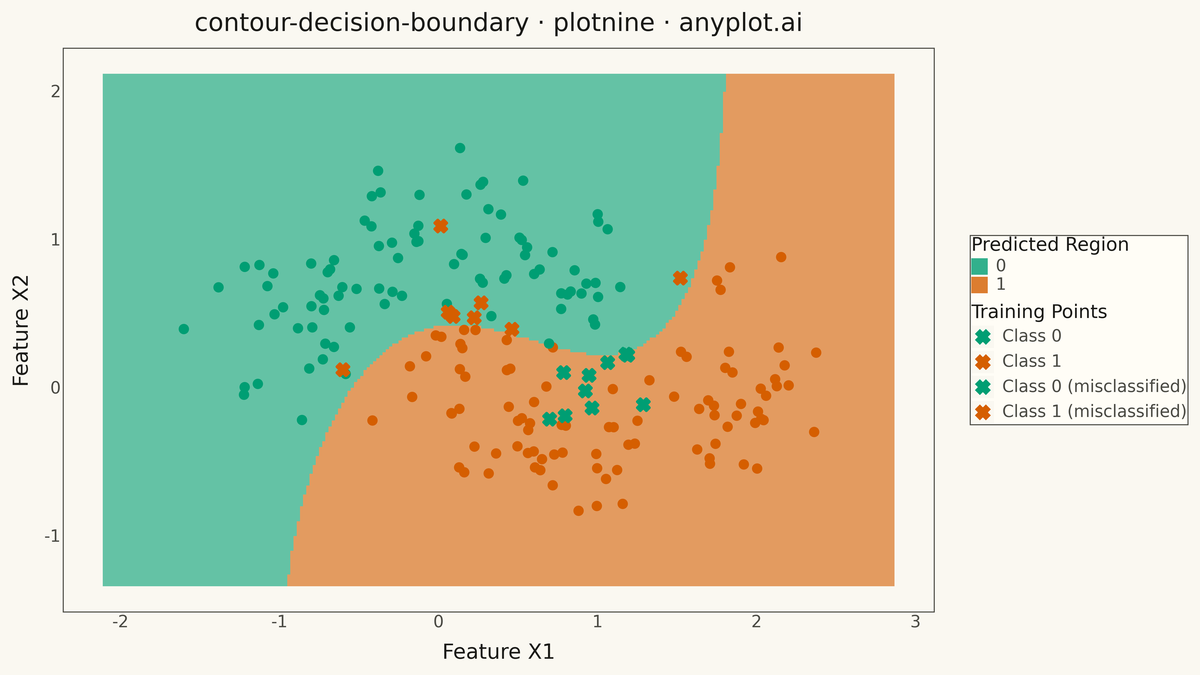

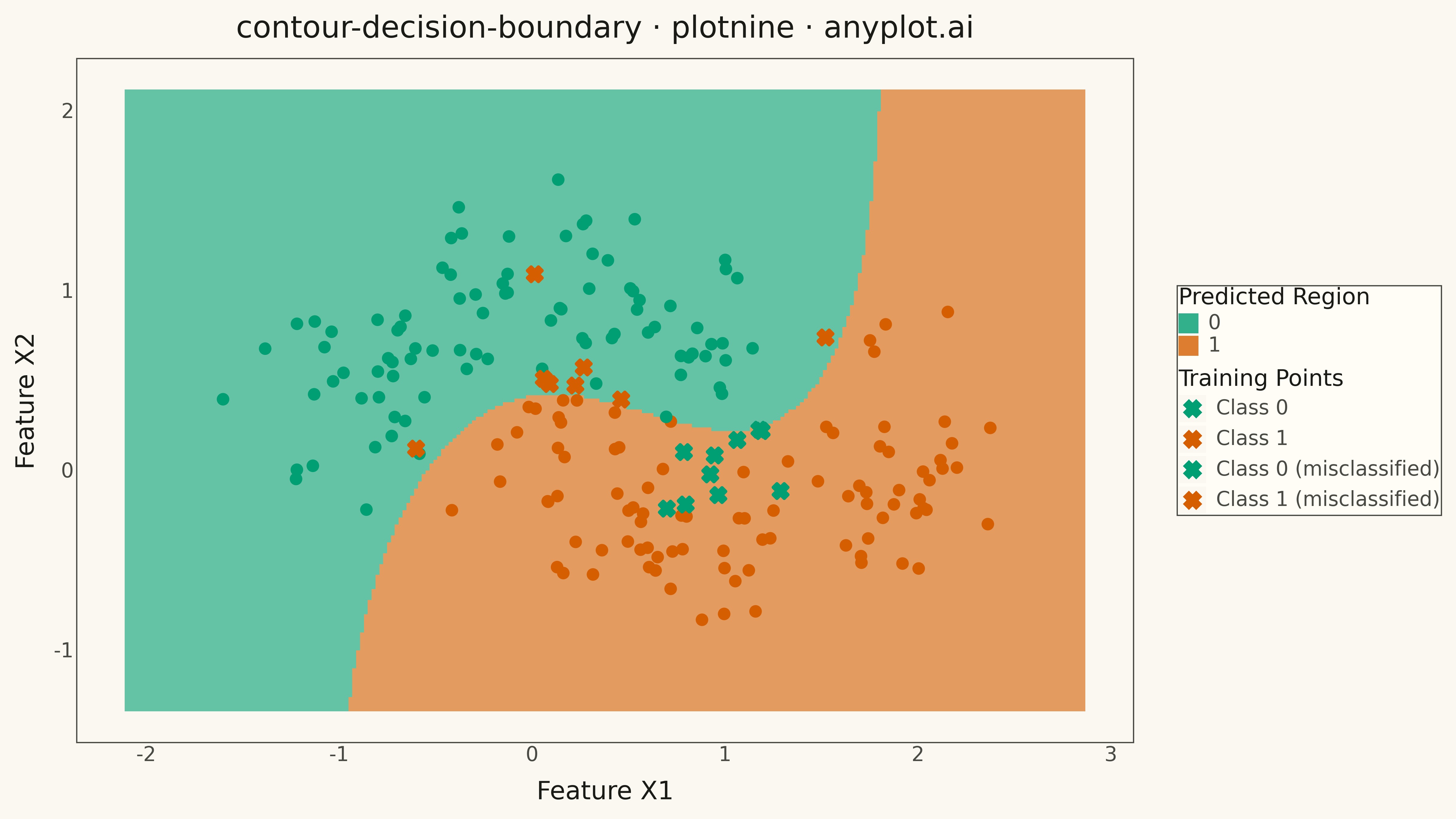

A decision boundary visualization showing how a classifier partitions 2D feature space into predicted class regions. Colored regions indicate the predicted class at each point in the feature space, with training data points overlaid to show how well the classifier separates different classes. This visualization is essential for understanding classifier behavior, identifying decision boundaries, and evaluating classification accuracy in machine learning.

Decision Boundary Classifier Visualization rendered with plotnine

Python source (plotnine)

""" anyplot.ai
contour-decision-boundary: Decision Boundary Classifier Visualization
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 84/100 | Updated: 2026-05-16
"""

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_blank,
    element_text,
    geom_point,
    geom_tile,
    ggplot,
    guide_legend,
    guides,
    labs,
    scale_color_manual,
    scale_fill_manual,
    theme,
    theme_minimal,
)
from sklearn.datasets import make_moons
from sklearn.svm import SVC


# Data - Generate synthetic classification data
np.random.seed(42)
X, y = make_moons(n_samples=200, noise=0.25, random_state=42)

# Train classifier
clf = SVC(kernel="rbf", C=1.0, gamma=0.5)
clf.fit(X, y)

# Create mesh grid for decision boundary
x_min, x_max = X[:, 0].min() - 0.5, X[:, 0].max() + 0.5
y_min, y_max = X[:, 1].min() - 0.5, X[:, 1].max() + 0.5
h = 0.02  # Step size

xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))

# Predict on mesh grid
Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

# Create DataFrame for mesh grid (decision regions)
mesh_df = pd.DataFrame({"X1": xx.ravel(), "X2": yy.ravel(), "Prediction": Z.ravel().astype(str)})

# Create DataFrame for training points
points_df = pd.DataFrame({"X1": X[:, 0], "X2": X[:, 1], "Class": y.astype(str)})

# Identify misclassified points
predictions = clf.predict(X)
points_df["Correct"] = predictions == y
points_df["Status"] = points_df.apply(
    lambda row: f"Class {row['Class']}" if row["Correct"] else f"Class {row['Class']} (misclassified)", axis=1
)

# Color scheme
region_colors = {"0": "#306998", "1": "#FFD43B"}
point_colors = {
    "Class 0": "#1a3a5c",
    "Class 1": "#b8960a",
    "Class 0 (misclassified)": "#1a3a5c",
    "Class 1 (misclassified)": "#b8960a",
}

# Create plot
plot = (
    ggplot()
    + geom_tile(data=mesh_df, mapping=aes(x="X1", y="X2", fill="Prediction"), alpha=0.6)
    + geom_point(data=points_df[points_df["Correct"]], mapping=aes(x="X1", y="X2", color="Status"), size=4, stroke=0.8)
    + geom_point(
        data=points_df[~points_df["Correct"]],
        mapping=aes(x="X1", y="X2", color="Status"),
        size=5,
        stroke=1.5,
        shape="X",
    )
    + scale_fill_manual(values=region_colors, name="Predicted Region")
    + scale_color_manual(values=point_colors, name="Training Points")
    + labs(x="Feature X1", y="Feature X2", title="contour-decision-boundary · plotnine · pyplots.ai")
    + theme_minimal()
    + theme(
        figure_size=(16, 9),
        plot_title=element_text(size=24, ha="center"),
        axis_title=element_text(size=20),
        axis_text=element_text(size=16),
        legend_title=element_text(size=18),
        legend_text=element_text(size=14),
        legend_position="right",
        panel_grid_major=element_blank(),
        panel_grid_minor=element_blank(),
    )
    + guides(fill=guide_legend(override_aes={"alpha": 0.8}))
)

# Save
plot.save("plot.png", dpi=300, verbose=False)
