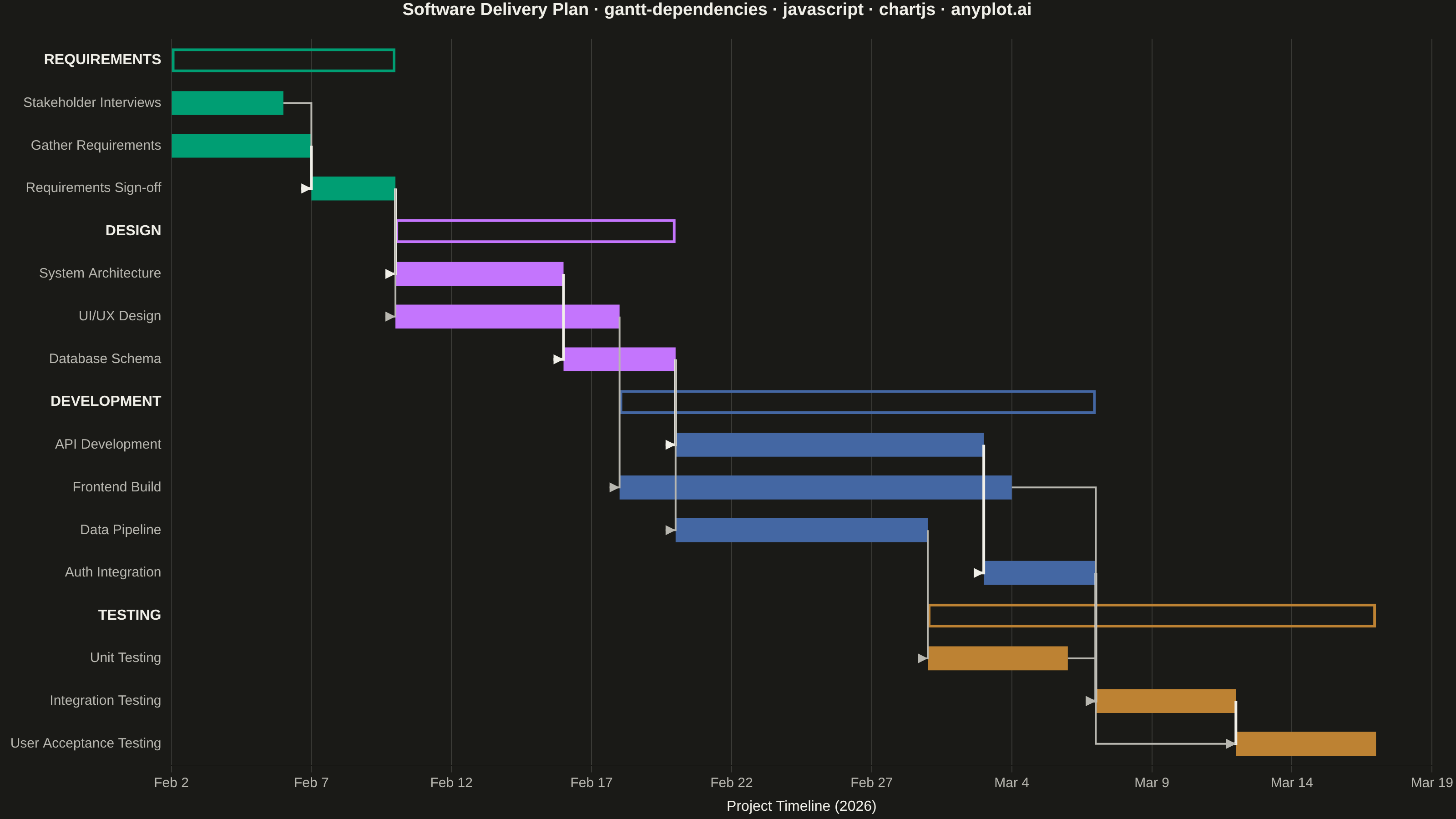

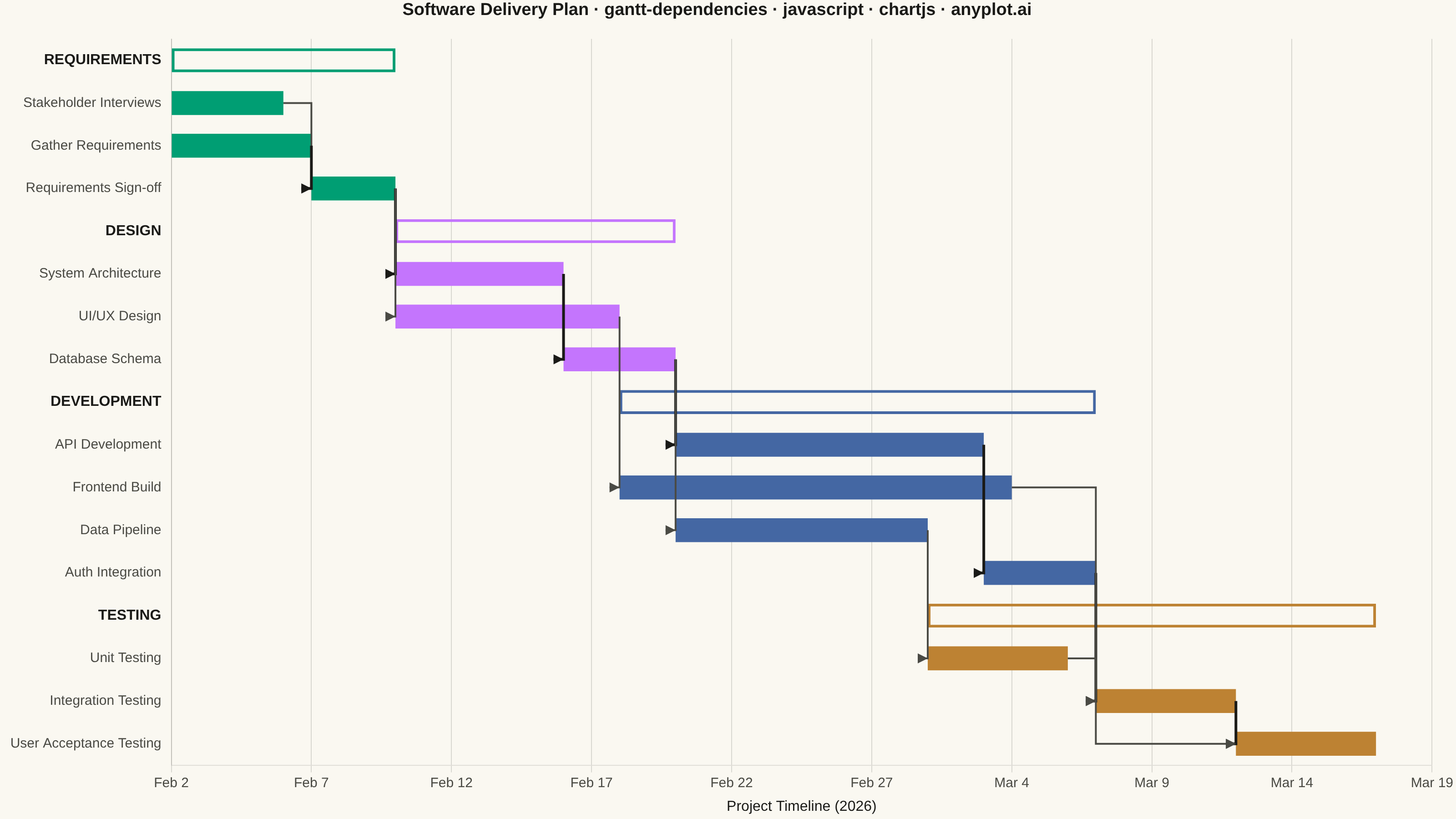

A Gantt chart that visualizes project schedules with task dependencies and groupings. Beyond displaying task timelines, this chart shows relationships between tasks using connector arrows, indicating which tasks must complete before others can begin. Tasks can be organized into groups (phases or work packages) with aggregate timeline bars showing the span of each group. This visualization is essential for understanding critical paths and scheduling constraints in complex projects.
// anyplot.ai
// gantt-dependencies: Gantt Chart with Dependencies
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 94/100 | Updated: 2026-08-25
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Software delivery sprint: four phases, each with its own tasks. start/end
// are day offsets from PROJECT_START. A dependent task's start never precedes
// the latest end of its predecessors.
const PROJECT_START = new Date(2026, 1, 2); // Mon Feb 2, 2026
const GROUPS = ["Requirements", "Design", "Development", "Testing"];
const tasks = [
{ task: "Stakeholder Interviews", group: "Requirements", start: 0, end: 4, dependsOn: [] },
{ task: "Gather Requirements", group: "Requirements", start: 0, end: 5, dependsOn: [] },
{ task: "Requirements Sign-off", group: "Requirements", start: 5, end: 8, dependsOn: ["Stakeholder Interviews", "Gather Requirements"] },
{ task: "System Architecture", group: "Design", start: 8, end: 14, dependsOn: ["Requirements Sign-off"] },
{ task: "UI/UX Design", group: "Design", start: 8, end: 16, dependsOn: ["Requirements Sign-off"] },
{ task: "Database Schema", group: "Design", start: 14, end: 18, dependsOn: ["System Architecture"] },
{ task: "API Development", group: "Development", start: 18, end: 29, dependsOn: ["Database Schema"] },
{ task: "Frontend Build", group: "Development", start: 16, end: 30, dependsOn: ["UI/UX Design"] },
{ task: "Data Pipeline", group: "Development", start: 18, end: 27, dependsOn: ["Database Schema"] },
{ task: "Auth Integration", group: "Development", start: 29, end: 33, dependsOn: ["API Development"] },
{ task: "Unit Testing", group: "Testing", start: 27, end: 32, dependsOn: ["Data Pipeline"] },
{ task: "Integration Testing", group: "Testing", start: 33, end: 38, dependsOn: ["Auth Integration", "Frontend Build"] },
{ task: "User Acceptance Testing", group: "Testing", start: 38, end: 43, dependsOn: ["Integration Testing", "Unit Testing"] },
];
const groupColor = Object.fromEntries(GROUPS.map((g, i) => [g, t.palette[i]]));
// --- Rows: a header row per group (aggregate span) above its indented tasks -
const rows = [];
const taskRowIndex = new Map();
for (const group of GROUPS) {
const members = tasks.filter((task) => task.group === group);
const groupStart = Math.min(...members.map((task) => task.start));
const groupEnd = Math.max(...members.map((task) => task.end));
rows.push({ label: group.toUpperCase(), isHeader: true, color: groupColor[group], start: groupStart, end: groupEnd });
for (const task of members) {
taskRowIndex.set(task.task, rows.length);
rows.push({ label: ` ${task.task}`, isHeader: false, color: groupColor[group], start: task.start, end: task.end });
}
}
// --- Critical path: the chain of tasks binding the project finish date -----
// Walk back from the last-finishing task, at each step following whichever
// predecessor finishes latest (the one actually constraining the successor's
// start). Rendered with heavier emphasis so the driving chain stands out.
const tasksByName = new Map(tasks.map((task) => [task.task, task]));
const criticalEdges = new Set();
{
let current = tasks.reduce((latest, task) => (task.end > latest.end ? task : latest), tasks[0]);
while (current.dependsOn.length) {
let predName = current.dependsOn[0];
let pred = tasksByName.get(predName);
for (const depName of current.dependsOn) {
const dep = tasksByName.get(depName);
if (dep.end > pred.end) {
pred = dep;
predName = depName;
}
}
criticalEdges.add(`${predName}=>${current.task}`);
current = pred;
}
}
const labels = rows.map((row) => row.label);
const barData = rows.map((row) => [row.start, row.end]);
const barBackground = rows.map((row) => (row.isHeader ? "transparent" : row.color));
const barBorder = rows.map((row) => row.color);
const barBorderWidth = rows.map((row) => (row.isHeader ? 3 : 0));
function formatDay(offset) {
const date = new Date(PROJECT_START.getTime() + offset * 86400000);
return date.toLocaleDateString("en-US", { month: "short", day: "numeric" });
}
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// Find a day offset in [loX, hiX] for the elbow's vertical segment that
// avoids passing through any of the given task bars (each a [start, end]
// range), preferring the value closest to the midpoint.
function freeElbowX(loX, hiX, blockingRanges) {
const mid = (loX + hiX) / 2;
const isBlocked = (x) => blockingRanges.some(([s, e]) => x > s && x < e);
if (!isBlocked(mid)) return mid;
const step = 0.1;
for (let d = step; d <= (hiX - loX) / 2 + step; d += step) {
const right = mid + d;
if (right <= hiX && !isBlocked(right)) return right;
const left = mid - d;
if (left >= loX && !isBlocked(left)) return left;
}
return mid;
}
// --- Dependency-arrow plugin (finish-to-start connectors) --------------------
const dependencyArrows = {
id: "dependencyArrows",
afterDatasetsDraw(chart) {
const { ctx, scales } = chart;
ctx.save();
const arrowSize = 11;
for (const task of tasks) {
if (!task.dependsOn.length) continue;
const toRow = taskRowIndex.get(task.task);
const toY = scales.y.getPixelForValue(toRow);
const toX = scales.x.getPixelForValue(task.start);
for (const depName of task.dependsOn) {
const pred = tasks.find((candidate) => candidate.task === depName);
if (!pred) continue;
const fromRow = taskRowIndex.get(pred.task);
const fromY = scales.y.getPixelForValue(fromRow);
const fromX = scales.x.getPixelForValue(pred.end);
// Route the elbow's vertical segment through a day offset not
// covered by any task bar strictly between the two rows, so the
// connector doesn't cut across unrelated tasks.
const rowLo = Math.min(fromRow, toRow);
const rowHi = Math.max(fromRow, toRow);
const blockingRanges = rows
.slice(rowLo + 1, rowHi)
.filter((row) => !row.isHeader)
.map((row) => [row.start, row.end]);
const midDay = freeElbowX(pred.end, task.start, blockingRanges);
const midX = scales.x.getPixelForValue(midDay);
const isCritical = criticalEdges.has(`${depName}=>${task.task}`);
ctx.strokeStyle = isCritical ? t.ink : t.inkSoft;
ctx.fillStyle = isCritical ? t.ink : t.inkSoft;
ctx.lineWidth = isCritical ? 3 : 2;
ctx.beginPath();
ctx.moveTo(fromX, fromY);
ctx.lineTo(midX, fromY);
ctx.lineTo(midX, toY);
ctx.lineTo(toX - arrowSize, toY);
ctx.stroke();
// Arrowhead pointing into the successor bar's start edge.
ctx.beginPath();
ctx.moveTo(toX, toY);
ctx.lineTo(toX - arrowSize, toY - arrowSize / 2);
ctx.lineTo(toX - arrowSize, toY + arrowSize / 2);
ctx.closePath();
ctx.fill();
}
}
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
type: "bar",
data: {
labels,
datasets: [
{
label: "Timeline",
data: barData,
backgroundColor: barBackground,
borderColor: barBorder,
borderWidth: barBorderWidth,
borderSkipped: false,
barPercentage: 0.7,
categoryPercentage: 0.8,
},
],
},
options: {
indexAxis: "y",
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { right: 24 } },
plugins: {
title: {
display: true,
text: "Software Delivery Plan · gantt-dependencies · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 19 }, // 67/79 chars × 22px default title size, rounded
padding: { bottom: 20 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
min: 0,
max: 45,
title: { display: true, text: "Project Timeline (2026)", color: t.ink, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 15 }, stepSize: 5, callback: (value) => formatDay(value) },
grid: { color: t.grid },
},
y: {
reverse: false,
ticks: {
color: (ctx) => (rows[ctx.index] && rows[ctx.index].isHeader ? t.ink : t.inkSoft),
font: (ctx) => (rows[ctx.index] && rows[ctx.index].isHeader ? { size: 16, weight: "bold" } : { size: 15 }),
},
grid: { display: false },
},
},
},
plugins: [dependencyArrows],
});
