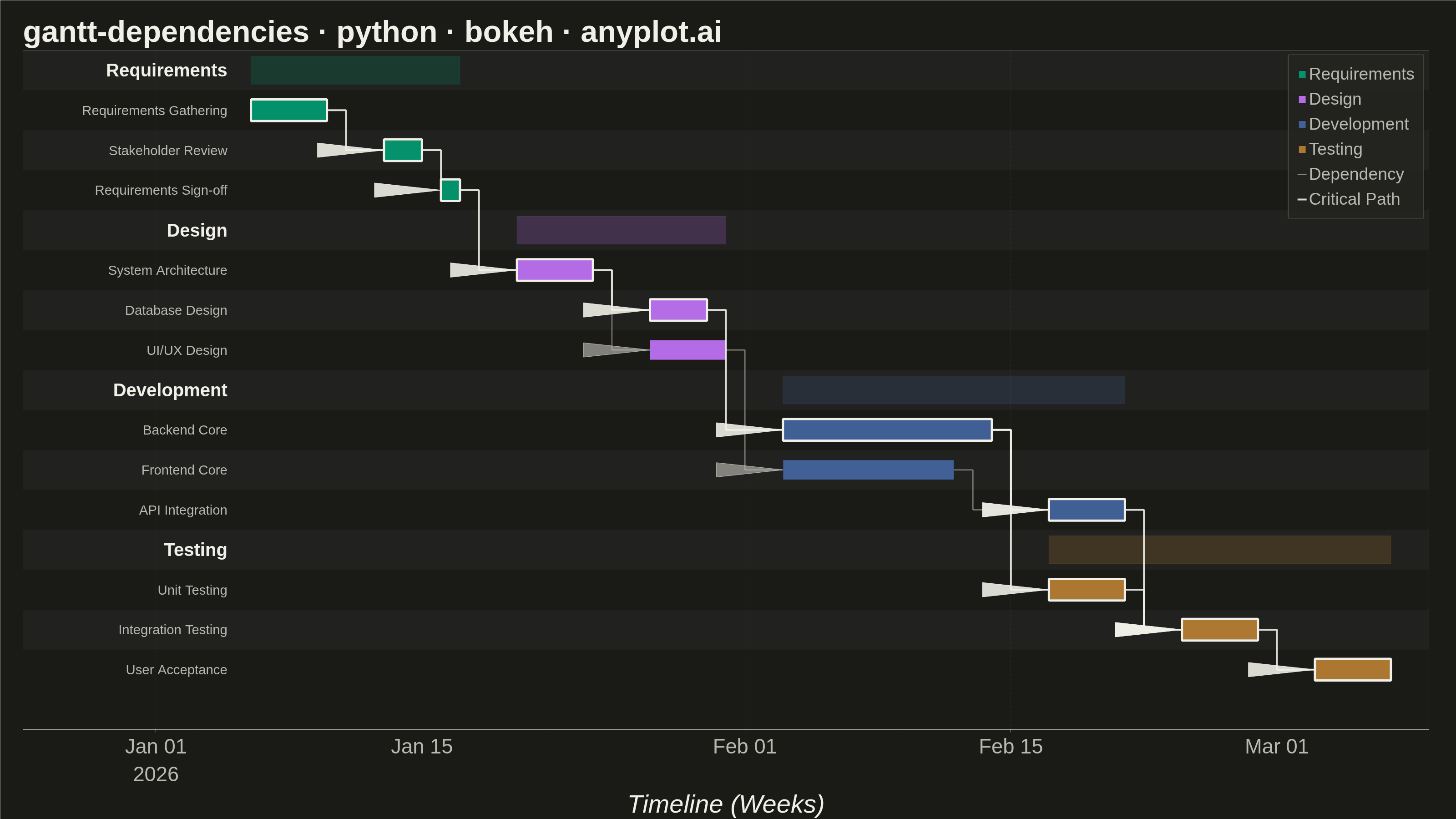

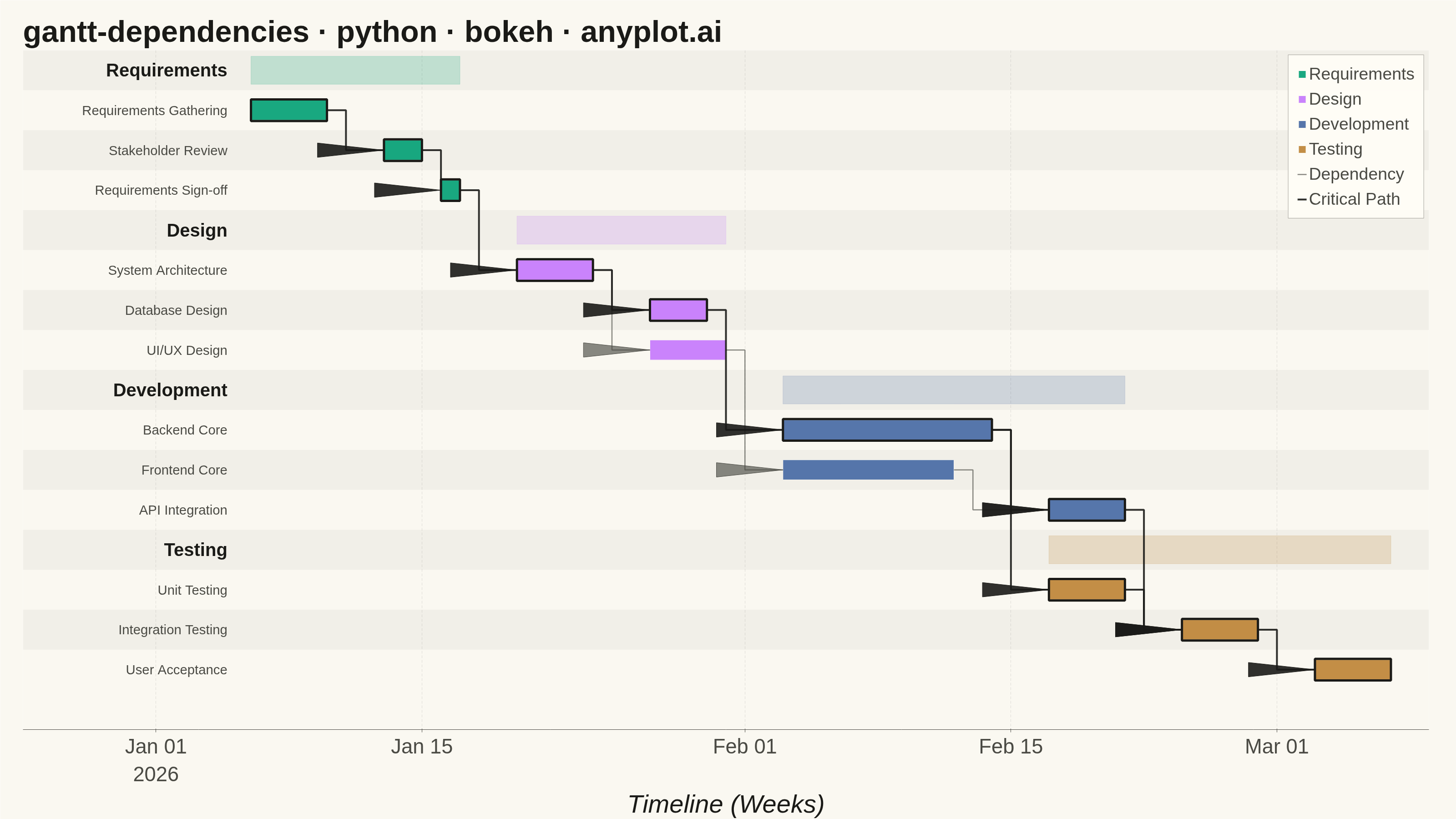

A Gantt chart that visualizes project schedules with task dependencies and groupings. Beyond displaying task timelines, this chart shows relationships between tasks using connector arrows, indicating which tasks must complete before others can begin. Tasks can be organized into groups (phases or work packages) with aggregate timeline bars showing the span of each group. This visualization is essential for understanding critical paths and scheduling constraints in complex projects.
""" anyplot.ai
gantt-dependencies: Gantt Chart with Dependencies
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-06-02
"""
import os
import sys
import time
from pathlib import Path
# Prevent this file from shadowing the installed bokeh package
_this = str(Path(__file__).parent.resolve())
sys.path = [p for p in sys.path if p not in ("", _this)]
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import BoxAnnotation, ColumnDataSource, HoverTool, LabelSet, Legend, LegendItem
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens (Imprint palette + theme-adaptive chrome)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Imprint categorical palette — positions 1-4 for 4 project phases
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]
# Data — software development project with task dependencies
tasks_data = [
# Requirements Phase
{
"task": "Requirements Gathering",
"start": "2026-01-06",
"end": "2026-01-10",
"group": "Requirements",
"depends_on": [],
},
{
"task": "Stakeholder Review",
"start": "2026-01-13",
"end": "2026-01-15",
"group": "Requirements",
"depends_on": ["Requirements Gathering"],
},
{
"task": "Requirements Sign-off",
"start": "2026-01-16",
"end": "2026-01-17",
"group": "Requirements",
"depends_on": ["Stakeholder Review"],
},
# Design Phase
{
"task": "System Architecture",
"start": "2026-01-20",
"end": "2026-01-24",
"group": "Design",
"depends_on": ["Requirements Sign-off"],
},
{
"task": "Database Design",
"start": "2026-01-27",
"end": "2026-01-30",
"group": "Design",
"depends_on": ["System Architecture"],
},
{
"task": "UI/UX Design",
"start": "2026-01-27",
"end": "2026-01-31",
"group": "Design",
"depends_on": ["System Architecture"],
},
# Development Phase
{
"task": "Backend Core",
"start": "2026-02-03",
"end": "2026-02-14",
"group": "Development",
"depends_on": ["Database Design"],
},
{
"task": "Frontend Core",
"start": "2026-02-03",
"end": "2026-02-12",
"group": "Development",
"depends_on": ["UI/UX Design"],
},
{
"task": "API Integration",
"start": "2026-02-17",
"end": "2026-02-21",
"group": "Development",
"depends_on": ["Backend Core", "Frontend Core"],
},
# Testing Phase
{
"task": "Unit Testing",
"start": "2026-02-17",
"end": "2026-02-21",
"group": "Testing",
"depends_on": ["Backend Core"],
},
{
"task": "Integration Testing",
"start": "2026-02-24",
"end": "2026-02-28",
"group": "Testing",
"depends_on": ["API Integration", "Unit Testing"],
},
{
"task": "User Acceptance",
"start": "2026-03-03",
"end": "2026-03-07",
"group": "Testing",
"depends_on": ["Integration Testing"],
},
]
df = pd.DataFrame(tasks_data)
df["start"] = pd.to_datetime(df["start"])
df["end"] = pd.to_datetime(df["end"])
df["duration"] = (df["end"] - df["start"]).dt.days
task_lookup = {row["task"]: idx for idx, row in df.iterrows()}
# Critical path — forward/backward pass through dependency graph
successors = {row["task"]: [] for _, row in df.iterrows()}
for _, row in df.iterrows():
for dep in row["depends_on"]:
if dep in successors:
successors[dep].append(row["task"])
lp_to = {}
for _, row in df.iterrows():
task = row["task"]
dur = row["duration"]
if not row["depends_on"]:
lp_to[task] = dur
else:
lp_to[task] = max(lp_to[dep] for dep in row["depends_on"] if dep in lp_to) + dur
lp_from = {}
for _, row in df.sort_values("end", ascending=False).iterrows():
task = row["task"]
dur = row["duration"]
if not successors[task]:
lp_from[task] = dur
else:
lp_from[task] = dur + max(lp_from[s] for s in successors[task])
max_lp = max(lp_to.values())
critical_tasks = {t for t in lp_to if lp_to[t] + lp_from[t] - df.iloc[task_lookup[t]]["duration"] == max_lp}
# Imprint palette positions 1–4 for project phases
groups = ["Requirements", "Design", "Development", "Testing"]
group_colors = dict(zip(groups, IMPRINT_PALETTE[:4], strict=False))
# Group aggregate span bars
group_spans = {}
for group in groups:
gdf = df[df["group"] == group]
group_spans[group] = {"start": gdf["start"].min(), "end": gdf["end"].max()}
# Y-positions: group header row then indented task rows
y_positions = {}
y_labels = []
y_is_group = []
current_y = 0
for group in groups:
y_positions[f"__group__{group}"] = current_y
y_labels.append((current_y, group))
y_is_group.append(True)
current_y += 1
for task in df[df["group"] == group]["task"].tolist():
y_positions[task] = current_y
y_labels.append((current_y, f" {task}"))
y_is_group.append(False)
current_y += 1
max_y = current_y
# Title — 48 chars < 67 char baseline, no scaling needed → 50pt
title_text = "gantt-dependencies · python · bokeh · anyplot.ai"
n_title = len(title_text)
title_fs = f"{max(34, round(50 * 67 / n_title))}pt" if n_title > 67 else "50pt"
# Figure — 3200×1800 landscape canvas (hard rule)
p = figure(
width=3200,
height=1800,
x_axis_type="datetime",
y_range=(max_y + 0.5, -0.5),
title=title_text,
x_axis_label="Timeline (Weeks)",
toolbar_location=None,
min_border_bottom=160,
min_border_left=50,
min_border_top=110,
min_border_right=60,
)
# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None
p.title.text_font_size = title_fs
p.title.text_color = INK
p.title.text_font_style = "bold"
p.xaxis.axis_label_text_font_size = "42pt"
p.xaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "34pt"
p.xaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.visible = False
p.xgrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.12
p.xgrid.grid_line_dash = [6, 4]
p.ygrid.grid_line_alpha = 0.0
# Alternating row bands (theme-adaptive subtle tint)
for i in range(max_y):
if i % 2 == 0:
p.add_layout(
BoxAnnotation(
bottom=i - 0.5, top=i + 0.5, fill_color=INK, fill_alpha=0.04, level="underlay", line_color=None
)
)
# Group aggregate span bars (semi-transparent)
group_renderers = {}
for group in groups:
span = group_spans[group]
y = y_positions[f"__group__{group}"]
src = ColumnDataSource(data={"y": [y], "left": [span["start"]], "right": [span["end"]]})
r = p.hbar(y="y", left="left", right="right", height=0.7, color=group_colors[group], alpha=0.2, source=src)
group_renderers[group] = r
# Task bars — per-group renderers so legend swatches show full-saturation phase colors
group_task_renderers = {}
for group in groups:
gdf = df[df["group"] == group]
gys, glefts, grights = [], [], []
gnames, ggroups, gstarts, gends, gdurations, gdeps, gcrit = [], [], [], [], [], [], []
for _, row in gdf.iterrows():
gys.append(y_positions[row["task"]])
glefts.append(row["start"])
grights.append(row["end"])
gnames.append(row["task"])
ggroups.append(row["group"])
gstarts.append(row["start"].strftime("%b %d, %Y"))
gends.append(row["end"].strftime("%b %d, %Y"))
gdurations.append(f"{row['duration']} days")
deps = row["depends_on"]
gdeps.append(", ".join(deps) if deps else "None")
gcrit.append("★ Critical Path" if row["task"] in critical_tasks else "")
gsrc = ColumnDataSource(
data={
"y": gys,
"left": glefts,
"right": grights,
"task_name": gnames,
"group_name": ggroups,
"start_str": gstarts,
"end_str": gends,
"duration": gdurations,
"dependencies": gdeps,
"critical": gcrit,
}
)
gr = p.hbar(
y="y",
left="left",
right="right",
height=0.5,
fill_color=group_colors[group],
fill_alpha=0.9,
line_color=PAGE_BG,
line_width=1,
source=gsrc,
)
group_task_renderers[group] = gr
# Critical path border overlay (dark outline on critical tasks)
for _, row in df.iterrows():
if row["task"] in critical_tasks:
y = y_positions[row["task"]]
src = ColumnDataSource(data={"y": [y], "left": [row["start"]], "right": [row["end"]]})
p.hbar(y="y", left="left", right="right", height=0.54, fill_alpha=0, line_color=INK, line_width=5, source=src)
# Dependency arrows — improved visibility for non-critical (theme-adaptive INK_SOFT)
crit_arrow_xs, crit_arrow_ys = [], []
norm_arrow_xs, norm_arrow_ys = [], []
crit_head_xs, crit_head_ys = [], []
norm_head_xs, norm_head_ys = [], []
for _, row in df.iterrows():
task_name = row["task"]
task_y = y_positions[task_name]
task_start_ms = row["start"].value / 1e6
is_task_critical = task_name in critical_tasks
for dep_name in row["depends_on"]:
if dep_name in task_lookup:
dep_row = df.iloc[task_lookup[dep_name]]
dep_end_ms = dep_row["end"].value / 1e6
dep_y = y_positions[dep_name]
is_crit_dep = is_task_critical and dep_name in critical_tasks
h_offset = 1.0 * 24 * 60 * 60 * 1000
if task_y != dep_y:
mid_x = dep_end_ms + h_offset
xs = [dep_end_ms, mid_x, mid_x, task_start_ms]
ys = [dep_y, dep_y, task_y, task_y]
else:
xs = [dep_end_ms, task_start_ms]
ys = [dep_y, task_y]
arrow_size = 3.5 * 24 * 60 * 60 * 1000
hxs = [task_start_ms - arrow_size, task_start_ms, task_start_ms - arrow_size]
hys = [task_y - 0.18, task_y, task_y + 0.18]
if is_crit_dep:
crit_arrow_xs.append(xs)
crit_arrow_ys.append(ys)
crit_head_xs.append(hxs)
crit_head_ys.append(hys)
else:
norm_arrow_xs.append(xs)
norm_arrow_ys.append(ys)
norm_head_xs.append(hxs)
norm_head_ys.append(hys)
dep_renderer = None
if norm_arrow_xs:
dep_renderer = p.multi_line(
xs=norm_arrow_xs, ys=norm_arrow_ys, line_color=INK_SOFT, line_width=2.5, line_alpha=0.65
)
p.patches(xs=norm_head_xs, ys=norm_head_ys, fill_color=INK_SOFT, fill_alpha=0.65, line_color=INK_SOFT, line_width=1)
crit_dep_renderer = None
if crit_arrow_xs:
crit_dep_renderer = p.multi_line(xs=crit_arrow_xs, ys=crit_arrow_ys, line_color=INK, line_width=4, line_alpha=0.9)
p.patches(xs=crit_head_xs, ys=crit_head_ys, fill_color=INK, fill_alpha=0.9, line_color=INK, line_width=1)
# Custom y-axis labels via LabelSet (reduced left padding: 12 days vs previous 14)
group_label_ys, group_label_texts = [], []
task_label_ys, task_label_texts = [], []
for (y, label), is_group in zip(y_labels, y_is_group, strict=True):
if is_group:
group_label_ys.append(y)
group_label_texts.append(label)
else:
task_label_ys.append(y)
task_label_texts.append(label)
label_x = df["start"].min() - pd.Timedelta(days=1)
p.add_layout(
LabelSet(
x="x",
y="y",
text="text",
source=ColumnDataSource(
data={"y": group_label_ys, "text": group_label_texts, "x": [label_x] * len(group_label_ys)}
),
text_font_size="30pt",
text_font_style="bold",
text_align="right",
x_offset=-10,
text_baseline="middle",
text_color=INK,
)
)
p.add_layout(
LabelSet(
x="x",
y="y",
text="text",
source=ColumnDataSource(
data={"y": task_label_ys, "text": task_label_texts, "x": [label_x] * len(task_label_ys)}
),
text_font_size="22pt",
text_align="right",
x_offset=-10,
text_baseline="middle",
text_color=INK_SOFT,
)
)
# X range — 12-day left padding (reduced from 14) to minimise unused canvas space
x_min = df["start"].min() - pd.Timedelta(days=12)
x_max = df["end"].max() + pd.Timedelta(days=2)
p.x_range.start = x_min
p.x_range.end = x_max
# Legend — use full-opacity task-bar renderers so swatches show full-saturation phase colors
legend_items = []
for group in groups:
legend_items.append(LegendItem(label=group, renderers=[group_task_renderers[group]]))
if dep_renderer:
legend_items.append(LegendItem(label="Dependency", renderers=[dep_renderer]))
if crit_dep_renderer:
legend_items.append(LegendItem(label="Critical Path", renderers=[crit_dep_renderer]))
legend = Legend(
items=legend_items,
location="top_right",
label_text_font_size="28pt",
label_text_color=INK_SOFT,
spacing=12,
padding=20,
background_fill_color=ELEVATED_BG,
background_fill_alpha=0.9,
border_line_color=INK_SOFT,
border_line_width=1,
)
p.add_layout(legend)
# Hover tool for interactive HTML
hover = HoverTool(
renderers=list(group_task_renderers.values()),
tooltips=[
("Task", "@task_name"),
("Phase", "@group_name"),
("Start", "@start_str"),
("End", "@end_str"),
("Duration", "@duration"),
("Dependencies", "@dependencies"),
("Status", "@critical"),
],
)
p.add_tools(hover)
# Save interactive HTML
output_file(f"plot-{THEME}.html", title=title_text)
save(p)
# Save PNG via headless Chrome (Selenium + CDP for exact 3200×1800 viewport)
W, H = 3200, 1800
opts = Options()
for arg in ("--headless=new", "--no-sandbox", "--disable-dev-shm-usage", "--disable-gpu", "--hide-scrollbars"):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.execute_cdp_cmd(
"Emulation.setDeviceMetricsOverride", {"width": W, "height": H, "deviceScaleFactor": 1, "mobile": False}
)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Gantt Chart with Dependencies on anyplot.ai.
