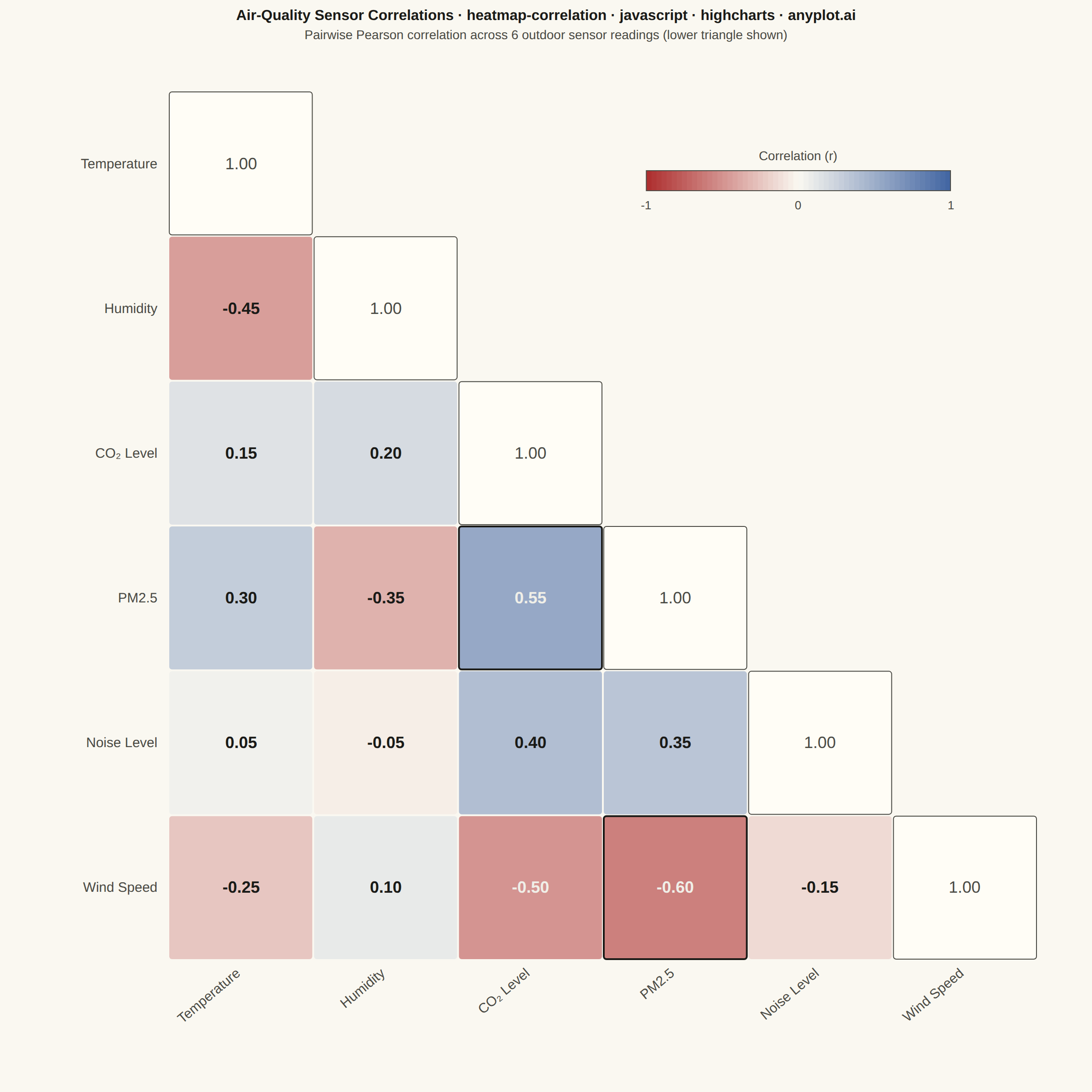

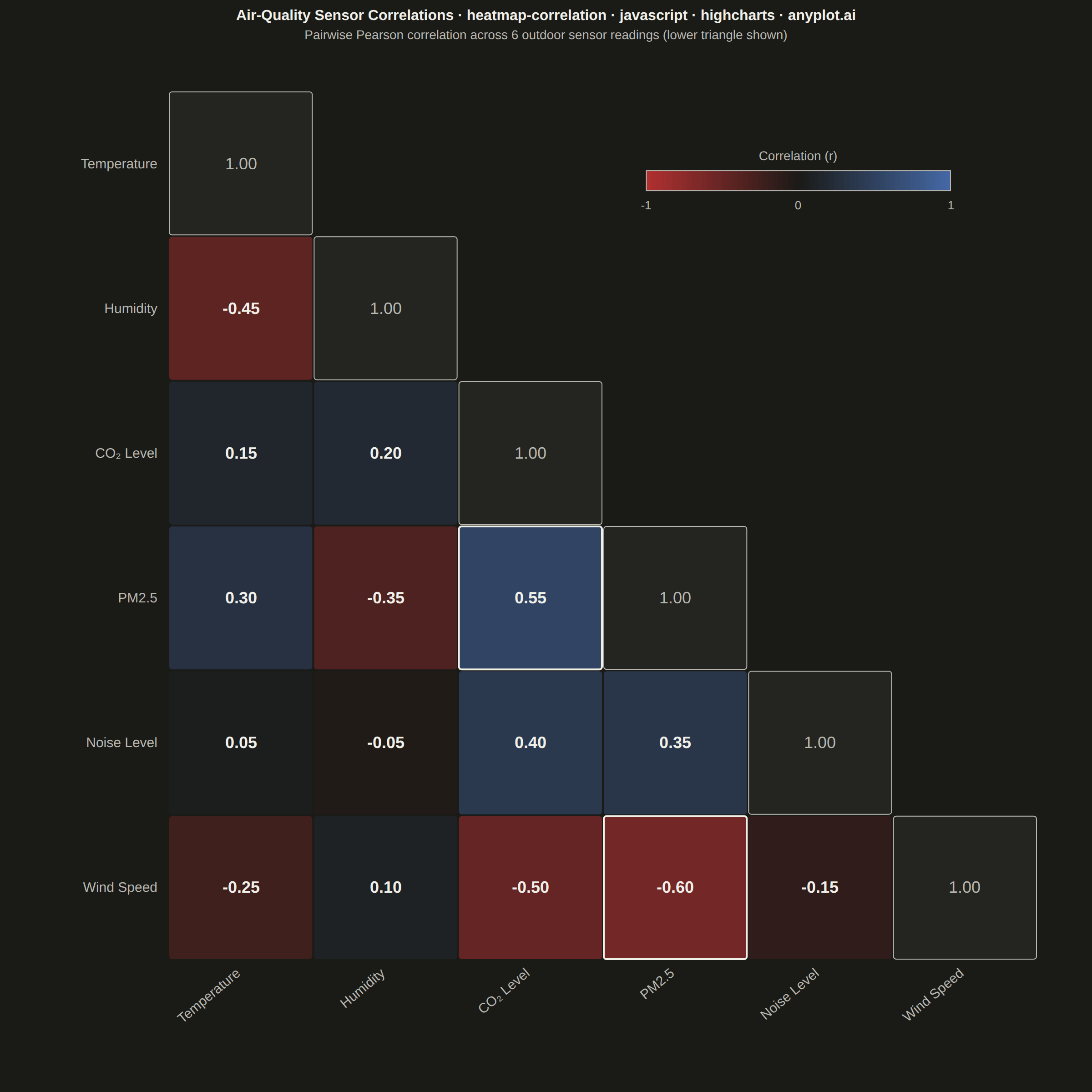

A heatmap specifically designed to display correlation coefficients between variables, using a diverging color scheme centered at zero. The symmetric matrix visualization makes it easy to identify positive correlations, negative correlations, and independent variables at a glance. Essential for exploratory data analysis, feature engineering, and multicollinearity detection in statistical and machine learning workflows.
// anyplot.ai
// heatmap-correlation: Correlation Matrix Heatmap
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-08-18
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// --- Data: correlation matrix across outdoor air-quality sensor readings ---
// The core Highcharts bundle has no heatmap/colorAxis-mapping module loaded,
// so the grid is drawn cell-by-cell with the SVG renderer instead.
const LABELS = ['Temperature', 'Humidity', 'CO₂ Level', 'PM2.5', 'Noise Level', 'Wind Speed'];
const N = LABELS.length;
// Fixed chart geometry (square canvas, harness-guaranteed 1200x1200 CSS px) —
// a single source of truth for both the chart margin and the scatter-marker
// radius below, so the invisible hover layer lines up with the drawn grid
// without needing a runtime resync.
const CHART_MARGIN = [100, 60, 145, 185]; // [top, right, bottom, left]
const CELL_W = (window.ANYPLOT_SIZE.width - CHART_MARGIN[1] - CHART_MARGIN[3]) / N;
const CELL_H = (window.ANYPLOT_SIZE.height - CHART_MARGIN[0] - CHART_MARGIN[2]) / N;
const MARKER_RADIUS = Math.max(Math.min(CELL_W, CELL_H) / 2 - 3, 4);
// Symmetric Pearson correlation matrix, diagonal = 1.00. Only the lower
// triangle (col <= row) is drawn — masking the upper mirror image reduces
// redundancy, per the spec's "consider masking upper or lower triangle" note.
const CORR = [
[1.00, -0.45, 0.15, 0.30, 0.05, -0.25],
[-0.45, 1.00, 0.20, -0.35, -0.05, 0.10],
[0.15, 0.20, 1.00, 0.55, 0.40, -0.50],
[0.30, -0.35, 0.55, 1.00, 0.35, -0.60],
[0.05, -0.05, 0.40, 0.35, 1.00, -0.15],
[-0.25, 0.10, -0.50, -0.60, -0.15, 1.00],
];
// Strongest links (off-diagonal, lower triangle) — the most positive and most
// negative correlations get a heavier border so the matrix has a point of
// emphasis beyond the raw grid of numbers.
let maxPos = { value: -Infinity, row: -1, col: -1 };
let maxNeg = { value: Infinity, row: -1, col: -1 };
for (let row = 0; row < N; row++) {
for (let col = 0; col < row; col++) {
const value = CORR[row][col];
if (value > maxPos.value) maxPos = { value, row, col };
if (value < maxNeg.value) maxNeg = { value, row, col };
}
}
function isStrongest(row, col) {
return (row === maxPos.row && col === maxPos.col) || (row === maxNeg.row && col === maxNeg.col);
}
// --- Color: imprint_div — negative -1 (red) .. 0 (page bg) .. +1 (blue) ----
function hexToRgb(hex) {
return [parseInt(hex.slice(1, 3), 16), parseInt(hex.slice(3, 5), 16), parseInt(hex.slice(5, 7), 16)];
}
const DIV_NEG = hexToRgb(t.div[0]); // #AE3030
const DIV_MID = hexToRgb(t.div[1]); // page bg, theme-adaptive
const DIV_POS = hexToRgb(t.div[2]); // #4467A3
function lerp(a, b, f) {
return a + (b - a) * f;
}
function corrRgb(value) {
const a = value <= 0 ? DIV_NEG : DIV_MID;
const b = value <= 0 ? DIV_MID : DIV_POS;
const f = value <= 0 ? value + 1 : value;
return [Math.round(lerp(a[0], b[0], f)), Math.round(lerp(a[1], b[1], f)), Math.round(lerp(a[2], b[2], f))];
}
function corrFill(value) {
const [red, green, blue] = corrRgb(value);
return `rgb(${red},${green},${blue})`;
}
// Relative luminance — pick text color for maximum contrast against the fill
function corrTextColor(value) {
const [red, green, blue] = corrRgb(value);
const lin = (c) => {
const v = c / 255;
return v <= 0.03928 ? v / 12.92 : Math.pow((v + 0.055) / 1.055, 2.4);
};
const luminance = 0.2126 * lin(red) + 0.7152 * lin(green) + 0.0722 * lin(blue);
return luminance > 0.4 ? '#1A1A17' : '#F0EFE8';
}
// --- Title (fontsize scaled off the 67-char baseline) ----------------------
const TITLE_TEXT = 'Air-Quality Sensor Correlations · heatmap-correlation · javascript · highcharts · anyplot.ai';
const TITLE_FS = Math.max(Math.round(22 * Math.min(1, 67 / TITLE_TEXT.length)), 14);
const drawn = [];
function clearDrawn() {
drawn.forEach((el) => {
try {
el.destroy();
} catch (_err) {
// already removed
}
});
drawn.length = 0;
}
function drawAll() {
const chart = this;
clearDrawn();
const r = chart.renderer;
const cellW = chart.plotWidth / N;
const cellH = chart.plotHeight / N;
// Lower-triangle + diagonal cells only.
for (let row = 0; row < N; row++) {
for (let col = 0; col <= row; col++) {
const value = CORR[row][col];
const x = chart.plotLeft + col * cellW;
const y = chart.plotTop + row * cellH;
const onDiagonal = row === col;
const emphasize = isStrongest(row, col);
const fill = onDiagonal ? t.elevatedBg : corrFill(value);
const textColor = onDiagonal ? t.inkSoft : corrTextColor(value);
drawn.push(
r
.rect(x + 1, y + 1, cellW - 2, cellH - 2, 3)
.attr({
fill,
stroke: emphasize ? t.ink : onDiagonal ? t.inkSoft : 'none',
'stroke-width': emphasize ? 2 : onDiagonal ? 1 : 0,
zIndex: 2,
})
.add()
);
drawn.push(
r
.text(value.toFixed(2), x + cellW / 2, y + cellH / 2 + 6)
.attr({ align: 'center', zIndex: 2 })
.css({ color: textColor, fontSize: '18px', fontWeight: onDiagonal ? '500' : '600' })
.add()
);
}
}
// Row labels (left, right-aligned against the grid).
LABELS.forEach((lbl, row) => {
const cy = chart.plotTop + (row + 0.5) * cellH + 5;
drawn.push(
r
.text(lbl, chart.plotLeft - 12, cy)
.attr({ align: 'right', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '15px' })
.add()
);
});
// Column labels (bottom, rotated) — every column keeps at least its
// diagonal cell, so all N labels stay anchored under real grid content.
LABELS.forEach((lbl, col) => {
const cx = chart.plotLeft + (col + 0.5) * cellW;
drawn.push(
r
.text(lbl, cx, chart.plotTop + chart.plotHeight + 16)
.attr({ align: 'right', rotation: -40, zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '15px' })
.add()
);
});
// Diverging colorbar, placed inside the freed upper-triangle void. For
// N=6, rows {0,1} x cols {3,4,5} is always empty (minCol 3 > maxRow 1).
const barLeft = chart.plotLeft + 3 * cellW + cellW * 0.3;
const barWidth = 3 * cellW * 0.7;
const barTop = chart.plotTop + 0.55 * cellH;
const barHeight = 22;
const segments = 60;
const segW = barWidth / segments;
for (let i = 0; i < segments; i++) {
const value = -1 + (2 * i) / (segments - 1);
drawn.push(
r
.rect(barLeft + i * segW, barTop, segW + 0.5, barHeight)
.attr({ fill: corrFill(value), zIndex: 2 })
.add()
);
}
drawn.push(
r
.rect(barLeft, barTop, barWidth, barHeight)
.attr({ fill: 'none', stroke: t.inkSoft, 'stroke-width': 1, zIndex: 2 })
.add()
);
[
[-1, 0],
[0, 0.5],
[1, 1],
].forEach(([value, frac]) => {
drawn.push(
r
.text(value.toFixed(0), barLeft + frac * barWidth, barTop + barHeight + 20)
.attr({ align: 'center', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '13px' })
.add()
);
});
drawn.push(
r
.text('Correlation (r)', barLeft + barWidth / 2, barTop - 12)
.attr({ align: 'center', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '14px', fontWeight: '500' })
.add()
);
}
// Invisible scatter layer aligned to each drawn lower-triangle cell so
// hovering exposes a real Highcharts tooltip — the core bundle has no
// heatmap/colorAxis module, but a matched-axis scatter series recovers
// native hover interactivity without disturbing the hand-drawn grid above it.
const cellPoints = [];
for (let row = 0; row < N; row++) {
for (let col = 0; col <= row; col++) {
cellPoints.push({ x: col, y: row, corr: CORR[row][col], rowLabel: LABELS[row], colLabel: LABELS[col] });
}
}
Highcharts.chart('container', {
chart: {
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
margin: CHART_MARGIN,
events: { load: drawAll, redraw: drawAll },
},
credits: { enabled: false },
title: {
text: TITLE_TEXT,
style: { color: t.ink, fontSize: TITLE_FS + 'px', fontWeight: '600' },
},
subtitle: {
text: 'Pairwise Pearson correlation across 6 outdoor sensor readings (lower triangle shown)',
style: { color: t.inkSoft, fontSize: '14px' },
},
xAxis: { visible: false, min: -0.5, max: N - 0.5 },
yAxis: { visible: false, gridLineWidth: 0, min: -0.5, max: N - 0.5, reversed: true },
legend: { enabled: false },
tooltip: {
enabled: true,
backgroundColor: t.elevatedBg,
borderColor: t.inkSoft,
borderRadius: 6,
style: { color: t.ink, fontSize: '13px' },
formatter: function () {
const p = this.point;
return `<b>${p.rowLabel} × ${p.colLabel}</b><br/>r = ${p.corr.toFixed(2)}`;
},
},
plotOptions: {
series: { animation: false },
scatter: {
enableMouseTracking: true,
stickyTracking: false,
marker: {
enabled: true,
symbol: 'circle',
radius: MARKER_RADIUS,
fillColor: 'rgba(0,0,0,0.001)',
lineWidth: 0,
states: { hover: { enabled: false } },
},
},
},
series: [
{
type: 'scatter',
name: 'Correlation',
data: cellPoints,
},
],
});
Part of Correlation Matrix Heatmap on anyplot.ai.
