A heatmap specifically designed to display correlation coefficients between variables, using a diverging color scheme centered at zero. The symmetric matrix visualization makes it easy to identify positive correlations, negative correlations, and independent variables at a glance. Essential for exploratory data analysis, feature engineering, and multicollinearity detection in statistical and machine learning workflows.
""" anyplot.ai
heatmap-correlation: Correlation Matrix Heatmap
Library: matplotlib 3.11.1 | Python 3.13.15
Quality: 90/100 | Updated: 2026-08-18
"""
import os
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.colors import LinearSegmentedColormap
from matplotlib.patches import Rectangle
# Theme tokens (see prompts/default-style-guide.md "Background" + "Theme-adaptive Chrome")
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
EMPHASIS_POS = "#009E73" # Imprint palette position 1 — strong positive correlation
EMPHASIS_NEG = "#AE3030" # Imprint palette position 5 — strong negative correlation
# Data - realistic weather-station correlation matrix
np.random.seed(42)
variables = [
"Temperature",
"Humidity",
"Wind Speed",
"Precipitation",
"Air Pressure",
"Solar Radiation",
"UV Index",
"Cloud Cover",
]
n_vars = len(variables)
correlation_matrix = np.eye(n_vars)
correlations = {
(0, 1): -0.82, # Temperature - Humidity (strong negative)
(0, 2): 0.15, # Temperature - Wind Speed (weak positive)
(0, 3): -0.48, # Temperature - Precipitation (negative)
(0, 4): -0.71, # Temperature - Air Pressure (strong negative)
(0, 5): 0.88, # Temperature - Solar Radiation (strong positive)
(0, 6): 0.79, # Temperature - UV Index (strong positive)
(0, 7): -0.65, # Temperature - Cloud Cover (negative)
(1, 2): 0.35, # Humidity - Wind Speed (weak positive)
(1, 3): 0.72, # Humidity - Precipitation (strong positive)
(1, 4): 0.58, # Humidity - Air Pressure (positive)
(1, 5): -0.84, # Humidity - Solar Radiation (strong negative)
(1, 6): -0.76, # Humidity - UV Index (strong negative)
(1, 7): 0.81, # Humidity - Cloud Cover (strong positive)
(2, 3): 0.42, # Wind Speed - Precipitation (positive)
(2, 4): -0.31, # Wind Speed - Air Pressure (weak negative)
(2, 5): 0.09, # Wind Speed - Solar Radiation (very weak)
(2, 6): -0.12, # Wind Speed - UV Index (very weak negative)
(2, 7): 0.38, # Wind Speed - Cloud Cover (weak positive)
(3, 4): -0.52, # Precipitation - Air Pressure (negative)
(3, 5): -0.68, # Precipitation - Solar Radiation (strong negative)
(3, 6): -0.61, # Precipitation - UV Index (strong negative)
(3, 7): 0.74, # Precipitation - Cloud Cover (strong positive)
(4, 5): 0.45, # Air Pressure - Solar Radiation (positive)
(4, 6): 0.39, # Air Pressure - UV Index (positive)
(4, 7): -0.43, # Air Pressure - Cloud Cover (negative)
(5, 6): 0.85, # Solar Radiation - UV Index (strong positive)
(5, 7): -0.79, # Solar Radiation - Cloud Cover (strong negative)
(6, 7): -0.71, # UV Index - Cloud Cover (strong negative)
}
for (i, j), corr in correlations.items():
correlation_matrix[i, j] = corr
correlation_matrix[j, i] = corr
# Mask the upper triangle so each pair is shown once
mask = np.triu(np.ones_like(correlation_matrix, dtype=bool), k=1)
masked_corr = np.where(mask, np.nan, correlation_matrix)
# Imprint diverging colormap — matte-red (negative) through the theme midpoint to blue (positive)
midpoint = PAGE_BG
imprint_div = LinearSegmentedColormap.from_list("imprint_div", ["#AE3030", midpoint, "#4467A3"])
# Plot — square canvas for this symmetric matrix (see default-style-guide.md "Dimensions")
fig, ax = plt.subplots(figsize=(6, 6), dpi=400, facecolor=PAGE_BG, layout="constrained")
ax.set_facecolor(PAGE_BG)
im = ax.imshow(masked_corr, cmap=imprint_div, vmin=-1, vmax=1, aspect="equal")
# Subtle cell-boundary grid
ax.set_xticks(np.arange(n_vars) - 0.5, minor=True)
ax.set_yticks(np.arange(n_vars) - 0.5, minor=True)
ax.grid(which="minor", color=INK_MUTED, linestyle="-", linewidth=0.6, alpha=0.25)
ax.tick_params(which="minor", bottom=False, left=False)
# Colorbar, fixed to the full correlation range
cbar = ax.figure.colorbar(im, ax=ax, shrink=0.74, pad=0.03)
cbar.ax.set_ylabel("Correlation Coefficient", fontsize=10, labelpad=10, color=INK)
cbar.ax.tick_params(labelsize=8, colors=INK_SOFT, labelcolor=INK_SOFT)
cbar.outline.set_visible(False)
# Ticks and axis labels
ax.set_xticks(np.arange(n_vars))
ax.set_yticks(np.arange(n_vars))
ax.set_xticklabels(variables, fontsize=9, rotation=45, ha="right", rotation_mode="anchor", color=INK_SOFT)
ax.set_yticklabels(variables, fontsize=9, color=INK_SOFT)
ax.tick_params(which="major", bottom=False, left=False)
ax.set_xlabel("Weather Variables", fontsize=10, labelpad=12, color=INK)
ax.set_ylabel("Weather Variables", fontsize=10, labelpad=12, color=INK)
# Emphasis borders on strong correlations — solid for positive, dashed for negative,
# so the sign reads even without checking the colorbar
for i in range(n_vars):
for j in range(n_vars):
if not mask[i, j] and i != j and abs(correlation_matrix[i, j]) > 0.75:
positive = correlation_matrix[i, j] > 0
rect = Rectangle(
(j - 0.45, i - 0.45),
0.9,
0.9,
linewidth=1.8,
edgecolor=EMPHASIS_POS if positive else EMPHASIS_NEG,
facecolor="none",
linestyle="-" if positive else "--",
alpha=0.85,
)
ax.add_patch(rect)
# Cell annotations — text color follows the actual cell luminance so it stays
# legible against both saturated correlation colors and the near-neutral midpoint
for i in range(n_vars):
for j in range(n_vars):
if not mask[i, j]:
value = correlation_matrix[i, j]
r, g, b, _ = imprint_div((value + 1) / 2)
luminance = 0.2126 * r + 0.7152 * g + 0.0722 * b
text_color = "white" if luminance < 0.55 else INK_SOFT
ax.text(j, i, f"{value:.2f}", ha="center", va="center", color=text_color, fontsize=9, fontweight="bold")
# Title on the full figure (not just the heatmap axes) so it stays centered over
# the colorbar too — the square canvas is narrower than the landscape default,
# so the mandated title needs a smaller fontsize than the 12pt landscape baseline
# to stay clear of the colorbar's top tick label.
fig.suptitle(
"heatmap-correlation · python · matplotlib · anyplot.ai", fontsize=11, y=0.97, fontweight="medium", color=INK
)
for spine in ax.spines.values():
spine.set_visible(False)

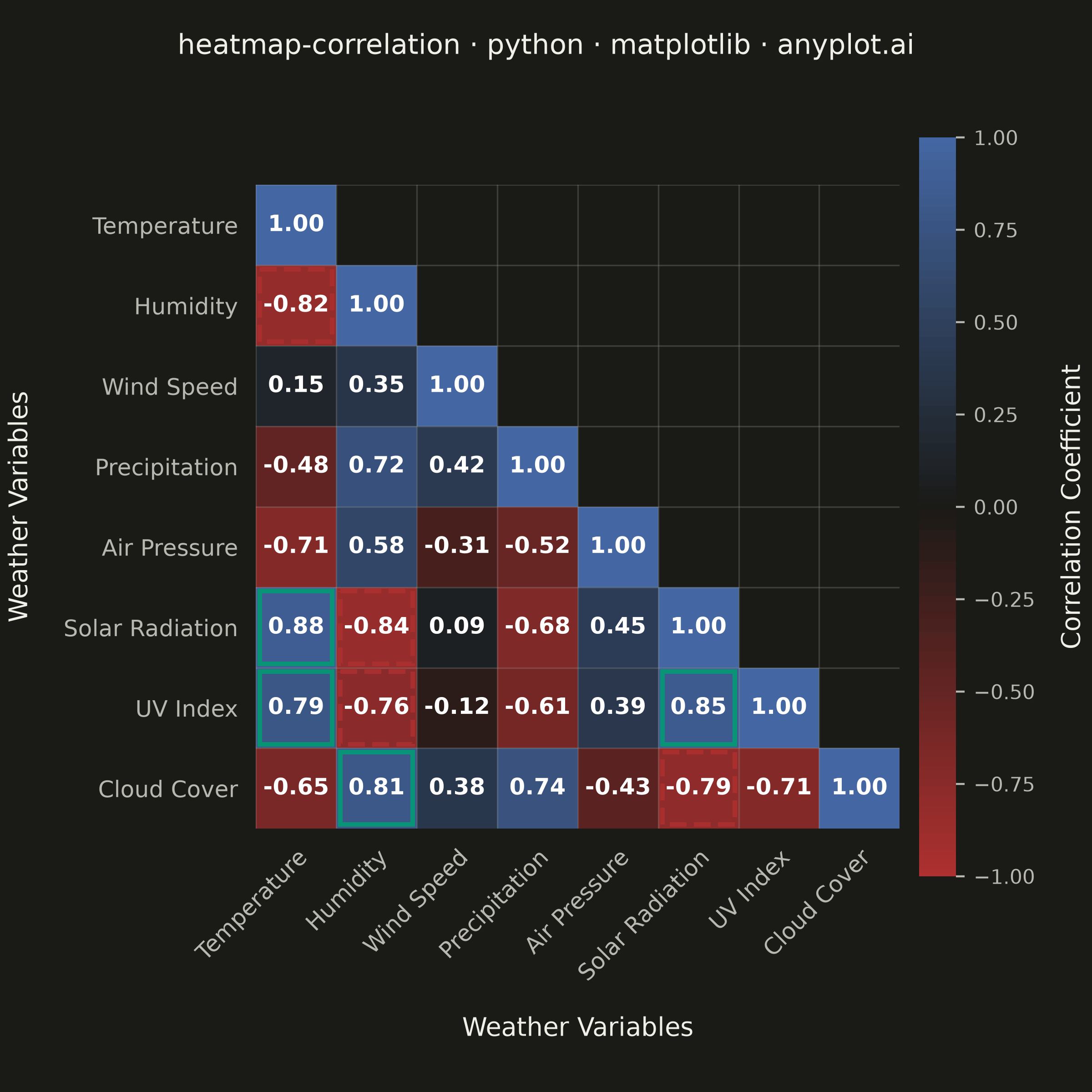

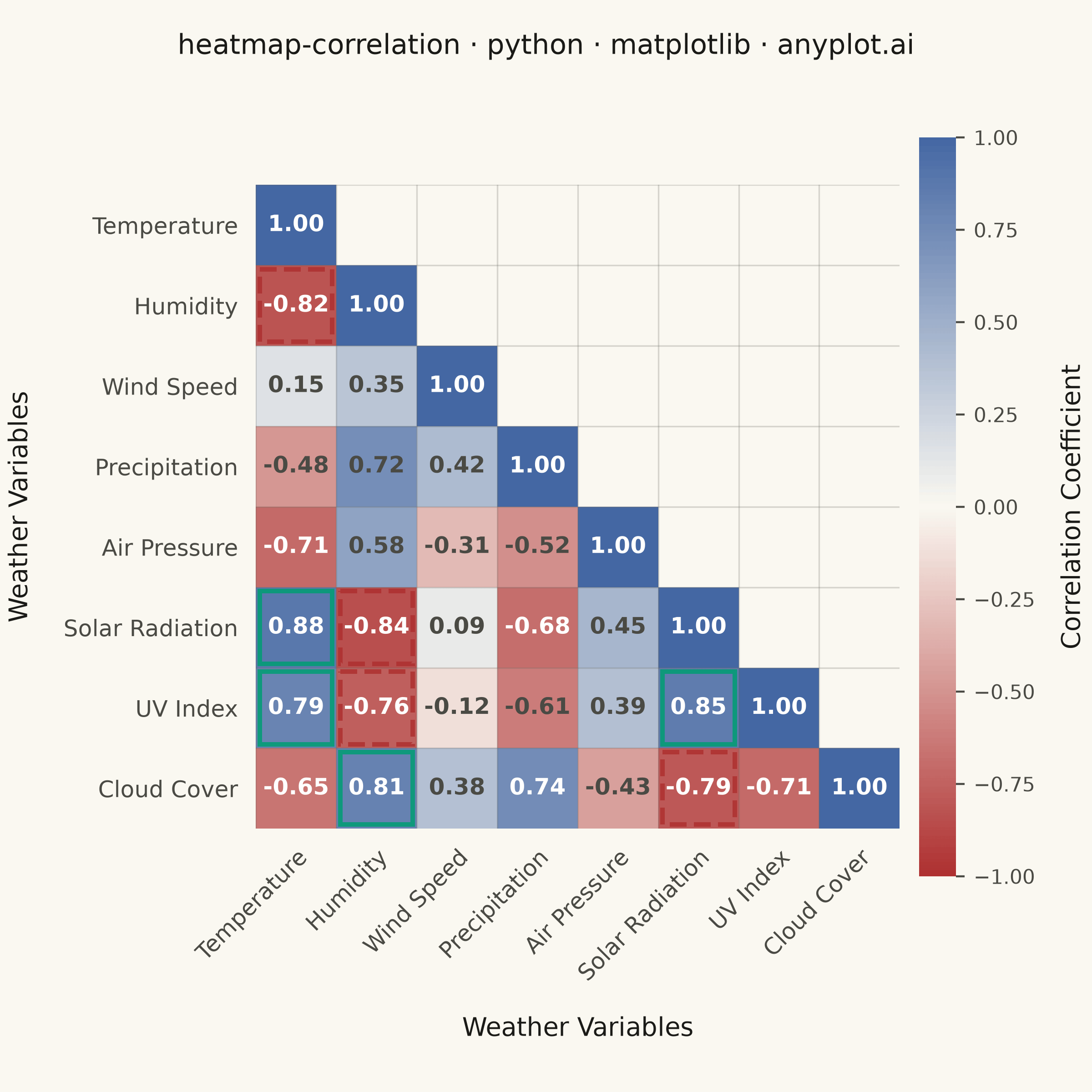

plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/heatmap-correlation/matplotlib/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
