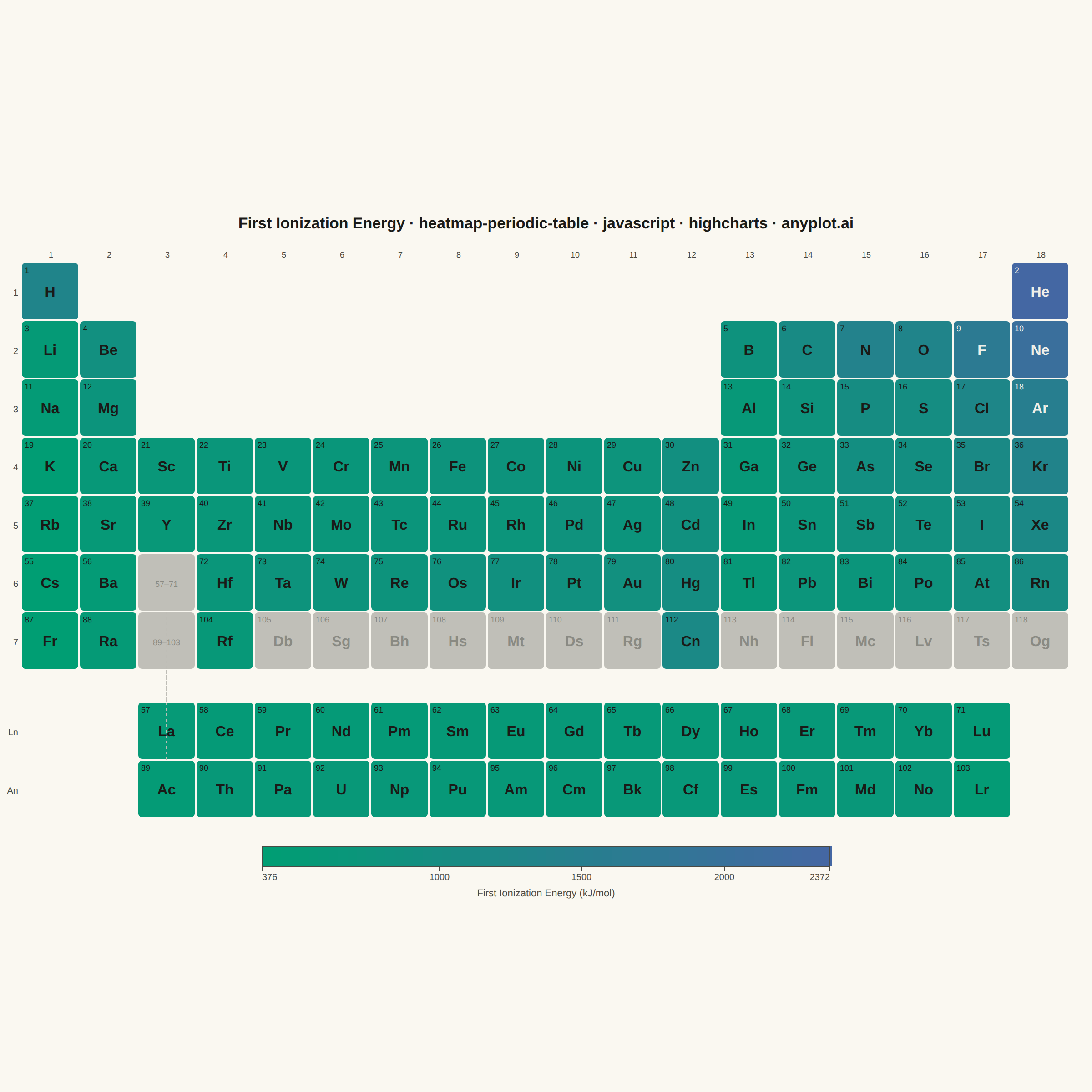

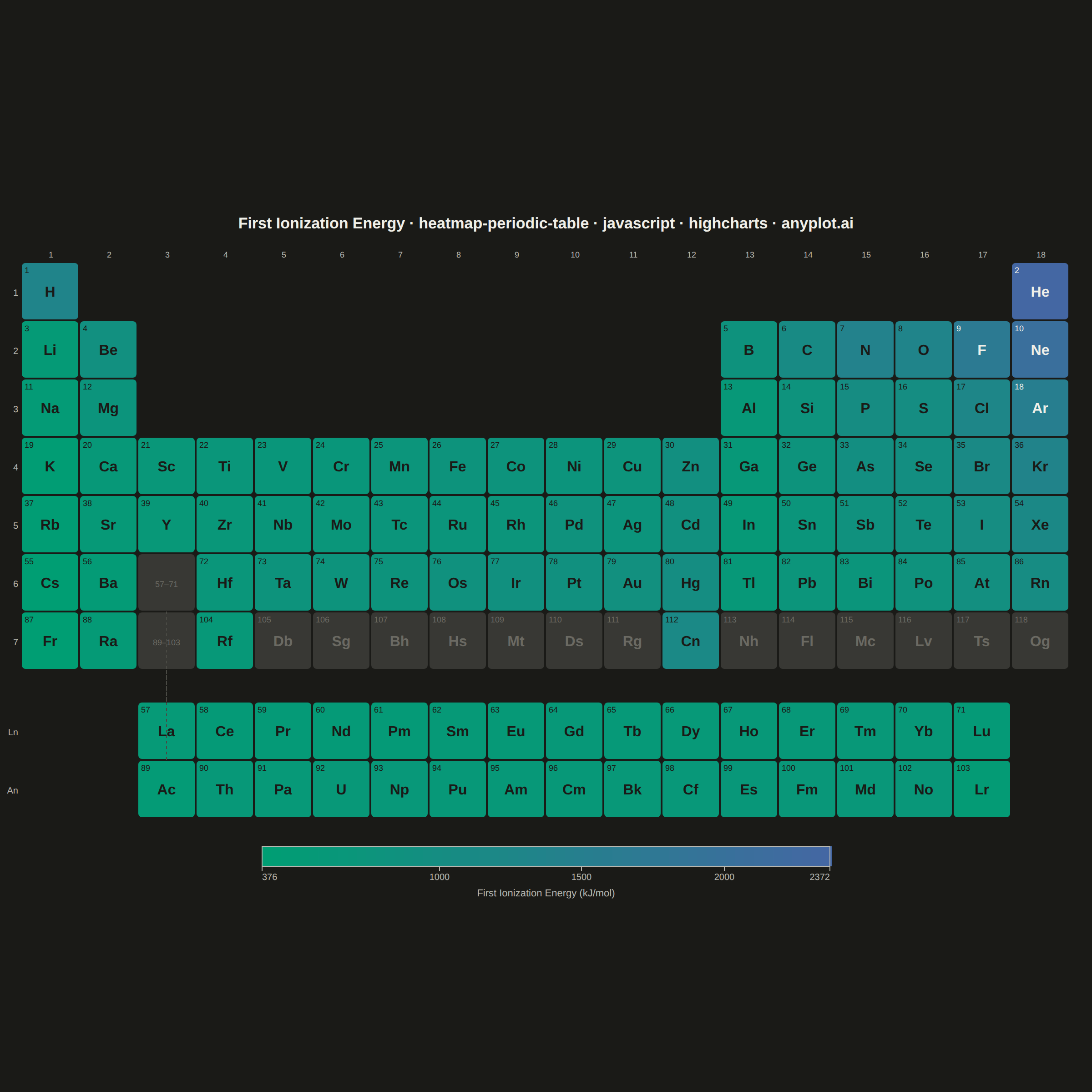

A periodic table of the elements rendered in its canonical layout — 18 groups across by 7 periods down, with the lanthanide and actinide series detached as two separate rows below — where each element tile is colored by a continuous property such as electronegativity, atomic radius, melting point, or first ionization energy. A colorbar maps tile color to property value, and every tile carries the element symbol and atomic number, optionally with the numeric property value. This visualization fuses an immediately recognizable fixed grid with heatmap encoding, turning a familiar reference chart into a tool for spotting periodic trends at a glance.
// anyplot.ai
// heatmap-periodic-table: Periodic Table Property Heatmap
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 87/100 | Created: 2026-06-15
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const isDark = window.ANYPLOT_THEME === 'dark';
const W = window.ANYPLOT_SIZE.width; // 1200 (square)
const H = window.ANYPLOT_SIZE.height; // 1200
// --- Color utilities ---
function hexToRgb(hex) {
return [parseInt(hex.slice(1, 3), 16), parseInt(hex.slice(3, 5), 16), parseInt(hex.slice(5, 7), 16)];
}
function colorAt(frac) {
const a = hexToRgb(t.seq[0]); // #009E73 brand green
const b = hexToRgb(t.seq[1]); // #4467A3 blue
const r = Math.round(a[0] + (b[0] - a[0]) * frac);
const g = Math.round(a[1] + (b[1] - a[1]) * frac);
const bl = Math.round(a[2] + (b[2] - a[2]) * frac);
return 'rgb(' + r + ',' + g + ',' + bl + ')';
}
function lum(rgbStr) {
return rgbStr.match(/\d+/g).map(Number).reduce((acc, c, i) => {
const v = c / 255;
const lin = v <= 0.03928 ? v / 12.92 : Math.pow((v + 0.055) / 1.055, 2.4);
return acc + lin * [0.2126, 0.7152, 0.0722][i];
}, 0);
}
// --- Element data: [symbol, Z, group, period, IE1 kJ/mol | null] ---
// period 8 = lanthanide f-block row; period 9 = actinide f-block row
// group in f-block rows: 3=La/Ac, 4=Ce/Th, ..., 17=Lu/Lr
const elements = [
// Period 1
['H', 1, 1, 1, 1312], ['He', 2, 18, 1, 2372],
// Period 2
['Li', 3, 1, 2, 520], ['Be', 4, 2, 2, 900], ['B', 5, 13, 2, 800], ['C', 6, 14, 2, 1086],
['N', 7, 15, 2, 1402], ['O', 8, 16, 2, 1314], ['F', 9, 17, 2, 1681], ['Ne', 10, 18, 2, 2081],
// Period 3
['Na', 11, 1, 3, 496], ['Mg', 12, 2, 3, 738], ['Al', 13, 13, 3, 578], ['Si', 14, 14, 3, 786],
['P', 15, 15, 3, 1012], ['S', 16, 16, 3, 1000], ['Cl', 17, 17, 3, 1251], ['Ar', 18, 18, 3, 1521],
// Period 4
['K', 19, 1, 4, 419], ['Ca', 20, 2, 4, 590], ['Sc', 21, 3, 4, 633], ['Ti', 22, 4, 4, 659],
['V', 23, 5, 4, 651], ['Cr', 24, 6, 4, 653], ['Mn', 25, 7, 4, 717], ['Fe', 26, 8, 4, 762],
['Co', 27, 9, 4, 760], ['Ni', 28, 10, 4, 737], ['Cu', 29, 11, 4, 745], ['Zn', 30, 12, 4, 906],
['Ga', 31, 13, 4, 579], ['Ge', 32, 14, 4, 762], ['As', 33, 15, 4, 947], ['Se', 34, 16, 4, 941],
['Br', 35, 17, 4, 1140], ['Kr', 36, 18, 4, 1351],
// Period 5
['Rb', 37, 1, 5, 403], ['Sr', 38, 2, 5, 550], ['Y', 39, 3, 5, 600], ['Zr', 40, 4, 5, 640],
['Nb', 41, 5, 5, 652], ['Mo', 42, 6, 5, 684], ['Tc', 43, 7, 5, 702], ['Ru', 44, 8, 5, 711],
['Rh', 45, 9, 5, 720], ['Pd', 46, 10, 5, 804], ['Ag', 47, 11, 5, 731], ['Cd', 48, 12, 5, 868],
['In', 49, 13, 5, 558], ['Sn', 50, 14, 5, 709], ['Sb', 51, 15, 5, 834], ['Te', 52, 16, 5, 869],
['I', 53, 17, 5, 1008], ['Xe', 54, 18, 5, 1170],
// Period 6 main (group 3 left for La placeholder)
['Cs', 55, 1, 6, 376], ['Ba', 56, 2, 6, 503],
['Hf', 72, 4, 6, 659], ['Ta', 73, 5, 6, 761], ['W', 74, 6, 6, 770], ['Re', 75, 7, 6, 760],
['Os', 76, 8, 6, 840], ['Ir', 77, 9, 6, 880], ['Pt', 78, 10, 6, 870], ['Au', 79, 11, 6, 890],
['Hg', 80, 12, 6, 1007], ['Tl', 81, 13, 6, 589], ['Pb', 82, 14, 6, 716], ['Bi', 83, 15, 6, 703],
['Po', 84, 16, 6, 812], ['At', 85, 17, 6, 930], ['Rn', 86, 18, 6, 1037],
// Period 7 main (group 3 left for Ac placeholder)
['Fr', 87, 1, 7, 380], ['Ra', 88, 2, 7, 509],
['Rf', 104, 4, 7, 580], ['Db', 105, 5, 7, null], ['Sg', 106, 6, 7, null], ['Bh', 107, 7, 7, null],
['Hs', 108, 8, 7, null], ['Mt', 109, 9, 7, null], ['Ds', 110, 10, 7, null], ['Rg', 111, 11, 7, null],
['Cn', 112, 12, 7, 1155], ['Nh', 113, 13, 7, null], ['Fl', 114, 14, 7, null], ['Mc', 115, 15, 7, null],
['Lv', 116, 16, 7, null], ['Ts', 117, 17, 7, null], ['Og', 118, 18, 7, null],
// Lanthanides — period 8, group 3..17 (La=3, Ce=4, ..., Lu=17)
['La', 57, 3, 8, 538], ['Ce', 58, 4, 8, 528], ['Pr', 59, 5, 8, 523], ['Nd', 60, 6, 8, 530],
['Pm', 61, 7, 8, 536], ['Sm', 62, 8, 8, 543], ['Eu', 63, 9, 8, 547], ['Gd', 64, 10, 8, 593],
['Tb', 65, 11, 8, 565], ['Dy', 66, 12, 8, 572], ['Ho', 67, 13, 8, 581], ['Er', 68, 14, 8, 589],
['Tm', 69, 15, 8, 597], ['Yb', 70, 16, 8, 603], ['Lu', 71, 17, 8, 524],
// Actinides — period 9, group 3..17 (Ac=3, Th=4, ..., Lr=17)
['Ac', 89, 3, 9, 499], ['Th', 90, 4, 9, 587], ['Pa', 91, 5, 9, 568], ['U', 92, 6, 9, 598],
['Np', 93, 7, 9, 605], ['Pu', 94, 8, 9, 585], ['Am', 95, 9, 9, 578], ['Cm', 96, 10, 9, 581],
['Bk', 97, 11, 9, 601], ['Cf', 98, 12, 9, 608], ['Es', 99, 13, 9, 619], ['Fm', 100, 14, 9, 627],
['Md', 101, 15, 9, 635], ['No', 102, 16, 9, 642], ['Lr', 103, 17, 9, 479],
];
const ieValues = elements.map(e => e[4]).filter(v => v !== null);
const minIE = Math.min(...ieValues); // 376 (Cs)
const maxIE = Math.max(...ieValues); // 2372 (He)
// --- Layout (CSS px; mount = 1200×1200 square) ---
const PITCH = 64;
const TILE = PITCH - 2; // 62px tiles with 2px gap
const GRID_LEFT = Math.round((W - 18 * PITCH) / 2); // center 18-column grid
const TITLE_H = 64;
const GRP_H = 20; // group-number row above tiles
const MAIN_H = 7 * PITCH; // 448px
const FGAP_H = Math.round(PITCH * 0.55); // 35px gap before f-block
const FBLOCK_H = 2 * PITCH; // 128px
const CB_H = 22; // colorbar height
const CB_LABEL_H = 44; // two label rows (tick values + property name)
const CONTENT_H = TITLE_H + GRP_H + MAIN_H + FGAP_H + FBLOCK_H + 30 + CB_H + CB_LABEL_H;
const TOP = Math.round((H - CONTENT_H) / 2);
const TITLE_Y = TOP + Math.round(TITLE_H * 0.72);
const GRP_TOP = TOP + TITLE_H;
const GRID_TOP = GRP_TOP + GRP_H;
const FBLOCK_TOP = GRID_TOP + MAIN_H + FGAP_H;
const CB_TOP = FBLOCK_TOP + FBLOCK_H + 30;
// --- Render via Highcharts SVG renderer ---
const chart = Highcharts.chart('container', {
chart: {
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
margin: [0, 0, 0, 0],
spacing: [0, 0, 0, 0],
},
title: { text: '' },
credits: { enabled: false },
xAxis: { visible: false },
yAxis: { visible: false },
legend: { enabled: false },
tooltip: { enabled: false },
plotOptions: { series: { animation: false } },
series: [],
});
const R = chart.renderer;
// --- Title ---
const titleText = 'First Ionization Energy · heatmap-periodic-table · javascript · highcharts · anyplot.ai';
const titleFS = Math.max(Math.round(22 * 67 / titleText.length), 12);
R.text(titleText, W / 2, TITLE_Y)
.attr({ align: 'center', zIndex: 5 })
.css({ color: t.ink, fontSize: titleFS + 'px', fontWeight: '600' })
.add();
// --- Group numbers (1–18) above main table ---
for (var g = 1; g <= 18; g++) {
R.text(String(g), GRID_LEFT + (g - 1) * PITCH + PITCH / 2, GRP_TOP + 14)
.attr({ align: 'center', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '9px' })
.add();
}
// --- Draw a single element tile ---
function drawTile(x, y, sym, z, ie) {
const frac = ie !== null ? (ie - minIE) / (maxIE - minIE) : null;
const fill = frac !== null
? colorAt(frac)
: (isDark ? '#383834' : '#C0BFB8');
const textCol = frac !== null
? (lum(fill) > 0.18 ? '#1A1A17' : '#F0EFE8')
: (isDark ? '#6B6A63' : '#8A8A83');
const numFS = Math.round(TILE * 0.145); // ~9px
const symFS = Math.round(TILE * 0.265); // ~16px
R.rect(x, y, TILE, TILE, 4) // 4px rounded corners
.attr({ fill: fill, zIndex: 1 })
.add();
// Atomic number — top-left corner
R.text(String(z), x + 3, y + numFS + 2)
.attr({ zIndex: 3 })
.css({ color: textCol, fontSize: numFS + 'px', lineHeight: '1' })
.add();
// Element symbol — centered
R.text(sym, x + TILE / 2, y + TILE / 2 + Math.round(symFS * 0.38))
.attr({ align: 'center', zIndex: 3 })
.css({ color: textCol, fontSize: symFS + 'px', fontWeight: '700' })
.add();
}
// --- Main table and f-block tiles ---
elements.forEach(function(el) {
var sym = el[0], z = el[1], grp = el[2], per = el[3], ie = el[4];
var x, y;
if (per <= 7) {
x = GRID_LEFT + (grp - 1) * PITCH;
y = GRID_TOP + (per - 1) * PITCH;
} else {
// f-block: group 3..17 aligns with main table columns
x = GRID_LEFT + (grp - 1) * PITCH;
y = FBLOCK_TOP + (per - 8) * PITCH;
}
drawTile(x, y, sym, z, ie);
});
// --- Placeholder tiles at group 3 for periods 6 and 7 ---
[
[6, '57–71'],
[7, '89–103'],
].forEach(function(pair) {
var per = pair[0], label = pair[1];
var x = GRID_LEFT + 2 * PITCH;
var y = GRID_TOP + (per - 1) * PITCH;
var fill = isDark ? '#383834' : '#C0BFB8';
var col = isDark ? '#6B6A63' : '#8A8A83';
R.rect(x, y, TILE, TILE, 4)
.attr({ fill: fill, zIndex: 1 })
.add();
R.text(label, x + TILE / 2, y + TILE / 2 + 5)
.attr({ align: 'center', zIndex: 3 })
.css({ color: col, fontSize: '9px' })
.add();
});
// --- Connector lines: placeholder tiles → f-block rows (dashed) ---
var connColor = isDark ? '#4A4A44' : '#BEBDB6';
var connX = GRID_LEFT + 2 * PITCH + Math.round(TILE / 2);
// Period 6 placeholder → Lanthanide row
R.path(['M', connX, GRID_TOP + 5 * PITCH + TILE + 1, 'L', connX, FBLOCK_TOP - 1])
.attr({ stroke: connColor, 'stroke-width': 1, 'stroke-dasharray': '3,3', zIndex: 1 })
.add();
// Period 7 placeholder → Actinide row
R.path(['M', connX, GRID_TOP + 6 * PITCH + TILE + 1, 'L', connX, FBLOCK_TOP + PITCH - 1])
.attr({ stroke: connColor, 'stroke-width': 1, 'stroke-dasharray': '3,3', zIndex: 1 })
.add();
// --- Period numbers (1–7) to the left of main table ---
for (var per = 1; per <= 7; per++) {
R.text(String(per), GRID_LEFT - 4, GRID_TOP + (per - 1) * PITCH + Math.round(PITCH / 2) + 4)
.attr({ align: 'right', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '10px' })
.add();
}
// --- F-block row labels ("Ln" / "An") ---
R.text('Ln', GRID_LEFT - 4, FBLOCK_TOP + Math.round(PITCH / 2) + 4)
.attr({ align: 'right', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '10px' })
.add();
R.text('An', GRID_LEFT - 4, FBLOCK_TOP + PITCH + Math.round(PITCH / 2) + 4)
.attr({ align: 'right', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '10px' })
.add();
// --- Colorbar ---
const CB_W = Math.round(W * 0.52);
const CB_LEFT = Math.round((W - CB_W) / 2);
const STOPS = 60;
for (var i = 0; i < STOPS; i++) {
var frac = i / (STOPS - 1);
R.rect(
CB_LEFT + Math.round(i * CB_W / STOPS),
CB_TOP,
Math.ceil(CB_W / STOPS) + 1,
CB_H,
0
)
.attr({ fill: colorAt(frac), zIndex: 1 })
.add();
}
// Colorbar border
R.rect(CB_LEFT, CB_TOP, CB_W, CB_H, 0)
.attr({ fill: 'none', stroke: t.inkSoft, 'stroke-width': 1, zIndex: 2 })
.add();
// Colorbar tick marks and labels
var tickBotY = CB_TOP + CB_H;
var valLabelY = tickBotY + 15;
var propLabelY = tickBotY + 33;
// Endpoint tick marks
R.path(['M', CB_LEFT, tickBotY, 'L', CB_LEFT, tickBotY + 5])
.attr({ stroke: t.inkSoft, 'stroke-width': 1, zIndex: 3 }).add();
R.path(['M', CB_LEFT + CB_W, tickBotY, 'L', CB_LEFT + CB_W, tickBotY + 5])
.attr({ stroke: t.inkSoft, 'stroke-width': 1, zIndex: 3 }).add();
// Endpoint value labels
R.text(String(minIE), CB_LEFT, valLabelY)
.attr({ align: 'left', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '10px' })
.add();
R.text(String(maxIE), CB_LEFT + CB_W, valLabelY)
.attr({ align: 'right', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '10px' })
.add();
// Intermediate tick marks at 1000, 1500, 2000 kJ/mol
[1000, 1500, 2000].forEach(function(val) {
var frac = (val - minIE) / (maxIE - minIE);
var tx = CB_LEFT + Math.round(frac * CB_W);
R.path(['M', tx, tickBotY, 'L', tx, tickBotY + 5])
.attr({ stroke: t.inkSoft, 'stroke-width': 1, zIndex: 3 })
.add();
R.text(String(val), tx, valLabelY)
.attr({ align: 'center', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '10px' })
.add();
});
// Property name label
R.text('First Ionization Energy (kJ/mol)', W / 2, propLabelY)
.attr({ align: 'center', zIndex: 3 })
.css({ color: t.inkSoft, fontSize: '11px' })
.add();
Part of Periodic Table Property Heatmap on anyplot.ai.
