Overlapping Histograms — Chart.js

Overlapping histograms display multiple distributions on the same axes using semi-transparent bars, enabling direct visual comparison between groups. This technique reveals differences in central tendency, spread, and shape across categories while maintaining the familiar histogram format. The transparency allows viewers to see where distributions overlap and diverge.

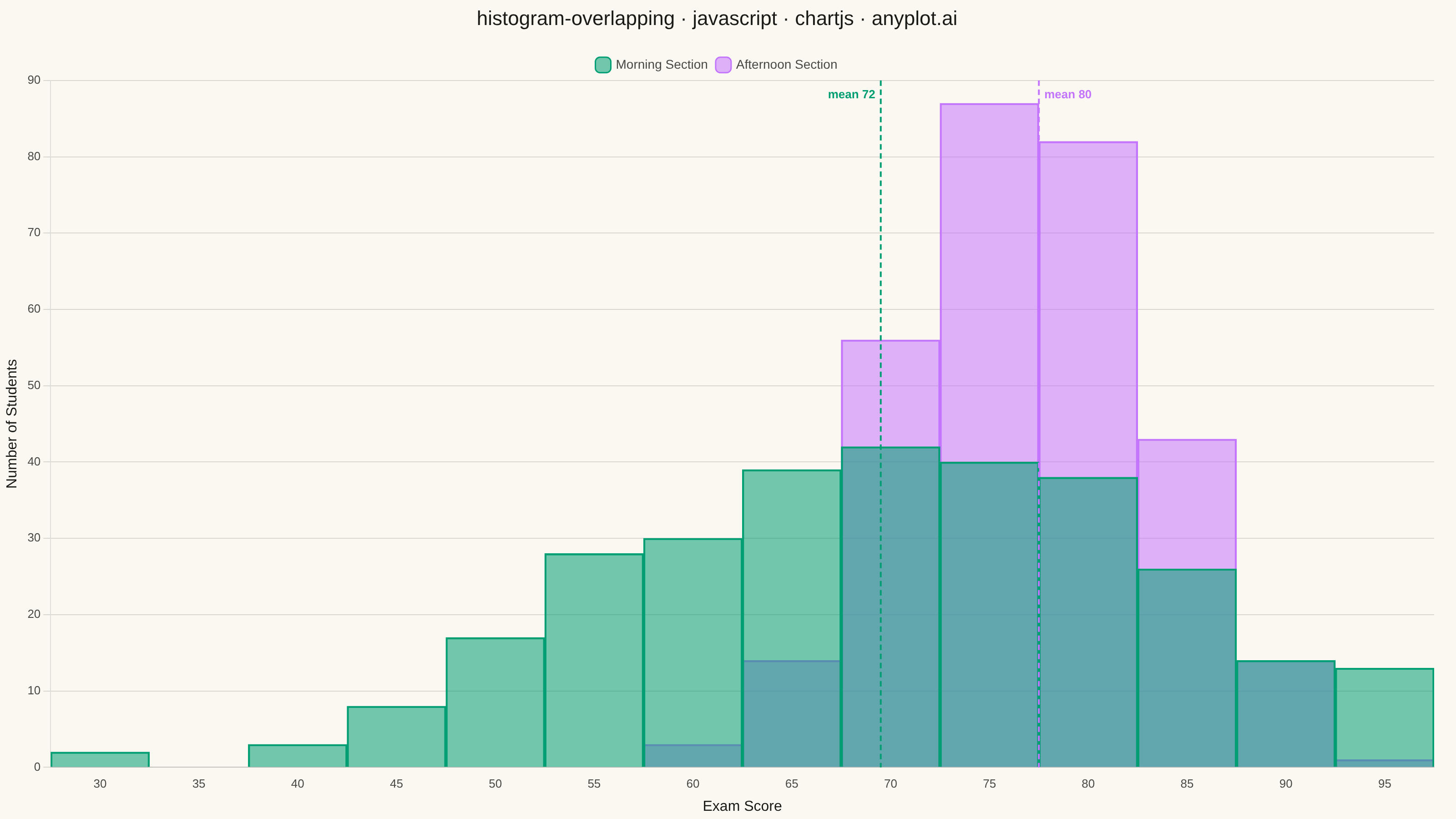

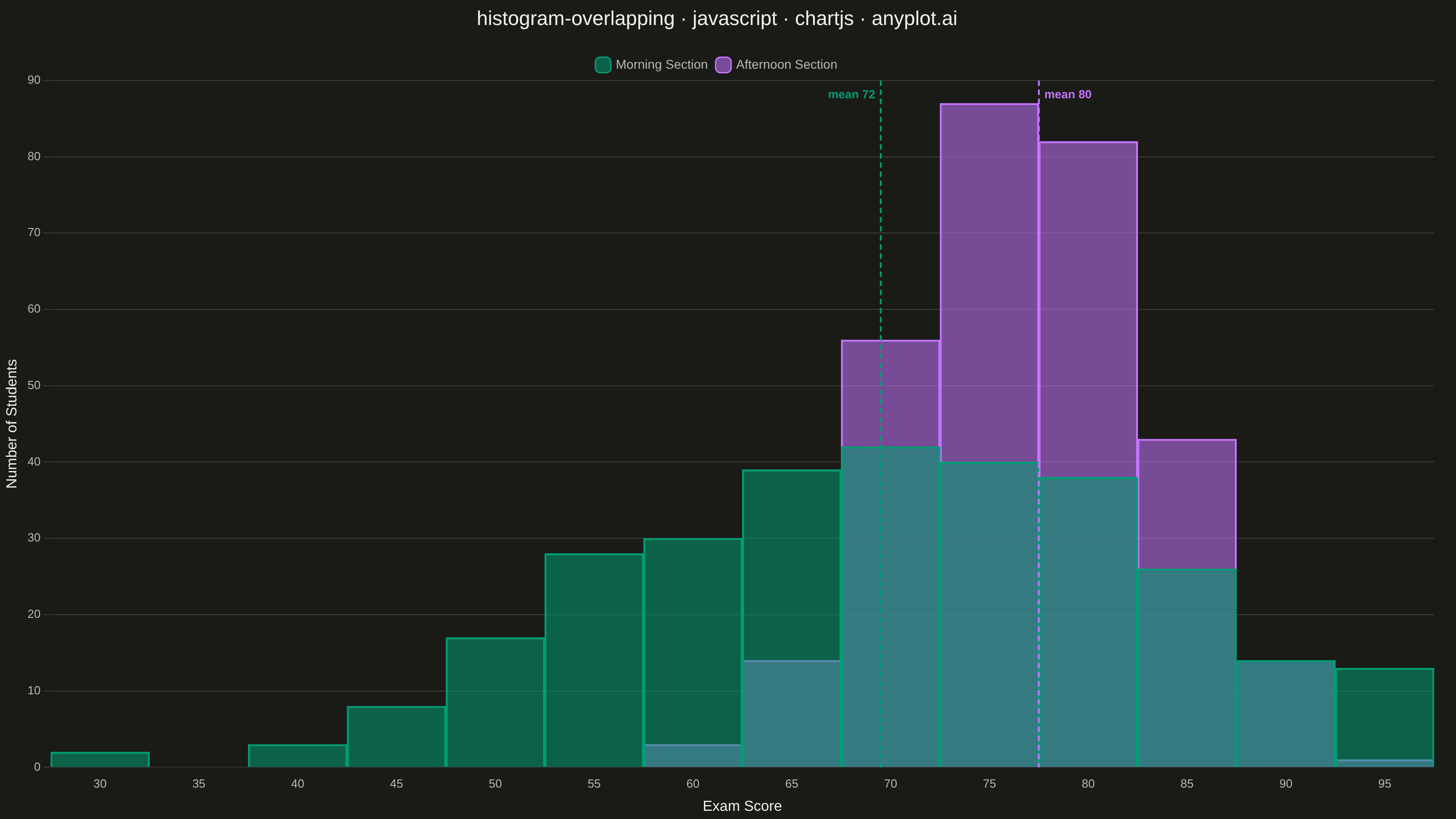

Overlapping Histograms rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// histogram-overlapping: Overlapping Histograms
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-08-18

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Small LCG PRNG + Box-Muller transform — the browser has no seeded RNG.
let seed = 42;
function lcgRandom() {
  seed = (seed * 1664525 + 1013904223) % 4294967296;
  return seed / 4294967296;
}
function randomNormal(mean, stdDev) {
  const u1 = 1 - lcgRandom();
  const u2 = lcgRandom();
  const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
  return mean + z * stdDev;
}

const groups = [
  { name: "Morning Section", mean: 72, stdDev: 13, n: 300 },
  { name: "Afternoon Section", mean: 80, stdDev: 6, n: 300 },
];
groups.forEach((group) => {
  group.scores = Array.from({ length: group.n }, () =>
    Math.min(100, Math.max(0, randomNormal(group.mean, group.stdDev))),
  );
});

// --- Shared bins across both groups (aligned edges for a fair comparison) --
const allScores = groups.flatMap((group) => group.scores);
const binWidth = 5;
const minEdge = Math.floor(Math.min(...allScores) / binWidth) * binWidth;
const maxEdge = Math.ceil(Math.max(...allScores) / binWidth) * binWidth;
const binCount = (maxEdge - minEdge) / binWidth;
const binLabels = Array.from(
  { length: binCount },
  (_, i) => `${minEdge + i * binWidth}`,
);

groups.forEach((group) => {
  const counts = new Array(binCount).fill(0);
  group.scores.forEach((score) => {
    const idx = Math.min(
      binCount - 1,
      Math.max(0, Math.floor((score - minEdge) / binWidth)),
    );
    counts[idx] += 1;
  });
  group.counts = counts;
});

function withAlpha(hex, alpha) {
  const r = parseInt(hex.slice(1, 3), 16);
  const g = parseInt(hex.slice(3, 5), 16);
  const b = parseInt(hex.slice(5, 7), 16);
  return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}

// --- Mean-marker plugin --------------------------------------------------
// Makes the score-gap insight explicit: a dashed vertical line + label at
// each group's mean, positioned via the shared bin grid (fractional
// category index) so it lines up with the actual score, not the bin edge.
const meanMarkerPlugin = {
  id: "meanMarkers",
  afterDatasetsDraw(chart) {
    const { ctx, chartArea, scales } = chart;
    const xScale = scales.x;
    ctx.save();
    groups.forEach((group, i) => {
      const fracIndex = (group.mean - minEdge) / binWidth - 0.5;
      const xPixel = xScale.getPixelForValue(fracIndex);

      ctx.strokeStyle = t.palette[i];
      ctx.lineWidth = 2;
      ctx.setLineDash([6, 4]);
      ctx.beginPath();
      ctx.moveTo(xPixel, chartArea.top);
      ctx.lineTo(xPixel, chartArea.bottom);
      ctx.stroke();

      ctx.setLineDash([]);
      ctx.fillStyle = t.palette[i];
      ctx.font = "600 13px sans-serif";
      ctx.textAlign = i === 0 ? "right" : "left";
      ctx.fillText(
        `mean ${group.mean.toFixed(0)}`,
        xPixel + (i === 0 ? -6 : 6),
        chartArea.top + 16,
      );
    });
    ctx.restore();
  },
};

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
  type: "bar",
  data: {
    labels: binLabels,
    datasets: groups.map((group, i) => ({
      label: group.name,
      data: group.counts,
      backgroundColor: withAlpha(t.palette[i], 0.55),
      borderColor: t.palette[i],
      borderWidth: 1.5,
      barPercentage: 1.0,
      categoryPercentage: 1.0,
      grouped: false,
    })),
  },
  plugins: [meanMarkerPlugin],
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    layout: {
      padding: { right: 24, top: 8 },
    },
    plugins: {
      title: {
        display: true,
        text: "histogram-overlapping · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22, weight: "500" },
        padding: { bottom: 20 },
      },
      legend: {
        labels: {
          color: t.inkSoft,
          font: { size: 14 },
          boxWidth: 14,
          usePointStyle: true,
          pointStyle: "rectRounded",
        },
      },
    },
    scales: {
      x: {
        ticks: {
          color: t.inkSoft,
          font: { size: 13 },
          maxRotation: 0,
          autoSkipPadding: 12,
        },
        grid: { display: false },
        title: {
          display: true,
          text: "Exam Score",
          color: t.ink,
          font: { size: 16 },
        },
      },
      y: {
        beginAtZero: true,
        ticks: { color: t.inkSoft, font: { size: 13 } },
        grid: { color: t.grid },
        title: {
          display: true,
          text: "Number of Students",
          color: t.ink,
          font: { size: 16 },
        },
      },
    },
  },
});
