Overlapping histograms display multiple distributions on the same axes using semi-transparent bars, enabling direct visual comparison between groups. This technique reveals differences in central tendency, spread, and shape across categories while maintaining the familiar histogram format. The transparency allows viewers to see where distributions overlap and diverge.

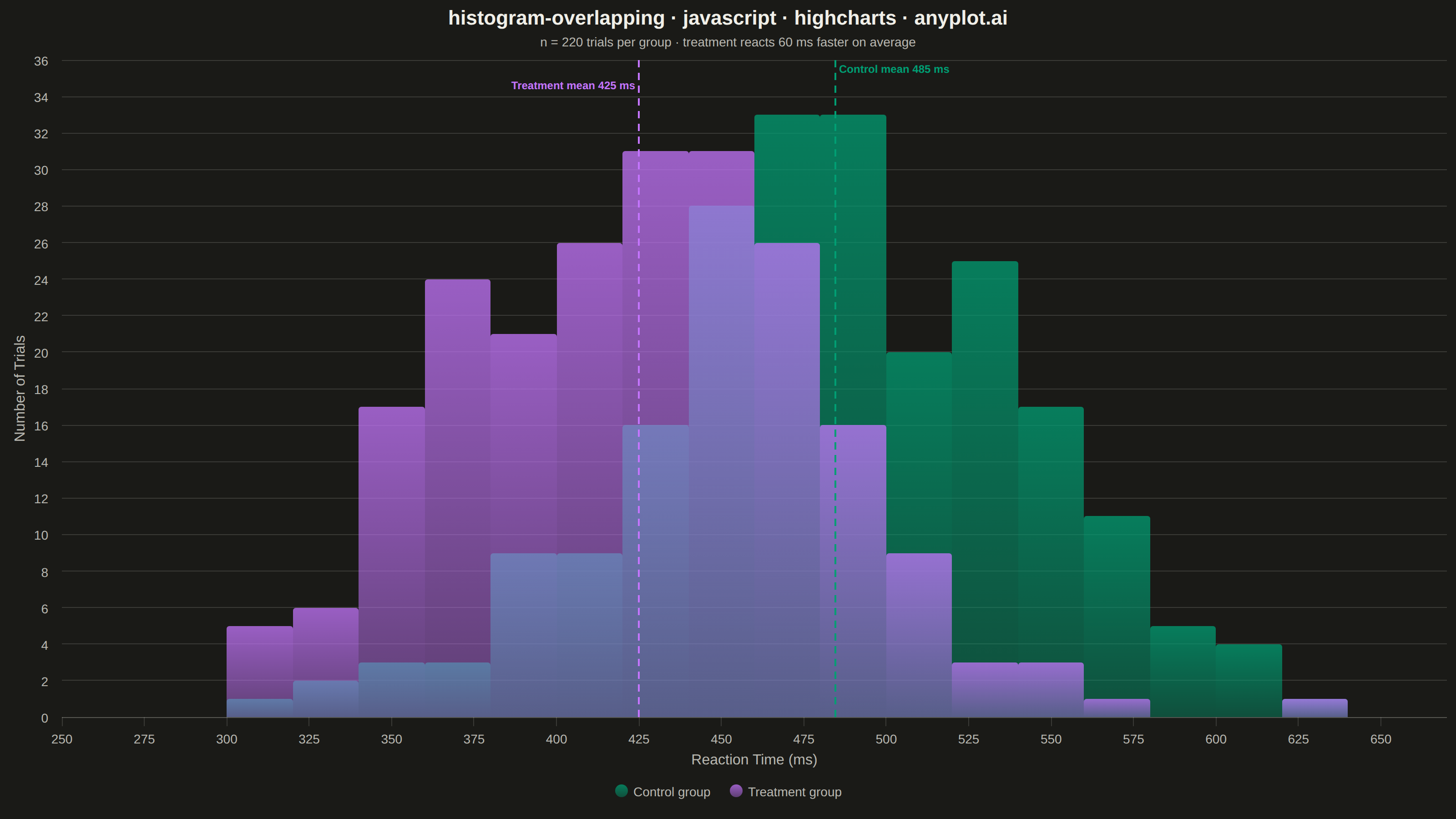

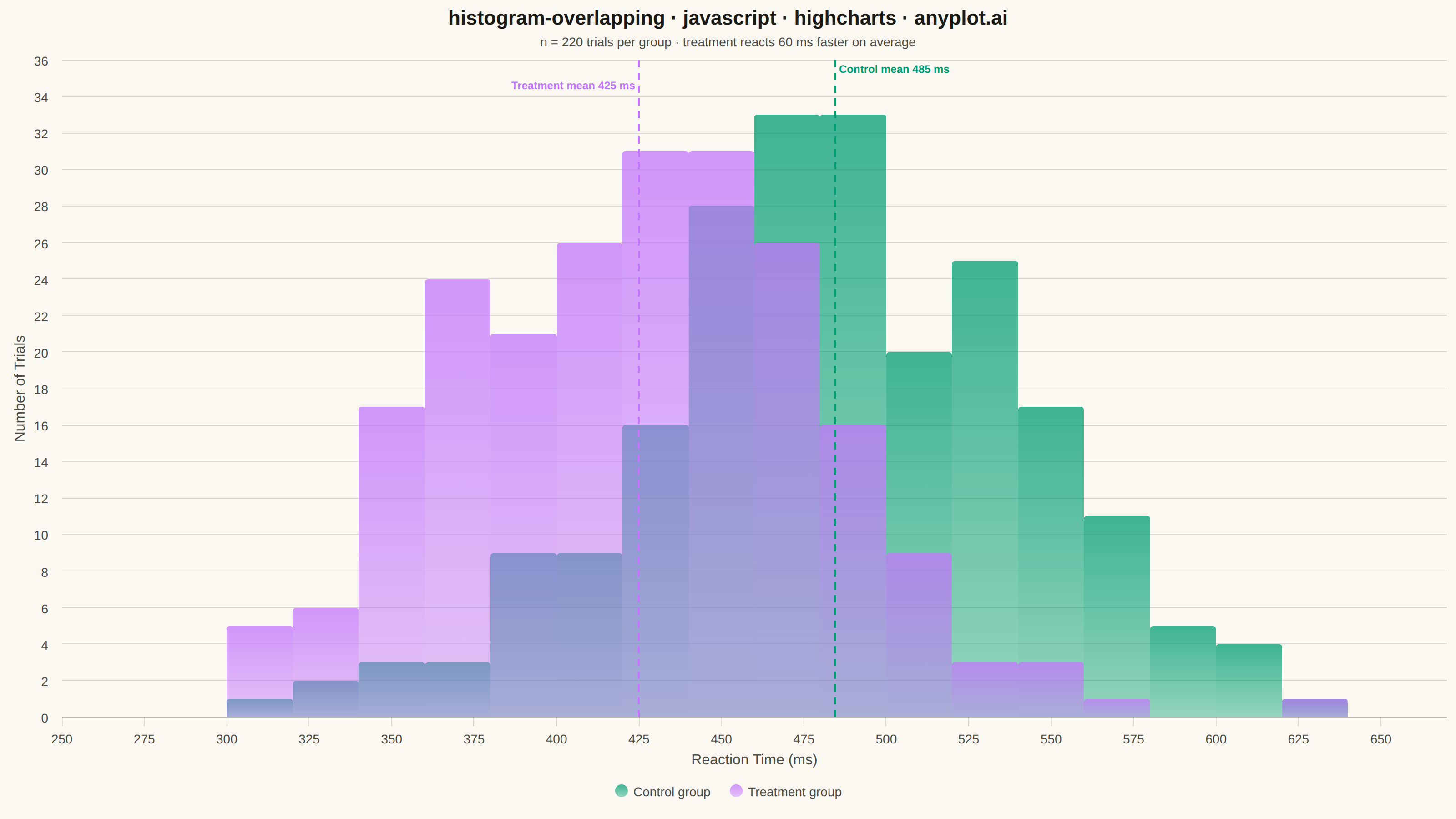

Overlapping Histograms rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// histogram-overlapping: Overlapping Histograms
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-08-18
//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG + Box-Muller) -----------------------
let seed = 42;
function nextUniform() {
  seed = (seed * 1664525 + 1013904223) % 4294967296;
  return seed / 4294967296;
}
function nextNormal(mean, sd) {
  const u1 = Math.max(nextUniform(), 1e-9);
  const u2 = nextUniform();
  const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
  return mean + z * sd;
}

const trialsPerGroup = 220;
const controlReactionTimes = Array.from({ length: trialsPerGroup }, () => nextNormal(480, 62));
const treatmentReactionTimes = Array.from({ length: trialsPerGroup }, () => nextNormal(428, 55));

// Shared bin edges so both distributions compare directly
const binWidth = 20;
const binStart = 260;
const binEnd = 660;

const buildHistogram = (values) => {
  const bins = [];
  for (let edge = binStart; edge < binEnd; edge += binWidth) {
    const count = values.filter((v) => v >= edge && v < edge + binWidth).length;
    bins.push([edge + binWidth / 2, count]);
  }
  return bins;
};

const controlBins = buildHistogram(controlReactionTimes);
const treatmentBins = buildHistogram(treatmentReactionTimes);

const mean = (values) => values.reduce((sum, v) => sum + v, 0) / values.length;
const controlMean = mean(controlReactionTimes);
const treatmentMean = mean(treatmentReactionTimes);

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "column",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "histogram-overlapping · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  subtitle: {
    text: `n = ${trialsPerGroup} trials per group · treatment reacts ${Math.round(controlMean - treatmentMean)} ms faster on average`,
    style: { color: t.inkSoft, fontSize: "14px" },
  },
  xAxis: {
    title: { text: "Reaction Time (ms)", style: { color: t.inkSoft, fontSize: "16px" } },
    lineWidth: 1,
    lineColor: t.grid,
    tickColor: t.grid,
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    min: binStart,
    max: binEnd,
    plotLines: [
      {
        value: controlMean,
        color: t.palette[0],
        width: 2,
        dashStyle: "Dash",
        zIndex: 5,
        label: {
          text: `Control mean ${Math.round(controlMean)} ms`,
          style: { color: t.palette[0], fontSize: "12px", fontWeight: "600" },
          rotation: 0,
          align: "left",
          x: 4,
          y: 14,
        },
      },
      {
        value: treatmentMean,
        color: t.palette[1],
        width: 2,
        dashStyle: "Dash",
        zIndex: 5,
        label: {
          text: `Treatment mean ${Math.round(treatmentMean)} ms`,
          style: { color: t.palette[1], fontSize: "12px", fontWeight: "600" },
          rotation: 0,
          align: "right",
          x: -4,
          y: 32,
        },
      },
    ],
  },
  yAxis: {
    title: { text: "Number of Trials", style: { color: t.inkSoft, fontSize: "16px" } },
    lineWidth: 0,
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  tooltip: { enabled: false },
  plotOptions: {
    column: {
      grouping: false,
      groupPadding: 0,
      pointPadding: 0,
      borderWidth: 0,
      borderRadius: 3,
      pointRange: binWidth,
    },
    series: { animation: false },
  },
  series: [
    {
      name: "Control group",
      data: controlBins,
      color: {
        linearGradient: { x1: 0, y1: 0, x2: 0, y2: 1 },
        stops: [
          [0, Highcharts.color(t.palette[0]).setOpacity(0.75).get()],
          [1, Highcharts.color(t.palette[0]).setOpacity(0.4).get()],
        ],
      },
    },
    {
      name: "Treatment group",
      data: treatmentBins,
      color: {
        linearGradient: { x1: 0, y1: 0, x2: 0, y2: 1 },
        stops: [
          [0, Highcharts.color(t.palette[1]).setOpacity(0.75).get()],
          [1, Highcharts.color(t.palette[1]).setOpacity(0.4).get()],
        ],
      },
    },
  ],
});
