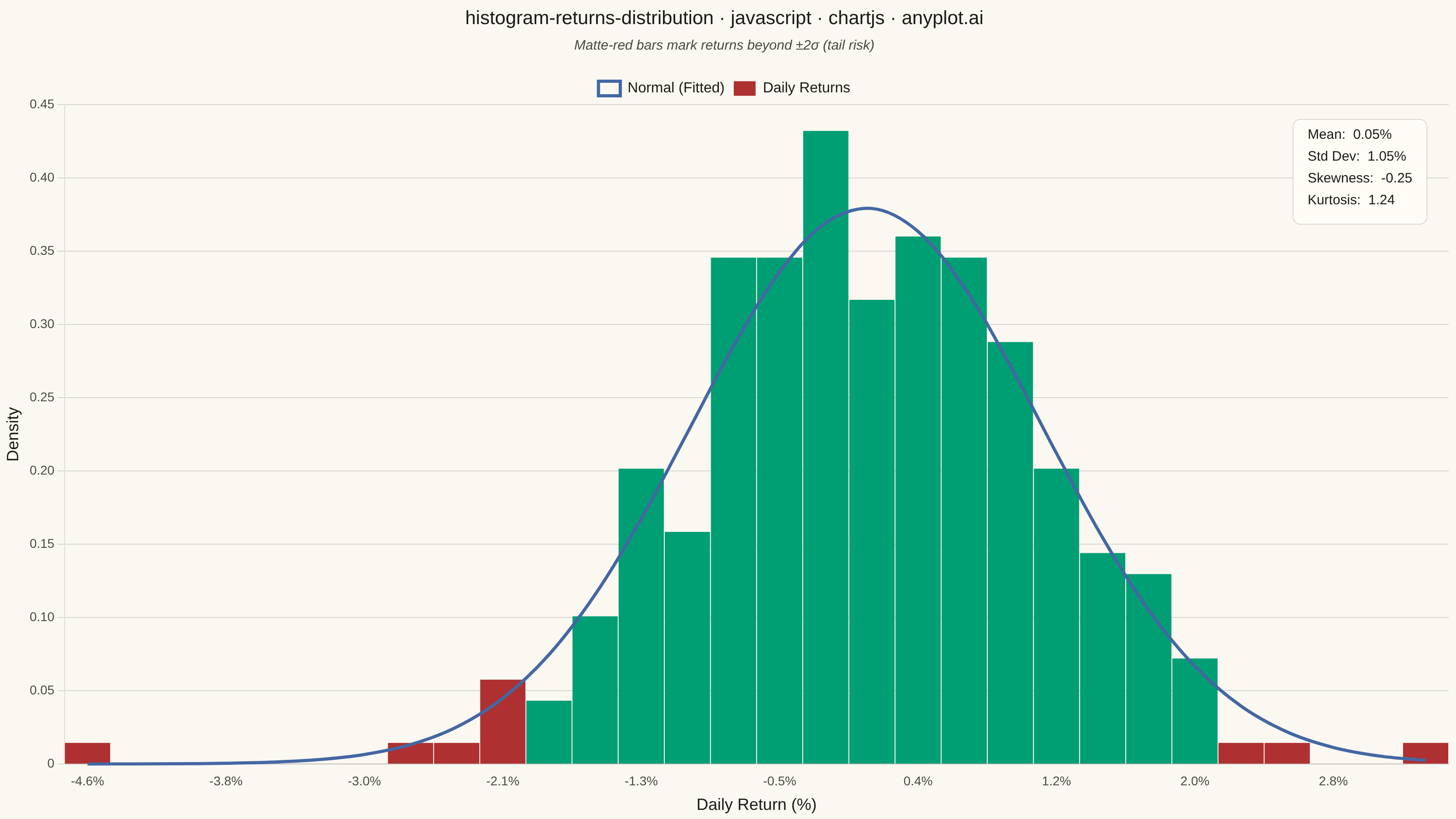

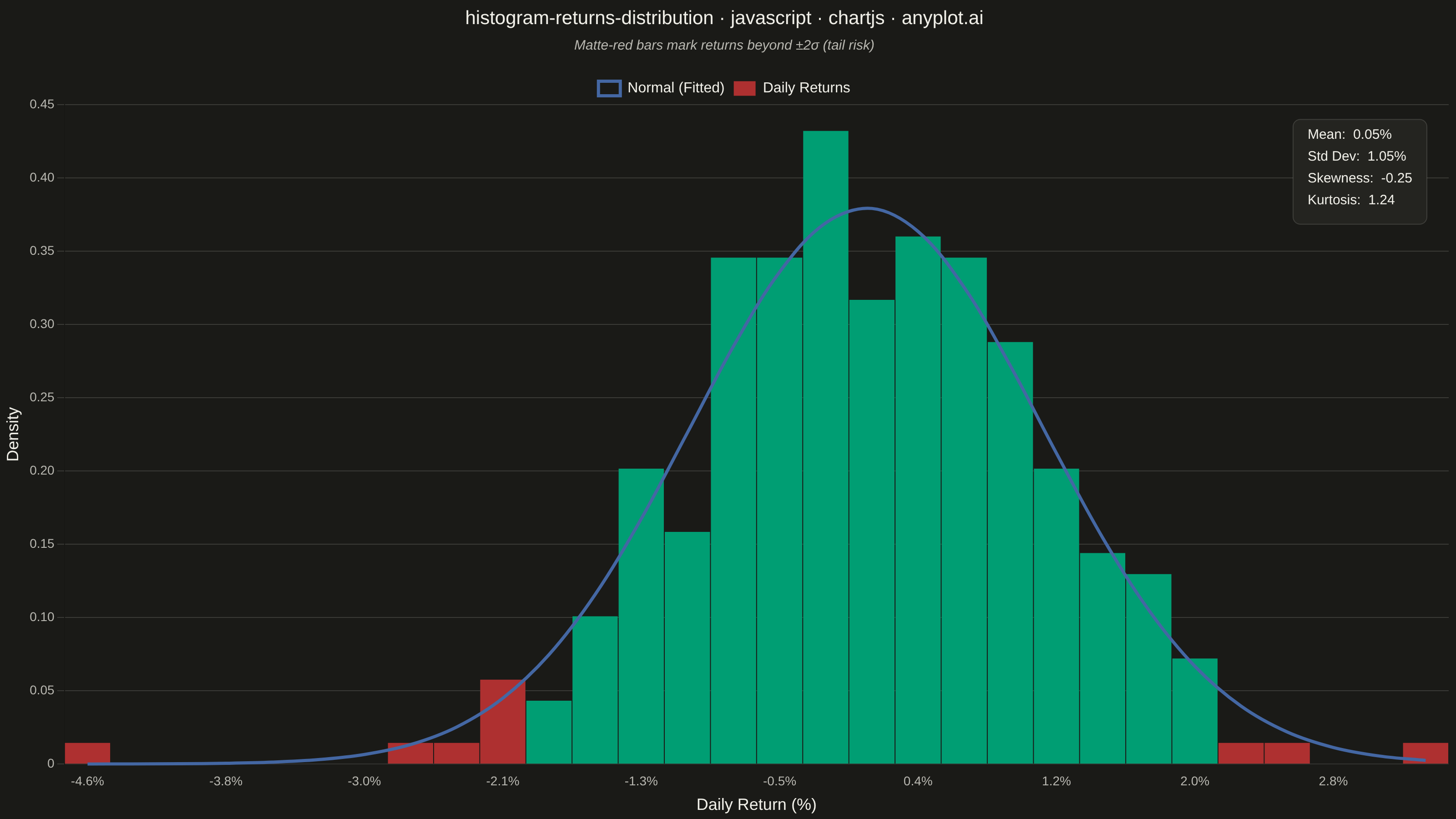

A histogram showing the distribution of financial returns (daily, weekly, or monthly) with a normal distribution overlay for comparison. This visualization is essential for risk analysis, allowing analysts to assess whether returns follow a normal distribution, identify fat tails indicating higher-than-expected extreme events, and measure asymmetry through skewness. Key statistics are displayed directly on the plot for quick interpretation.
// anyplot.ai
// histogram-returns-distribution: Returns Distribution Histogram
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Daily returns (%) for a single equity over one trading year, generated with a
// fixed-seed LCG. A small mixture of wide-vol days is blended in so the
// empirical distribution shows the fat tails real markets exhibit versus a
// pure Gaussian.
function makeLcg(seed) {
let state = seed >>> 0;
return () => {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rng = makeLcg(42);
function randNormal() {
const u1 = Math.max(rng(), 1e-9);
const u2 = rng();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const N_OBS = 252;
const DRIFT = 0.04; // mean daily return, %
const VOL = 1.05; // baseline daily volatility, %
const returns = [];
for (let i = 0; i < N_OBS; i++) {
const fatTailDay = rng() < 0.07;
const vol = fatTailDay ? VOL * 3.2 : VOL;
returns.push(DRIFT + vol * randNormal());
}
// --- Stats -------------------------------------------------------------------
const n = returns.length;
const mean = returns.reduce((a, b) => a + b, 0) / n;
const variance = returns.reduce((a, b) => a + (b - mean) ** 2, 0) / n;
const std = Math.sqrt(variance);
const skewness = returns.reduce((a, b) => a + ((b - mean) / std) ** 3, 0) / n;
const kurtosis = returns.reduce((a, b) => a + ((b - mean) / std) ** 4, 0) / n - 3;
// --- Histogram (density-normalized) -------------------------------------------
const BIN_COUNT = 30;
const lo = Math.min(...returns);
const hi = Math.max(...returns);
const binWidth = (hi - lo) / BIN_COUNT;
const counts = new Array(BIN_COUNT).fill(0);
returns.forEach((r) => {
const idx = Math.min(BIN_COUNT - 1, Math.max(0, Math.floor((r - lo) / binWidth)));
counts[idx]++;
});
const density = counts.map((c) => c / (n * binWidth));
const binCenters = Array.from({ length: BIN_COUNT }, (_, i) => lo + (i + 0.5) * binWidth);
const labels = binCenters.map((c) => `${c.toFixed(1)}%`);
// Fitted normal curve sampled at each bin center, so it overlays the category axis exactly.
function normalPdf(x, mu, sigma) {
return Math.exp(-0.5 * ((x - mu) / sigma) ** 2) / (sigma * Math.sqrt(2 * Math.PI));
}
const normalCurve = binCenters.map((c) => normalPdf(c, mean, std));
// Tail bins beyond +/-2 std get the semantic loss/extreme-event color.
const tailLow = mean - 2 * std;
const tailHigh = mean + 2 * std;
const barColors = binCenters.map((c) => (c < tailLow || c > tailHigh ? t.palette[4] : t.palette[0]));
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Stats box plugin ---------------------------------------------------------
const statsBoxPlugin = {
id: "statsBox",
afterDraw(chart) {
const { ctx, chartArea } = chart;
const lines = [
`Mean: ${mean.toFixed(2)}%`,
`Std Dev: ${std.toFixed(2)}%`,
`Skewness: ${skewness.toFixed(2)}`,
`Kurtosis: ${kurtosis.toFixed(2)}`,
];
const fontSize = 15;
ctx.save();
ctx.font = `${fontSize}px sans-serif`;
const padding = 16;
const lineHeight = fontSize * 1.6;
const boxWidth = Math.max(...lines.map((l) => ctx.measureText(l).width)) + padding * 2;
const boxHeight = lines.length * lineHeight + padding * 1.2;
const boxX = chartArea.right - boxWidth - 24;
const boxY = chartArea.top + 16;
ctx.fillStyle = t.elevatedBg;
ctx.strokeStyle = t.grid;
ctx.lineWidth = 1;
ctx.beginPath();
ctx.roundRect(boxX, boxY, boxWidth, boxHeight, 8);
ctx.fill();
ctx.stroke();
ctx.fillStyle = t.ink;
ctx.textBaseline = "top";
lines.forEach((line, i) => {
ctx.fillText(line, boxX + padding, boxY + padding * 0.6 + i * lineHeight);
});
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------------
new Chart(canvas, {
data: {
labels,
datasets: [
{
type: "bar",
label: "Daily Returns",
data: density,
backgroundColor: barColors,
borderWidth: 0,
categoryPercentage: 1.0,
barPercentage: 0.98,
order: 2,
},
{
type: "line",
label: "Normal (Fitted)",
data: normalCurve,
borderColor: t.palette[2],
backgroundColor: "transparent",
borderWidth: 3.5,
pointRadius: 0,
tension: 0.35,
order: 1,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { top: 8, right: 8 } },
plugins: {
title: {
display: true,
text: "histogram-returns-distribution · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 21, weight: "500" },
padding: { bottom: 8 },
},
subtitle: {
display: true,
text: "Matte-red bars mark returns beyond ±2σ (tail risk)",
color: t.inkSoft,
font: { size: 15, style: "italic" },
padding: { bottom: 20 },
},
legend: {
labels: { color: t.ink, font: { size: 16 }, boxWidth: 24 },
},
},
scales: {
x: {
ticks: { color: t.inkSoft, font: { size: 14 }, maxTicksLimit: 12, maxRotation: 0 },
grid: { display: false },
title: { display: true, text: "Daily Return (%)", color: t.ink, font: { size: 18 } },
},
y: {
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
title: { display: true, text: "Density", color: t.ink, font: { size: 18 } },
beginAtZero: true,
},
},
},
plugins: [statsBoxPlugin],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-returns-distribution/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "histogram-returns-distribution",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/histogram-returns-distribution/javascript/chartjs",
"hub": "https://anyplot.ai/histogram-returns-distribution",
"code_json": "https://api.anyplot.ai/specs/histogram-returns-distribution/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/histogram-returns-distribution",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/chartjs/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Returns Distribution Histogram on anyplot.ai.
